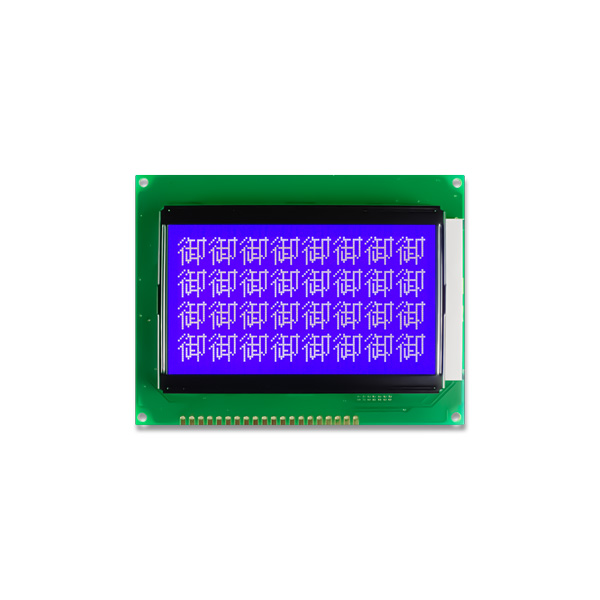

128x64 黑白型 STN LCD 顯示器(含背光), 單色繪圖型LCD, 繪圖型液晶模組, ST7920

Model No. VBG120606-A(BL)

• Resolution (dots):128*64
• Outline Dimensions (mm):93.0*70.0*12.7
• View Area (mm):72.0*40.0
• Dot Size (mm):0.48*0.48
• IC:ST7920-OA-B
• Backlight:LED(White)
• I/F:8-Bits Parallel(6800)

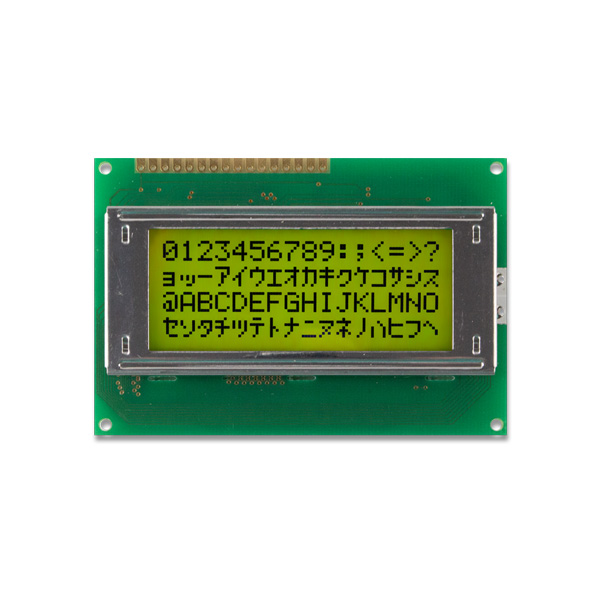

16(C)*4(L) 單色字元型顯示器(含背光), 16Cx4L 液晶顯示器模組, ST7066U

Model No. VBC160402-A(BL)

• Resolution (dots):16(C)*4(L)
• Outline Dimensions (mm):87.0*60.0*12.7
• View Area (mm):62.0*25.6
• Dot Size (mm):0.55*0.55
• IC:ST7066U or Equivalent
• Backlight:LED (Yellow Green)
• I/F:8-Bits Parallel (6800)

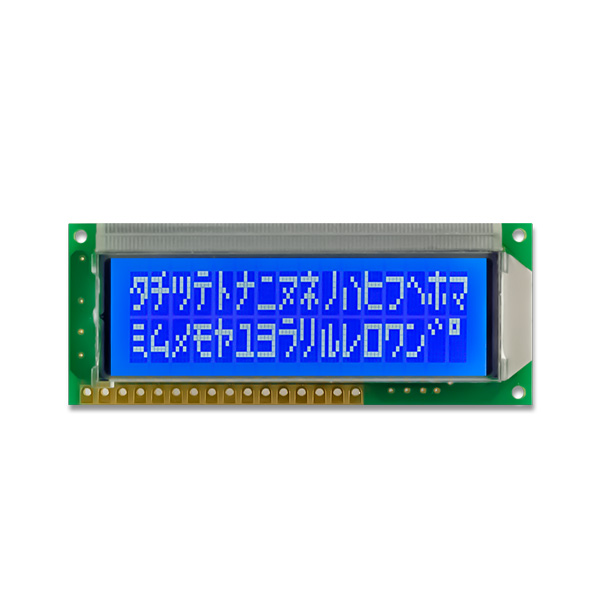

16(C)*2(L) 單色字元型顯示器(含背光), 16Cx2L 液晶顯示器模組, ST7066U

Model No. VBC1602TH-A(BL)

• Resolution (dots):16(C)*2(L)
• Outline Dimensions (mm):66.0*26.0*8.5
• View Area (mm):52.0*16.0
• Dot Size (mm):0.46*0.66
• IC:ST7066U
• Backlight:LED(White)
• I/F:6800

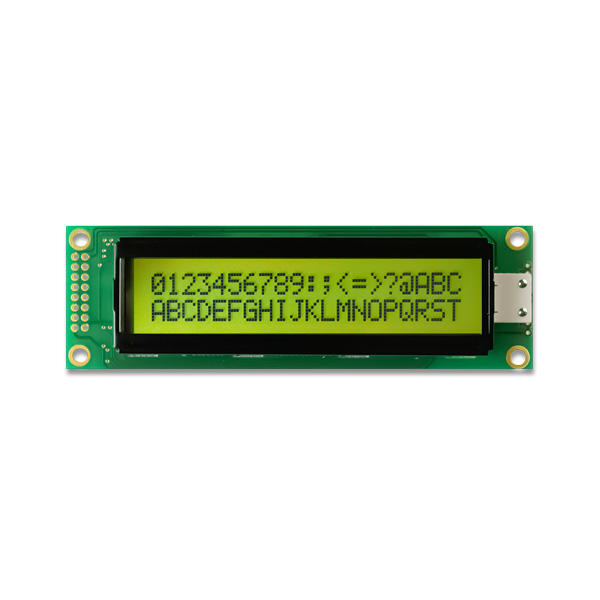

20(C)*2(L) 單色字元型顯示器(含背光), 20Cx2L 液晶顯示器模組, ST7066U

Model No. VBC200202-A(BL)

• Resolution (dots):20(C)*2(L)
• Outline Dimensions (mm):116.0*37.0*12.7
• View Area (mm):85.0*18.8
• Dot Size (mm):0.60*0.65
• IC:ST7066U
• Backlight:LED(Yellow Green)
• I/F:6800

8(C)*1(L) 單色字元型顯示器, 8Cx1L 液晶顯示器模組, ST7066

Model No. VBC0801A

• Resolution (dots):8(C)*1(L)
• Outline Dimensions (mm):60.0*36.0*10.0(13.0)
• View Area (mm):48.0*13.0
• Dot Size (mm):0.85*1.0
• IC:ST7066
• Backlight:None,LED
• I/F:6800
