Wide View TFT
The requirement of wide viewing angle is increasing with the rising popularity of TFT applications. EVERVISION develops a full series of technology to meet customer’s needs, including MVA technology (Multi-domain Vertical Alignment), IPS technology (In-Plane Switching), AAS technology (Azimuthal Anchoring Switch), etc.
In addition to wide viewing angle modules, EVERVISION offers a full series of TFT LCD modules with optional relative Wide View Film (O Film). This O film is affixed to polarizer, so we uphold our attachment process without purchasing new machine, adjusting production processes and adding jigs. Compare to MVA technology, IPS technology, O film has higher price competitive strengths. For more information, please contact us.
Product Search: Wide Angle TFT LCD Display, Wide Angle View TFT Display, Wide Viewing Angle TFT LCD, Wide View TFT
-
.jpg "VGG322425-C(WV)")
3.5" 320x240 TFT Display, Touchscreen Option
Model No. VGG322425-C(WV)
- Size (inch):3.5
- Resolution (dots):320*240
- Outline Dimensions (mm):76.9*63.9*3.3
- I/F Mode:TTL RGB
- Viewing Angle(TYP.):80/80/80/80
- Brightness (cd/m²，typ.):600 / 30khrs typ.
- LED Driver:NO
- Touch Panel:(Option)
-

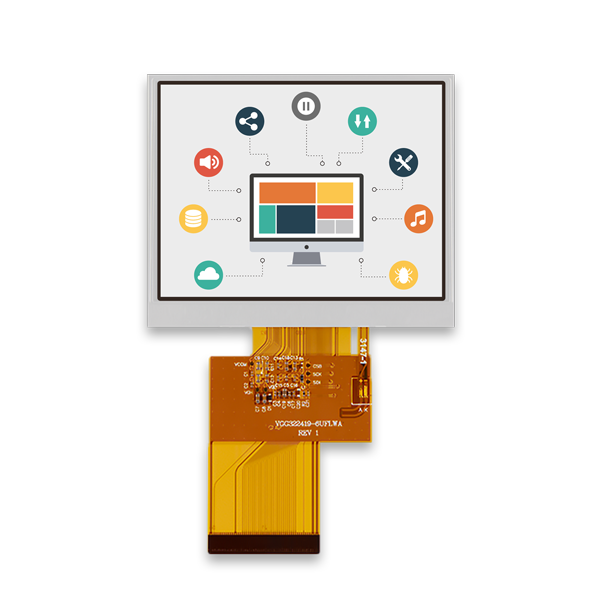

.png "VGG322425-J(WV)")
3.5 inch Wide Angle TFT Panel with Resistive Touchscreen
Model No. VGG322425-J(WV)
- Size (inch):3.5
- Resolution (dots):320*240
- Outline Dimensions (mm):76.9*63.9*3.3
- I/F Mode:TTL RGB
- Viewing Angle(TYP.):80/80/80/80
- Brightness (cd/m²，typ.):960 / 60khrs typ.
- LED Driver:NO
- Touch Panel:(Option)
-

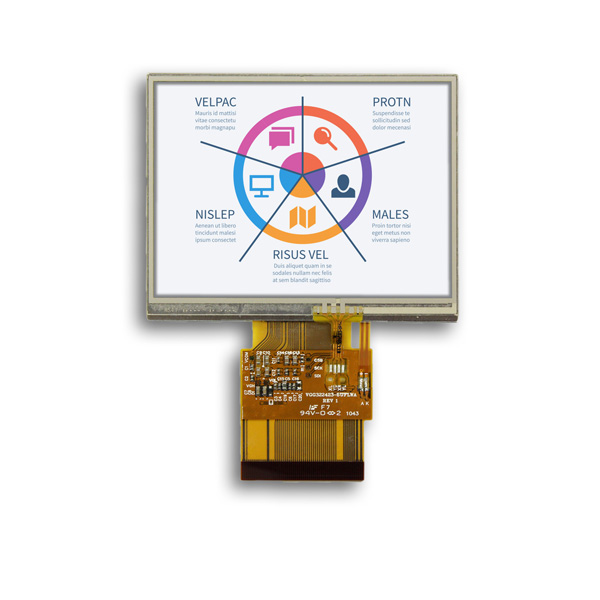

.jpg "VGG322427-C(WV)")
3.5 inch Wide Angle TFT Display Module with PCAP Touch
Model No. VGG322427-C(WV)
- Size (inch):3.5
- Resolution (dots):320*240
- Outline Dimensions (mm):76.9*63.9*4.4
- I/F Mode:TTL RGB
- Viewing Angle(TYP.):80/80/80/80
- Brightness (cd/m²，typ.):460 / 30khrs typ.
- LED Driver:NO
- Touch Panel:RTP (4 wire)
-

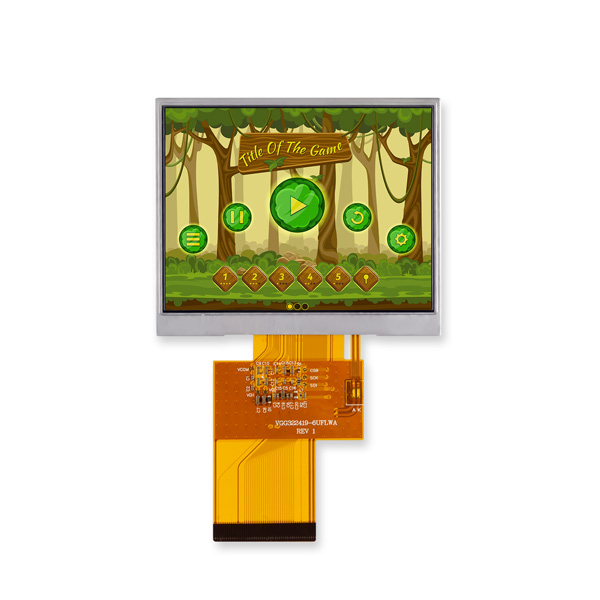

.jpg "VGG322441-A(WV)")
3.5 inch IPS TFT Display with Capacitive Touchscreen
Model No. VGG322441-A(WV)
- Size (inch):3.5
- Resolution (dots):320*240
- Outline Dimensions (mm):76.9*63.9*3.3
- I/F Mode:TTL RGB
- Viewing Angle(TYP.):80/80/80/80
- Brightness (cd/m²，typ.):570 / 50khrs min.
- LED Driver:NO
- Touch Panel:(Option)
-

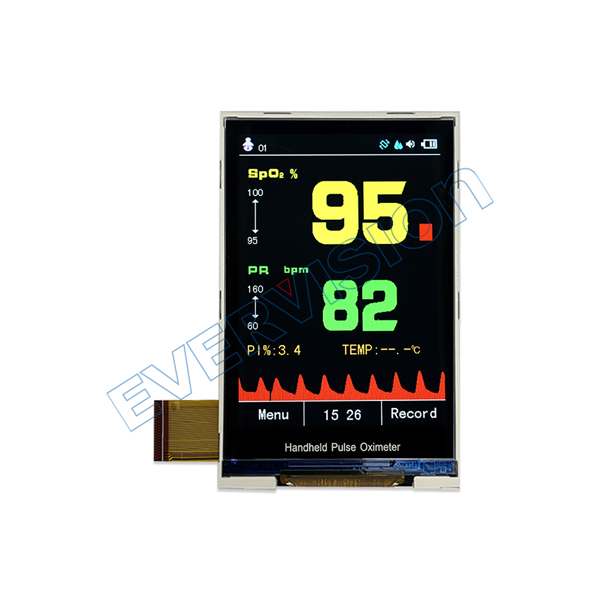

.jpg "VGG324802-A(WV)")
3.5" Wide Angle IPS TFT LCD, Touch Optional IPS TFT
Model No. VGG324802-A(WV)
- Size (inch):3.5
- Resolution (dots):320*480
- Outline Dimensions (mm):54.48*84.71*2.2
- I/F Mode:TTL RGB
- Viewing Angle(TYP.):80/80/80/80
- Brightness (cd/m²，typ.):300 / 30khrs typ.
- LED Driver:NO
- Touch Panel:(Option)
