Open Frame Monitor
EVERVISION produces Open Frame TFT LCD displays which comply with the standards and conformity assessment requirements of markets. The advantages of having this type of display in customer's application is that the flexibility, have the freedom to design a custom enclosure based on our IPCT (improved capacitive touch panel) and TFT LCD module that suits customer’s specifications and needs. Open Frame Touchscreen Monitor support various interfaces of high-speed transmission.
EVERVISION's Open Frame LCD Monitor offer our customer a simple installation by using the perimeter flange-mount points compared to a back-end VESA mount, ensuring efficient integration to any embedded display application.
-

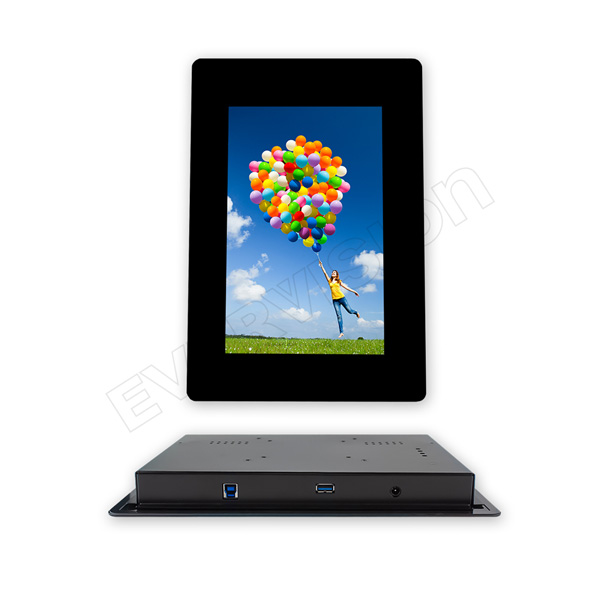

10.1 inch USB Open Frame Monitor, Touch Screen Monitor
Model No. VGG128004-P
- Size (inch):10.1
- Resolution (dots):1280*800
- Outline Dimensions (mm):305.86*209.7*30.0
- Brightness (cd/m²,typ.):490 / 60khrs typ.
- LED Driver:YES
- Touch Panel:IPCT (USB)
-

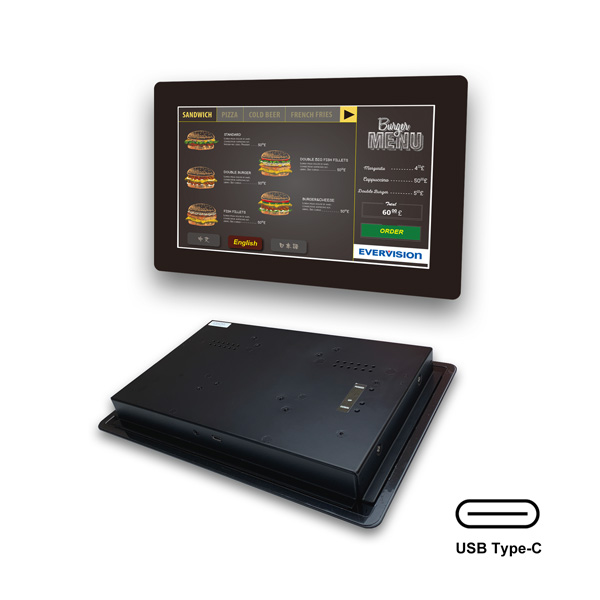

10.1 inch USB Type-C Open Frame Monitor with Capacitive Touch
Model No. VGG128004-T
- Size (inch):10.1
- Resolution (dots):1280*800
- Outline Dimensions (mm):305.86*209.7*32.0
- Brightness (cd/m²,typ.):440 / 60khrs typ.
- LED Driver:YES
- Touch Panel:PCAP (USB)
-

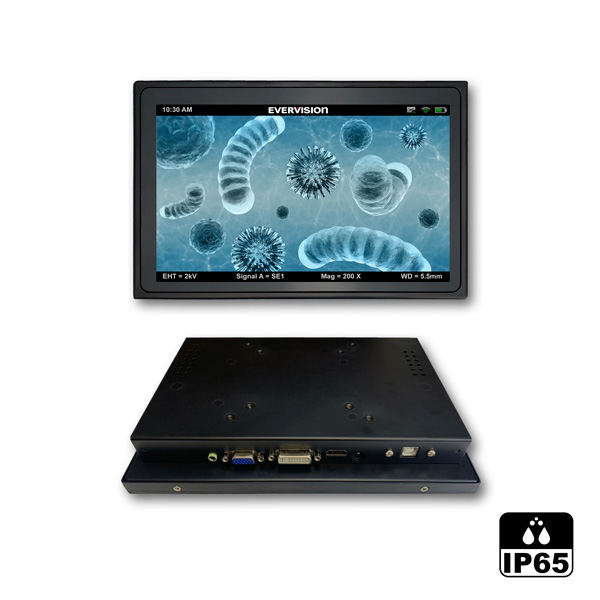

10.1 inch Front IP65 Open Frame Monitor, LCD Monitor
Model No. VGG191203-E
- Size (inch):10.1
- Resolution (dots):1920*1200
- Outline Dimensions (mm):249.4*170.0*39.0
- Brightness (cd/m²,typ.):790 / 50khrs typ.
- LED Driver:YES
- Touch Panel:IPCT (USB)
-

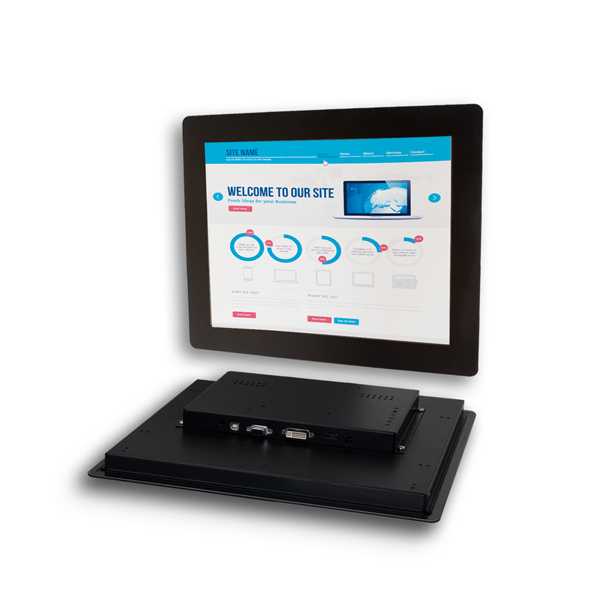

10.4 inch Open Frame Monitor
Model No. VGG107608-B
- Size (inch):10.4
- Resolution (dots):1024*768
- Outline Dimensions (mm):279.4*210*34
- Brightness (cd/m²,typ.):310 / 30khrs min.
- LED Driver:YES
- Touch Panel:IPCT (USB)
-

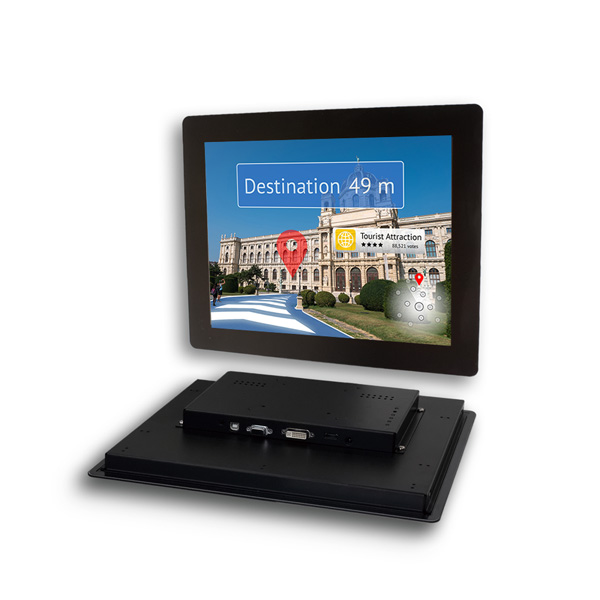

12.1 inch Open Frame LCD Display
Model No. VGG107606-C
- Size (inch):12.1
- Resolution (dots):1024*768
- Outline Dimensions (mm):320.4*250*42.98
- Brightness (cd/m²,typ.):440 / 50khrs min.
- LED Driver:YES
- Touch Panel:IPCT (USB)
