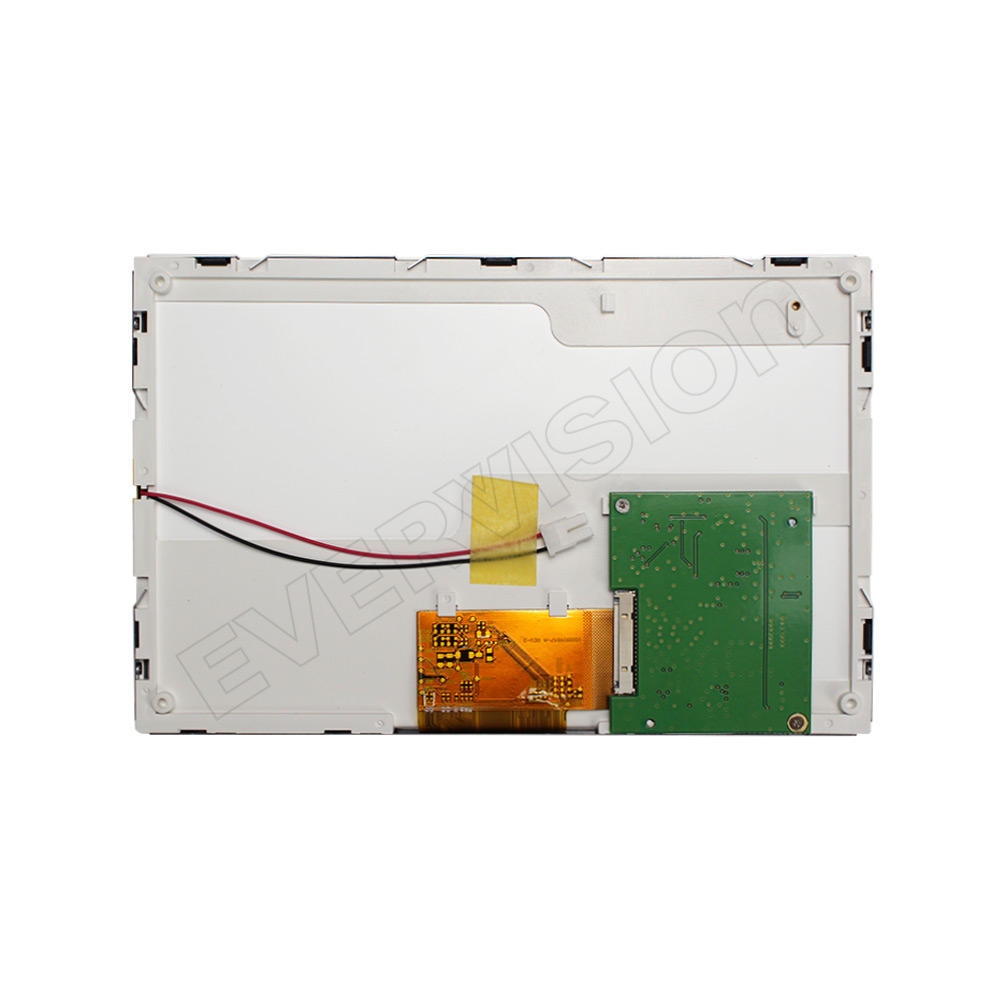

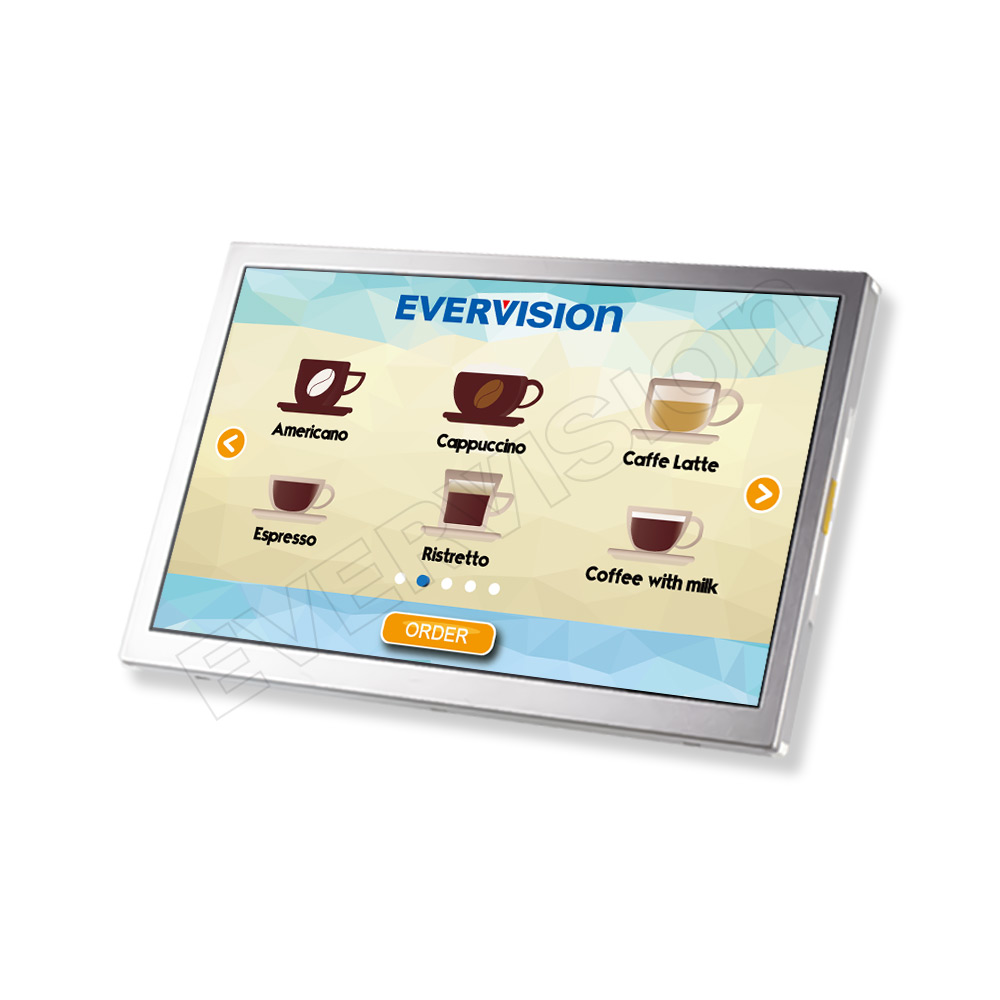

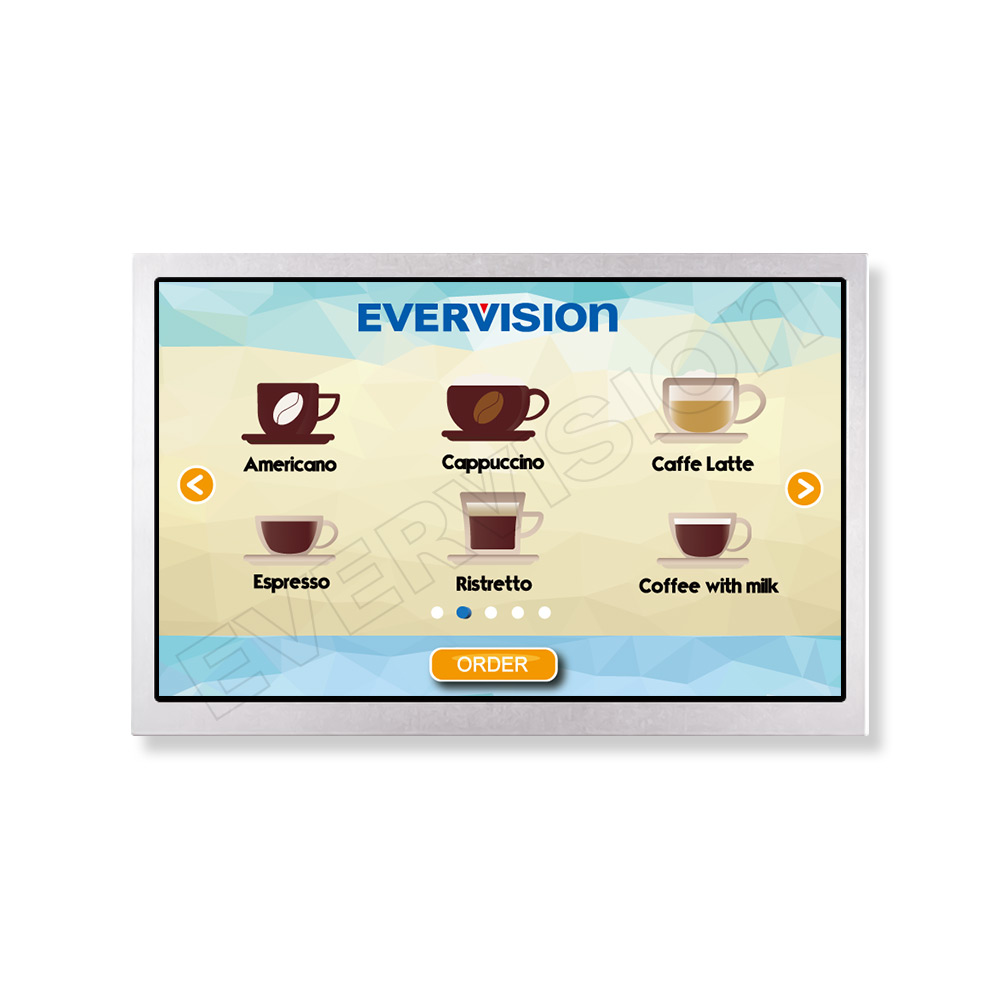

7吋 IPS 顯示器模組, 800x480 IPS TFT 螢幕, (選配) 觸控顯示螢幕

Model No.VGG804847-C(WV)

► WVGA (800×480 pixels) resolution.
► LVDS Receiver 18 bit Interface

7.0吋TFT 顯示器，模組尺寸：166.6*109.4*10.0 mm，產品亮度500cd/㎡，觸控面板模組(選配)，18位元 LVDS 信號介面。億力光電 VGG804847-C 產品操作溫度-20~70度，儲存溫度-30~80度，相當適用於任何工控醫療設備、手持式裝置入式系統及其他產品顯示使用。

檔案下載

加入詢價

Size (inch):

7.0

Resolution (dots):

800*480

Outline Dimensions (mm):

166.6*109.4*10.0

Technology:

IPS

I/F Mode:

LVDS

Viewing Angle(TYP.):

85/85/85/85

I/F Number:

Brightness Level:

0 ~ 499

Brightness (cd/m²，typ.):

500 / 50khrs min.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

VGG804847-C | Wide View | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	T_ST	-30	+80	°C
Operating Ambient Temperature	T_OP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	3.0	3.3	3.6	V
Power Supply Current	ICC	-	160	224	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Current of Backlight Unit	I_B	-	200	-	mA
Voltage of Backlight Unit	V_B	-	(9.9)	-	V
LED Life Time(25℃)	-	50000	-	-	hr

TTL-LCD Module

Connector: HIROSE DF19K-20P-1H

Pin No.	Symbol	Description
1	VCC	+3.3V power supply
2	VCC	+3.3V power supply
3	VSS	Ground
4	VSS	Ground
5	RIN0-	Negative LVDS differential data input
6	RIN0+	Positive LVDS differential data input
7	VSS	Ground
8	RIN1-	Negative LVDS differential data input
9	RIN1+	Positive LVDS differential data input
10	VSS	Ground
11	RIN2-	Negative LVDS differential data input
12	RIN2+	Positive LVDS differential data input
13	VSS	Ground
14	RCLK-	Negative LVDS differential clock input
15	RCLK+	Positive LVDS differential clock input
16	VSS	Ground
17	NC	Not connection
18	NC	Not connection
19	VSS	Ground
20	VSS	Ground

Backlight Unit

Connector: JST BHSR-02VS-1(N) or compatible connector

Pin No.	Symbol	Description
1	VLEDA	Backlight LED Anode.
2	VLEDC	Backlight LED Cathode.

同系列 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.410.0	TTL RGB	(Option)	500 / 50khrs min.	☛ VGG804847-A(WV)
7.0”	800x480	IPS	166.6109.411.5	TTL RGB	RTP (4 wire)	400 / 50khrs typ.	☛ VGG804847-B(WV)
7.0”	800x480	IPS	166.6109.410.0	LVDS	(Option)	500 / 50khrs typ.	☛ VGG804847-C(WV)
7.0”	800x480	IPS	166.6109.410.0	TTL RGB	(Option)	1000 / 50khrs typ.	☛ VGG804847-G(SR)
7.0”	800x480	IPS	166.6109.411.5	TTL RGB	RTP (4 wire)	800 / 50khrs typ.	☛ VGG804847-H(SR)
7.0”	800x480	IPS	166.6109.410.0	LVDS	(Option)	1000 / 50khrs typ.	☛ VGG804847-I(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

【LCD 技術 / LCD Technology】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.410.0	LVDS	500 / 50khrs min.	☛ VGG804847-C(WV)
7.0”	800x480	TN	166.6109.410.0	LVDS	500 / 50khrs min.	☛ VGG804849-C

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

【介面 / Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.410.0	TTL RGB	500 / 50khrs min.	☛ VGG804847-A(WV)
7.0”	800x480	IPS	166.6109.410.0	LVDS	500 / 50khrs min.	☛ VGG804847-C(WV)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

【亮度 / Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.410.0	LVDS	500 / 50khrs min.	☛ VGG804847-C(WV)
7.0”	800x480	IPS	166.6109.410.0	LVDS	1000 / 50khrs min.	☛ VGG804847-I(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板
