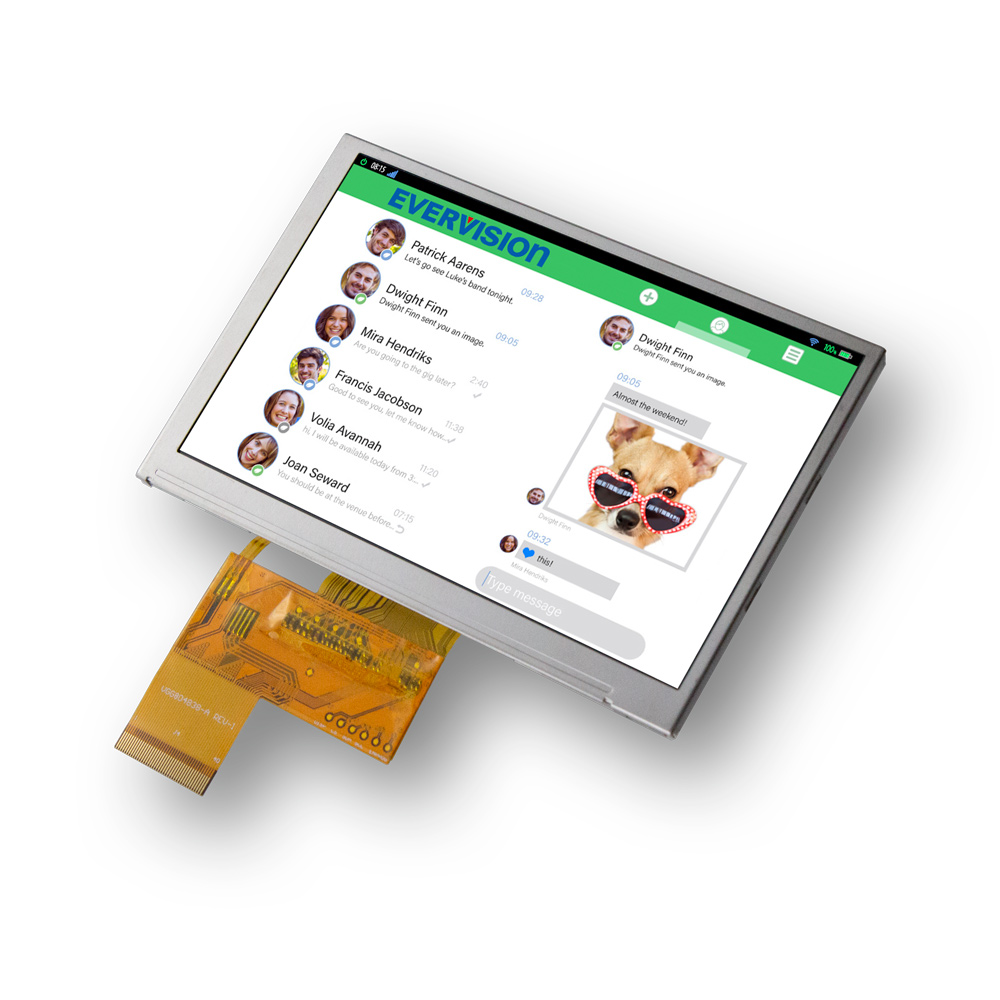

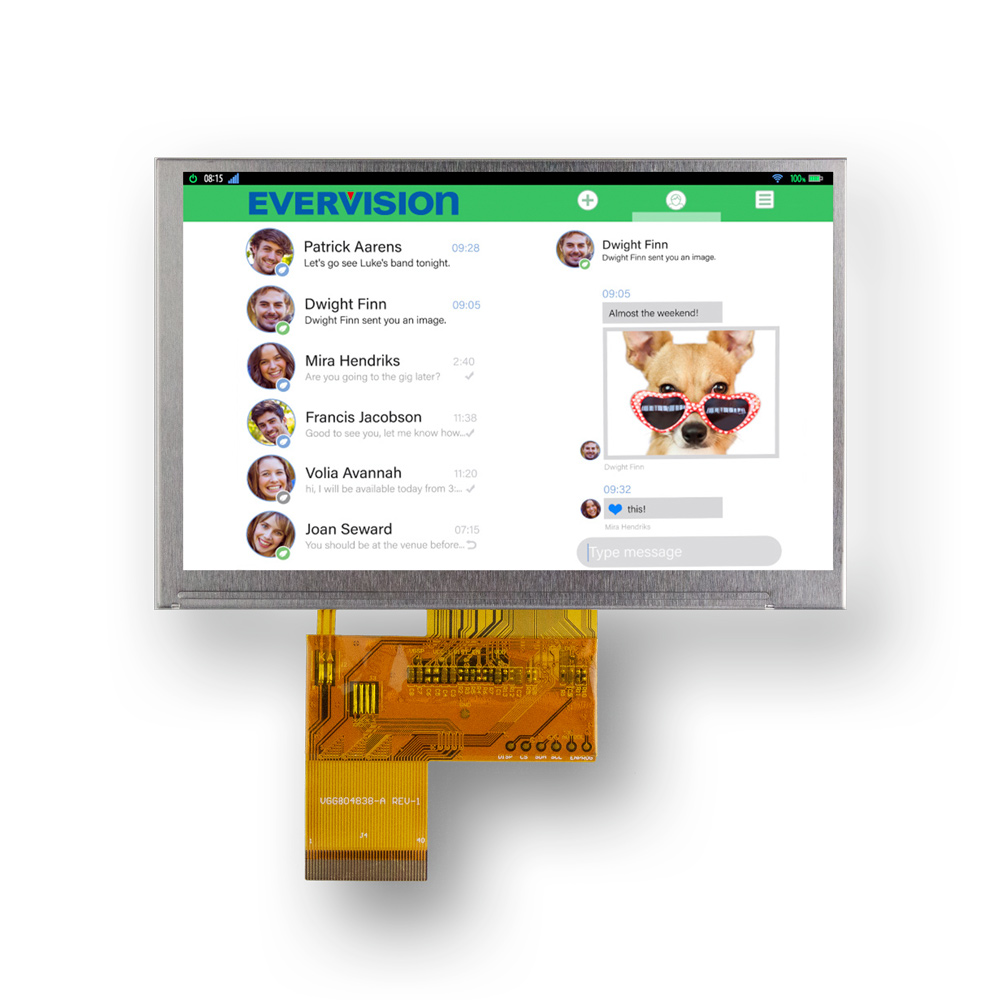

5.0吋廣視角IPS TFT LCD模組, 彩色IPS TFT 面板, 觸控面板 (選配)
Model No.VGG804838-A(WV)
► WVGA (800×480 pixels) resolution.
► Digital 24 bit parallel RGB.
VGG804838-A是一款採用5.0 inch TFT(IPS)廣視角顯示的產品,在影像資料傳輸上支TTL RGB介面。在產品操作使用上其工作溫度是-30~85℃,儲存溫度是-30~85℃。
5.0 inch TFT (VGG804838-A) 是一款800*480解析度的產品,可搭載觸控面板,億力光電廣視角系列產品特色是視角廣度廣,色彩鮮明、具有飽和自然的優質畫面,非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等,尤其是需要播放影片的應用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
Size (inch):
5.0
Resolution (dots):
800*480

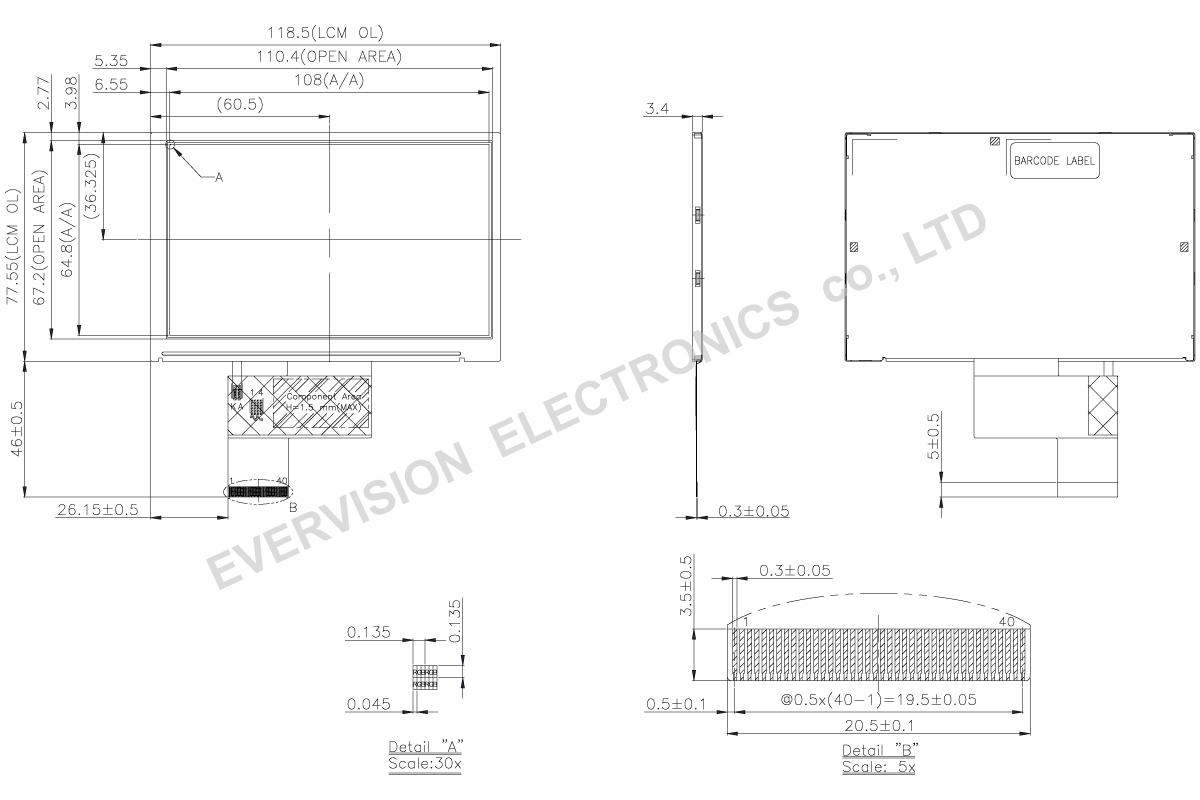

Outline Dimensions (mm):
118.5*77.55*3.4
Technology:
IPS
I/F Mode:
TTL RGB
Viewing Angle(TYP.):
80/80/80/80
I/F Number:
40
Brightness Level:
500 ~ 799
Brightness (cd/m²,typ.):
500 / 60khrs typ.
LED Driver:
NO
Touch Panel:
(Option)
Top (°C):
-30~85
Tst (°C):
-30~85
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+85 |
°C |
Operating Ambient Temperature |
TOP |
-30 |
+85 |
°C |
Electrical Characteristics (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Digital Power Supply Voltage |
VCC |
3.0 |
3.3 |
3.6 |
V |
Digital Current |
ICC |
- |
75 |
105 |
mA |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Voltage of Backlight Unit |
VB |
- |
(21.7) |
- |
V |
Current of Backlight Unit |
IB |
- |
40 |
- |
mA |
Power Consumption |
PBL |
- |
(0.868) |
- |
W |
LED life time |
- |
50000 |
60000 |
- |
Hr |
Pin No. |
Symbol |
Description |
1 |
VLED- |
LED Cathode |
2 |
VLED+ |
LED Anode |
3 |
GND |
Ground |
4 |
VCC |
Power supply |
5 |
R0 |
Red data(LSB) |
6 |
R1 |
Red data |
7 |
R2 |
Red data |
8 |
R3 |
Red data |
9 |
R4 |
Red data |
10 |
R5 |
Red data |
11 |
R6 |
Red data |
12 |
R7 |
Red data(MSB) |
13 |
G0 |
Green data(LSB) |
14 |
G1 |
Green data |
15 |
G2 |
Green data |
16 |
G3 |
Green data |
17 |
G4 |
Green data |
18 |
G5 |
Green data |
19 |
G6 |
Green data |
20 |
G7 |
Green data(MSB) |
21 |
B0 |
Blue data(LSB) |
22 |
B1 |
Blue data |
23 |
B2 |
Blue data |
24 |
B3 |
Blue data |
25 |
B4 |
Blue data |
26 |
B5 |
Blue data |
27 |
B6 |
Blue data |
28 |
B7 |
Blue data(MSB) |
29 |
GND |
Ground |
30 |
CLK |
Dot clock |
31 |
DISP |
DISP sets the display mode. DISP=” 1”, Normal display mode DISP=” 0”, Standby mode |
32 |
HSYNC |
Horizontal sync signal applied to the RGB interface, default is negative polarity. |
33 |
VSYNC |
Vertical sync signal applied to the RGB interface, default is negative polarity. |
34 |
DE |
Input data enable control. |
35 |
NC |
No connection |
36 |
GND |
Ground |
37 |
NC |
No connection |
38 |
NC |
No connection |
39 |
NC |
No connection |
40 |
NC |
No connection |
