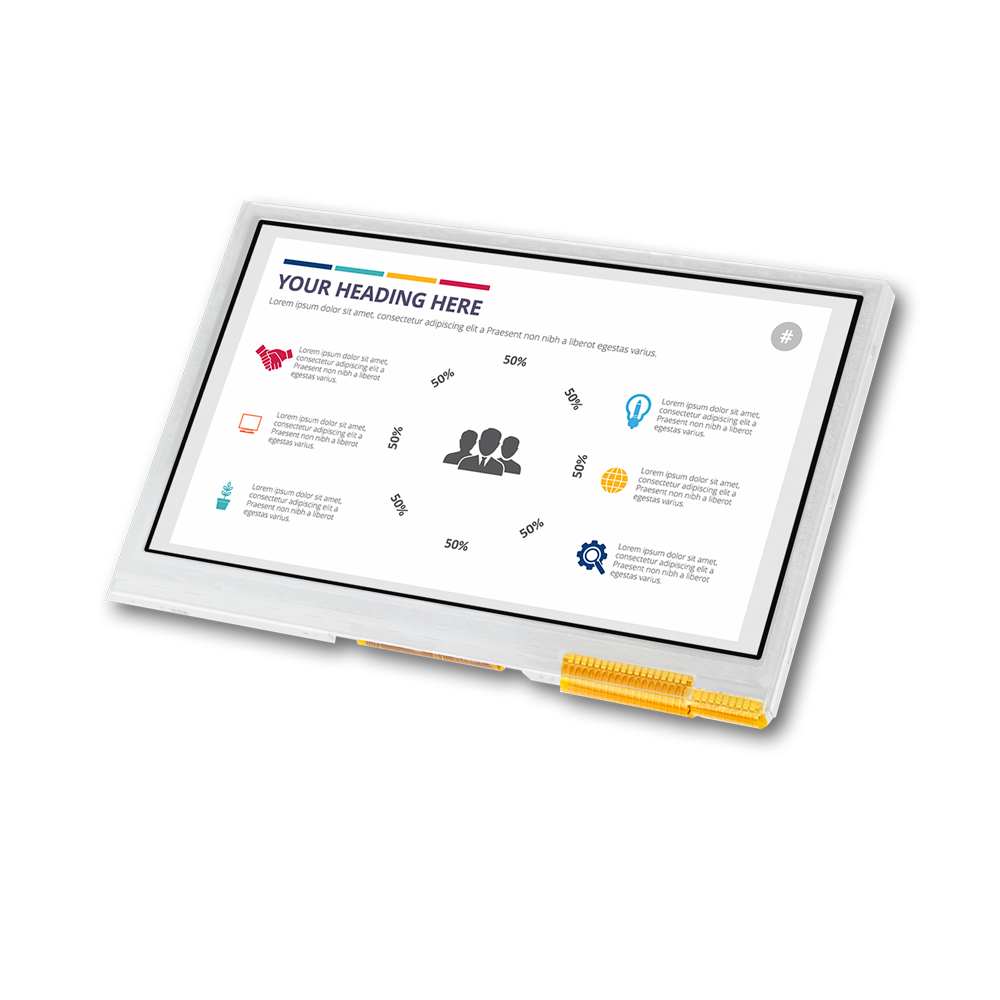

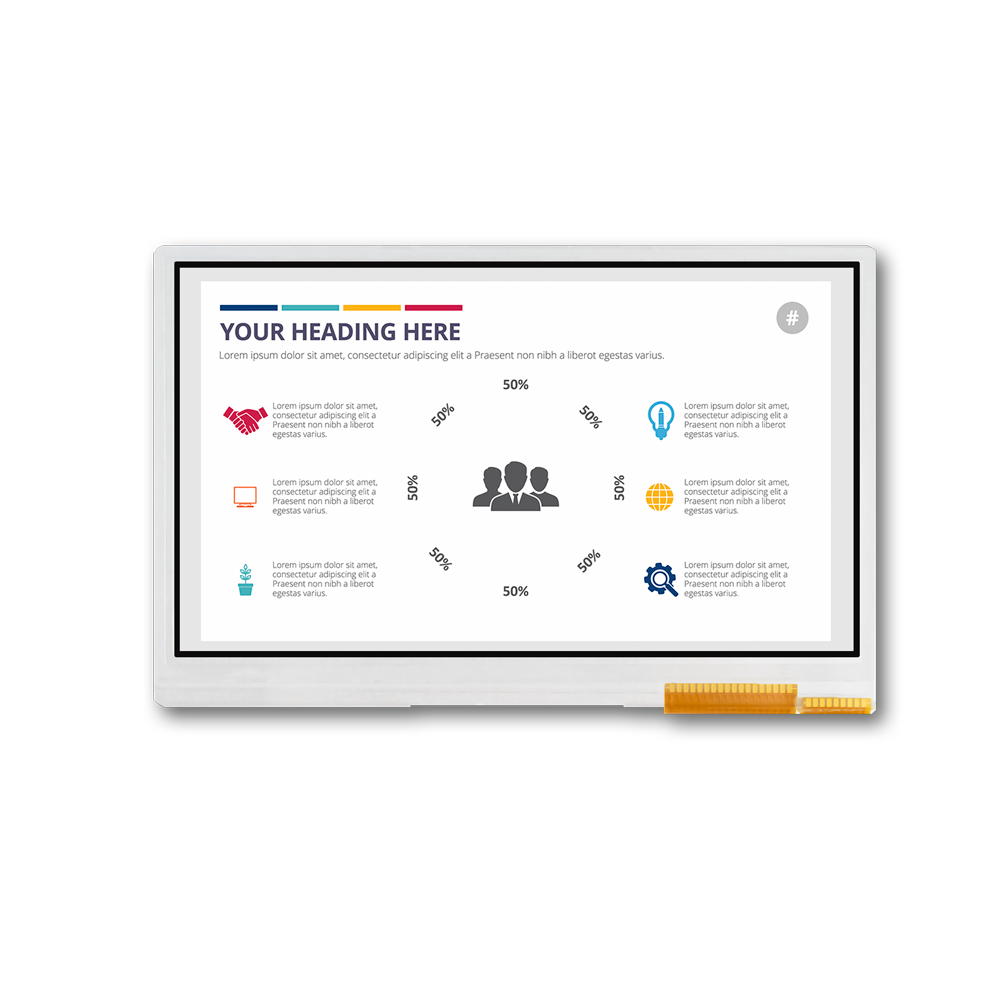

4.3吋MIPI TFT 面板, MIPI LCD 顯示器, MIPI IPS 顯示器

Model No.VGG804834-C(WV)

► WVGA (800×480 pixels) resolution.
► MIPI Interface: 2 Data Lanes.
► LED driver circuit is built in this module to provide PWM Dimmer function.
► Projected Capacitive Touch
- I2C Interface
- Multi Touch (Ten points)
- 2048 x 2048 resolution

VGG804834-C是一款4.3"解析度為800RGBx480的TFT LCD模組，模組尺寸為 105.5(W)*67.2(H)*7.55(D) mm，電氣上模組支援MIPI的介面，模組驅動電壓3.0~3.6 V(建議3.0V)。VGG804834-C結合IPS TFT 面板(支援廣視角TFT LCD模組)，搭配由我司所開發的的PCB板整合MIPI介面、LED Driver及I2C介面觸控解決方案以提供客戶全方面的解決方案。

檔案下載

加入詢價

Size (inch):

4.3

Resolution (dots):

800*480

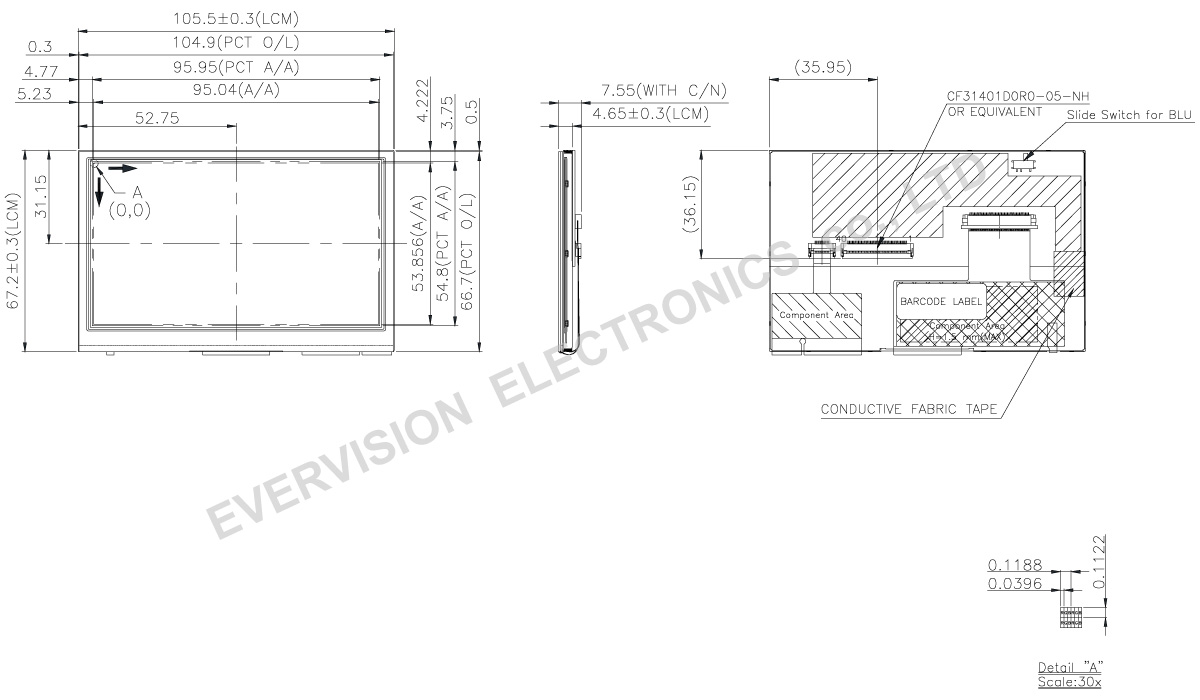

Outline Dimensions (mm):

105.5*67.2*7.55

Technology:

IPS

Viewing Angle(TYP.):

80/80/80/80

I/F Mode:

MIPI

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

715 / 50khrs min.

LED Driver:

YES

Touch Panel:

IPCT (I2C)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	3.0	3.3	3.6	V
Power Supply Current	ICC	-	258	361.2	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Backlight Driver Power Supply	VBLIN	3.1	-	12.5	V	-
Backlight Driver Current	I_BL	-	300	420	mA	VBLIN=3.3V
Backlight Driver Current	I_BL	-	160	224	mA	VBLIN=5.0V
Backlight Driver Current	I_BL	-	60	84	mA	VBLIN=12.0V
PWM signal Low voltage	V_BLENIL	-	-	0.4	V	-
PWM signal High voltage	V_BLENIH	1.2	-	-	V	-
PWM frequency	f_BLENI	5.0	-	100	kHz	-
LED life time	-	50000	60000	-	Hr	(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness.

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	VDD	3.0	3.3	3.6	V	-
Power Supply Current	IDD	-	12.5	17.5	mA	(1)
Power Consumption	P_L	-	41.25	57.75	mW	@3.3V
Report Rate	R_R	-	60	-	V	-
Interface		I²C				-
Function		Multi Touch				-

Note(1): This test condition is touched with 10 points.

TFT-LCD Module

Connector: J1, CVILUX CF31401D0R0-05 or equivalent

Pin No.	Symbol	Description
1	V_CC	Power supply voltage
2	V_CC	Power supply voltage
3	V_CC	Power supply voltage
4	N.C.	Not Connection
5	/RESET	Reset signal input, active low
6	N.C.	Not Connection
7	GND	Ground
8	MDA0-	MIPI D-PHY Data Lane 0-
9	MDA0+	MIPI D-PHY Data Lane 0+
10	GND	Ground
11	MDA1-	MIPI D-PHY Data Lane 1-
12	MDA1+	MIPI D-PHY Data Lane 1+
13	GND	Ground
14	MCLK-	MIPI D-PHY Clock Lane 1-
15	MCLK+	MIPI D-PHY Data Lane 1+
16	GND	Ground
17	N.C.	Not Connection
18	N.C.	Not Connection
19	GND	Ground
20	N.C.	Not Connection
21	N.C.	Not Connection
22	GND	Ground
23	GND	Ground
24	GND	Ground
25	BLEN	LED driver PWM signal
26	VBLIN	LED driver power supply
27	VBLIN	LED driver power supply
28	VBLIN	LED driver power supply
29	VBLIN	LED driver power supply
30	GND	Ground
31	GND	Ground
32	VDD	Power supply for PCAP
33	/RST	External reset signal, active low.
34	/INT	Interrupt signal, active low, asserted to request Host start a new transaction.
35	SDA	I2C data signal
36	SCL	I2C clock signal
37	N.C.	Not Connection
38	N.C.	Not Connection
39	N.C.	Not Connection
40	GND	Ground

Slider Switch for Backlight

Pin No.	Description	Note
1-2	PWM Dimmer	Default
2-3	Backlight Turn On	-

【尺寸 / Size】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
4.3”	800x480	IPS	105.567.27.55	MIPI	715 / 60khrs typ.	☛ VGG804834-C
5.0”	800x480	TN	118.577.557.26	MIPI	500 / 60khrs typ.	☛ VGG804835-A
7.0”	800x480	TN	164.9100.011.4	MIPI	400 / 20khrs min.	☛ VGG804836-A
7.0”	800x480	TN	164.9100.014.9	MIPI	350 / 20khrs min.	☛ VGG804836-D
7.0”	800x480	TN	76.963.93.3	MIPI	350 / 10khrs typ.	☛ VGG804834-C
7.0”	1024x600	IPS	165.5104.013.5	MIPI	1200 / 50khrs min.	☛ VGG106011-B(SR)
7.0”	1024x600	TN	165.0104.010.4	MIPI	500 / 50khrs typ.	☛ VGG106012-A
10.1”	1280x800	AAS	229.46149.112.05	MIPI	490 / 50khrs typ..	☛ VGG128017-B

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板
