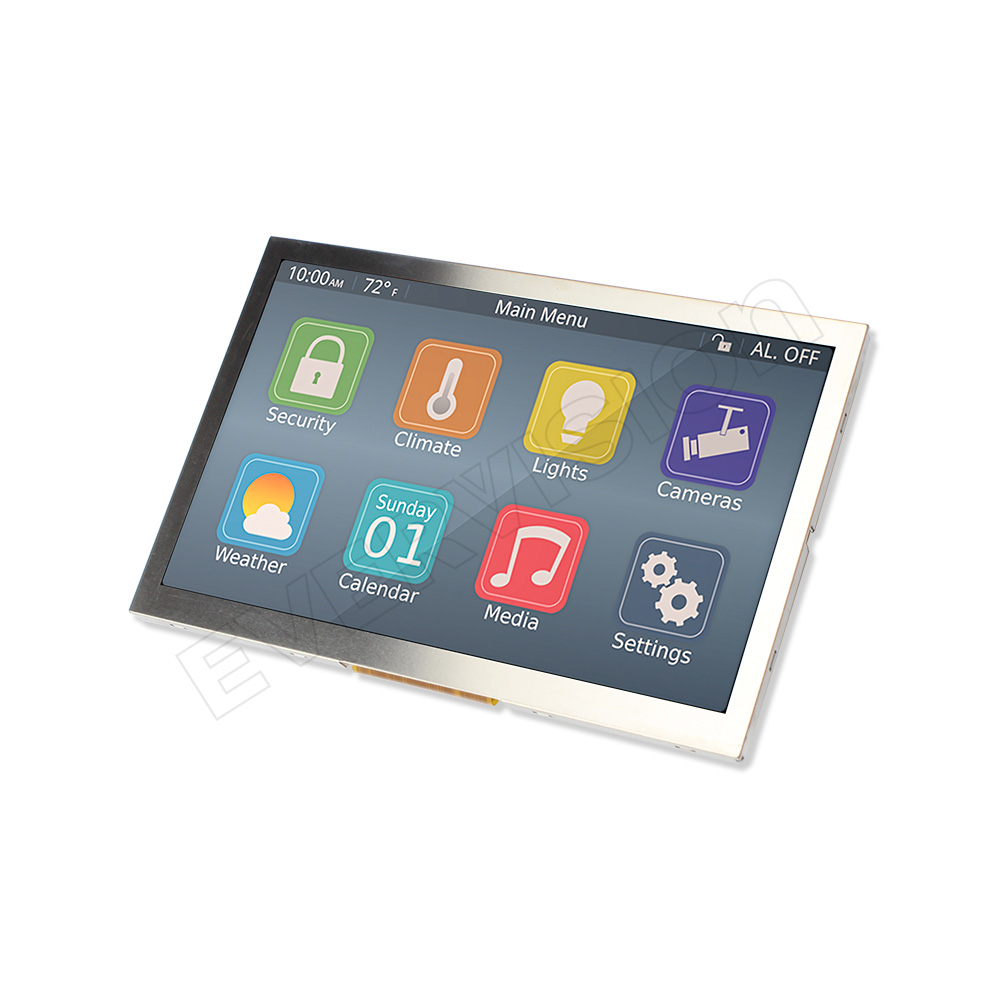

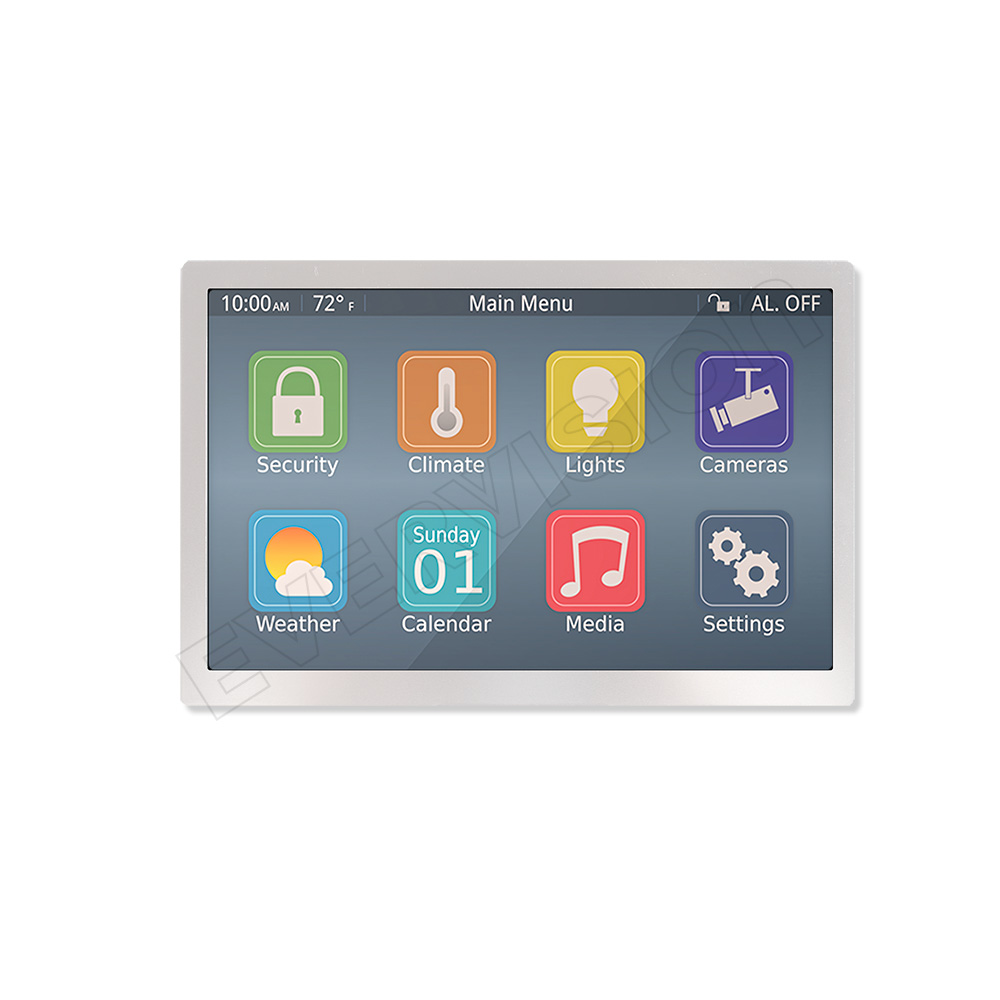

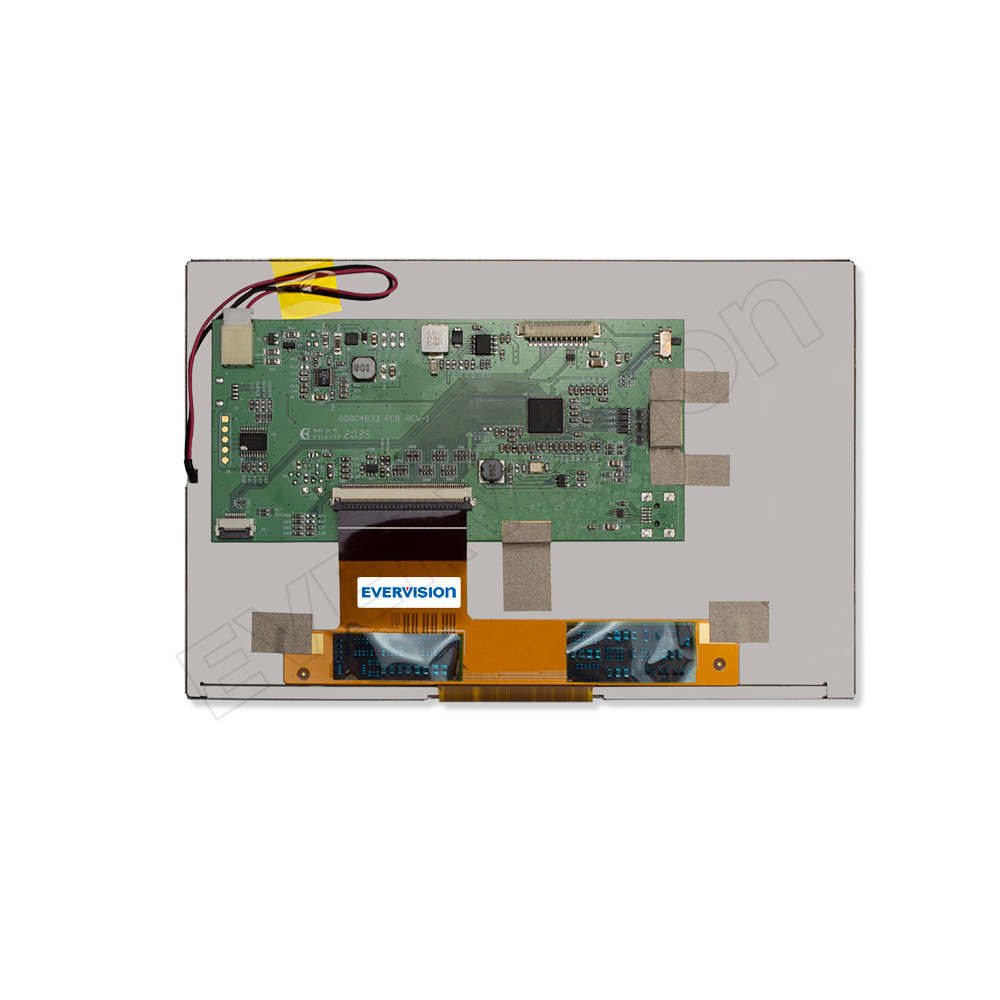

7.0吋IPS TFT LCD, 支援 HDMI 信號介面 IPS TFT 顯示器

Model No.VGG804833-L(WV)

► WVGA (800×480 pixels) resolution
► LED driver circuit is built in this module to provide PWM Dimmer function.
► HDMI* Interface

*Support HDMI Interface, suit for your digital device.

VGG804833-L(WV)是一款採用7 inch TFT(IPS)廣視角顯示的產品，在影像資料傳輸上支援HDMI訊號。在產品操作使用上其工作溫度是-20~70℃，儲存溫度是-30~80℃。

7 inch TFT (VGG804833-L(WV)) 是一款800*480解析度的產品，可搭載觸控面板，億力光電廣視角系列產品特色是視角廣度廣，色彩鮮明、具有飽和自然的優質畫面，非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等，尤其是需要播放影片的應用。

億力光電提供全方面且多樣性的中小尺寸TFT顯示模組，我們確信可以完美滿足您的應用需求。

檔案下載

加入詢價

Size (inch):

7.0

Resolution (dots):

800*480

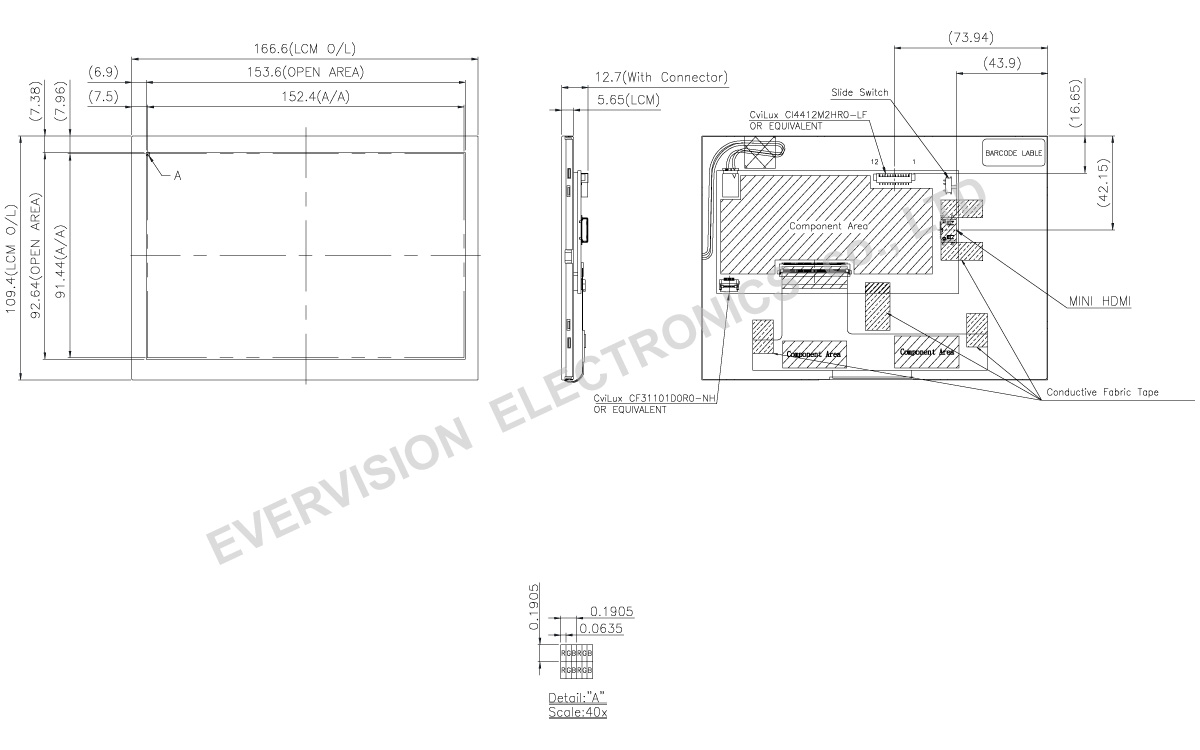

Outline Dimensions (mm):

166.6*109.4*12.7

Technology:

IPS

Viewing Angle(TYP.):

80/80/80/80

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

900 / 65khrs Min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

VGG804833-L(WV) | Wide View | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	T_ST	-30	+80	°C
Operating Ambient Temperature	T_OP	-20	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	420	558	mA
Power Supply Voltage	VCC	23.5	24.0	24.5	V
Power Supply Current	ICC	-	240	336	mA
VSYNC Frequency	F_V	-	60	-	Hz
PWM signal Low voltage	V_PWML	0	-	0.4	V
PWM signal High voltage	V_PWMH	1.5	-	5	V
PWM frequency	f_PWM	100	-	1000	Hz
LED Life Time(25℃)	-	65000	-	-	Hr

TFT-LCD Module

Connector: Mini-HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2 Shield	Ground
2	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. Channel-2 receives red-pixel data in active display and CTL2, CTL3 control signals in blank.
3	TMDS Data2-	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1 Shield	Ground
5	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. Channel-1 receives red-pixel data in active display and CTL1 control signals in blank.
6	TMDS Data1-	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0 Shield	Ground
8	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair. Channel-0 receives red-pixel data in active display and HSYNC, VSYNC control signals in blank.
9	TMDS Data0-	Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock Shield	Ground
11	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair.
12	TMDS Clock-	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair.
13	DDC Ground	Ground
14	N.C.	Not Connection
15	DDC_SCL	Serial Clock for EEPROM
16	DDC_SDA	Serial Data for EEPROM
17	Reserved (N.C. on device)	Not Connection
18	+5V Power	5V for EEPROM
19	HPD	Hot Plug Detect High: Active link Low: Inactive link

Connector

Connector: CI4412M2HR0

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	BLEN	PWM Dimmer
4	PWM	Backlight adjust
5	NC	Not Connected
6	NC	Not Connected
7	NC	Not Connected
8	NC	Not Connected
9	NC	Not Connected
10	NC	Not Connected
11	GND	Ground
12	GND	Ground

Slider Switch for Backlight Enable(S1)

Pin No.	Description	Note
1-2	LED_EN	Default
2-3	HDMI_EN	-

同系列 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	1500 / 30khrs min.	☛ VGG804833-N(SR)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	1500 / 30khrs min.	☛ VGG804833-O(SR)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	1500 / 30khrs min.	☛ VGG804833-T(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

*Support HDMI Interface, suit for your digital device.

【介面 / Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

*Support HDMI Interface, suit for your digital device.

【亮度 / Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	1500 / 30khrs min.	☛ VGG804833-O(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

*Support HDMI Interface, suit for your digital device.
