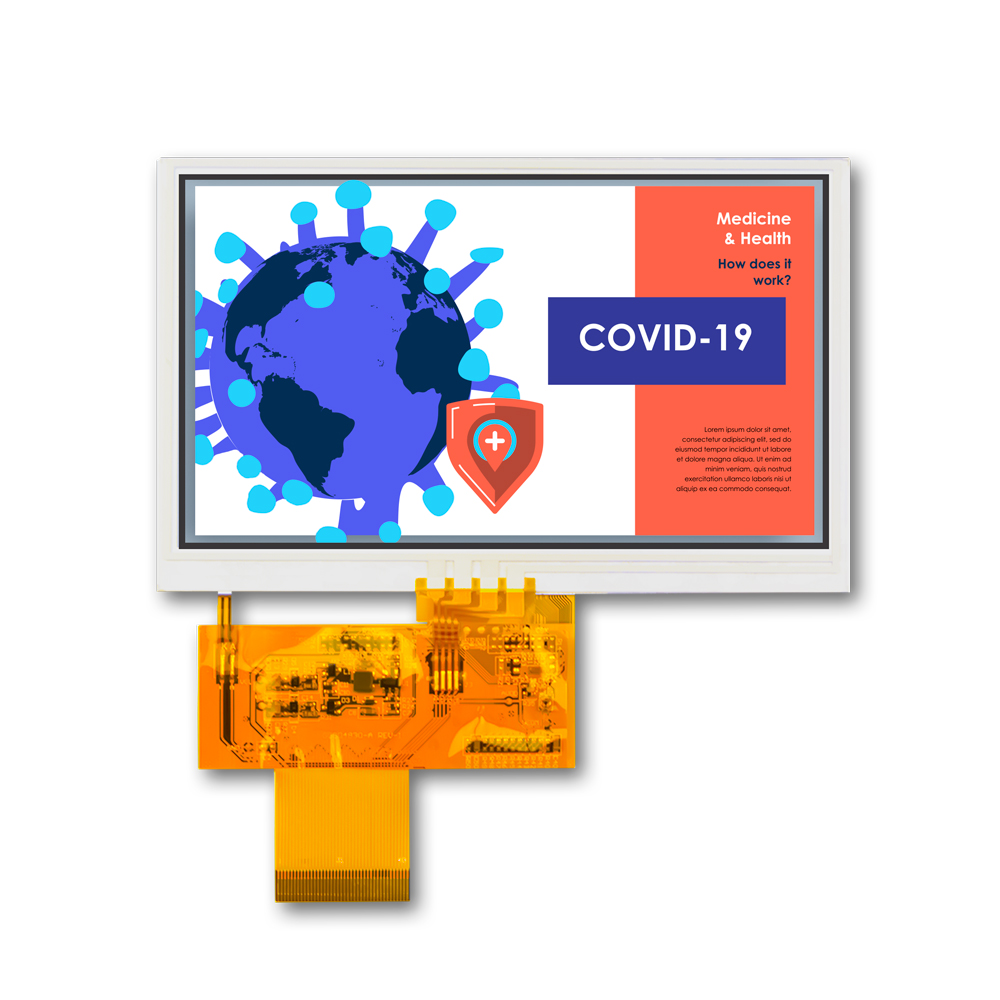

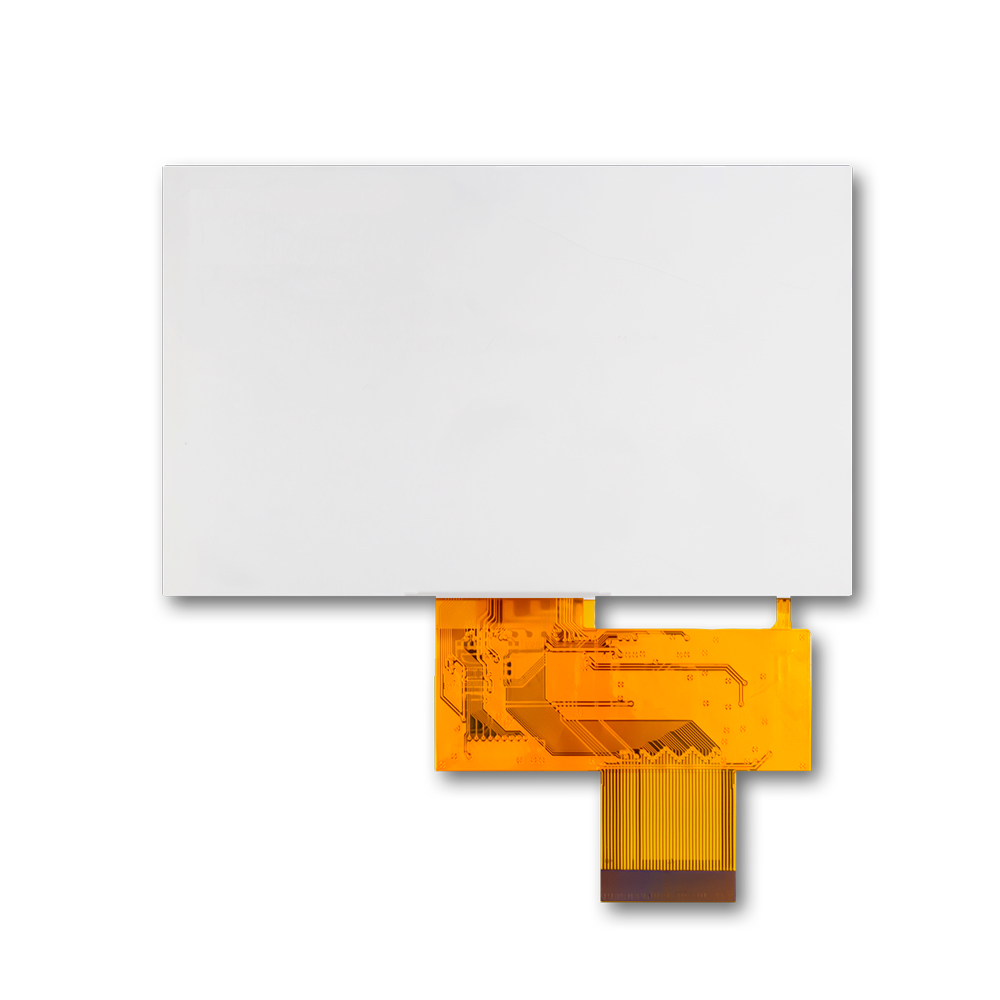

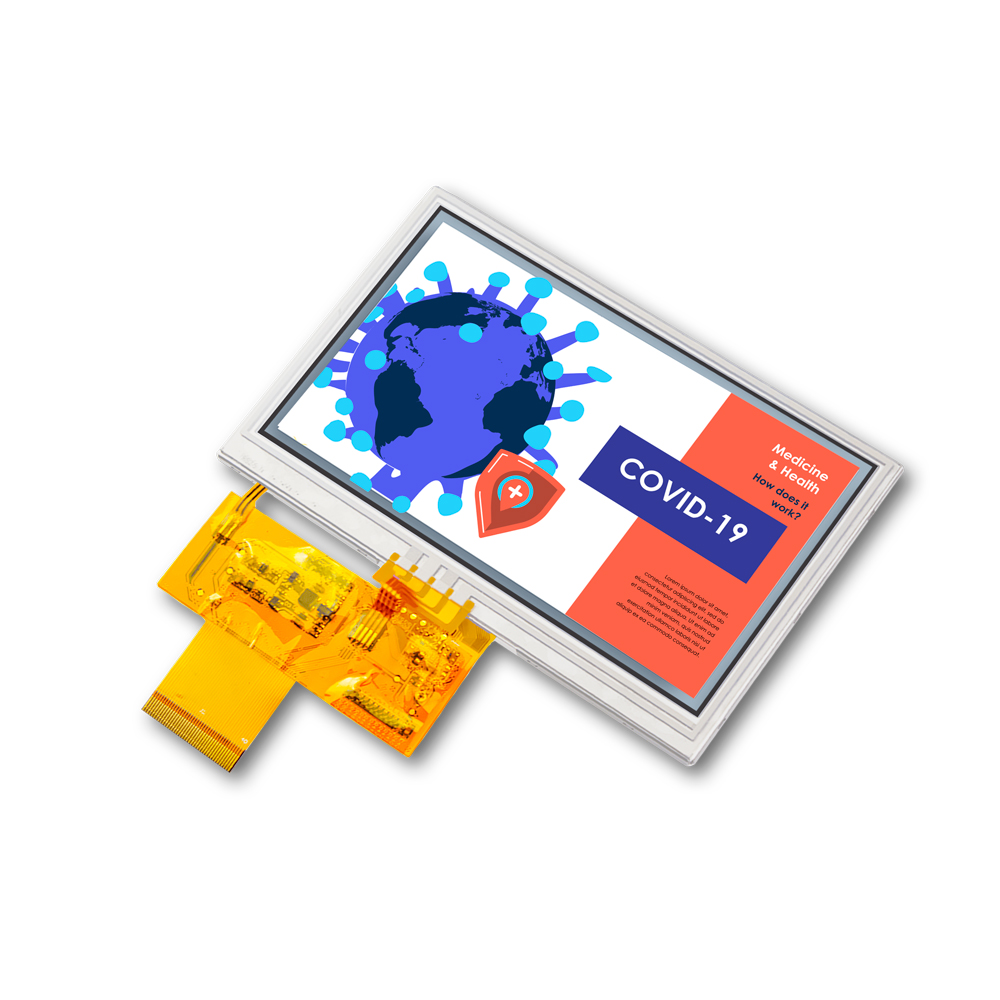

4.3吋IPS TFT Full-彩色顯示器, 800x480 IPS 彩色TFT LCD
Model No.VGG804830-H(WV)
VGG804830-H是一款採用4.3 inch TFT(IPS)廣視角顯示的產品,在影像資料傳輸上支TTL RGB介面。在產品操作使用上其工作溫度是-20~70℃,儲存溫度是-30~80℃。
4.3 inch TFT (VGG804830-H) 是一款800*480解析度的產品,可搭載觸控面板,億力光電廣視角系列產品特色是視角廣度廣,色彩鮮明、具有飽和自然的優質畫面,非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等,尤其是需要播放影片的應用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
► WVGA (800×480 pixels) resolution.
► 24 bit parallel RGB.
► Transparent Touch panel
- 4-Wire
- Analog Resistive
Size (inch):
4.3
Resolution (dots):
800*480

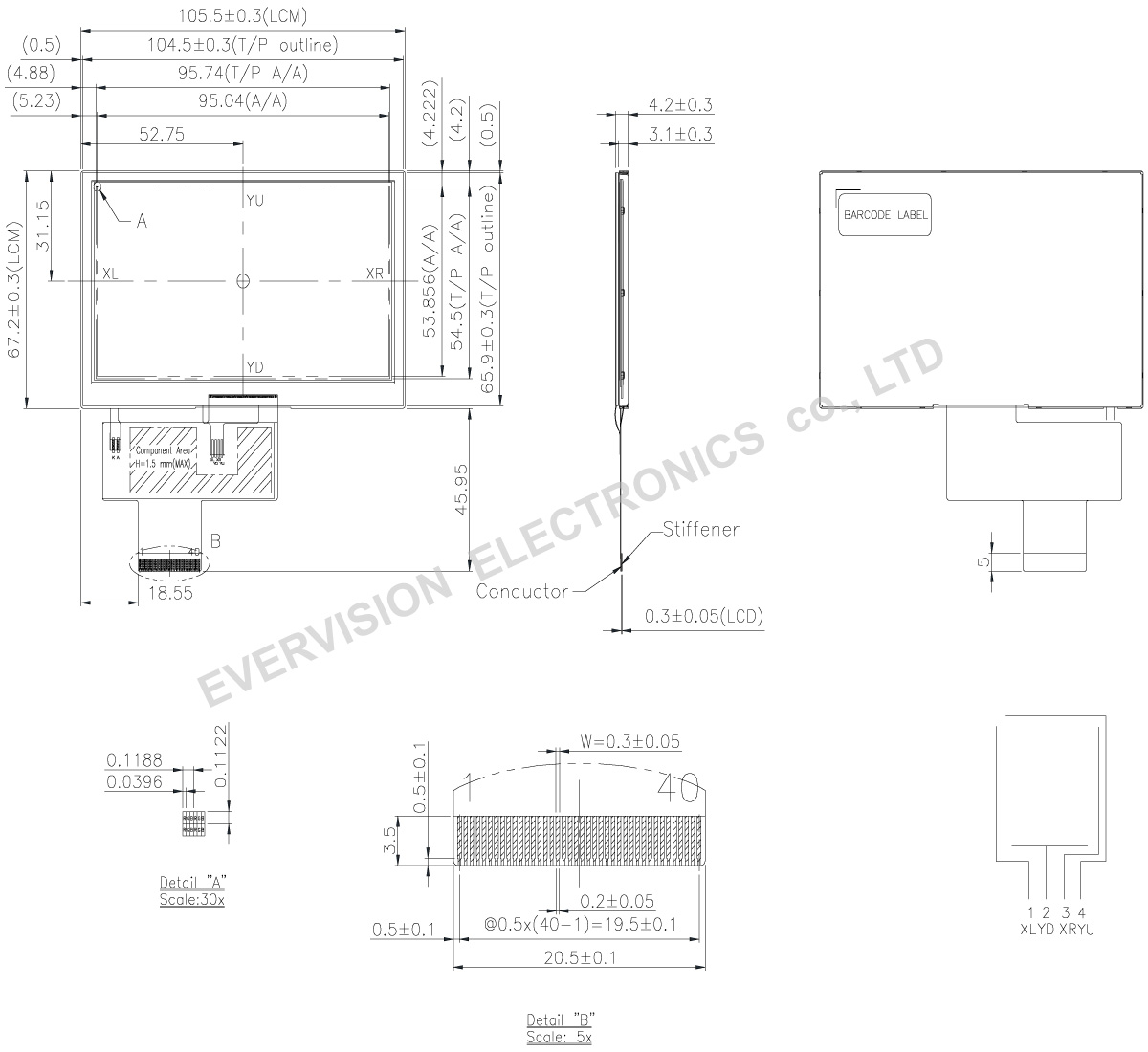

Outline Dimensions (mm):
105.5*67.2*4.2
Technology:
IPS
Viewing Angle(TYP.):
80/80/80/80
I/F Mode:
TTL RGB
I/F Number:
40
Brightness Level:
500 ~ 799
Brightness (cd/m²,typ.):
630 / 60khrs typ.
LED Driver:
NO
Touch Panel:
RTP (4 wire)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Digital Power Supply Voltage |
DVDD |
3.0 |
3.3 |
3.6 |
V |
Digital Current |
IDVDD |
- |
275 |
385 |
mA |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
LED Voltage |
VL |
- |
(33) |
- |
V |
LED Current |
IB |
- |
20 |
- |
mA |
Power Consumption |
PBL |
- |
(660) |
- |
mW |
LED Life Time(25℃) |
- |
50000 |
60000 |
- |
hr |
Transparent Touch Panel
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Voltage |
- |
5 |
10 |
V |
- |
|
Power Supply Current |
X-direction |
500 |
- |
1300 |
Ω |
At connector |
Y-direction |
100 |
- |
650 |
Ω |
At connector |
|
Insulation Resistance |
≧ 20MΩ |
at DC25V |
||||
Chatting |
≦ 10 ms |
At connector |
||||
Linearity |
≦1.5% |
- |
||||
Linearity Force |
≤120gf less input with stylus pen (R0.8mm) Activation force guarantee area: 3 mm inside of Active Area. |
|||||
Linearity |
≤100 gf(Typical 20 gf) less individual point on with stylus pen(R0.8 mm). Activation force guarantee area: 3mm inside of Active Area. |
Pin No. |
Symbol |
Description |
1 |
VSS |
Ground |
2 |
VSS |
Ground |
3 |
DVDD |
Power supply |
4 |
DVDD |
Power supply |
5 |
R0 |
Red data(LSB) |
6 |
R1 |
Red data |
7 |
R2 |
Red data |
8 |
R3 |
Red data |
9 |
R4 |
Red data |
10 |
R5 |
Red data |
11 |
R6 |
Red data |
12 |
R7 |
Red data(MSB) |
13 |
G0 |
Green data(LSB) |
14 |
G1 |
Green data |
15 |
G2 |
Green data |
16 |
G3 |
Green data |
17 |
G4 |
Green data |
18 |
G5 |
Green data |
19 |
G6 |
Green data |
20 |
G7 |
Green data(MSB) |
21 |
B0 |
Blue data(LSB) |
22 |
B1 |
Blue data |
23 |
B2 |
Blue data |
24 |
B3 |
Blue data |
25 |
B4 |
Blue data |
26 |
B5 |
Blue data |
27 |
B6 |
Blue data |
28 |
B7 |
Blue data(MSB) |
29 |
VSS |
Ground |
30 |
PCLK |
Pixel clock |
31 |
STBYB |
Standby mode. STBYB ="H", normal operation(Default) STBYB ="L", timing controller, source driver will turn off, all output are High-Z |
32 |
HSYNC |
Horizontal Sync input with negative polarity |
33 |
VSYNC |
Vertical Sync input with negative polarity |
34 |
NC |
No connection |
35 |
XL |
X-axis left terminal |
36 |
YD |
Y-axis lower terminal |
37 |
XR |
X-axis right terminal |
38 |
YU |
Y-axis upper terminal |
39 |
LEDK |
Backlight LED Cathode |
40 |
LEDA |
Backlight LED Anode |
