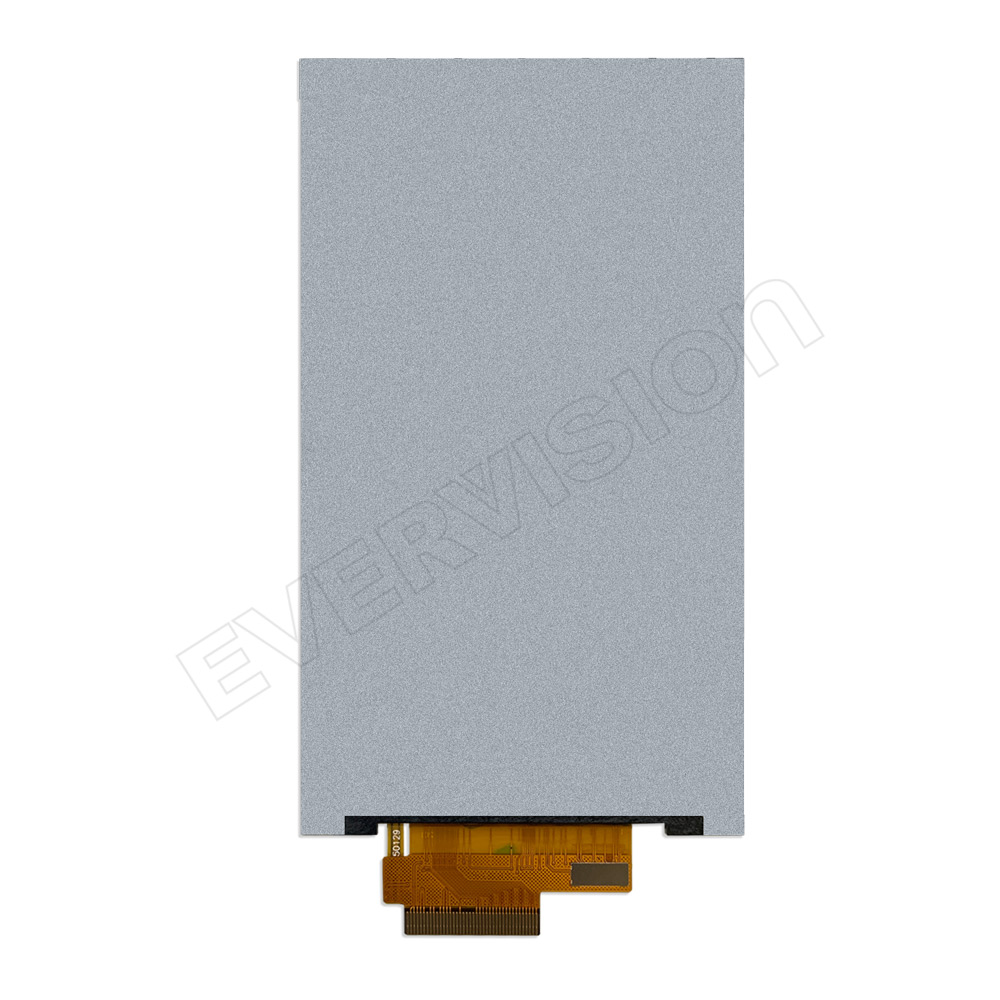

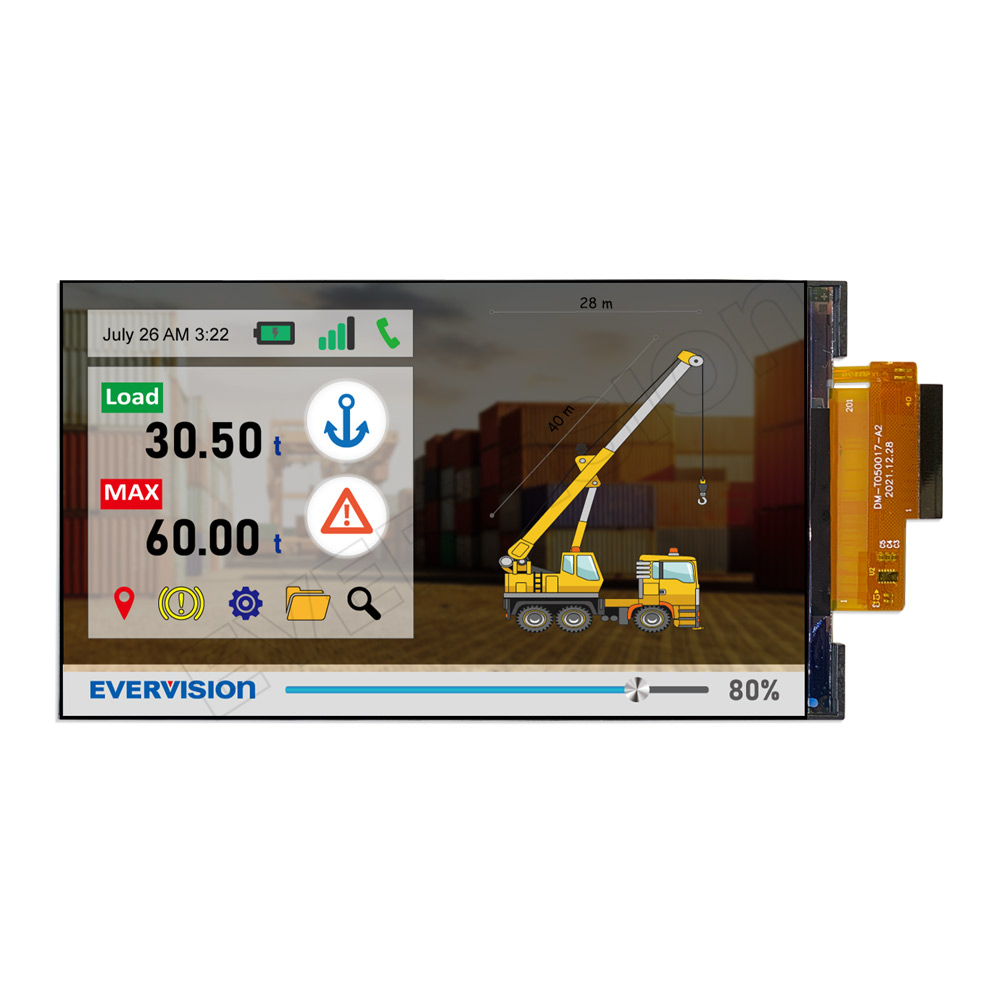

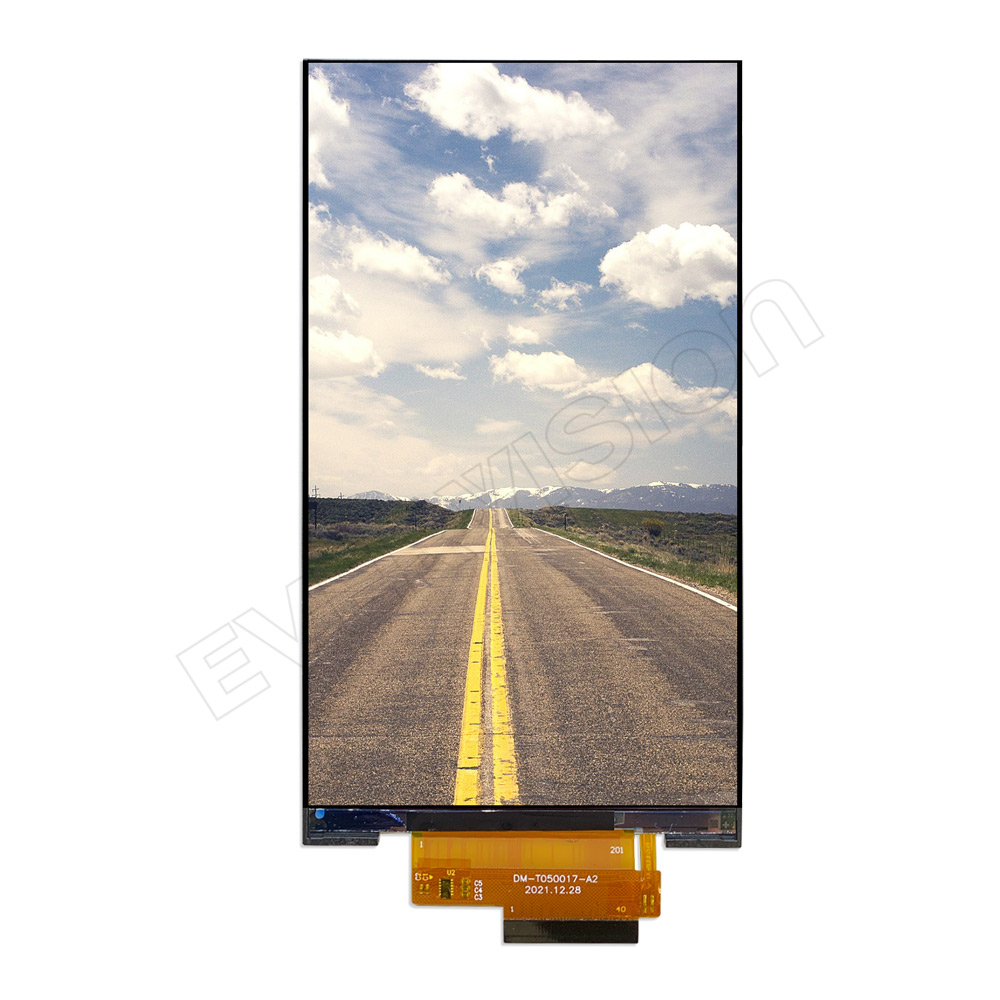

5.0吋TFT觸控顯示器, 廣視角 TFT LCD螢幕

Model No.VGG721201-A(WV)

► 720×1280 pixels resolution.
► MIPI Interface: 4 Data Lanes

VGG721201-A(WV)是一款採用5 inch IPS TFT廣視角顯示的產品，在影像資料傳輸上支MIPI介面。在產品操作使用上其工作溫度是-20~70℃，儲存溫度是-30~80℃。

5 inch TFT VGG721201-A(WV) 是一款720RGB*1280解析度的產品，可搭載觸控面板，億力光電廣視角系列產品特色是視角廣度廣，色彩鮮明、具有飽和自然的優質畫面，非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等，尤其是需要播放影片的應用。

億力光電提供全方面且多樣性的中小尺寸TFT顯示模組，我們確信可以完美滿足您的應用需求。

檔案下載

加入詢價

Size (inch):

5.0

Resolution (dots):

720*1280

Outline Dimensions (mm):

66.4*120.05*2.05

Technology:

IPS

Viewing Angle(TYP.):

85/85/85/85

I/F Mode:

MIPI

I/F Number:

Brightness Level:

0 ~ 499

Brightness (cd/m²，typ.):

180 / 50khrs typ.

LED Driver:

Touch Panel:

---

Top (°C):

-20~70

Tst (°C):

-30~80

VGG721201-A(WV) | Wide Viewing | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply of logic circuit	IOVCC	1.65	1.8	2.0	V
Power Supply for analog circuit	VCI	2.5	2.8	3.3	V
Input High Threshold Voltage	VIH	0.7IOVCC	-	IOVCC	V
Input Low Threshold Voltage	VIL	GND	-	0.3IOVCC	V
Power Supply of logic circuit Current	ICC	-	32.2	45	mA
Power Supply for analog circuit Current	ICI	-	13	18.2	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Current of Backlight Unit	IB	-	40	-	mA	-
Voltage of Backlight Unit	VB	-	(19.2)	-	V	IB=40mA
LED life time	-	50000	60000	-	Hr	(1)

Note (1)：LED life time is defined as under 25±2°C，when the average brightness decrease to 50％ of original brightness.

Note (2)：The BLU is driven by constant current, the voltage value is for reference only.

TFT-LCD Module

Pin No.	Symbol	Description
1	GND	Ground
2	D0P	DATA0+ differential data signals.
3	D0N	DATA0- differential data signals.
4	GND	Ground
5	D1P	DATA1+ differential data signals.
6	D1N	DATA1- differential data signals.
7	GND	Ground
8	CLKP	CLK+ differential clock signals.
9	CLKN	CLK- differential clock signals.
10	GND	Ground
11	D2P	DATA2+ differential data signals.
12	D2N	DATA2- differential data signals.
13	GND	Ground
14	D3P	DATA3+ differential data signals.
15	D3N	DATA3- differential data signals.
16	GND	Ground
17	GND	Ground
18	IOVCC	Power supply
19	IOVCC	Power supply
20~23	NC	NC
24	RESET	Reset signal input terminal, active at ”L”
25~26	NC	NC
27	GND	Ground
28~29	VLEDK	LED Cathode
30	GND	Ground
31	NC	NC
32~33	GND	Ground
34	NC	NC
35~36	VLEDA	LED Anode
37	GND	Ground
38~39	VCI	Power supply
40	NC	NC
