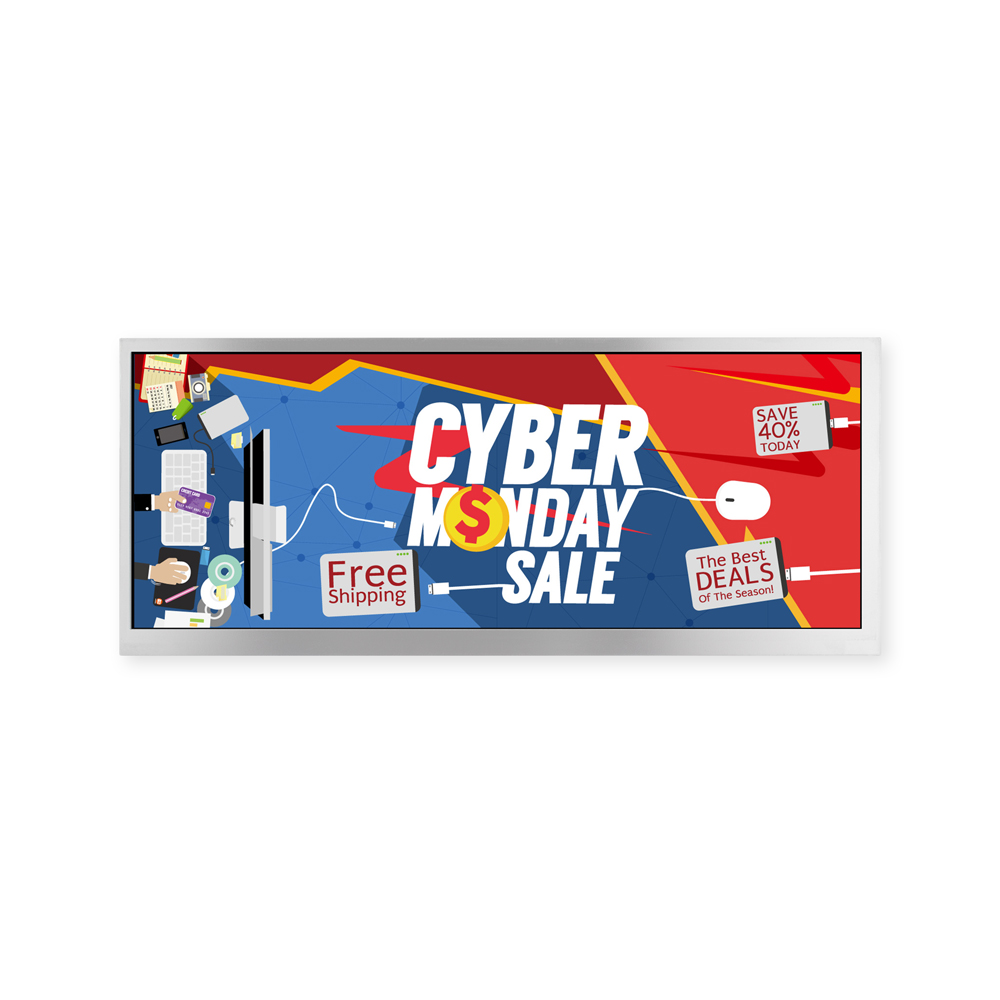

12.3吋長條型廣視角TFT顯示模組, Bar Type LCD, 支援HDMI訊號

Model No.VGG197202-H(WV)

► 1920×720 pixels resolution
► HDMI Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.

*Support HDMI Interface, suit for your digital device.

VGG197202-H(WV)是一款採用12.3 inch TFT(IPS)廣視角顯示的產品，在影像資料傳輸上支援HDMI介面。在產品操作使用上其工作溫度是-30~80℃，儲存溫度是-30~80℃。

12.3 inch TFT (VGG197202-H(WV)) 是一款1920*720解析度的產品，可搭載觸控面板，億力光電廣視角系列產品特色是視角廣度廣，色彩鮮明、具有飽和自然的優質畫面，非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等，尤其是需要播放影片的應用。

億力光電提供全方面且多樣性的中小尺寸TFT顯示模組，我們確信可以完美滿足您的應用需求。

檔案下載

加入詢價

Size (inch):

12.3

Resolution (dots):

1920*720

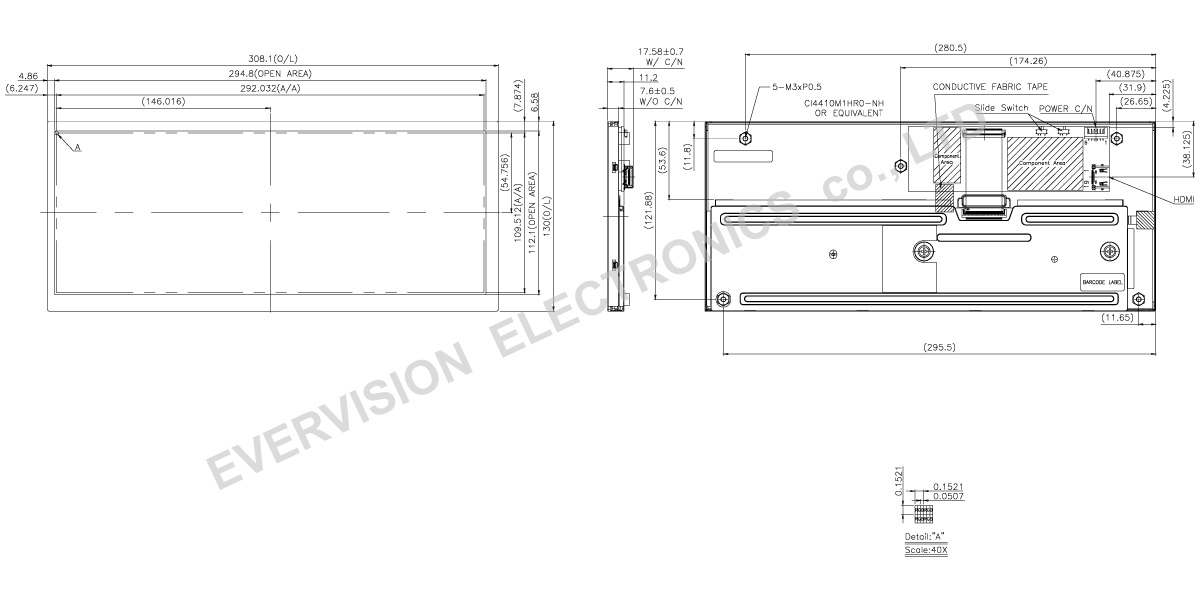

Outline Dimensions (mm):

308.1*130.0*17.58

Technology:

IPS

I/F Mode:

HDMI*

Viewing Angle(TYP.):

85/85/85/85

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

750 / 30khrs min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-30~80

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	1.07	1.49	mA
Enable voltage	EN	2	3.3	5.5	V
PWM signal Low voltage	VPWML	0	-	0.4	V
PWM signal High voltage	VPWMH	1.5	-	5	V
PWM frequency	fPWM	100	-	1000	Hz
LED Life Time(25℃)	-	30000	-	-	Hr

TFT-LCD Module

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair.
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair.
13	N.C.	Not Connection
14	N.C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N.C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector

Connector: CI0106M1HR0-NH

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	EN	Backlight enable pin
4	PWM	Backlight adjust
5	GND	Ground
6	GND	Ground

Slider Switch

Pin No.	Description	Note
1-2	LED-EN	Default
2-3	HDMI Detection	-

Slider Switch

Pin No.	Description	Note
1-2	LED-PWM	Default
2-3	HDMI Detection	-
