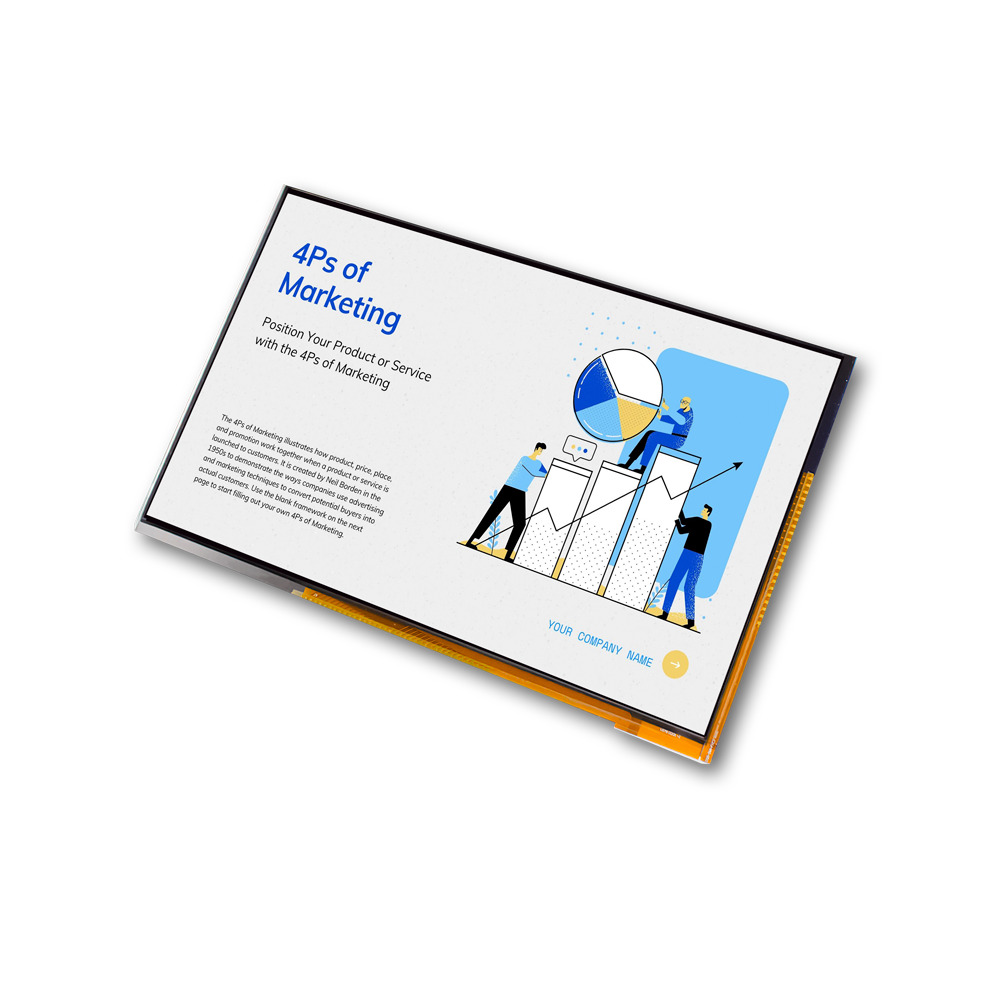

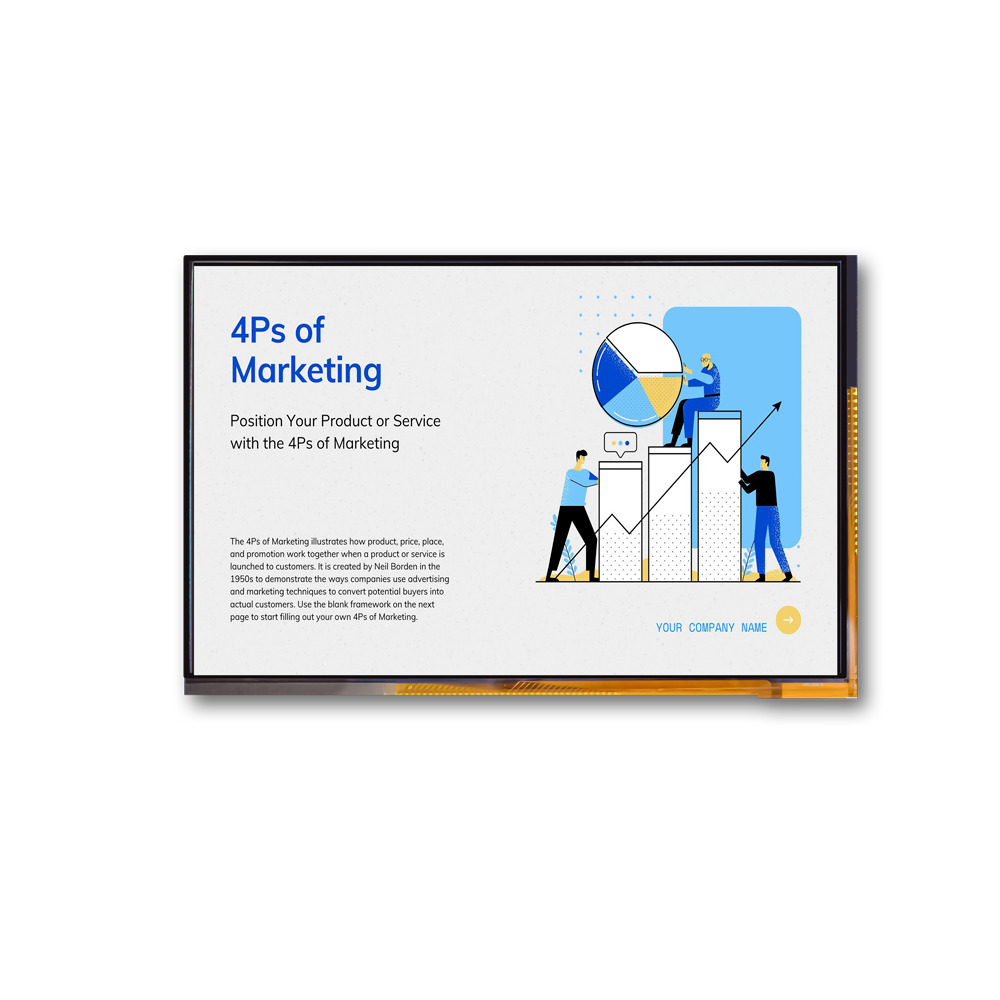

10.1吋MIPI TFT LCD模組, 廣視角TFT LCD

Model No.VGG128017-C(WV)

► WSVGA (1280×800 pixels) resolution.
► MIPI Interface: 2 Data Lanes.
► LED driver circuit is built in this module to provide PWM Dimmer function.
► Projected Capacitive Touch
- I2C Interface
- Multi Touch (Ten points)
- 2048 x 2048 resolution

VGG128017-C是一款10.1"解析度為1280RGBx800的TFT LCD模組，模組尺寸為 229.46(W)*149.1(H)*10.05(D) mm，電氣上模組支援MIPI的介面，模組驅動電壓3.0~3.6 V(建議3.0V)。VGG128017-C結合AAS TFT 面板(支援廣視角TFT LCD模組)，搭配由我司所開發的的PCB板整合MIPI介面、LED Driver及I2C介面觸控解決方案以提供客戶全方面的解決方案。

檔案下載

加入詢價

Size (inch):

10.1

Resolution (dots):

1280*800

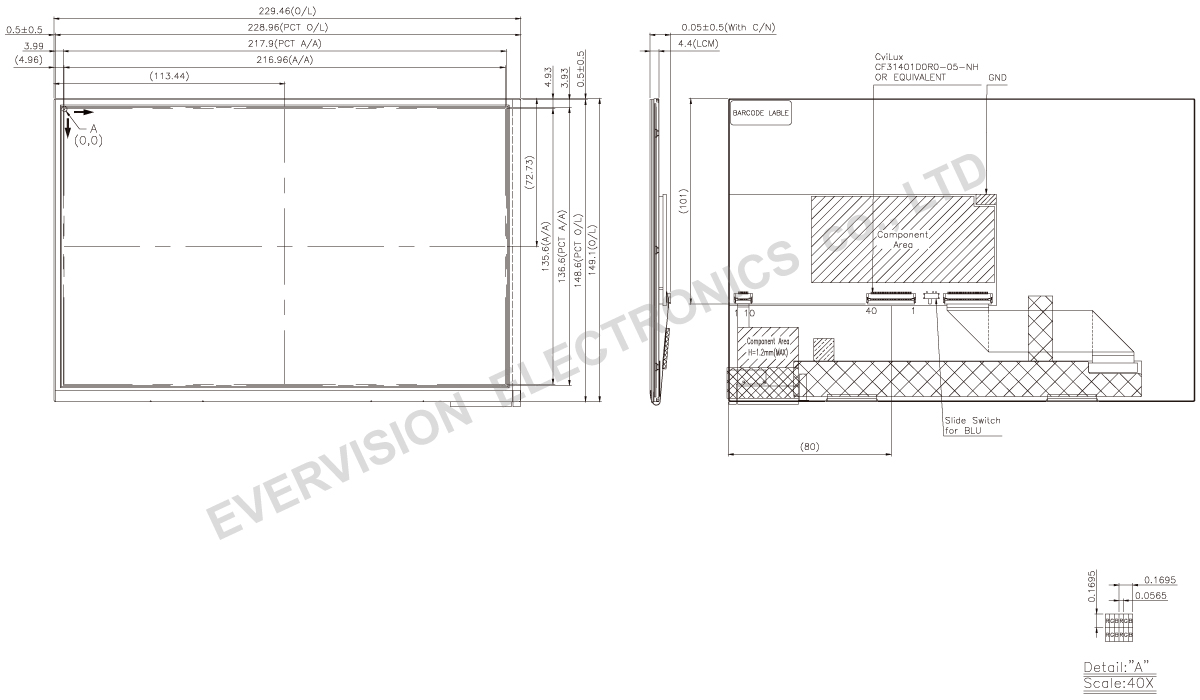

Outline Dimensions (mm):

229.46*149.1*10.05

Technology:

AAS

Viewing Angle(TYP.):

85/85/85/85

I/F Mode:

MIPI

I/F Number:

Brightness Level:

0 ~ 499

Brightness (cd/m²，typ.):

490 / 50khrs min.

LED Driver:

YES

Touch Panel:

IPCT (I2C)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	V_CC	3.0	3.3	3.6	V
Power Supply Current	I_CC	-	265	371	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Backlight Driver Power Supply	VBLIN	3.1	-	12.5	V
Backlight Driver Current	I_BL	-	1000	1400	mA	VBLIN=3.3V
Backlight Driver Current	I_BL	-	770	1078	mA	VBLIN=5V
Backlight Driver Current	I_BL	-	285	399	mA	VBLIN=12V
PWM signal Low voltage	VPWML	0	-	0.4	V
PWM signal High voltage	VPWMH	1.5	-	5	V
PWM frequency	fPWM	100	-	1000	KHz
LED life time	-	50000	60000	-	Hr	(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Voltage	VDD	3.0	3.3	3.6	V	-
Power Supply Current	IDD	-	20.5	28.7	mA	(1)
Power Consumption	P_L	-	77.88	109.23	mW	@3.3V
Report Rate	R_R	-	60	-	Hz	-
Interface		I²C				-
Function		Multi Touch				-

Note(1): This test condition is touched with 10 points.

TFT-LCD Module

Connector: CVILUX CF31401D0R0-05 or equivalent

Pin No.	Symbol	Description
1	V_CC	Power supply voltage
2	V_CC	Power supply voltage
3	V_CC	Power supply voltage
4	N.C.	Not Connection
5	N.C.	Reset signal input, active low
6	N.C.	Not Connection
7	GND	Ground
8	MDA0-	MIPI D-PHY Data Lane 0-
9	MDA0+	MIPI D-PHY Data Lane 0+
10	GND	Ground
11	MDA1-	MIPI D-PHY Data Lane 1-
12	MDA1+	MIPI D-PHY Data Lane 1+
13	GND	Ground
14	MCLK-	MIPI D-PHY Clock Lane 1-
15	MCLK+	MIPI D-PHY Clock Lane 1+
16	GND	Ground
17	N.C.	Not Connection
18	N.C.	Not Connection
19	GND	Ground
20	N.C.	Not Connection
21	N.C.	Not Connection
22	GND	Ground
23	GND	Ground
24	GND	Ground
25	BLEN	LED driver PWM signal
26	VBLIN	LED driver power supply
27	VBLIN	LED driver power supply
28	VBLIN	LED driver power supply
29	VBLIN	LED driver power supply
30	GND	Ground
31	GND	Ground
32	VDD	Power supply for PCAP
33	/RST.	External reset signal, active low.
34	/INT	Interrupt signal, active low, asserted to request Host start a new transaction.
35	SDA	I2C data signal
36	SCL	I2C clock signal
37	N.C.	Not Connection
38	N.C.	Not Connection
39	N.C.	Not Connection
40	GND	Ground
