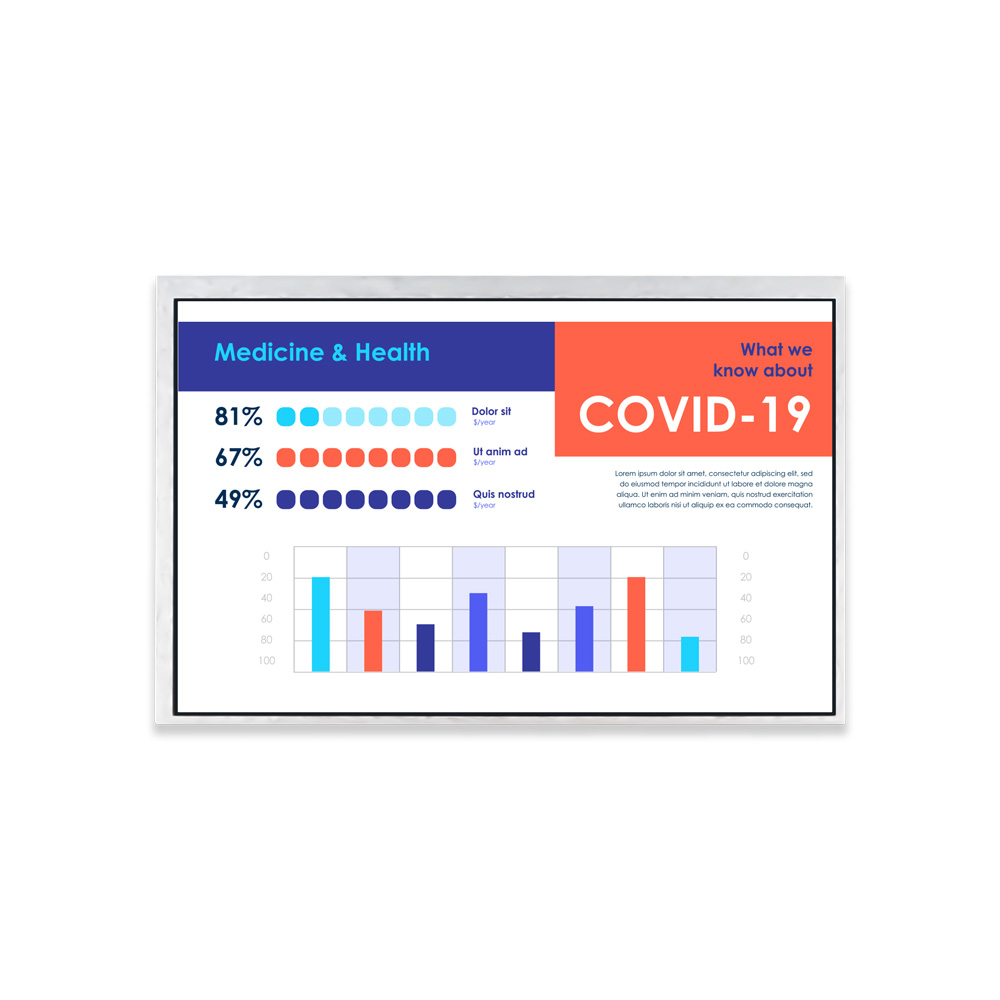

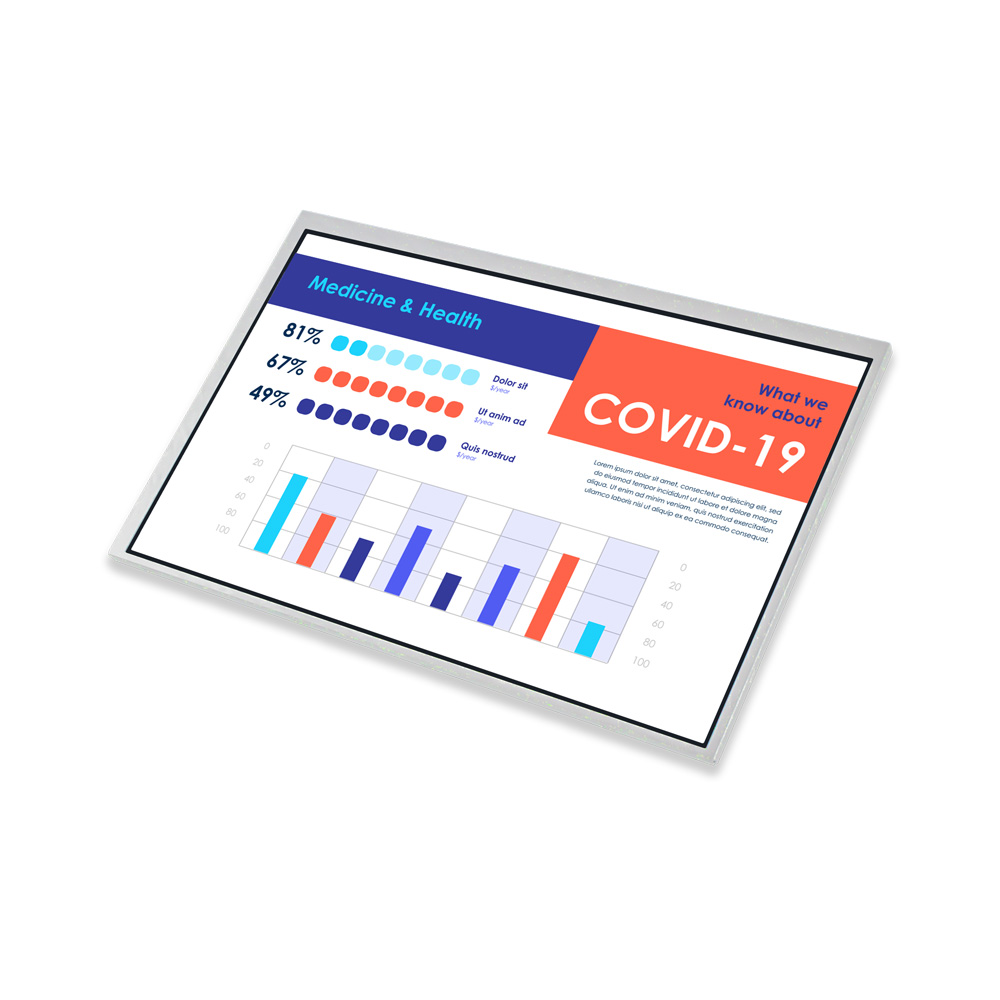

10.1吋廣視角IPS LCD螢幕, LVDS 介面 顯示器
Model No.VGG128006-A(WV)
► WXGA (1280×800 pixels) resolution.
► LVDS Receiver 24 bit Interface
► Dot inversion mode with stripe type.
VGG128006-A是一款採用10.1 inch TFT(IPS)廣視角顯示的產品,在影像資料傳輸上支LVDS介面。在產品操作使用上其工作溫度是-20~70℃,儲存溫度是-30~80℃。
10.1 inch TFT (VGG128006-A) 是一款1280*800解析度的產品,可搭載觸控面板,億力光電廣視角系列產品特色是視角廣度廣,色彩鮮明、具有飽和自然的優質畫面,非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等,尤其是需要播放影片的應用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
Size (inch):
10.1
Resolution (dots):
1280*800

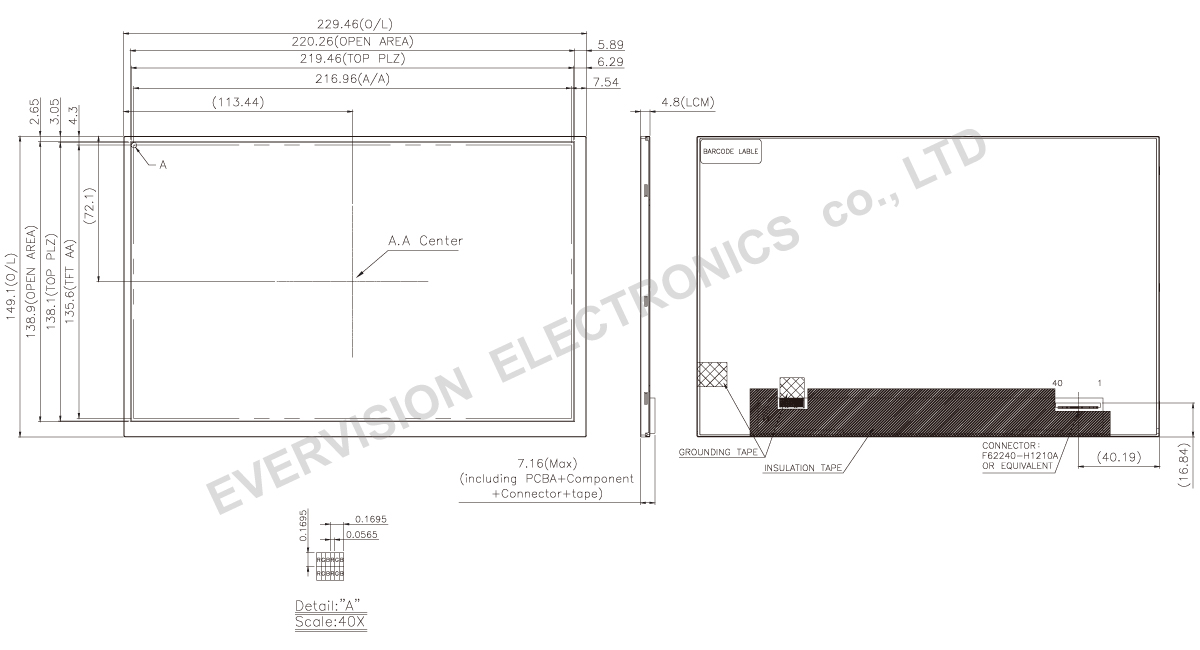

Outline Dimensions (mm):
229.46*149.1*4.8
Technology:
IPS
I/F Mode:
LVDS
Viewing Angle(TYP.):
85/85/85/85
I/F Number:
40
Brightness Level:
500 ~ 799
Brightness (cd/m²,typ.):
500 / 20khrs min.
LED Driver:
NO
Touch Panel:
(Option)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Digital Power Supply Voltage |
VDD |
2.3 |
2.5 |
2.7 |
V |
- |
Analog Power Supply Voltage |
AVDD |
8.0 |
8.2 |
8.4 |
V |
- |
Digital Power Supply Current |
IVDD |
- |
95 |
120 |
mA |
VDD =2.5V |
Analog Power Supply Current |
IAVDD |
- |
45 |
70 |
mA |
AVDD =8.2V |
LED Driver Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Voltage for LED backlight |
VL |
16.8 |
(19.5) |
21 |
V |
(1),(3) |
Current for LED backlight |
IL |
200 |
240 |
280 |
mA |
- |
LED Life Time(25℃) |
- |
20000 |
- |
- |
hr |
(2) |
Note 1: The LED Supply Voltage is defined by the number of LED at Ta=25℃ and IL =200mA.
Note 2: The “LED life time” is defined as the module brightness decrease to 50% original
brightness at Ta=25℃ and IL =200mA. The LED life time could be decreased if operating IL is lager than 200mA.
Note (3):The BLU is driven by constant current, the voltage value is for reference only.
TFT-LCD Module

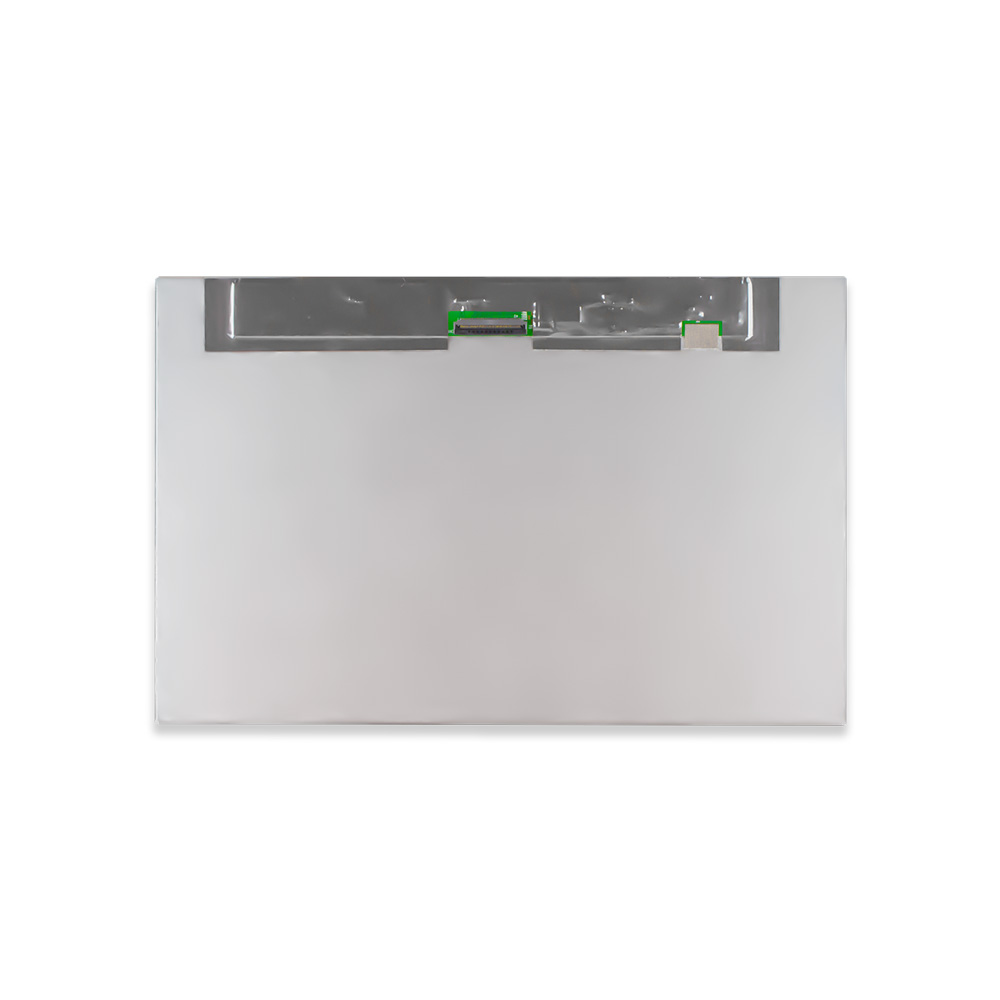

A 40pin connector is used for the module electronics interface. The recommended model is F62240-H1210A manufactured by Vigorconn.
Pin No. |
Symbol |
Description |
1 |
VCOM |
Common Voltage |
2 |
VDD |
Power Supply |
3 |
VDD |
Power Supply |
4 |
NC |
No Connection |
5 |
NC |
No Connection |
6 |
NC |
No Connection |
7 |
GND |
Ground |
8 |
RXIN0- |
-LVDS Differential Data Input |
9 |
RXIN0+ |
+LVDS Differential Data Input |
10 |
GND |
Ground |
11 |
RXIN01- |
-LVDS Differential Data Input |
12 |
RXIN01+ |
+LVDS Differential Data Input |
13 |
GND |
Ground |
14 |
RXIN02- |
-LVDS Differential Data Input |
15 |
RXIN02+ |
+LVDS Differential Data Input |
16 |
GND |
Ground |
17 |
RXCLK- |
-LVDS Differential Data Input |
18 |
RXCLK+ |
+LVDS Differential Data Input |
19 |
GND |
Ground |
20 |
RXIN03- |
-LVDS Differential Data Input |
21 |
RXIN03+ |
+LVDS Differential Data Input |
22 |
GND |
Ground |
23 |
NC |
No Connection |
24 |
NC |
No Connection |
25 |
GND |
Ground |
26 |
NC |
No Connection |
27 |
NC |
No Connection |
28 |
NC |
No Connection |
29 |
AVDD |
Power for Analog Circuit |
30 |
GND |
Ground |
31 |
LED- |
LED Cathode |
32 |
LED- |
LED Cathode |
33 |
NC |
No Connection |
34 |
NC |
No Connection |
35 |
VGL |
Gate OFF Voltage |
36 |
NC |
No Connection |
37 |
NC |
No Connection |
38 |
VGH |
Gate ON Voltage |
39 |
LED+ |
LED Anode |
40 |
LED+ |
LED Anode |
