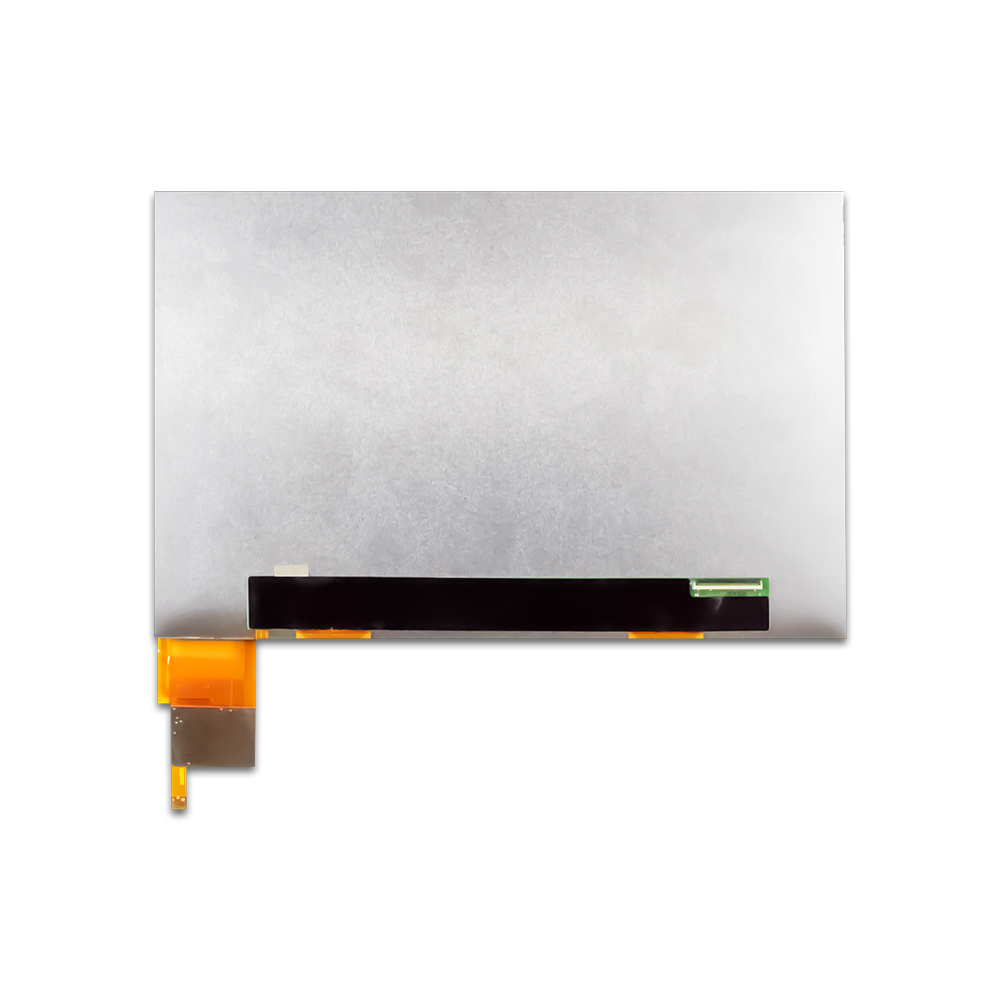

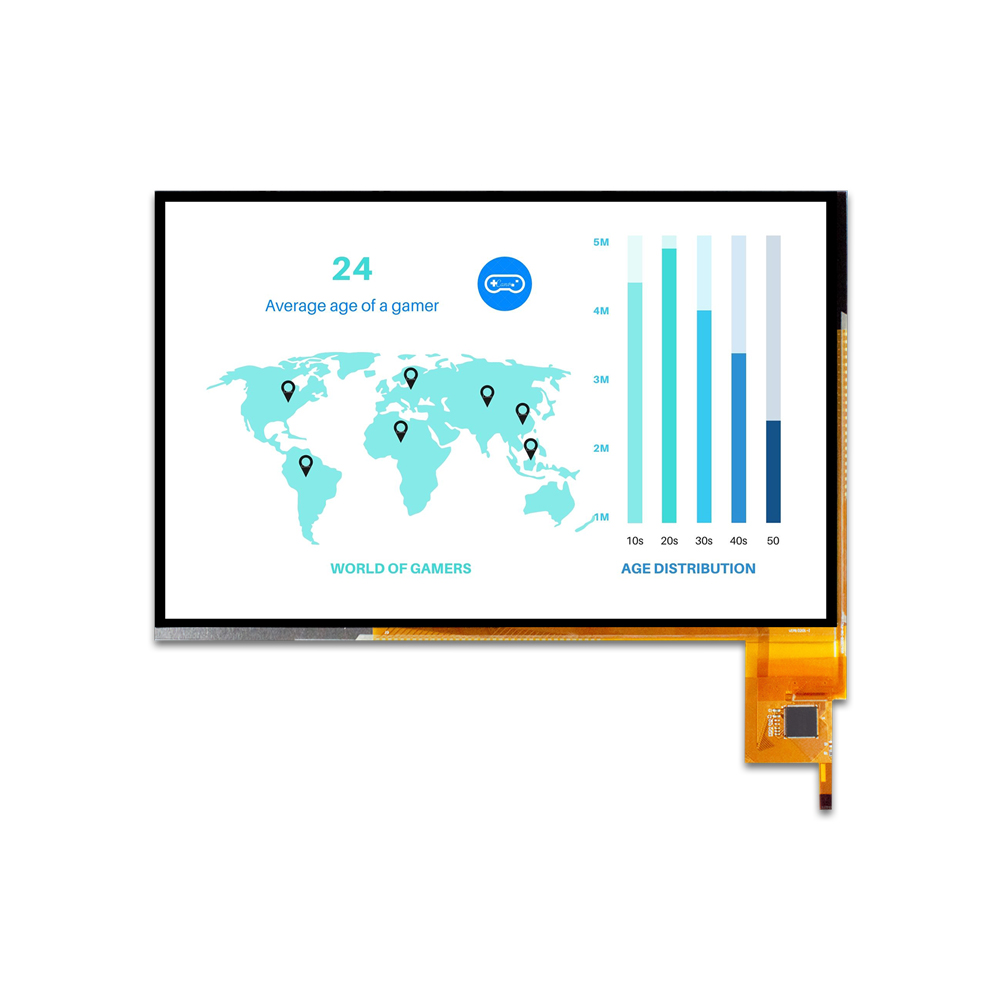

10.1吋廣視角TFT LCD, LVDS 觸控螢幕顯示器
Model No.VGG128004-D(WV)
► WXGA (1280×800 pixels) resolution.
► LVDS Receiver 24 bit Interface
► Dot inversion mode with stripe type.
► Projected Capacitive Touch
- I2C Interface
- Multi Touch (Ten points)
- 2048 x 2048 resolution
VGG128004-D是一款採用10.1 inch TFT(AAS)廣視角顯示的產品,在影像資料傳輸上支LVDS介面。在產品操作使用上其工作溫度是-20~70℃,儲存溫度是-30~80℃。
10.1 inch TFT (VGG128004-D) 是一款1280*800解析度的產品,可搭載觸控面板,億力光電廣視角系列產品特色是視角廣度廣,色彩鮮明、具有飽和自然的優質畫面,非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等,尤其是需要播放影片的應用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
Size (inch):
10.1
Resolution (dots):
1280*800

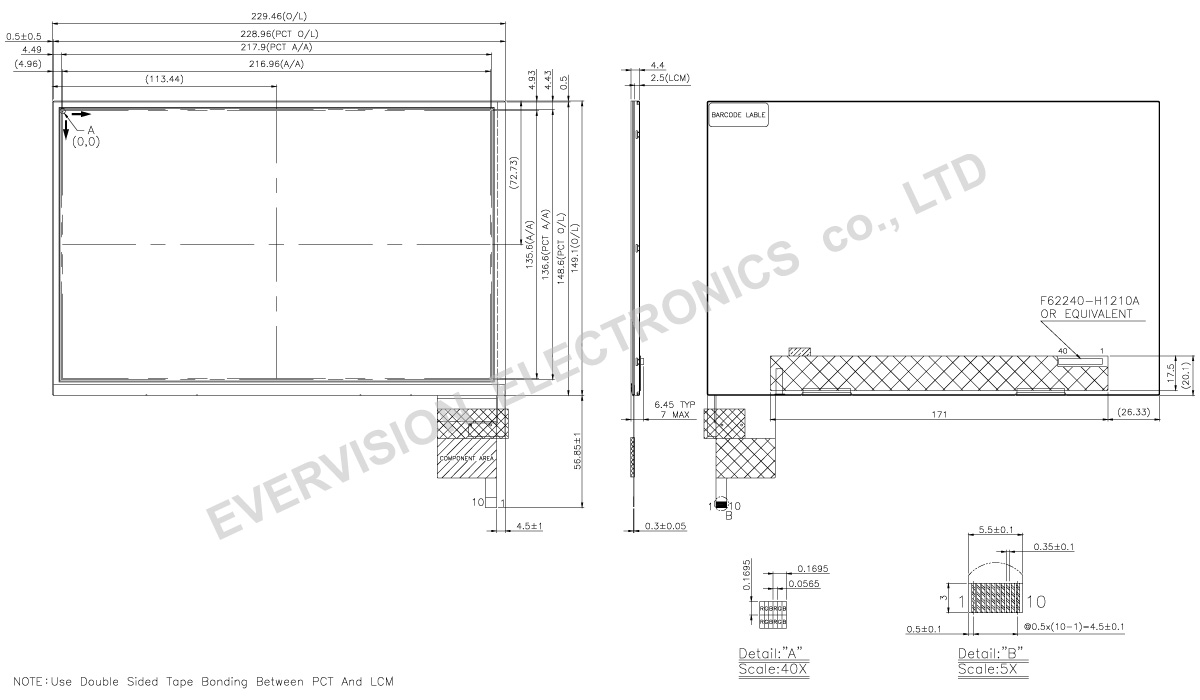

Outline Dimensions (mm):
229.46*149.1*6.45
Technology:
AAS
Viewing Angle(TYP.):
85/85/85/85
I/F Mode:
LVDS
I/F Number:
40
Brightness Level:
0 ~ 499
Brightness (cd/m²,typ.):
490 / 60khrs typ.
LED Driver:
NO
Touch Panel:
IPCT (I2C)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Digital Power Supply Voltage |
VDD |
2.3 |
2.5 |
2.7 |
V |
- |
Analog Power Supply Voltage |
AVDD |
8.0 |
8.2 |
8.4 |
V |
- |
Digital Power Supply Current |
IVDD |
50 |
95 |
120 |
mA |
VDD =2.5V |
Analog Power Supply Current |
IAVDD |
8 |
45 |
70 |
mA |
AVDD =8.2V |
Backlight Unit
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Voltage for LED backlight |
VL |
- |
9.3 |
10.2 |
V |
Current for LED backlight |
IL |
- |
260 |
- |
mA |
LED Life Time(25℃) |
- |
50000 |
60000 |
- |
hr |
Projected Capacitive Touch
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Operating Voltage |
VDD |
3.0 |
3.3 |
3.6 |
V |
- |
Power Supply Current |
IDD |
- |
23.6 |
33.1 |
mA |
(1) |
Input High Threshold Voltage |
VIH |
0.7VDD |
- |
VDD |
V |
- |
Input Low Threshold Voltage |
VIL |
-0.3 |
- |
0.3VDD |
V |
- |
Output High Threshold Voltage |
VOH |
0.7VDD |
- |
- |
V |
- |
Output Low Threshold Voltage |
VOL |
- |
- |
0.3VDD |
V |
- |
Power Consumption |
PL |
- |
77.88 |
109.23 |
mW |
@3.3V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
I2C |
- |
||||
Function |
Multi Touch |
- |
Note (1) This test condition is touched with 10 points.
TFT-LCD Module
A 40pin connector is used for the module electronics interface. The recommended model is 196479-40041-3 manufactured by P2 connector
Pin No. |
Symbol |
Description |
1 |
VCOM |
Common Voltage |
2 |
VDD |
Power Supply |
3 |
VDD |
Power Supply |
4 |
NC |
No Connection |
5 |
NC |
No Connection |
6 |
NC |
No Connection |
7 |
GND |
Ground |
8 |
RXIN0- |
-LVDS Differential Data Input |
9 |
RXIN0+ |
+LVDS Differential Data Input |
10 |
GND |
Ground |
11 |
RXIN01- |
-LVDS Differential Data Input |
12 |
RXIN01+ |
+LVDS Differential Data Input |
13 |
GND |
Ground |
14 |
RXIN02- |
-LVDS Differential Data Input |
15 |
RXIN02+ |
+LVDS Differential Data Input |
16 |
GND |
Ground |
17 |
RXCLK- |
-LVDS Differential Data Input |
18 |
RXCLK+ |
+LVDS Differential Data Input |
19 |
GND |
Ground |
20 |
RXIN03- |
-LVDS Differential Data Input |
21 |
RXIN03+ |
+LVDS Differential Data Input |
22 |
GND |
Ground |
23 |
NC |
No Connection |
24 |
NC |
No Connection |
25 |
GND |
Ground |
26 |
NC |
No Connection |
27 |
NC |
No Connection |
28 |
NC |
No Connection |
29 |
AVDD |
Power for Analog Circuit |
30 |
GND |
Ground |
31 |
LED- |
LED Cathode |
32 |
LED- |
LED Cathode |
33 |
NC |
No Connection |
34 |
NC |
No Connection |
35 |
VGL |
Gate OFF Voltage |
36 |
NC |
No Connection |
37 |
NC |
No Connection |
38 |
VGH |
Gate ON Voltage |
39 |
LED+ |
LED Anode |
40 |
LED+ |
LED Anode |
Improved Projected Capacitive Touch
Connector: CVILUX CF25101D0R0-05
Pin No. |
Symbol |
Description |
1 |
GND |
System ground. |
2 |
VDD |
+3.3V power supply. |
3 |
/RST |
External reset signal, active low. |
4 |
/INT |
Interrupt signal, active low, asserted to request Host start a new transcation. |
5 |
SDA |
I2C data signal. |
6 |
SCL |
I2C clock signal. |
7 |
NC |
Not Connection |
8 |
NC |
Not Connection |
9 |
NC |
Not Connection |
10 |
GND |
System ground. |
