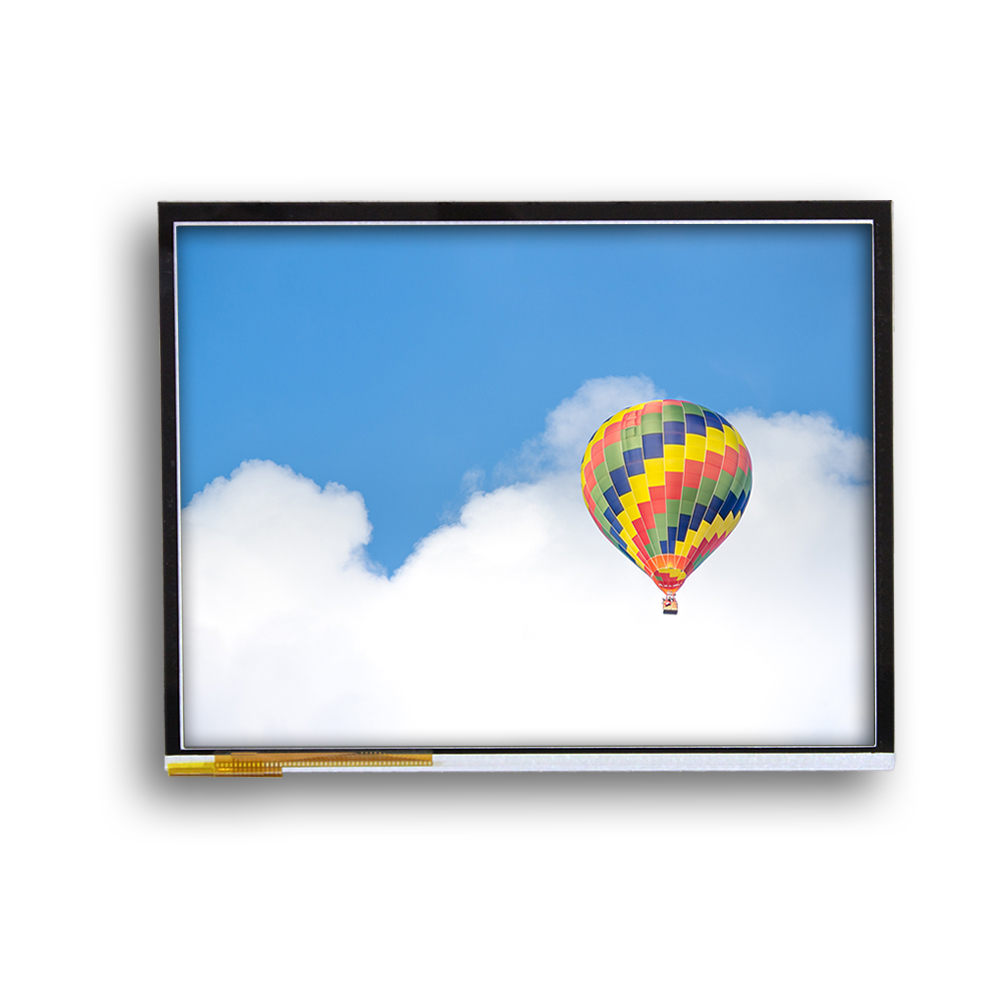

15.0吋支援HDMI訊號 TFT 顯示器, 支援 LVDS信號 MVA 顯示器
Model No.VGG107607-C(WV)
► XGA (1024×768 pixels) resolution.
► HDMI Interface.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution
VGG107607-C(WV)是一款1024*768解析度XGA 電容式觸控支援HDMI訊號TFT 顯示器模組,其顯示面板採用MVA TFT 面板符合全域性廣視角產品(Wide Viewing Angle TFT LCD Module)的顯示效果,VGG107607-C(WV) MVA TFT Display在產品操作使用上其工作溫度是-20~70℃,儲存溫度是-30~80℃,可適用於任何工控醫療設備、手持式裝置、嵌入式系統及其他產品顯示使用。
Size (inch):
15.0
Resolution (dots):
1024*768

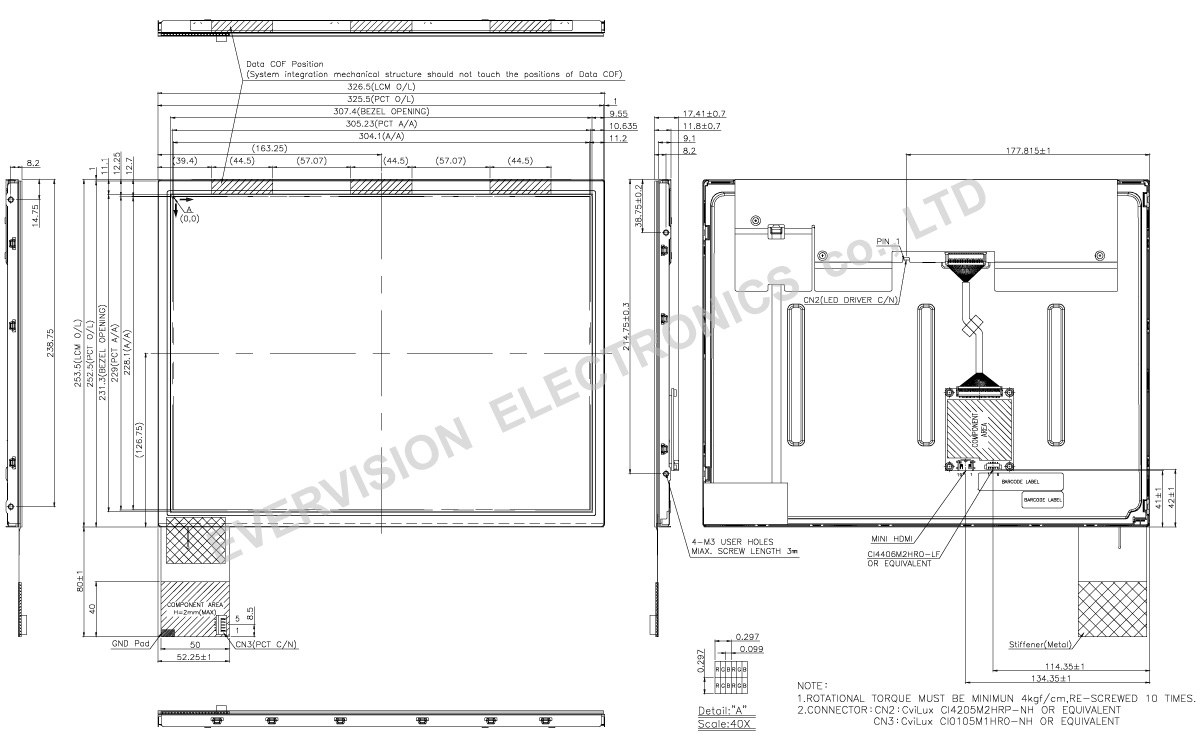

Outline Dimensions (mm):
326.5*253.5*17.41
Technology:
MVA
Viewing Angle(TYP.):
80/80/80/80
I/F Mode:
HDMI*
I/F Number:
19
Brightness Level:
0 ~ 499
Brightness (cd/m²,typ.):
440 / 70khrs typ.
LED Driver:
YES
Touch Panel:
IPCT (USB)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Power Supply Voltage |
VCC |
4.5 |
5.0 |
5.5 |
V |
Power Supply Current |
ICC |
- |
600 |
840 |
mA |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Converter Power Supply Voltage |
Vi |
10.8 |
12.0 |
13.2 |
V |
|
|
Converter Power Supply Current |
Ii |
0.5 |
0.65 |
0.8 |
A |
@Vi=12V(Duty 100%) |
|
Converter Power Consumption |
PLED |
- |
7.8 |
9.6 |
W |
@Vi=12V(Duty 100%) |
|
EN Control Level |
Backlight on |
- |
2.0 |
3.0 |
5.0 |
V |
|
Backlight off |
- |
0 |
- |
0.8 |
V |
|
|
PWM Control Level |
PWM High Level |
- |
2.0 |
3.3 |
5.0 |
V |
|
PWM Low Level |
- |
0 |
- |
0.15 |
V |
|
|
PWM Control Duty Ratio |
- |
1 |
- |
100 |
% |
|
|
PWM Control Frequency |
fPWM |
190 |
200 |
20k |
Hz |
|
|
LED Lift Time |
LL |
50000 |
70000 |
- |
Hrs |
|
Projected Capacitive Touch
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Power Supply Voltage |
VDD |
4.8 |
5.0 |
5.2 |
V |
- |
Power Supply Current |
IDD |
- |
34.5 |
48.3 |
mA |
(1) |
Power Consumption |
PL |
- |
172.5 |
241.5 |
mW |
@5.0V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
USB |
- |
||||
Function |
Multi Touch |
- |
Note (1) This test condition is touched with 5 points.
TFT-LCD Module
Connector: Mini-HDMI Connector
Pin No. |
Symbol |
Description |
1 |
TMDS Data2 Shield |
Ground |
2 |
TMDS Data2+ |
Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. Channel-2 receives red-pixel data in active display and CTL2, CTL3 control signals in blank. |
3 |
TMDS Data2- |
Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair. |
4 |
TMDS Data1 Shield |
Ground |
5 |
TMDS Data1+ |
Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. Channel-1 receives red-pixel data in active display and CTL1 control signals in blank. |
6 |
TMDS Data1- |
Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair. |
7 |
TMDS Data0 Shield |
Ground |
8 |
TMDS Data0+ |
Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair. Channel-0 receives red-pixel data in active display and HSYNC, VSYNC control signals in blank. |
9 |
TMDS Data0- |
Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair. |
10 |
TMDS Clock Shield |
Ground |
11 |
TMDS Clock+ |
Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair. |
12 |
TMDS Clock- |
Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair. |
13 |
DDC Ground |
Ground |
14 |
N.C. |
Not Connection |
15 |
DDC_SCL |
Serial Clock for EEPROM |
16 |
DDC_SDA |
Serial Data for EEPROM |
17 |
Reserved (N.C. on device) |
Not Connection |
18 |
+5V Power |
5V for EEPROM |
19 |
HPD |
Hot Plug Detect High: Active link Low: Inactive link |
Power Connector
Connector: CI4406M21HR0-LF
Pin No. |
Symbol |
Description |
1 |
VCC |
+5.0V power supply |
2 |
VCC |
+5.0V power supply |
3 |
NC |
Not Connected |
4 |
NC |
Not Connected |
5 |
GND |
Ground |
6 |
GND |
Ground |
Backlight
Pin No. |
Symbol |
Description |
1 |
Vi |
Converter input voltage |
2 |
VGND |
Converter ground |
3 |
EN |
Enable pin |
4 |
Dimming |
Backlight Adjust |
5 |
NC |
Not Connect |
Projected Capacitive Touch
Connector: CI0105M1HR0-NH
Pin No. |
Symbol |
Description |
1 |
VDD |
+5.0V power supply. |
2 |
D- |
USB D- |
3 |
D+ |
USB D+ |
4 |
GND |
System ground. |
5 |
GND |
System ground. |
