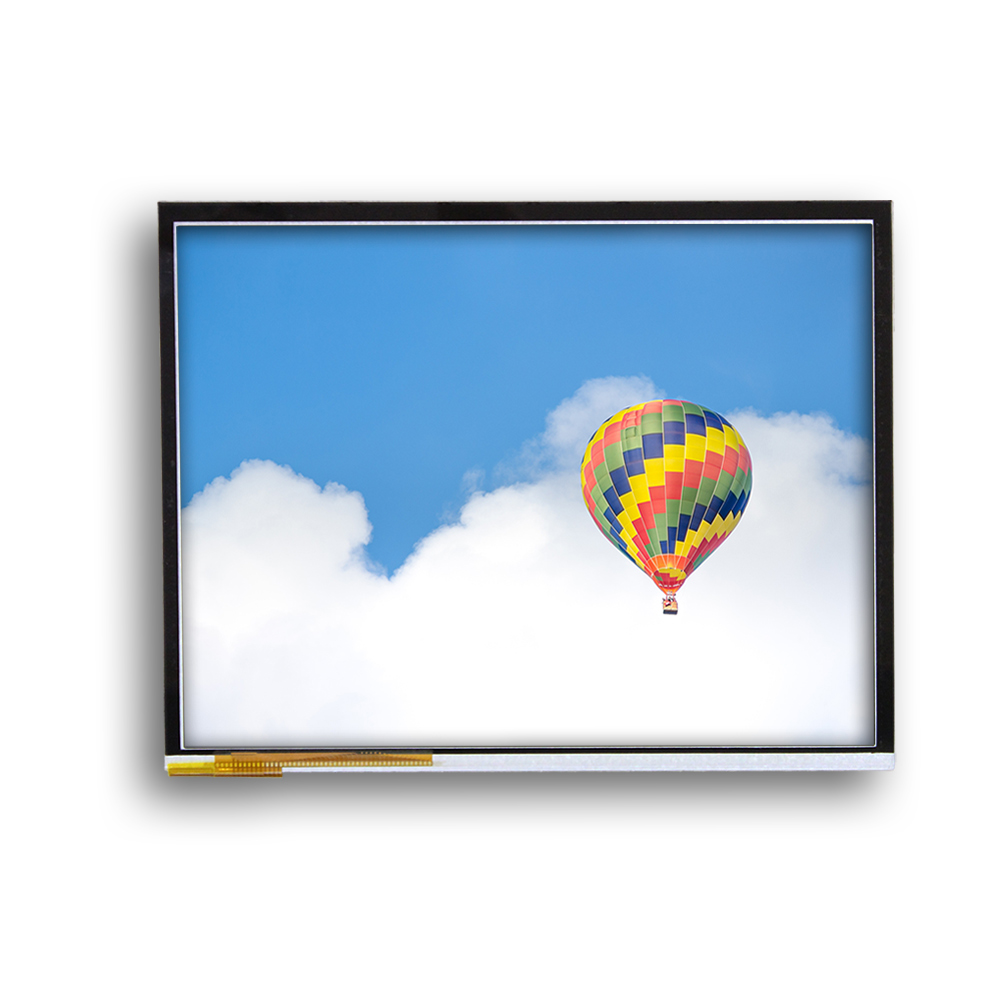

15" 廣視角TFT, LVDS 觸控螢幕顯示器, 廣視角TFT
Model No.VGG107607-A(WV)
► XGA (1024×768 pixels) resolution.
► 6/8 bit LVDS Interface
► DE(Data Enable) only mode
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Ten points)
- 4096 x 4096 resolution
VGG107607-A是一款採用15 inch TFT(MVA)廣視角顯示的產品,在影像資料傳輸上支LVDS介面。在產品操作使用上其工作溫度是-30~80℃,儲存溫度是-30~80℃。
15 inch TFT (VGG107607-A) 是一款1024*768解析度的產品,可搭載觸控面板,億力光電廣視角系列產品特色是視角廣度廣,色彩鮮明、具有飽和自然的優質畫面,非常適用於任何工控醫療設備、手持式裝置、嵌入式系統等,尤其是需要播放影片的應用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
Size (inch):
15.0
Resolution (dots):
1024*768

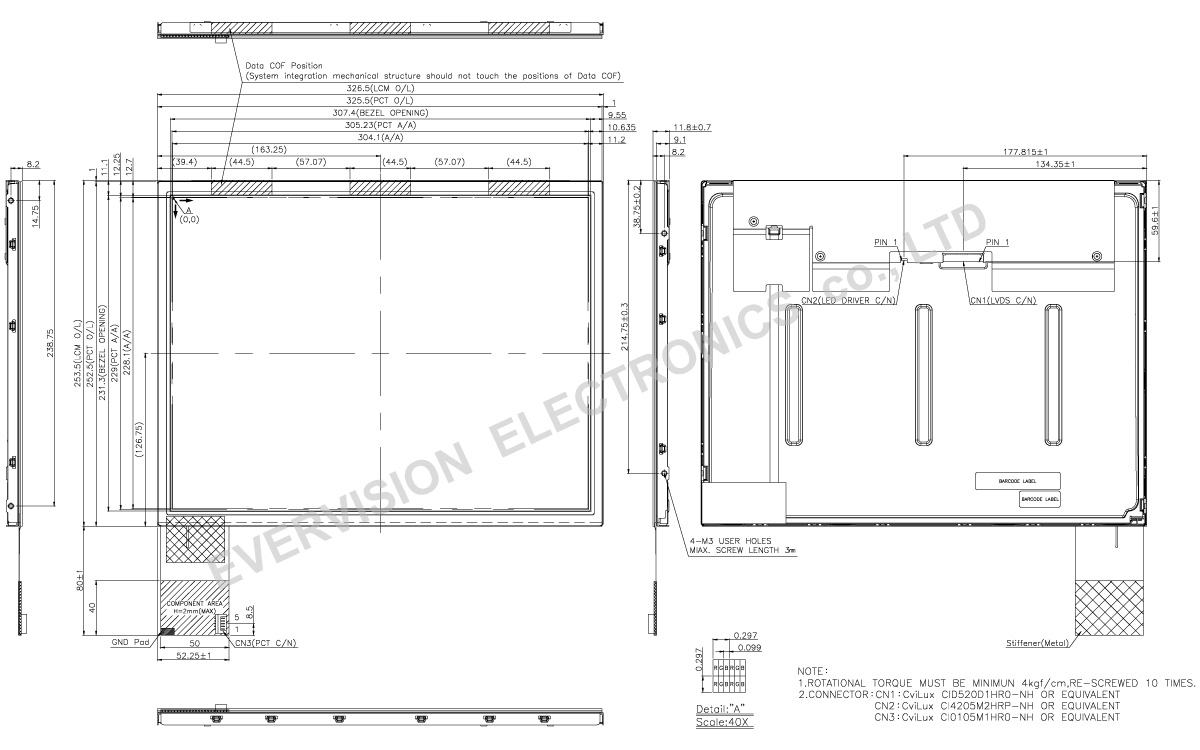

Outline Dimensions (mm):
326.5*253.5*11.8
Technology:
MVA
I/F Mode:
LVDS
Viewing Angle(TYP.):
88/88/88/88
I/F Number:
20
Brightness Level:
0 ~ 499
Brightness (cd/m²,typ.):
440 / 70khrs typ.
LED Driver:
YES
Touch Panel:
IPCT (USB)
Top (°C):
-30~80
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-40 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-30 |
+80 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Power Supply Voltage |
VCC |
3.0 |
3.3 |
3.6 |
V |
|
Power Supply Current |
White |
ICC |
- |
800 |
960 |
mA |
Black |
- |
670 |
800 |
mA |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Converter Power Supply Voltage |
Vi |
10.8 |
12.0 |
13.2 |
V |
|
|
Converter Power Supply Current |
Ii |
0.5 |
0.65 |
0.8 |
A |
@Vi=12V(Duty 100%) |
|
Converter Power Consumption |
PLED |
- |
7.8 |
9.6 |
W |
@Vi=12V(Duty 100%) |
|
EN Control Level |
Backlight on |
- |
2.0 |
3.0 |
5.0 |
V |
|
Backlight off |
- |
0 |
- |
0.8 |
V |
|
|
PWM Control Level |
PWM High Level |
- |
2.0 |
3.3 |
5.0 |
V |
|
PWM Low Level |
- |
0 |
- |
0.15 |
V |
|
|
PWM Control Duty Ratio |
- |
1 |
- |
100 |
% |
|
|
PWM Control Frequency |
fPWM |
190 |
200 |
20k |
Hz |
|
|
LED Lift Time |
LL |
50000 |
70000 |
- |
Hrs |
|
Projected Capacitive Touch
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Power Supply Voltage |
VDD |
4.8 |
5.0 |
5.2 |
V |
- |
Power Supply Current |
IDD |
- |
34.5 |
48.3 |
mA |
(1) |
Power Consumption |
PL |
- |
172.5 |
241.5 |
mW |
@5.0V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
USB |
- |
||||
Function |
Multi Touch |
- |
Note (1) This test condition is touched with 5 points.
TFT-LCD Module
Pin No. |
Symbol |
Description |
1 |
VCC |
Power Supply +3.3V(typical) |
2 |
VCC |
Power Supply +3.3V(typical) |
3 |
NC |
No Connection (Reserve for INX test) |
4 |
LR/UD |
Reverse Scan Control |
5 |
RX0- |
LVDS Differential Data Input |
6 |
RX0+ |
LVDS Differential Data Input |
7 |
GND |
Ground |
8 |
RX1- |
LVDS Differential Data Input |
9 |
RX1+ |
LVDS Differential Data Input |
10 |
NC |
No Connection (Reserve for INX test) |
11 |
RX2- |
LVDS Differential Data Input |
12 |
RX2+ |
LVDS Differential Data Input |
13 |
GND |
Ground |
14 |
RXCLK- |
LVDS Differential Data Input |
15 |
RXCLK+ |
LVDS Differential Data Input |
16 |
GND |
Ground |
17 |
RX3- |
LVDS Differential Data Input |
18 |
RX3+ |
LVDS Differential Data Input |
19 |
NC |
No Connection (Reserve for INX test) |
20 |
SEL68 |
LVDS 6/8 bit selection function control |
Backlight
Pin No. |
Symbol |
Description |
1 |
Vi |
Converter input voltage |
2 |
VGND |
Converter ground |
3 |
RN |
Enable pin |
4 |
Dimming |
Backlight Adjust |
5 |
NC |
No Connection |
Projected Capacitive Touch
Connector: CI0105M1HR0-NH
Pin No. |
Symbol |
Description |
1 |
VDD |
+5.0V power supply. |
2 |
D- |
USB D- |
3 |
D+ |
USB D+ |
4 |
GND |
System ground. |
5 |
GND |
System ground. |
