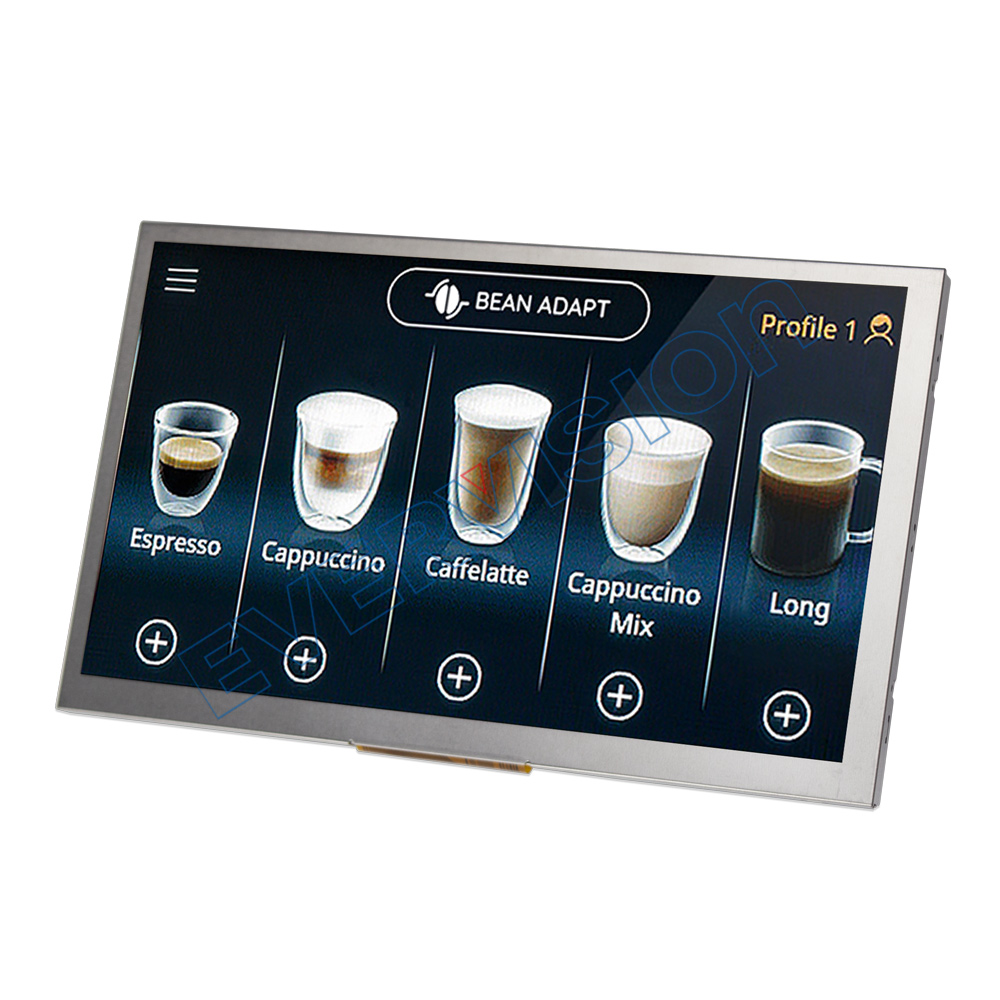

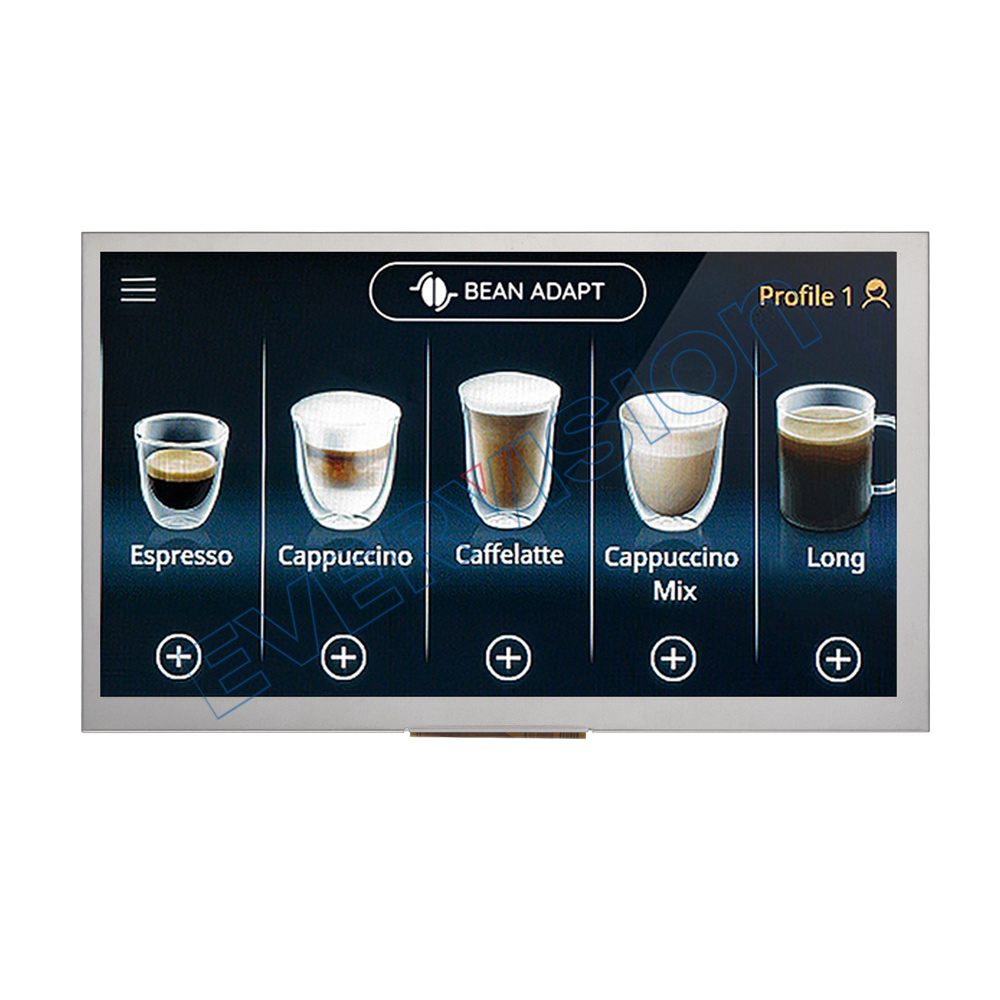

8.0吋陽光下可視技術 TFT 顯示器, 戶外高亮度 TFT 支援 HDMI 信號介面
Model No.VGG804823-S(SR)
► WVGA (800×480 pixels) resolution.
► LED driver circuit is built in this module.
► HDMI* Interface.
*Support HDMI Interface, suit for your digital device.
VGG804823-S是一款8.0 inch 陽光下可讀TFT 顯示器,在影像資料傳輸上支援HDMI*介面,產品操作使用上其工作溫度是-20~70℃,儲存溫度是-30~80℃。8.0 inch 陽光下可讀TFT 顯示器 (VGG804823-S)是一款款高亮度(High Brightness)符合陽光下可視(Sunlight Readable)的產品,可支援觸控面板選配。8 inch TFT (VGG804823-S)可適用於任何工控醫療設備、手持式裝置、嵌入式系統及其他產品顯示使用。
億力光電提供全方面且多樣性的中小尺寸TFT顯示模組,我們確信可以完美滿足您的應用需求。
Size (inch):
8.0
Resolution (dots):
800*480

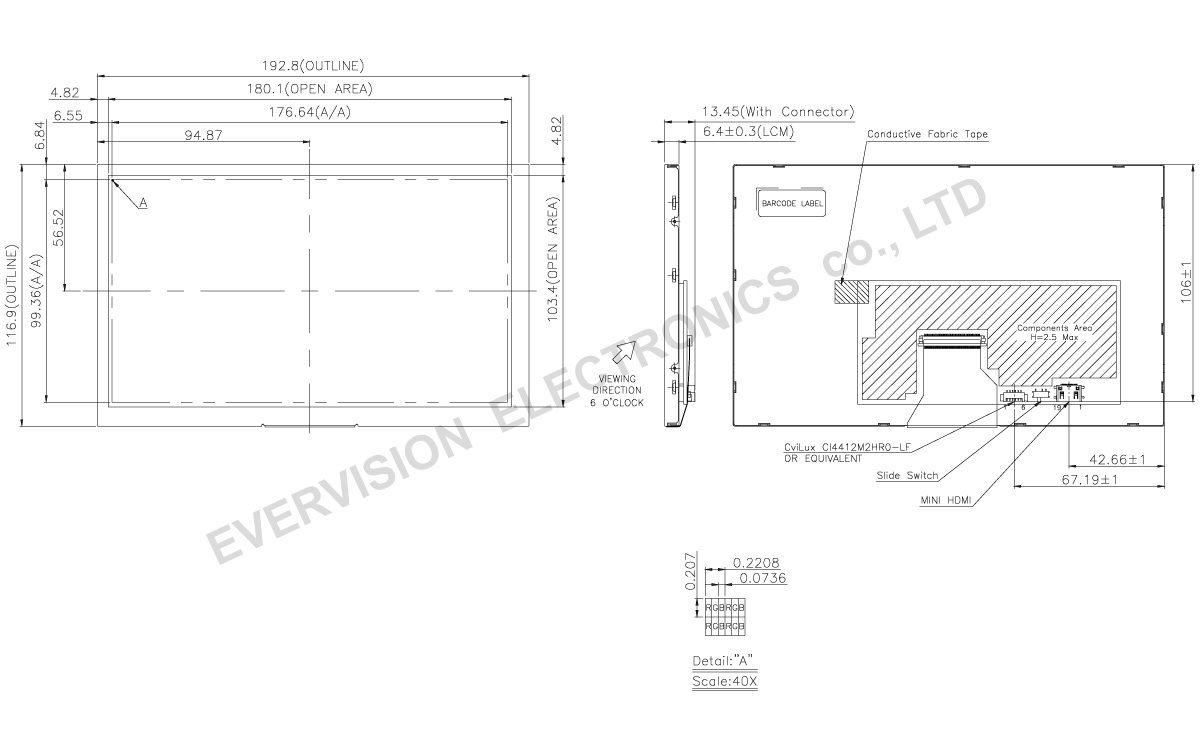

Outline Dimensions (mm):
192.8*116.9*13.45
Technology:
TN
I/F Mode:
HDMI*
I/F Number:
19
Brightness Level:
1000 ~ 1199
Brightness (cd/m²,typ.):
1000 / 50khrs min.
LED Driver:
YES
Touch Panel:
(Option)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Power Supply Voltage |
VCC |
11.5 |
12.0 |
12.5 |
V |
Power Supply Current |
ICC |
- |
500 |
700 |
mA |
VSYNC Frequency |
FV |
- |
60 |
- |
Hz |
DCLK Frequency |
DCLK |
- |
33.26 |
- |
MHz |
PWM signal Low voltage |
VPWML |
0 |
- |
0.4 |
V |
PWM signal High voltage |
VPWMH |
1.5 |
- |
5 |
V |
PWM frequency |
fPWM |
100 |
- |
1000 |
Hz |
LED Life Time(25℃) |
- |
50000 |
- |
- |
hr |

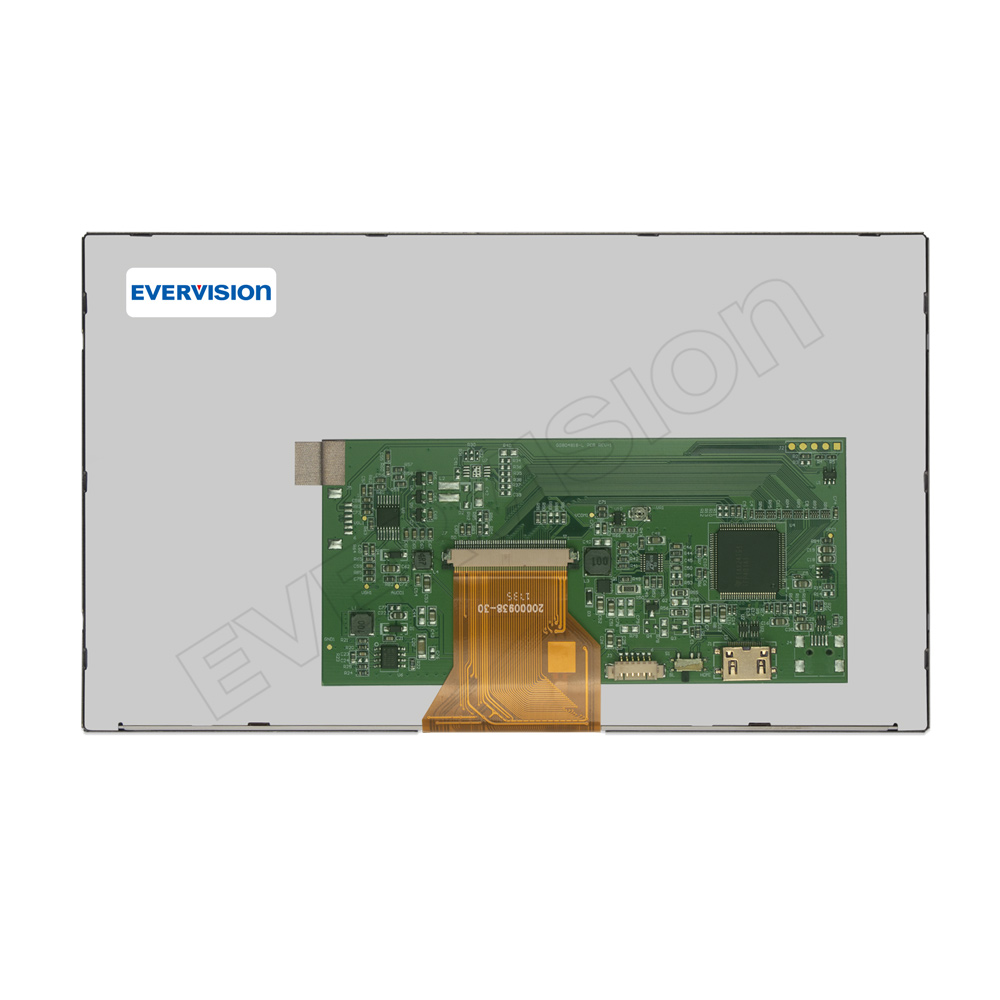

TFT-LCD Module Connector: Mini-HDMI Connector
Pin No. |
Symbol |
Description |
1 |
TMDS Data2 Shield |
Ground |
2 |
TMDS Data2+ |
Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. Channel-2 receives red-pixel data in active display and CTL2, CTL3 control signals in blank. |
3 |
TMDS Data2– |
Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair. |
4 |
TMDS Data1 Shield |
Ground |
5 |
TMDS Data1+ |
Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. Channel-1 receives green-pixel data in active display and CTL1 control signals in blank. |
6 |
TMDS Data1– |
Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair. |
7 |
TMDS Data0 Shield |
Ground |
8 |
TMDS Data0+ |
Channel-0 positive receiver input – Positive side of channel-0. TMDS low-voltage signal differential input pair. Channel-0 receives blue pixel data in active display and HSYNC, VSYNC control signals in blank. |
9 |
TMDS Data0– |
Channel-0 negative receiver input – Negative side of channel-0. TMDS low-voltage signal differential input pair. |
10 |
TMDS Clock Shield |
Ground |
11 |
TMDS Clock+ |
Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair |
12 |
TMDS Clock– |
Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair |
13 |
DDC Ground |
Ground |
14 |
N.C. |
Not Connection |
15 |
DCC_SCL |
Serial Clock for EEPROM |
16 |
DCC_SDA |
Serial Data for EEPROM |
17 |
Reserved (N.C. on device) |
Not Connection |
18 |
+5V Power |
5V for EEPROM |
19 |
HPD |
Hot Plug Detect High: Active link Low: Inactive link |
Power Connector: CI4406M2HR0 or compatible connector
Pin No. |
Symbol |
Description |
1 |
VCC |
Power supply for LCM |
2 |
VCC |
Power supply for LCM |
3 |
BLEN |
PWM Dimmer (Note 1) |
4 |
NC |
Not Connected |
5 |
GND |
Ground |
6 |
GND |
Ground |
Note 1: PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.5V to this pin. |
Slider Switch
Pin No. |
Description |
Note |
1-2 |
PWM Dimmer |
Default |
2-3 |
HDMI Detection |
- |
同系列 Series
Size |
Resolution |
LCD Technology |
Outline Dimensions (mm) |
Interface |
LED Driver |
Brightness (cd/m²,typ.) |
Model Name |
8.0” |
800x480 |
TN |
192.8*116.9*6.4 |
TTL RGB |
NO |
1000 / 50khrs min. |
|
8.0” |
800x480 |
TN |
192.8*116.9*9.66 |
TTL RGB |
NO |
1000 / 50khrs min. |
|
8.0” |
800x480 |
TN |
192.8*116.9*9.66 |
TTL RGB |
YES |
1000 / 50khrs min. |
|
8.0” |
800x480 |
TN |
192.8*116.9*9.46 |
LVDS |
NO |
1000 / 50khrs min. |
|
8.0” |
800x480 |
TN |
192.8*116.9*9.46 |
LVDS |
YES |
1000 / 50khrs min. |
|
8.0” |
800x480 |
TN |
192.8*116.9*13.5 |
for HDMI signal |
YES |
1000 / 50khrs min. |
✦ 以上TFT模組皆可依您的應用需求搭配觸控面板
