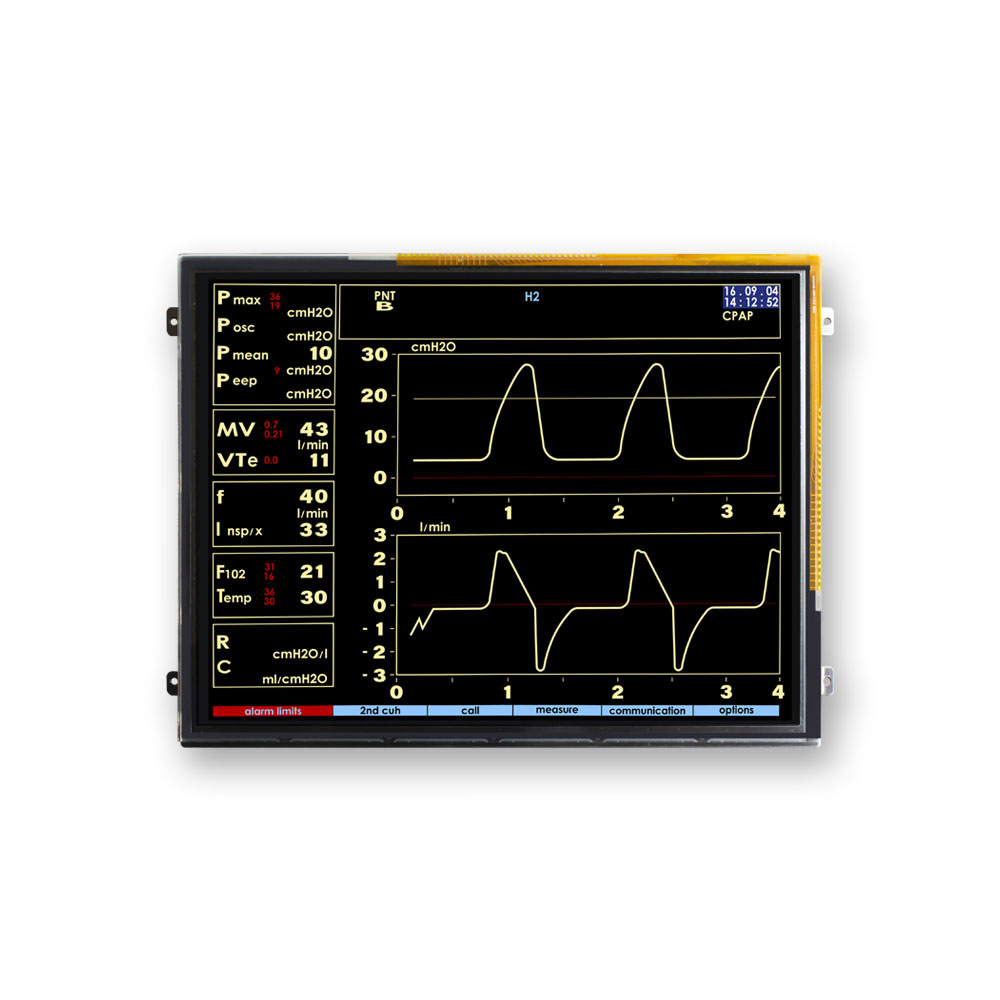

10.4吋陽光下可視廣視角IPS TFT 顯示器, 支援HDMI訊號

Model No.VGG107620-C(SR)

► XGA (1024×768) pixels resolution
► HDMI Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Ten points)
- 4096 x 4096 resolution

*Support HDMI Interface, suit for your digital device.

VGG107620-C(SR)是一款10.4吋廣視角IPS TFT 顯示器, 支援HDMI訊號，在影像資料傳輸上支援HDMI*介面，產品操作使用上其工作溫度是-20~70℃，儲存溫度是-30~80℃。10.4吋廣視角IPS TFT 顯示器, 支援HDMI訊號 (VGG107620-C(SR))是一款款高亮度(High Brightness)符合陽光下可視(Sunlight Readable)的產品，可支援觸控面板選配。10.4 inch TFT (VGG107620-C(SR))可適用於任何工控醫療設備、手持式裝置、嵌入式系統及其他產品顯示使用。

億力光電提供全方面且多樣性的中小尺寸TFT顯示模組，我們確信可以完美滿足您的應用需求。

加入詢價

Size (inch):

10.4

Resolution (dots):

1024*768

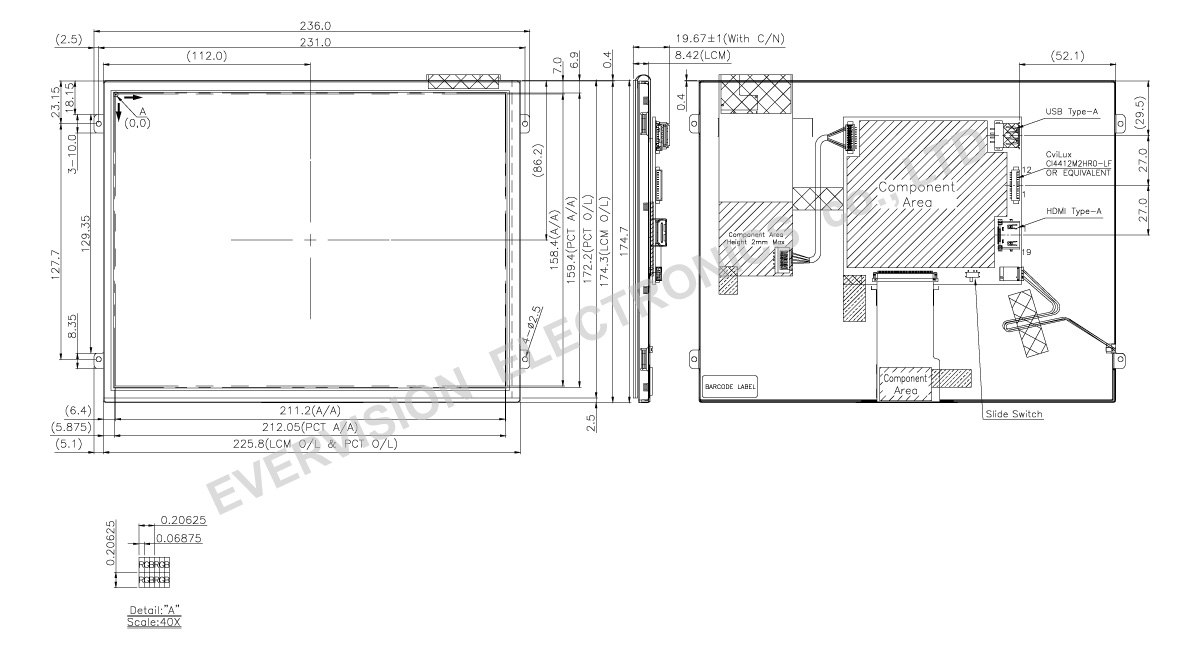

Outline Dimensions (mm):

236*174.7*15.72

Technology:

IPS

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

880 / 50khrs typ.

LED Driver:

YES

Touch Panel:

IPCT (USB)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	680	970	mA
VSYNC Frequency	F_V	-	60	-	Hz
PWM signal Low voltage	V_PWML	0	-	0.4	V
PWM signal High voltage	V_PWMH	1.5	-	5	V
PWM frequency	f_PWM	100	-	1000	Hz
LED Life Time(25℃)	-	-	50000	-	Hr

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	V_TP	4.8	5.0	5.2	V	-
Power Supply Current	I_TP	-	39.4	55.2	mA	(1)
Power Consumption	P_L	-	197.0	276.0	mW	@5.0V
Report Rate	R_R	-	60	-	Hz	-
Interface		USB				-
Function		Multi Touch				-

Note (1) This test condition is touched with 10 points.

TFT-LCD Module

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair.
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair.
13	N.C.	Not Connection
14	N.C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N.C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector

Connector: CI4412M2HR0 or compatible connector

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	BLEN	PWM Dimmer
4	D+	USB data+ for PCT (Note 1)
5	D-	USB data- for PCT (Note 1)
6	V_TP	+5V power supply for PCT
7	NC	Not Connection
8	NC	Not Connection
9	NC	Not Connection
10	NC	Not Connection
11	GND	Ground
12	GND	Ground

Note 1：To avoid USB I/F IPCT damaged, please select only one connection method (USB or Power Connector Pin 4 & 5 & 6) while using the module.

Connector: USB 2.0 Type A Connector

Pin No.	Symbol
1	V_TP
2	D-
3	D+
4	GND

Note: To avoid USB I/F IPCT damaged, please select only one connection method ( USB or Power Connector Pin 4 & 5 & 6) while using the module.

Slider Switch

Pin No.	Description	Note
1-2	PWM Dimmer	Default
2-3	HDMI Detection	-

【亮度 / Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	1024x768	MVA	238.6175.87.5	LVDS(30)	350 / 30khrs min.	☛ VGG107603-D(SR)
10.4”	1024x768	IPS	236174.313.02	LVDS(30)	1000 / 50khrs typ.	☛ VGG107620-A(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

【解析度 / Resolution】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

【介面 / Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)
10.4”	1024x768	IPS	236174.313.02	LVDS	1000 / 50khrs typ.	☛ VGG107620-A(SR)
10.4”	1024x768	IPS	236174.715.72	HDMI*	880 / 50khrs typ.	☛ VGG107620-C(SR)

✦ 以上TFT模組皆可依您的應用需求搭配觸控面板

* Support HDMI Interface, suit for your digital device.
