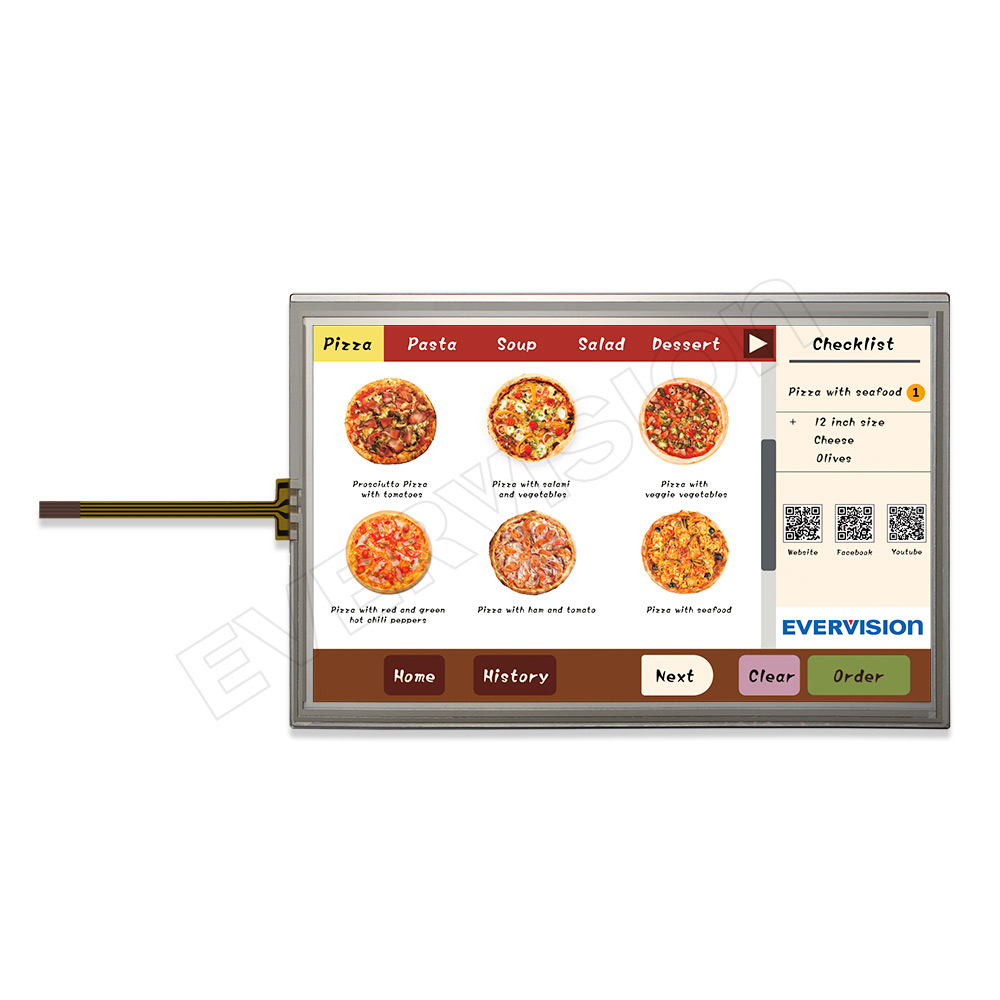

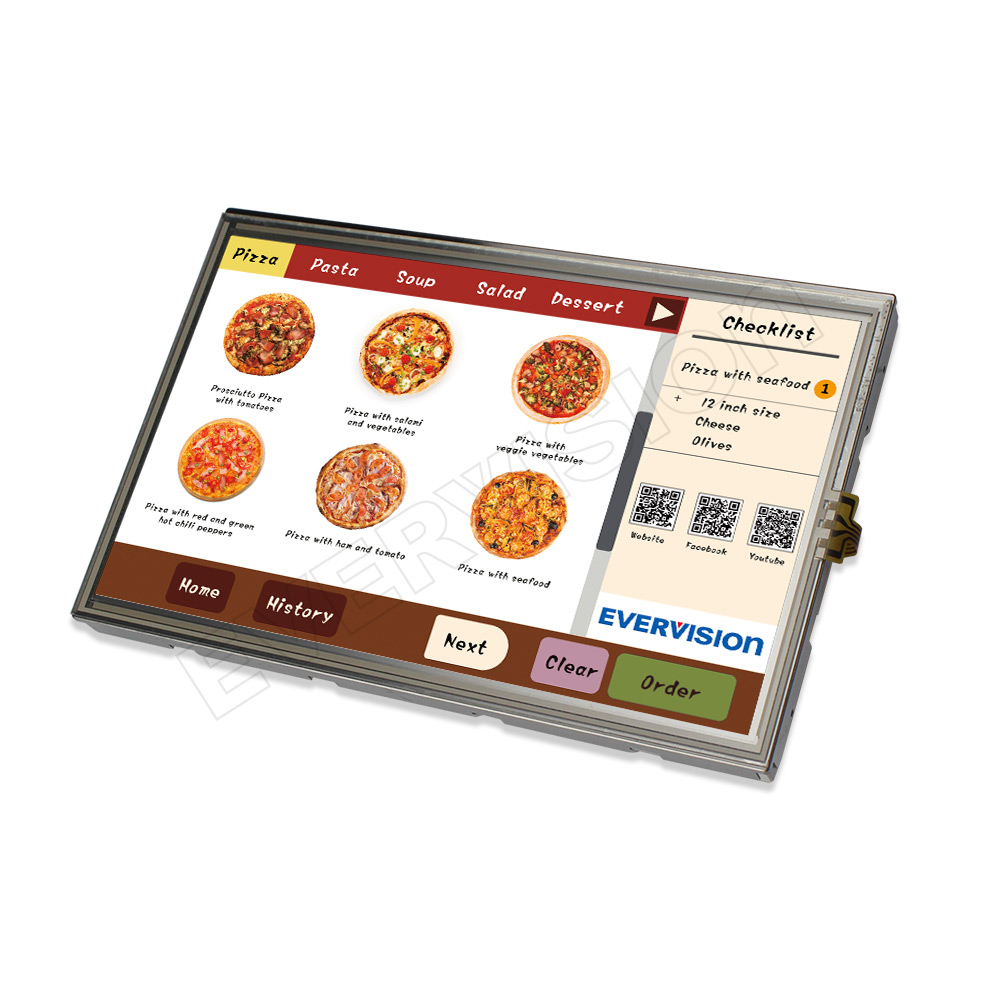

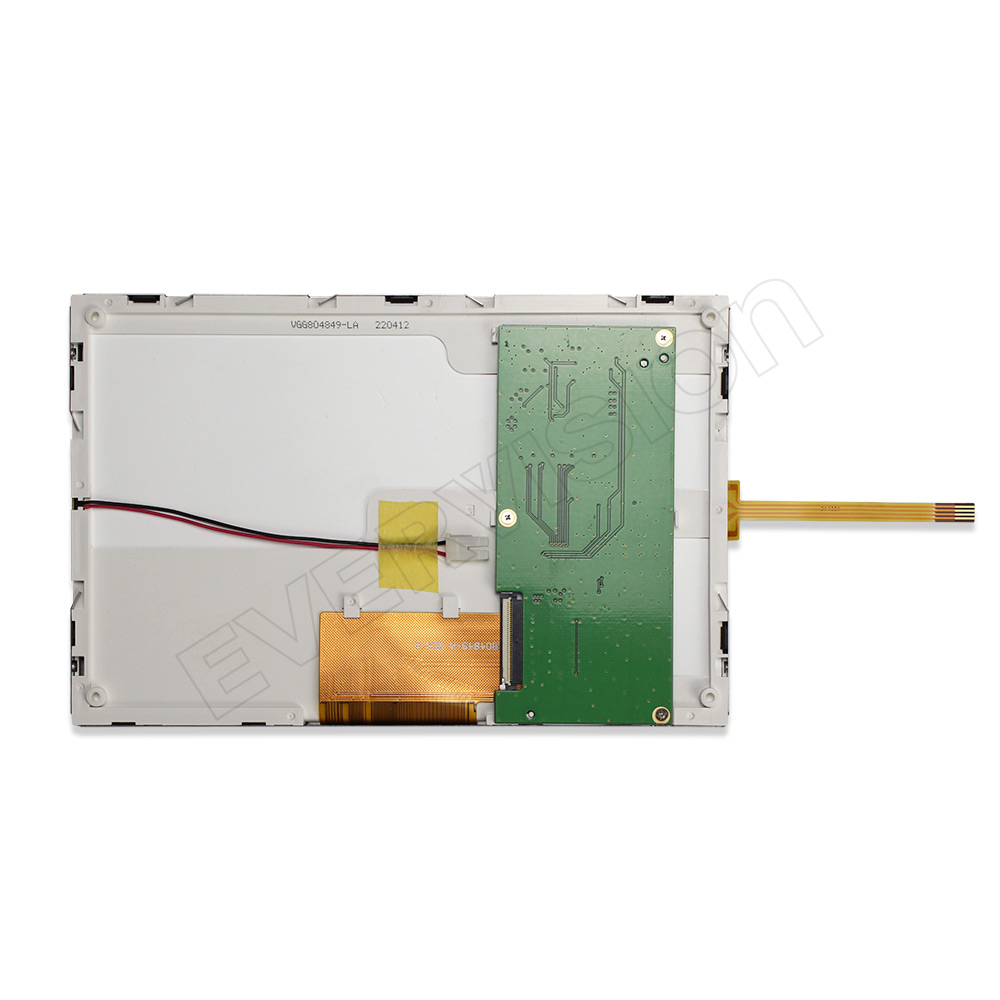

7.0 inch TFT 顯示模組, 800x480 TFT LCD 模組, 電阻式觸控面板
Model No.VGG804849-B
分享
► WVGA (800×480 pixels) resolution.
► Digital 18 bit parallel RGB.
► Transparent Touch panel
- 4-Wire
- Analog Resistive
億力光電7.0吋TFT LCD顯示器模組，型號VGG804849-B，解析度800x480 WVGA，規格說明介面(Interface): TTL RGB, 觸控(Touch Panel): 電阻式觸控面板, Pinout 40個, 模組亮度400 cd/㎡，操作溫度-20~70度，儲存溫度-30~80度，提供產品規格書(datasheet)下載。
7.0吋 TFT LCD 模組 (VGG804849-B) 可適用於任何工控醫療設備、手持式裝置、嵌入式系統及其他產品顯示使用。億力光電提供全方面且多樣性的中小尺寸TFT顯示模組，我們確信可以完美滿足您的應用需求。
/VGG804849-B_ME.png)
Absolute Maximum Ratings
|
Item |
Symbol |
Min. |
Max. |
Unit |
|
Storage Temperature |
TST |
-30 |
+80 |
°C |
|
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Power Supply Voltage |
VCC |
3.0 |
3.3 |
3.6 |
V |
|
Power Supply Current |
ICC |
- |
105 |
147 |
mA |
Backlight Unit (Ta=25±2°C)
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Current of Backlight Unit |
IB |
- |
200 |
- |
mA |
|
Voltage of Backlight Unit |
VB |
- |
(9.0) |
- |
V |
|
LED Life Time(25℃) |
- |
50000 |
- |
- |
hr |
Transparent Touch Panel
|
Item |
Min. |
Typ. |
Max. |
Unit |
Note |
|
|
Operating Voltage |
3 |
- |
5 |
V |
- |
|
|
Terminal Resistance |
X-direction |
200 |
- |
1000 |
Ω |
At connector |
|
Y-direction |
200 |
- |
1000 |
Ω |
At connector |
|
|
Insulation Resistance |
> 20MΩ |
At DC25V |
||||
|
Chatting |
≦ 10 ms Max |
At connector |
||||
|
Linearity |
≦2% |
- |
||||
