128x64 單色繪圖型顯示模組, 128*64 繪圖LCD模組, 單色顯示器, T6963C

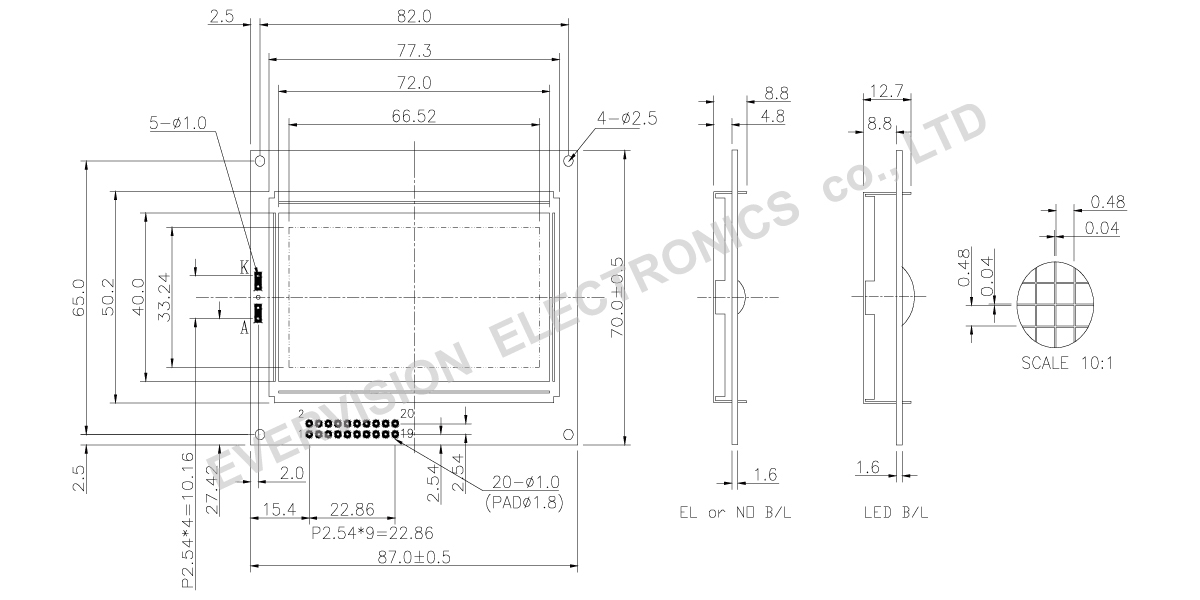

Item

Symbol

Min.

Typ.

Max

Unit

Supply Voltage For Logic

VDD-VSS

0

-

7

V

Supply Voltage For LCD Drive

VDD-VO

0

-

14

V

Input Voltage

VI

VSS

-

VDD

mA

Item

Symbol

Condition

Min.

Typ.

Max

Unit

Supply Voltage For Logic

VDD-VSS

T=0℃

4.5

5.0

5.5

V

Supply Voltage For LCD Drive

VDD-VO

VDD=5V, Ta=25℃

7.6

8.3

9.2

V

Supply Current

IDD

VDD=5V

-

4.5

10

mA

Input Voltage

“High” Level

VIH

-

2.2

-

VDD

V

“Low” Level

VIL

-

-

-

0.6

V

Output Voltage

“High” Level

VOH

-

2.4

-

-

V

“Low” Level

VOL

-

-

-

0.4

V

Pin No.

Symbol

LEVEL

Function

1

VSS

0V

Power Supply Ground

2

VDD

5V

Power Supply Voltage

3

VO

-

Contrast Adjustment Voltage

4

C/D

H/L

H：Instruction Code，L：Data

5

/RD

L

Read Signal

6

/WR

L

Write Signal

7

DB0

H/L

Data Bus Line

8

DB1

H/L

Data Bus Line

9

DB2

H/L

Data Bus Line

10

DB3

H/L

Data Bus Line

11

DB4

H/L

Data Bus Line

12

DB5

H/L

Data Bus Line

13

DB6

H/L

Data Bus Line

14

DB7

H/L

Data Bus Line

15

/CE

L

Enable Signal

16

/RST

L

Reset Signal

17

Vout

-

Power Supply Voltage For LCD

18

MD

H/L

H : 32/ L : 40 Select Of Columns

19

FS

H/L

H : 6*8，L : 8*8 Select Of Columns

20

/HLT

L

Stop The Oscillation Of Clock
