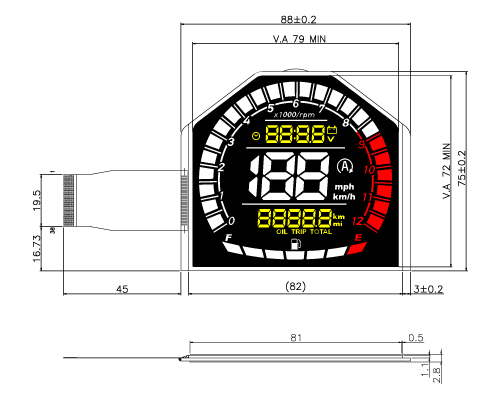

Scooter Dashboard Display

Description

VA LCD suits better for Scooter Dashboard because of extra-high contrast ratios and wide viewing angle performance. To meet the needs of optimized display performance, EVERVISION VA Scooter Dashboard module is designed to provide the service of cutting different shapes and multicolor printing options to the customers.



Features

  • VA LCD
  • Wide Viewing Angle
  • High Contrast
  • Muticolor printing (options)
  • Cutting different shapes (optons)



General Specifications

Item

Specifications

Unit

Outline Dimension

88 (W) * 75 (H) * 2.8 (D)

mm

Viewing Area

79 (W) * 72 (H)

mm

LCD Type

VA/ Transflective/ Negative

-

Surface Treatment

Anti-Glare

-

View Direction

6 o'clock *1

-

Contrast Ratio

1000 (typ.)

-

Duty Ratio ; Bias

1/4 Duty ; 1/3 Bias

-

Temperature Operation

-30 ~ +80

*1 The view direction of LCD that specification is tailored to the user needs to suit their product needs exactly.

LCD Drawing

If you need any further information, please contact EVERVISION.
