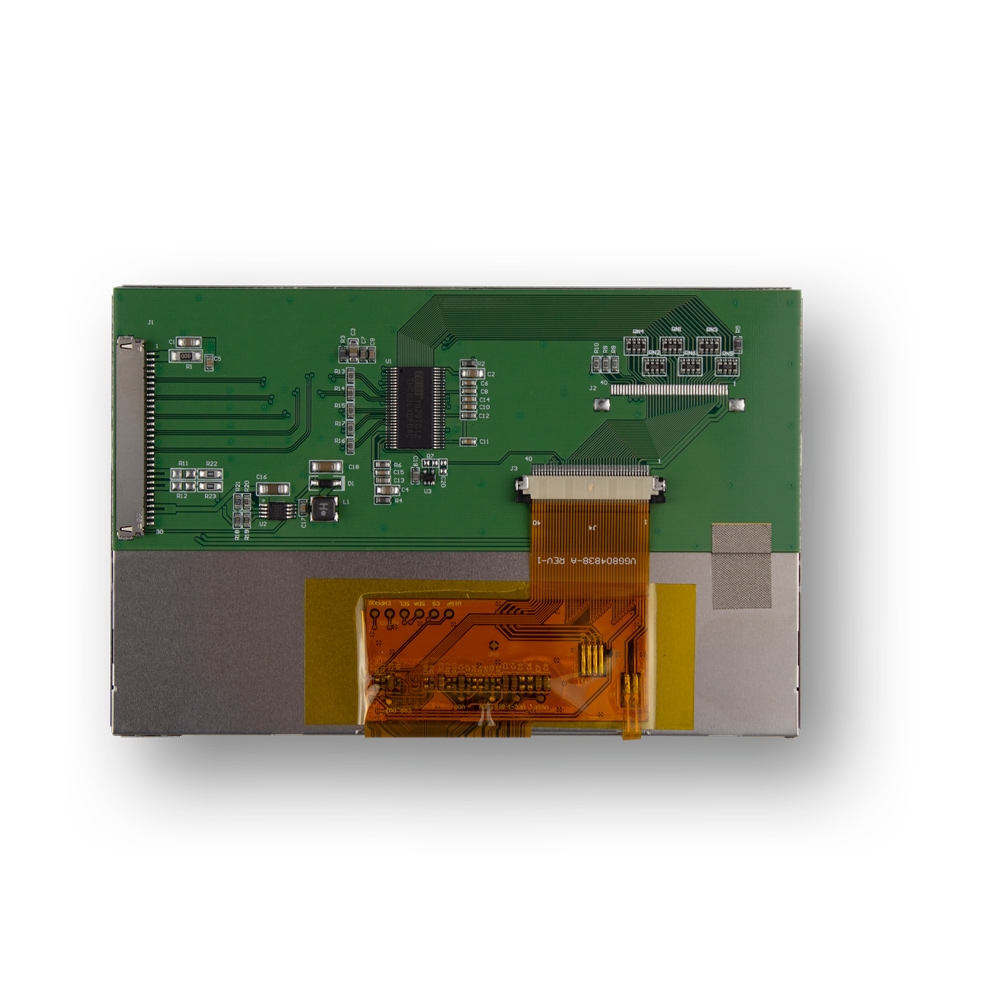

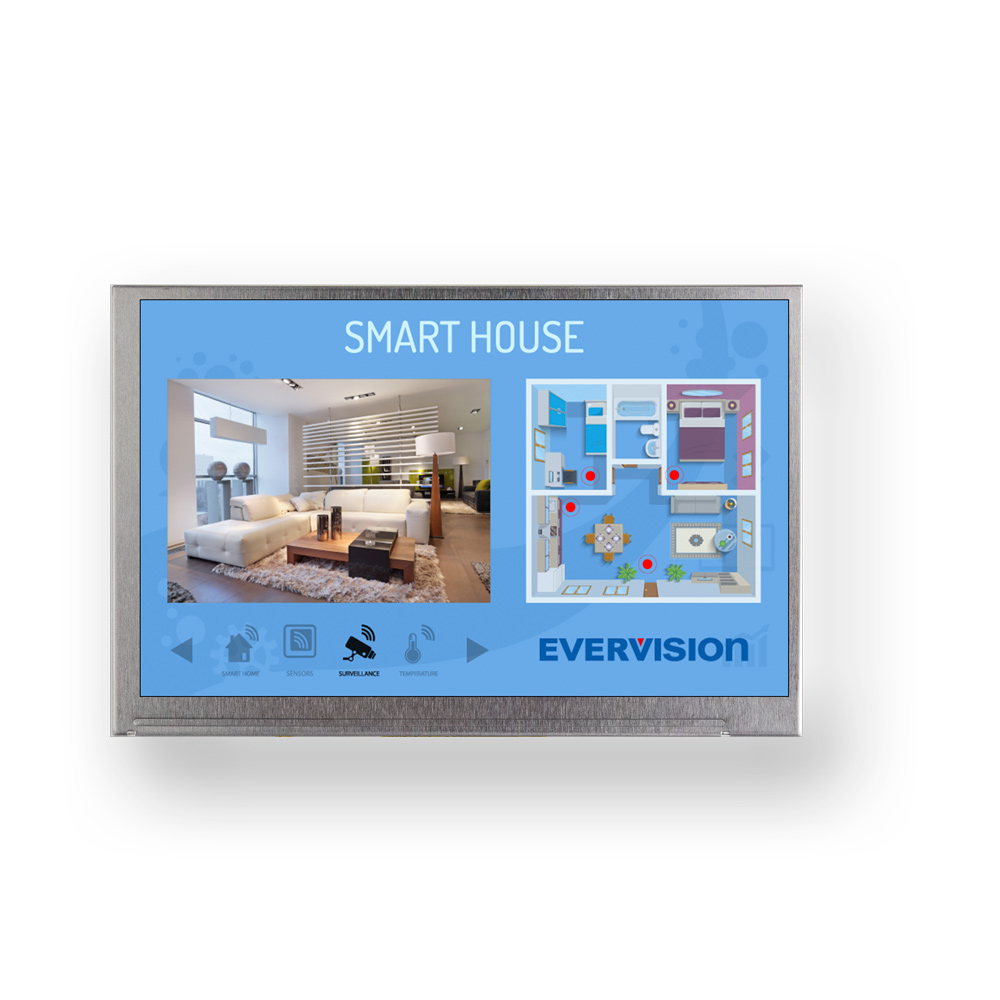

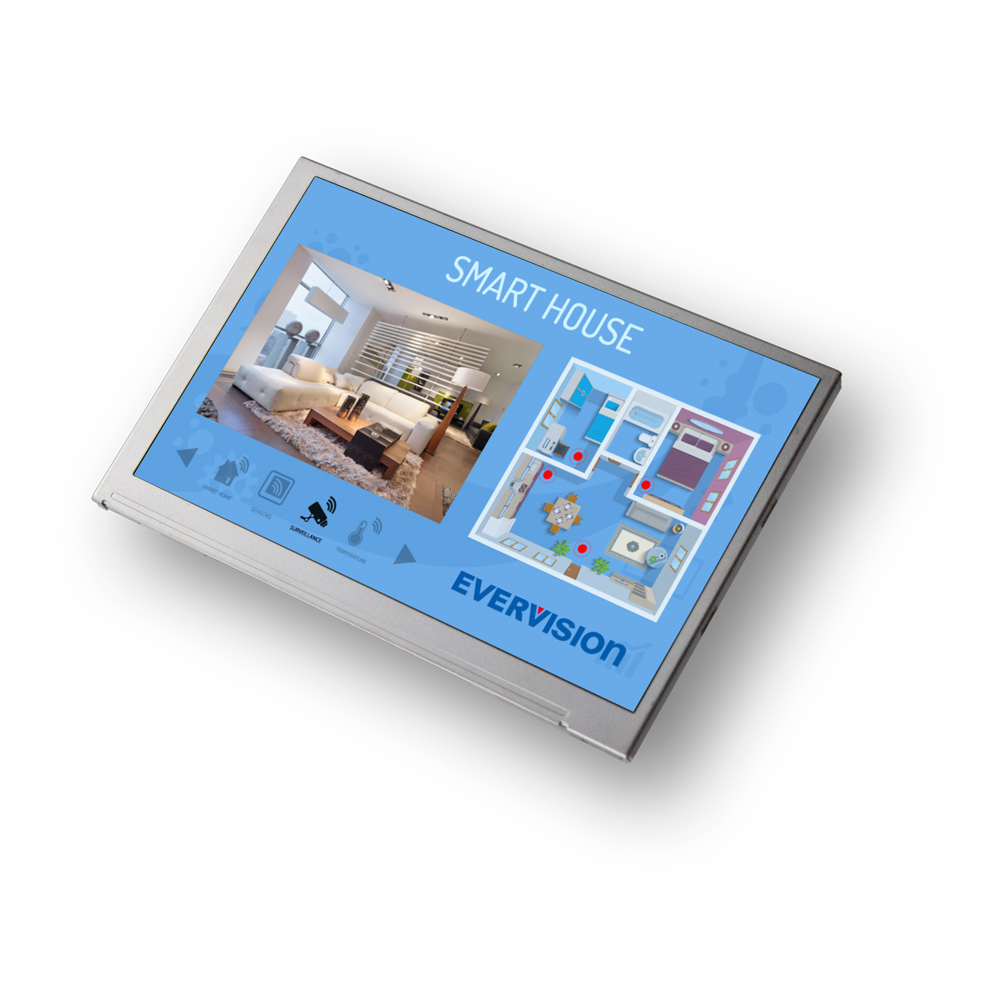

5.0 inch Wide Angle IPS TFT LCD, Touchscreen optional

Model No.VGG804838-D(WV)

► WVGA (800×480 pixels) resolution.
► 8 bit LVDS Interface.
► LED driver circuit is built in this module to provide PWM Dimmer function.

VGG804838-D(WV) is a 5 inch TFT (IPS) wide viewing angle LCD module that supports LVDS interface. It can be operating at temperatures from -30~80℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

5.0

Resolution (dots):

800*480

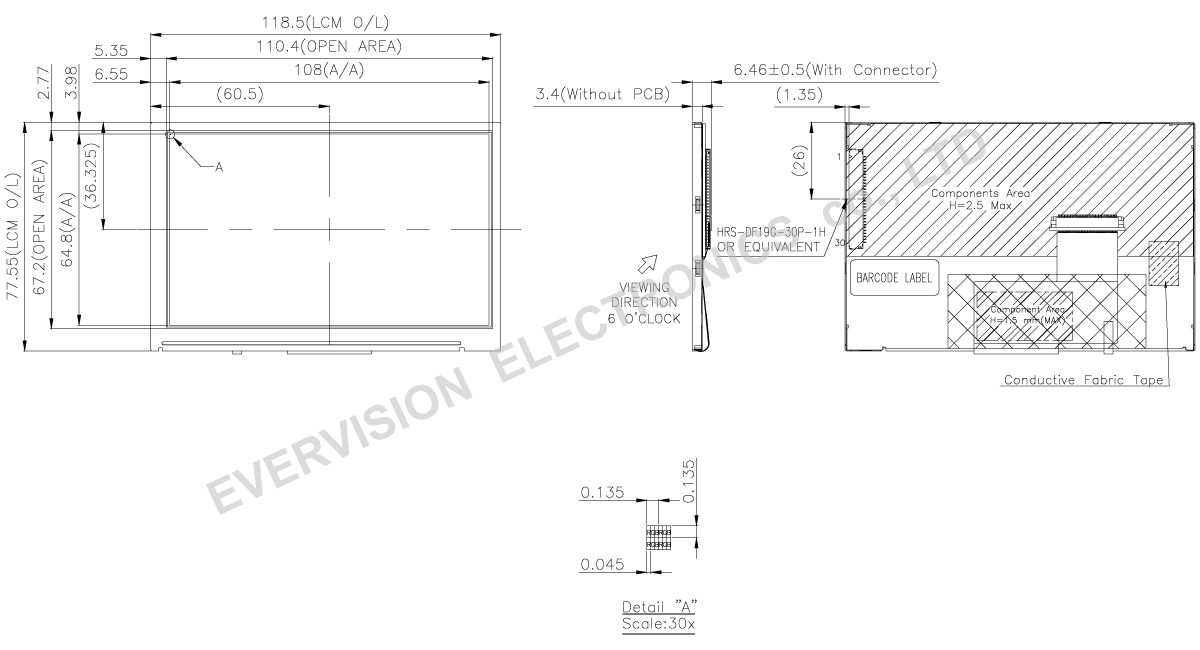

Outline Dimensions (mm):

118.5*77.55*6.46

Technology:

IPS

Viewing Angle(TYP.):

80/80/80/80

I/F Mode:

LVDS

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

500 / 60khrs typ.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-30~80

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	V_CC	3.0	3.3	3.6	V
Digital Current	I_CC	-	115	161	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Voltage of LED Driver Unit	VLED	11.5	12.0	12.5	V	-
Current of LED Driver Unit	ILED	-	120	168	mA	VLED=12V、B/L=40mA
Voltage of LED Driver Unit	VLED	4.5	5.0	5.5	W	-
Current of LED Driver Unit	ILED	-	260	364	Hr	VLED=5V、B/L=40mA
PWM Signal Low Voltage	VPWML	0	-	0.4	W	-
PWM Signal High Voltage	VPWMH	1.4	-	5.5	Hr	-
PWM frequency	fPWM	100	-	1000	W	-
LED Life Time(25℃)	-	50000	60000	-	Hr	(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness.

TFT LCD Module

Pin No.	Symbol	Description
1	V_CC	Power supply
2	V_CC	Power supply
3	GND	Ground
4	GND	Ground
5	RIN3+	LVDS Signal (+) Channel 3
6	RIN3-	LVDS Signal (-) Channel 3
7	GND	Ground
8	RCLK+	LVDS CLK Channel (+)
9	RCLK-	LVDS CLK Channel (-)
10	GND	Ground
11	RIN2+	LVDS Signal (+) Channel 2
12	RIN2-	LVDS Signal (-) Channel 2
13	GND	Ground
14	RIN1+	LVDS Signal (+) Channel 1
15	RIN1-	LVDS Signal (-) Channel 1
16	GND	Ground
17	RIN0+	LVDS Signal (+) Channel 0
18	RIN0-	LVDS Signal (-) Channel 0
19	GND	Ground
20	GND	Ground
21	NC	Not Connection
22	NC	Not Connection
23	NC	Not Connection
24	NC	Not Connection
25	BLEN	- On/Off Control Input and Dimming Command Input. - A voltage greater than 0.7V will turn on the chip. - When the BLEN pin voltage rises from 0.7V to 1.4V,The LED current will change from 0% to 100% of the maximum LED current. - To use PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.4V to this pin.
26	NC	Not Connection
27	VLED	LED driver power supply
28	VLED	LED driver power supply
29	GND	Ground
30	GND	Ground

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
5.0”	800x480	IPS	118.577.553.4	TTL RGB	500 / 60khrs typ.	☛ VGG804838-A(WV)
5.0”	800x480	IPS	118.577.556.46	LVDS	500 / 60khrs typ.	☛ VGG804838-D(WV)
5.0”	800x480	IPS	138.577.558.61	HDMI*	500 / 60khrs typ.	☛ VGG804838-J(WV)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
5.0”	800x480	IPS	118.577.556.46	TTL RGB	500 / 60khrs typ.	☛ VGG804838-D(WV)
5.0”	800x480	IPS	118.577.556.46	TTL RGB	1300 / 60khrs typ.	☛ VGG804838-G(SR)

✦ Touch screen is available depending on your application.
