4.3 inch MIPI Panel, MIPI LCD Display, MIPI IPS LCD

Model No.VGG804834-A(WV)


Share to:

► WVGA (800×480 pixels) resolution.
► MIPI Interface: 2 Data Lanes.
► LED driver circuit is built in this module to provide PWM Dimmer function.

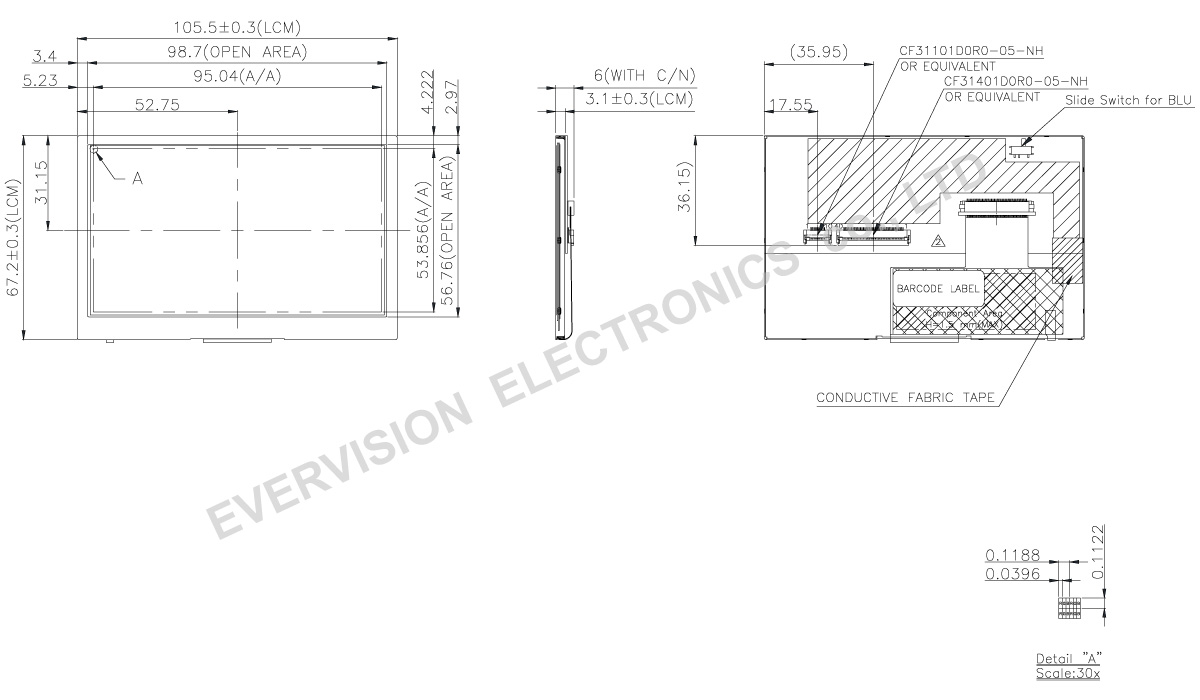

VGG804834-A is a 4.3 inches TFT LCD module with 800RGBx480 resolution. The outline size of the module is 105.5(W)*67.2(H)*6.0(D) mm. VGG804834-A supports MIPI interface, driven by 3.0~3.6 V (Ideal 3.3V). Assembled to the IPS TFT display(support Wide Viewing Angle TFT LCD Module ), our PCB provides the user an all-in-one, MIPI interface, LED driver and USB/I2C Touch solution (option) for virtually any application.
