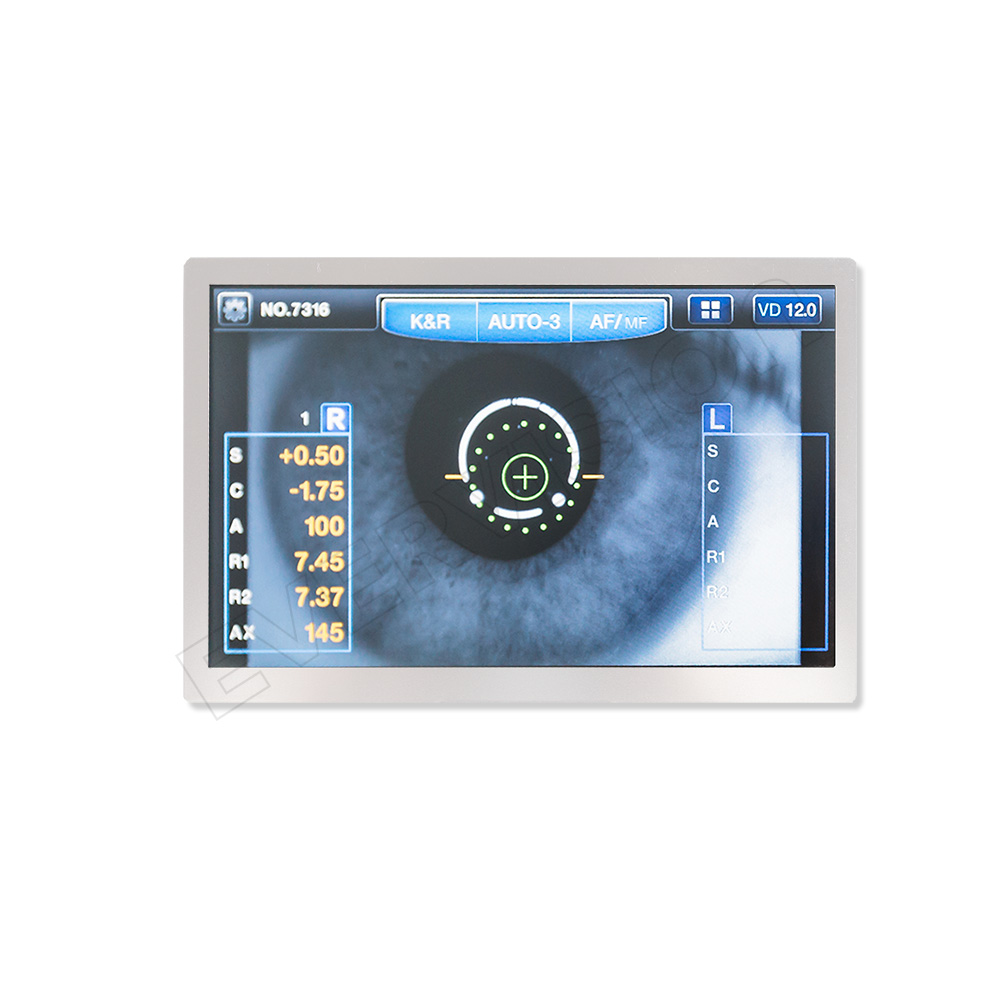

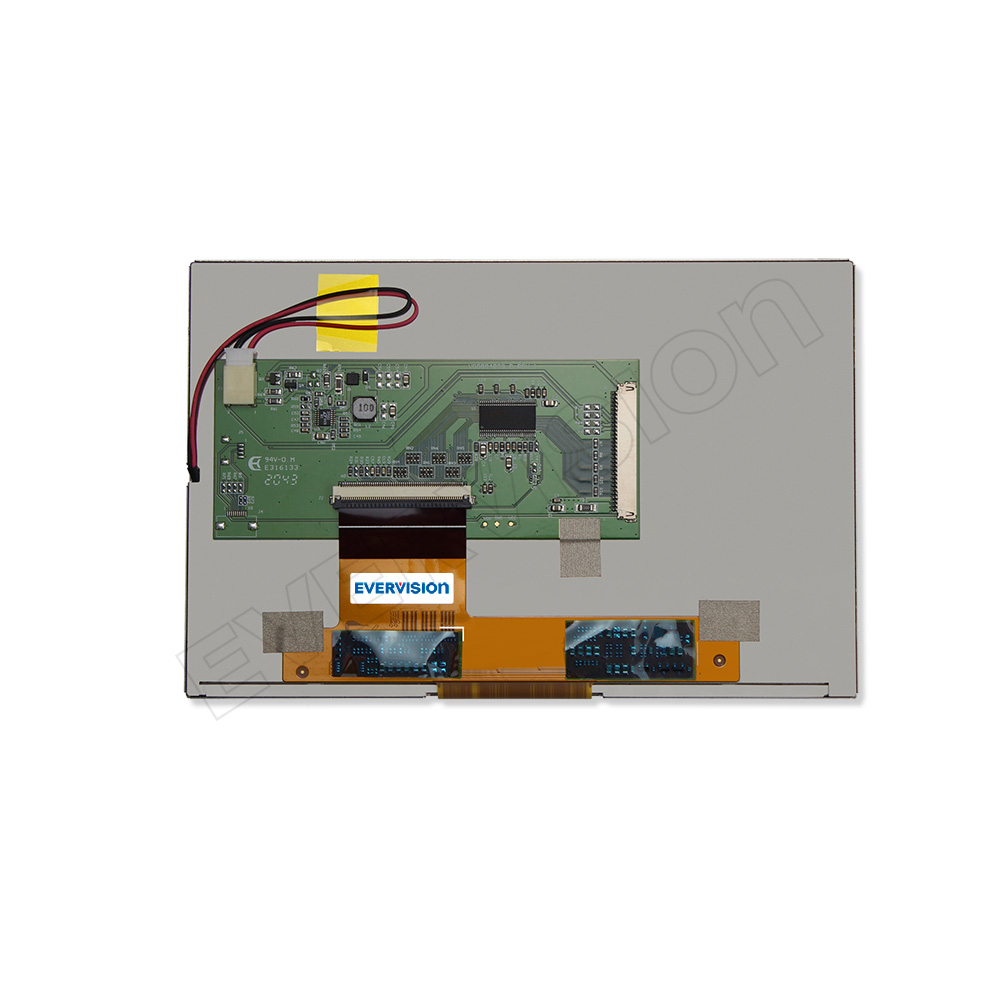

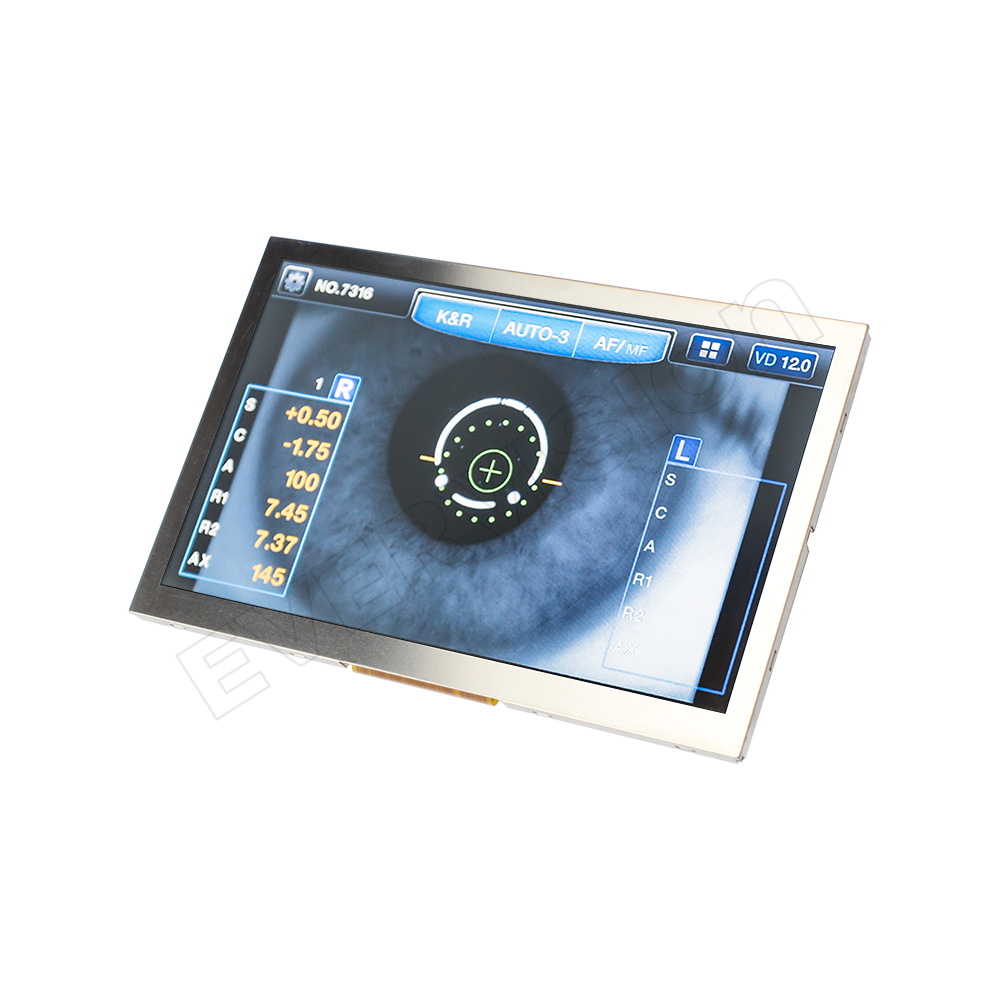

7 inch Wide View IPS TFT LCD, LVDS Interface, IPS LCD

Model No.VGG804833-B(WV)

► WVGA (800×480 pixels) resolution.
► 8 bit LVDS Interface.
► LED driver circuit is built in this module to provide PWM Dimmer function.

VGG804833-B is a 7 inch TFT (IPS) wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -30~85℃ and storage temperatures range from -40~90℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

7.0

Resolution (dots):

800*480

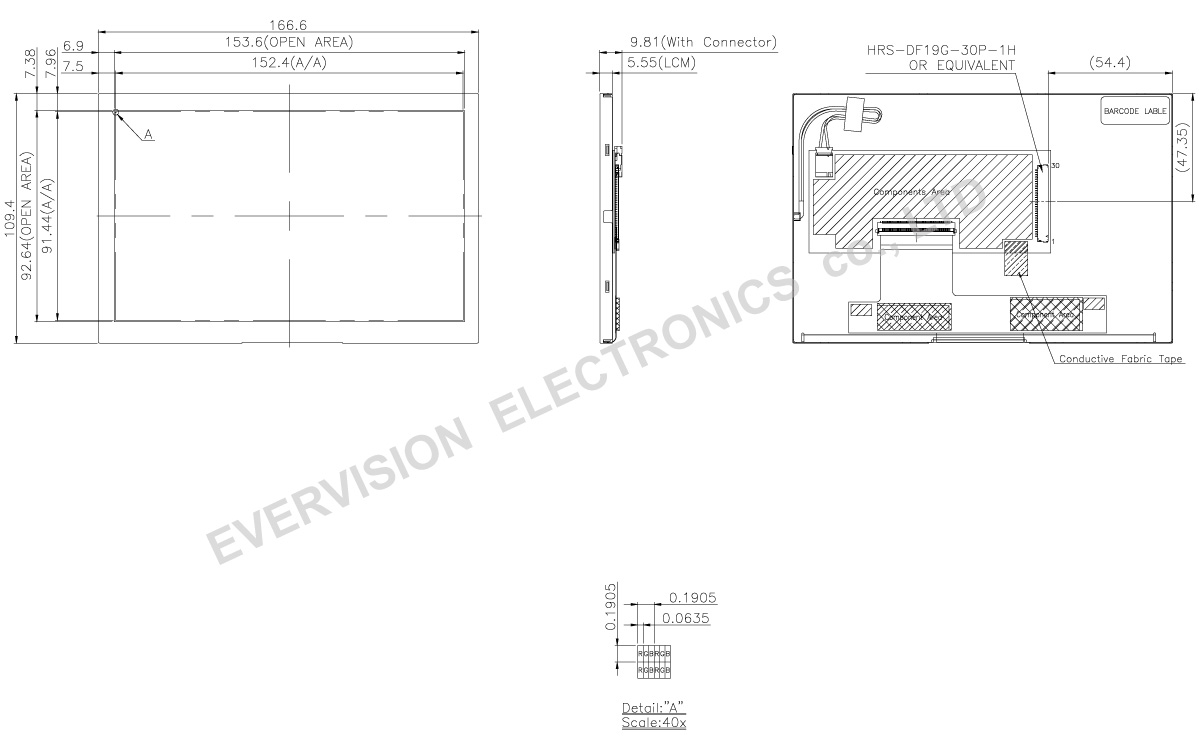

Outline Dimensions (mm):

166.6*109.4*9.81

Technology:

IPS

Viewing Angle(TYP.):

80/80/80/80

I/F Mode:

LVDS

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

900 / 65khrs min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-30~85

Tst (°C):

-40~90

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-40	+90	°C
Operating Ambient Temperature	TOP	-30	+85	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	3.0	3.3	3.6	V
Power Supply Current	ICC	-	205	287	mA

LED Driver Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Voltage of LED Driver Unit	VLED	11.5	12.0	12.5	V	-
Current of LED Driver Unit	ILED	-	354	495.6	mA	VLED=12V、B/L =360mA
PWM signal Low voltage	VPWML	0	-	0.4	V	-
PWM signal High voltage	VPWMH	1.5	-	5	V	-
PWM frequency	fPWM	100	-	1000	Hz	-
LED Life Time(25℃)	-	65000	-	-	Hr	(1)

Note (1)：Lamp life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness.

TFT-LCD Module

Connector: HIROSE DF19G-30P-1H or Equivalent

Pin No.	Symbol	Description
1	VCC	+3.3V power supply
2	VCC	+3.3V power supply
3	GND	Ground
4	GND	Ground
5	RIN3+	LVDS Signal (+) Channel 3
6	RIN3+	LVDS Signal (-) Channel 3
7	GND	Ground
8	RCLK+	LVDS Clock Signal (+)
9	RCLK-	LVDS Clock Signal (-)
10	GND	Ground
11	RIN2+	LVDS Signal (+) Channel 2
12	RIN2-	LVDS Signal (-) Channel 2
13	GND	Ground
14	RIN1+	LVDS Signal (+) Channel 1
15	RIN1-	LVDS Signal (-) Channel 1
16	GND	Ground
17	RIN0+	LVDS Signal (+) Channel 0
18	RIN0-	LVDS Signal (-) Channel 0
19	GND	Ground
20	GND	Ground
21	NC	Not Connection
22	NC	Not Connection
23	NC	Not Connection
24	NC	Not Connection
25	BLEN	To use PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.5V to this pin.
26	NC	Not Connection
27	VLED	LED driver power supply
28	VLED	LED driver power supply
29	GND	Ground
30	GND	Ground

VGG804833 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	1500 / 30khrs min.	☛ VGG804833-N(SR)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	1500 / 30khrs min.	☛ VGG804833-O(SR)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	1500 / 30khrs min.	☛ VGG804833-T(SR)

✦ Touch screen is available depending on your application.

*Support HDMI Interface, suit for your digital device.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)

✦ Touch screen is available depending on your application.

*Support HDMI Interface, suit for your digital device.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	1500 / 30khrs min.	☛ VGG804833-N(SR)

✦ Touch screen is available depending on your application.
