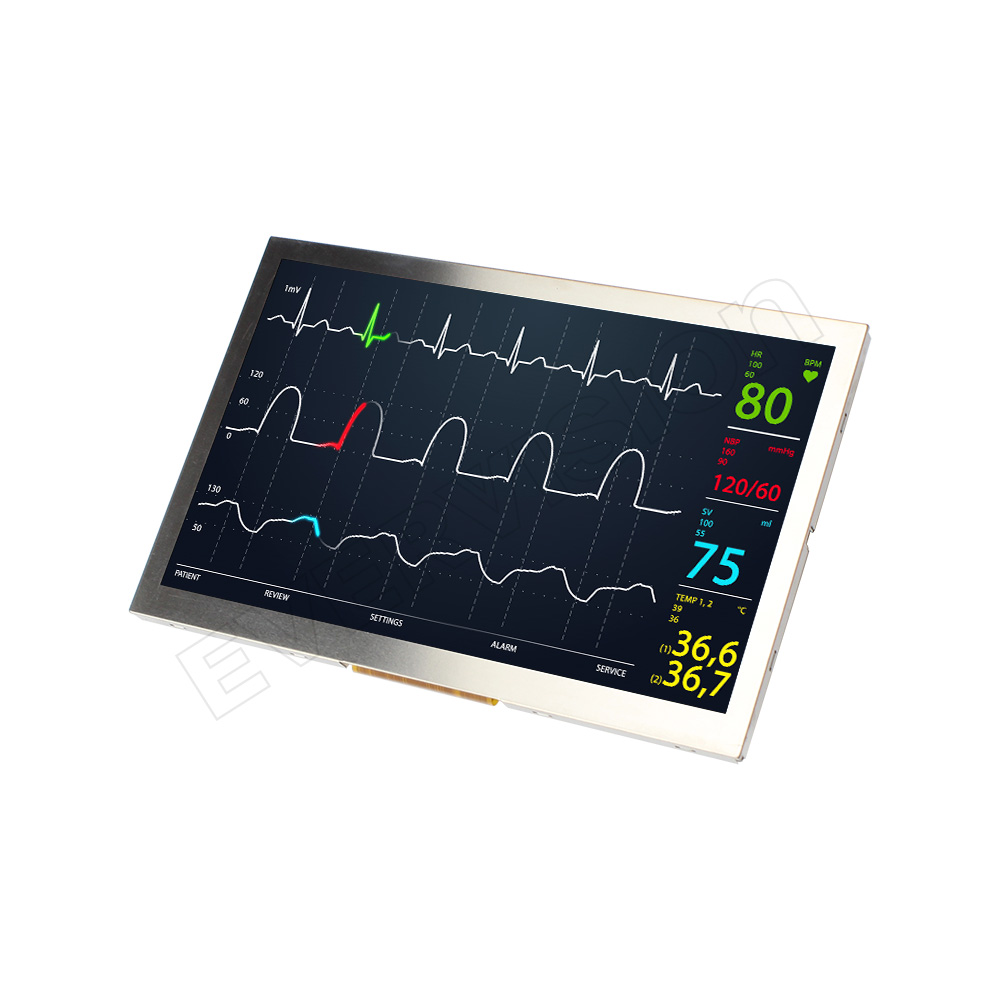

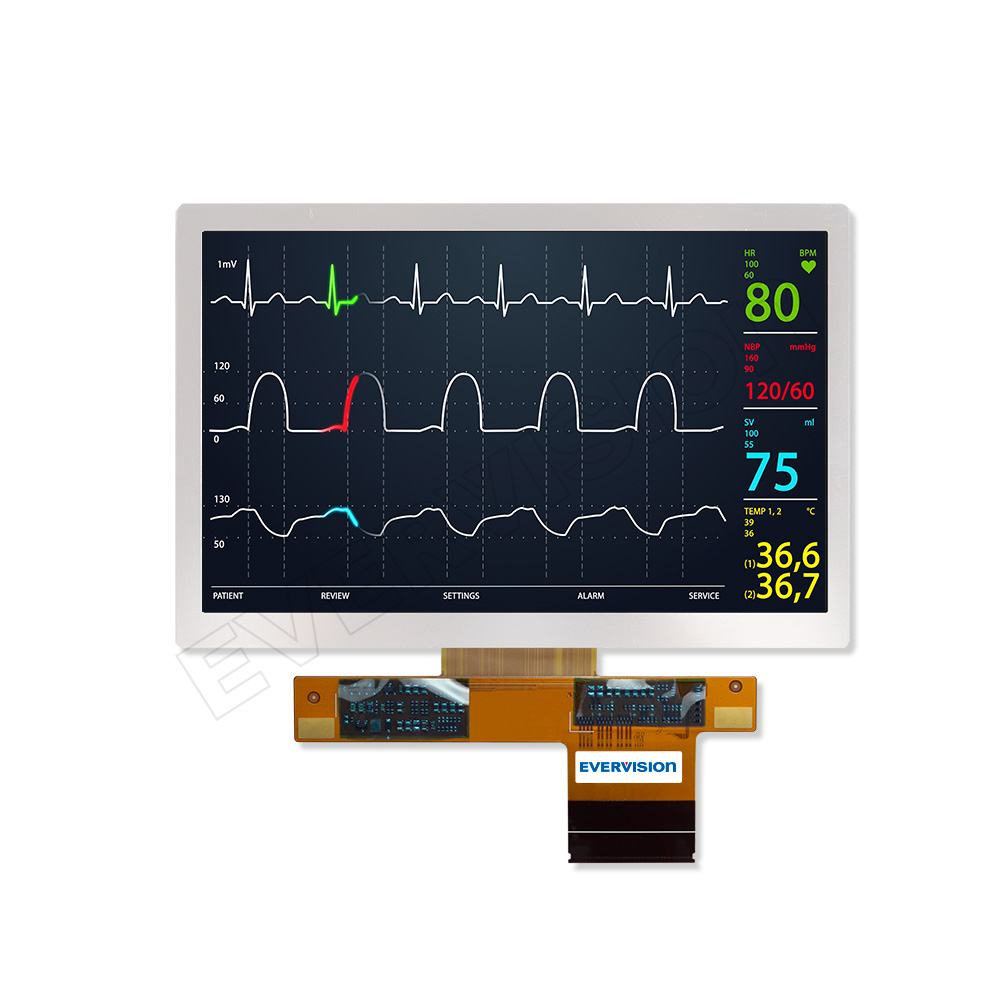

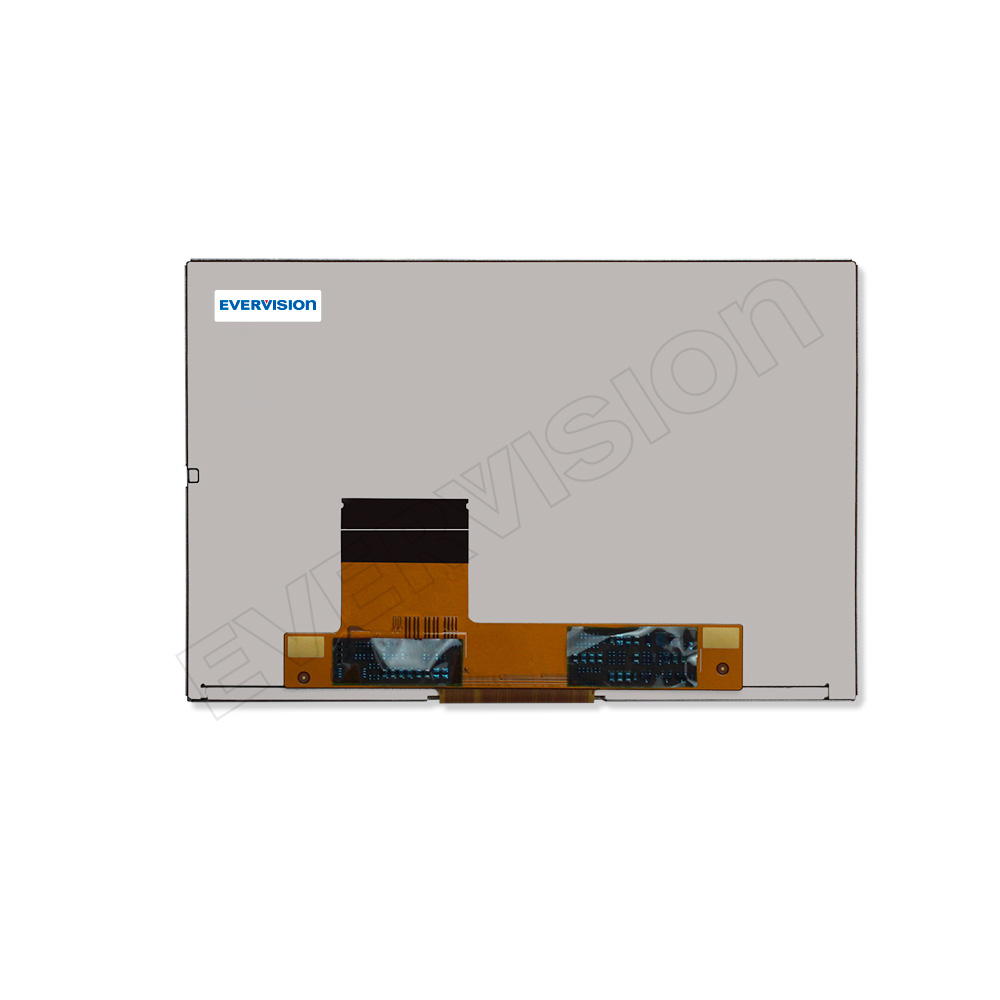

7" IPS TFT Color Display, IPS TFT LCD, Touch Option

Model No.VGG804833-A(WV)

► WVGA (800×480 pixels) resolution.
► Digital 24 bit parallel RGB

VGG804833-A is a 7 inch IPS TFT wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -30~85℃ and storage temperatures range from -40~90℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

7.0

Resolution (dots):

800*480

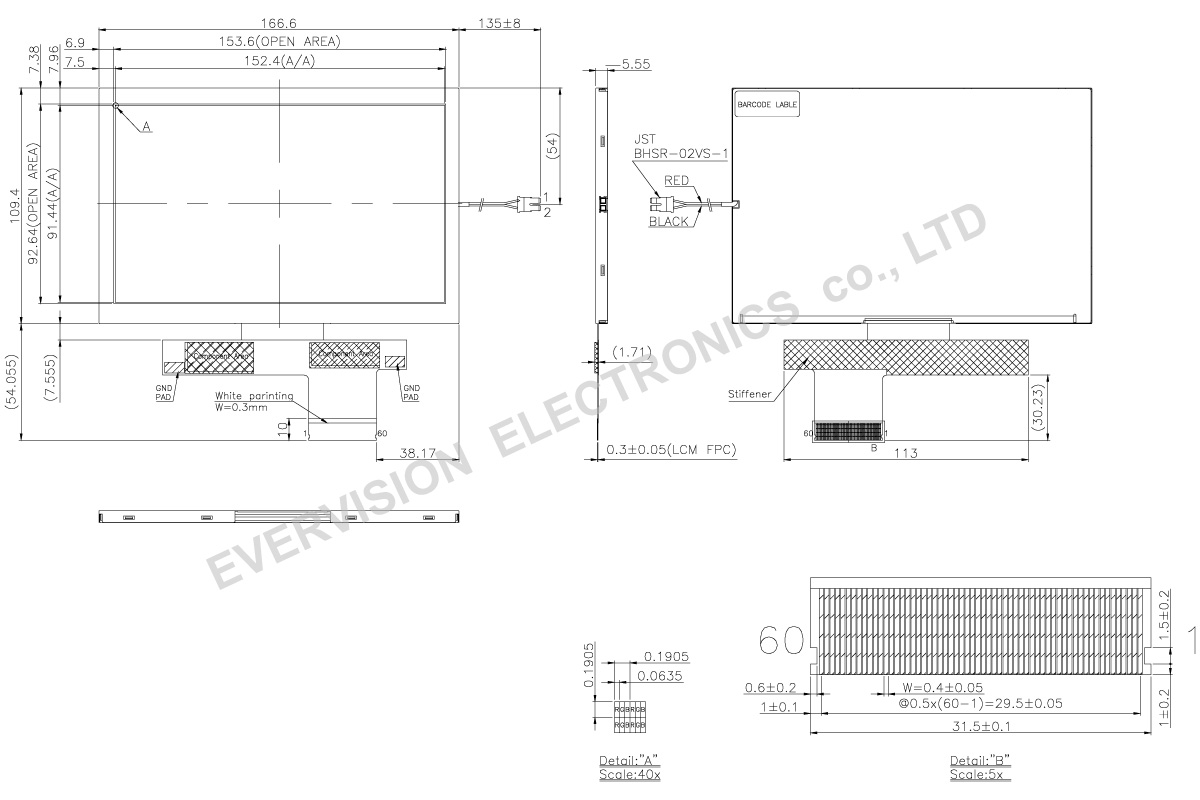

Outline Dimensions (mm):

166.6*109.4*5.55

Technology:

IPS

I/F Mode:

TTL RGB

Viewing Angle(TYP.):

80/80/80/80

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

900 / 65khrs min.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-30~85

Tst (°C):

-40~90

VGG804833-A(WV) | Wide View TFT | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-40	+90	°C
Operating Ambient Temperature	TOP	-30	+85	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VDD	3.0	3.3	3.6	V
Power Supply Current	IDD	-	158	221.2	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Current of Backlight Unit	I_B	-	360	-	mA	-
Voltage of Backlight Unit	V_B	-	(9.6)	-	V	I_B =390mA,(2)
LED Life Time(25℃)	-	65000	-	-	hr	(1)(3)

Note (1)：Lamp life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness.

Note (2)：The BLU is driven by constant current, the voltage value is for reference only

Note (3)：Use JuFei LED(Global patent)

TFT-LCD Module

Connector: IMSA-12001S-60Y903 manufactured by IRISO

Pin No.	Symbol	Description
1	GND	Ground
2	NC	No Connect
3	VDD	+3.3V power supply
4-11	R0-R7	RED data
12-20	G0-G7	GREEN data
21-27	B0-B7	BLUE data
28	DCLK	Dot Clock
29	DE	Data Enable
30-31	VDD	+3.3V power supply
32	NC	No Connect
33	RESET	Global reset pin (Default high), active low.
34	STBYB	Standby mode setting pin (Default high), active low.
35	SHLR	Horizontal scan direction (Default high), Note (1)
36	VDD	+3.3V power supply
37	UPDN	Vertical scan direction (Default high), Note (1)
38-39	GND	Ground
40-50	NC	No Connect
51	GND	Ground
52	NC	No Connect
53	GND	Ground
54	VDD	+3.3V power supply
55-56	NC	No Connect
57	VDD	+3.3V power supply
58	NC	No Connect
59	GND	Ground
60	NC	No Connect

Note(1)

SHLR	UPDN	Data shifting
VDD	VDD	Left à Right, UP à Down(default)
VDD	GND	Left à Right, Down à UP
GND	VDD	Right à Left, UP à Down
GND	GND	Right à Left, Down à UP

Backlight Unit

Connector: JST BHSR-02VS-1(N)

Pin No.	Symbol	Description
1	VLEDA	Backlight LED Anode.
2	VLEDC	Backlight LED Cathode.

VGG804833 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	1500 / 30khrs min.	☛ VGG804833-N(SR)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	1500 / 30khrs min.	☛ VGG804833-O(SR)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	1500 / 30khrs min.	☛ VGG804833-T(SR)

✦ Touch screen is available depending on your application.

*Support HDMI Interface, suit for your digital device.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.49.87	LVDS	(Option)	900 / 65khrs min.	☛ VGG804833-B(WV)
7.0”	800x480	IPS	166.6109.412.7	HDMI*	(Option)	900 / 65khrs min.	☛ VGG804833-L(WV)

✦ Touch screen is available depending on your application.

*Support HDMI Interface, suit for your digital device.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Touch Panel	Brightness (cd/m²,typ.)	Model Name
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	900 / 65khrs min.	☛ VGG804833-A(WV)
7.0”	800x480	IPS	166.6109.45.55	TTL RGB	(Option)	1500 / 30khrs min.	☛ VGG804833-N(SR)

✦ Touch screen is available depending on your application.
