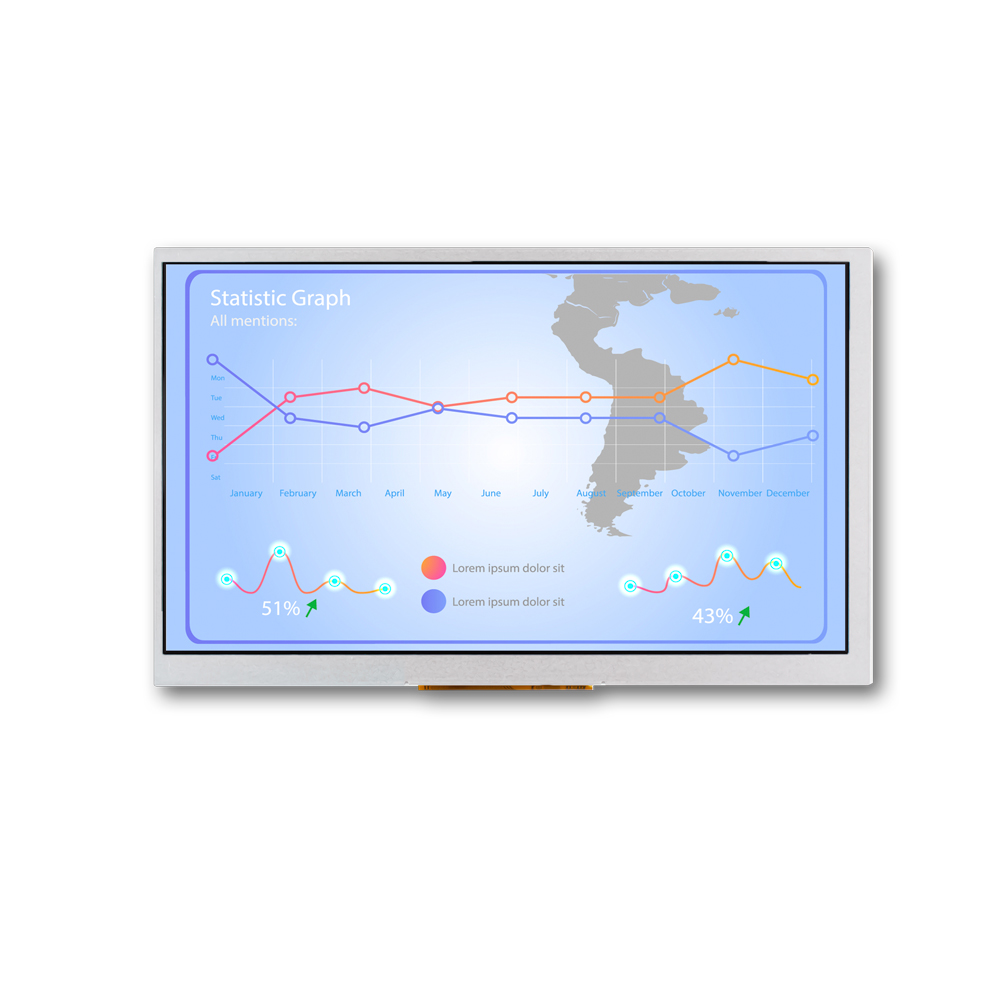

4.3 inch IPS TFT LCD module with LVDS Interface

Model No.VGG804830-D(WV)

► WVGA (800×480 pixels) resolution.
► 8 bits LVDS Interface.
► LED driver circuit is built in this module to provide PWM Dimmer function.

VGG804830-D is a 4.3 inch TFT (IPS) wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

4.3

Resolution (dots):

800*480

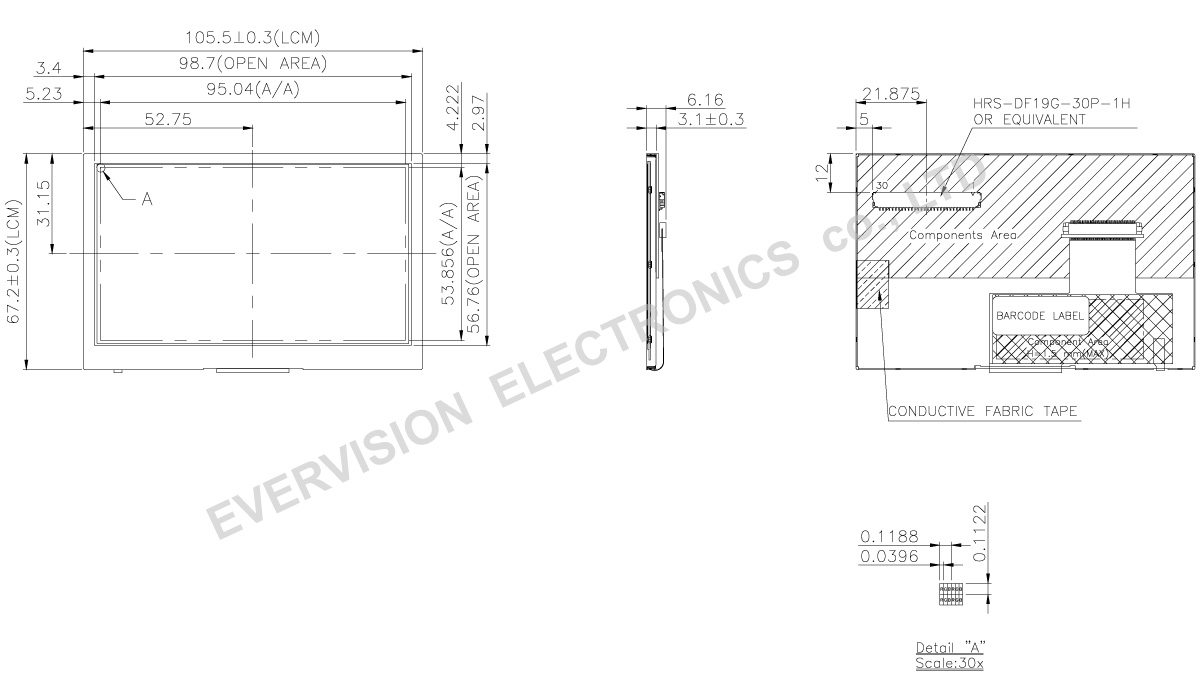

Outline Dimensions (mm):

125.5*67.2*6.16

Technology:

IPS

I/F Mode:

LVDS

Viewing Angle(TYP.):

80/80/80/80

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

810 / 60khrs typ.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	V_CC	3.0	3.3	3.6	V
Power Supply Current	I_CC	-	350	490	mA

LED Driver Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	V_LED	4.5	5.0	5.5	V	-
Power Supply Current	I_LED	-	200	280	mA	V_LED=12V、 B/L=20mA
Power Supply Voltage	V_LED	11.5	12.0	12.5	V	-
Power Supply Current	I_LED	-	90	126	mA	V_LED=5V、 B/L=20mA
PWM signal Low voltage	VPWML	0	-	0.8	V	-
PWM signal High voltage	VPWMH	2.0	-	3.6	V	-
PWM frequency	fPWM	0.1	-	200	kHz	Duty=5%~100%
LED Life Time(25℃)	-	50000	60000	-	hr	(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

Pin No.	Symbol	Description
1	V_CC	+3.3V power supply
2	V_CC	+3.3V power supply
3	GND	Ground
4	GND	Ground
5	RIN3+	LVDS Signal (+) Channel 3
6	RIN3-	LVDS Signal (-) Channel 3
7	GND	Ground
8	RCLK+	LVDS Clock Signal (+)
9	RCLK-	LVDS Clock Signal (-)
10	GND	Ground
11	RIN2+	LVDS Signal (+) Channel 2
12	RIN2-	LVDS Signal (-) Channel 2
13	GND	Ground
14	RIN1+	LVDS Signal (+) Channel 1
15	RIN1-	LVDS Signal (-) Channel 1
16	GND	Ground
17	RIN0+	LVDS Signal (+) Channel 0
18	RIN0-	LVDS Signal (-) Channel 0
19	GND	Ground
20	GND	Ground
21	NC	Not Connection
22	NC	Not Connection
23	NC	Not Connection
24	NC	Not Connection
25	BLEN	PWM Dimmer
26	NC	Not Connection
27	VLED	LED driver power supply
28	VLED	LED driver power supply
29	GND	Ground
30	GND	Ground
