10.4 inch Wide Viewing Angle TFT LCD Touch Display

Model No.VGG644808-A(WV)

► VGA (640×480 pixels) resolution.
► Digital 18 bit parallel RGB.
► Dot inversion mode with stripe type.
► MVA type

VGG644808-A is a 10.4 inch TFT (MVA) wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -30~80℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

10.4

Resolution (dots):

640*480

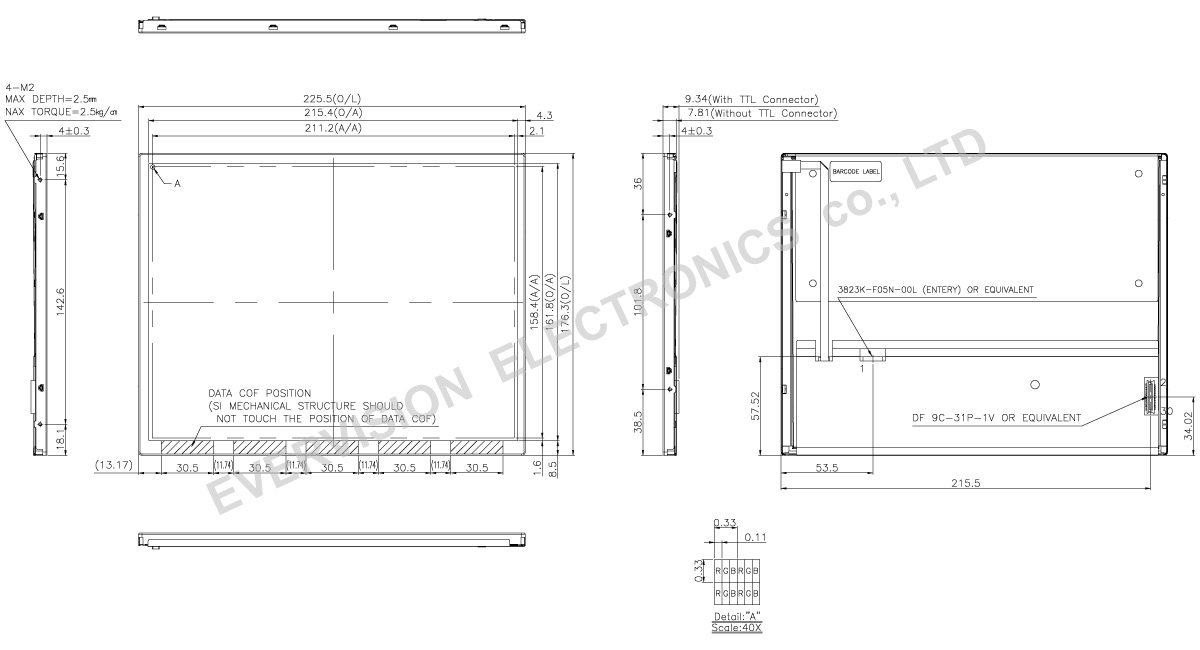

Outline Dimensions (mm):

225.5*176.3*9.34

Technology:

MVA

Viewing Angle(TYP.):

88/88/88/88

I/F Mode:

TTL RGB

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

500 / 50khrs min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-30~80

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics (Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VCC	3.0	3.3	3.6	V
Power Supply Voltage		VCC	4.75	5.0	5.25	V
Power Supply Current	White	ICC	390	490	540	mA
	White		290	390	440	mA
	Black		370	470	520	mA
	Black		280	380	430	mA
Power Consumption		PL	-	1.617	-	W
Logic input voltage		VIH	0.7VCC	-	VCC	V
Logic input voltage		VIL	0	-	0.3VCC	V

Backlight Unit (Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit	Note
Converter Power Supply Voltage		Vi	10.8	12.0	13.2	V	(Duty 100%)
Converter Power Supply Current		Ii	-	0.61	-	A	@Vi=12V(Duty 100%)
Converter Power Consumption		P_LED	-	7.32	-	W	@Vi=12V(Duty 100%)
EN Control Level	Backlight on	-	2.0	3.0	5	V
EN Control Level	Backlight off	-	0	-	0.8	V
PWM Control Level	PWM High Level	-	2.0	3.3	5	V
PWM Control Level	PWM Low Level	-	0	-	0.8	V
PWM Control Duty Ratio		-	20	-	100	%
PWM Control Frequency		f_PWM	190	200	210	Hz
LED Lift Time		L_L	50000	-	-	Hrs

✦ Touch screen is available depending on your application.TFT-LCD Module

Connector: DE 9C-31P-1V or equivalent

Pin No.	Symbol	Description
1	GND	Ground
2	DCLK	Dot clock
3	NC	N.C.
4	NC	N.C.
5	GND	Ground
6	R5	Red data(MSB)
7	R4	Red data
8	R3	Red data
9	R2	Red data
10	R1	Red data
11	R0	Red data(LSB)
12	GND	Ground
13	G5	Green data(MSB)
14	G4	Green data
15	G3	Green data
16	G2	Green data
17	G1	Green data
18	G0	Green data(LSB)
19	GND	Ground
20	B5	Blue data(MSB)
21	B4	Blue data
22	B3	Blue data
23	B2	Blue data
24	B1	Blue data
25	B0	Blue data(LSB)
26	GND	Ground
27	DE	Data enable signal
28	VCC	Power supply
29	VCC	Power supply
30	NC	Reserved, please keep it floating
31	DPSR	Selection of scan direction

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	1024x768	MVA	238.6175.87.5	LVDS(30)	350 / 30khrs min.	☛ VGG107603-D(SR)
10.4”	1024x768	IPS	236174.313.02	LVDS(30)	1000 / 50khrs typ.	☛ VGG107620-A(SR)

✦ Touch screen is available depending on your application.

【Resolution】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)

✦ Touch screen is available depending on your application.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)
10.4”	1024x768	IPS	236174.313.02	LVDS	1000 / 50khrs typ.	☛ VGG107620-A(SR)
10.4”	1024x768	IPS	236174.715.72	HDMI*	880 / 50khrs typ.	☛ VGG107620-C(SR)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.
