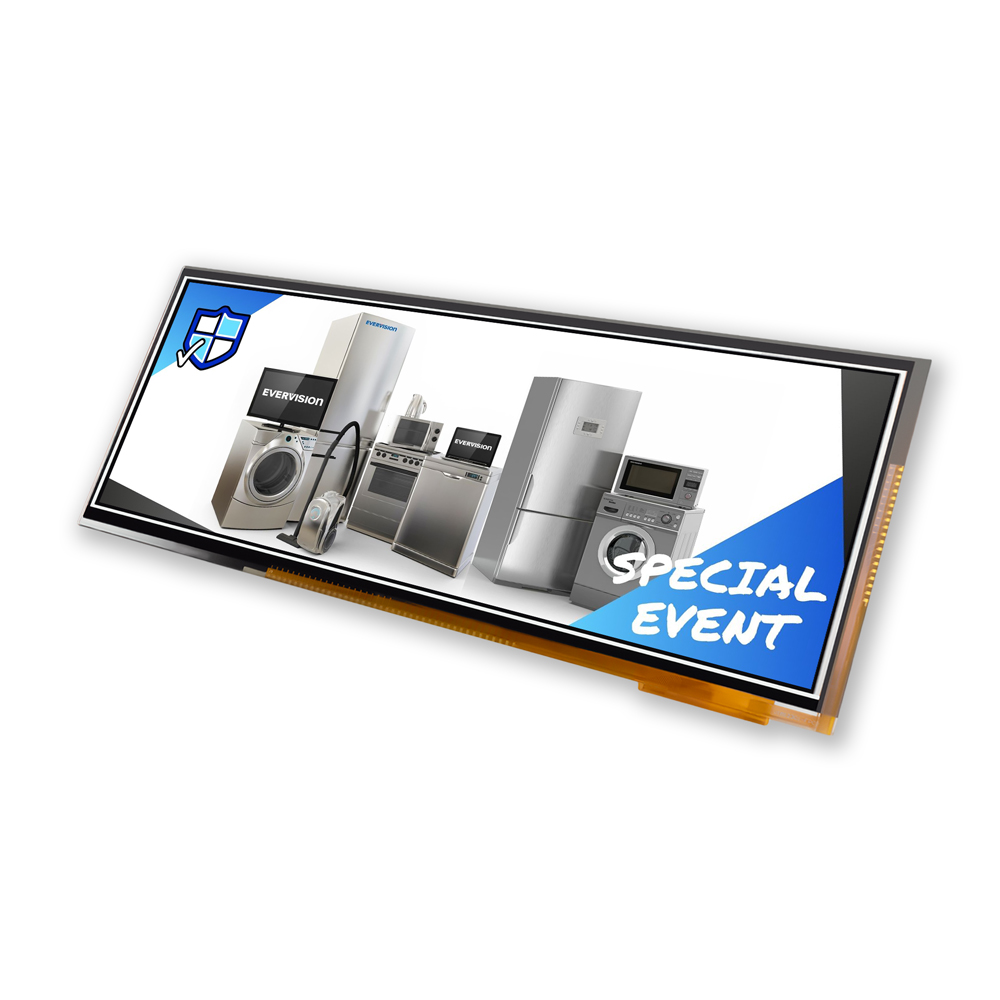

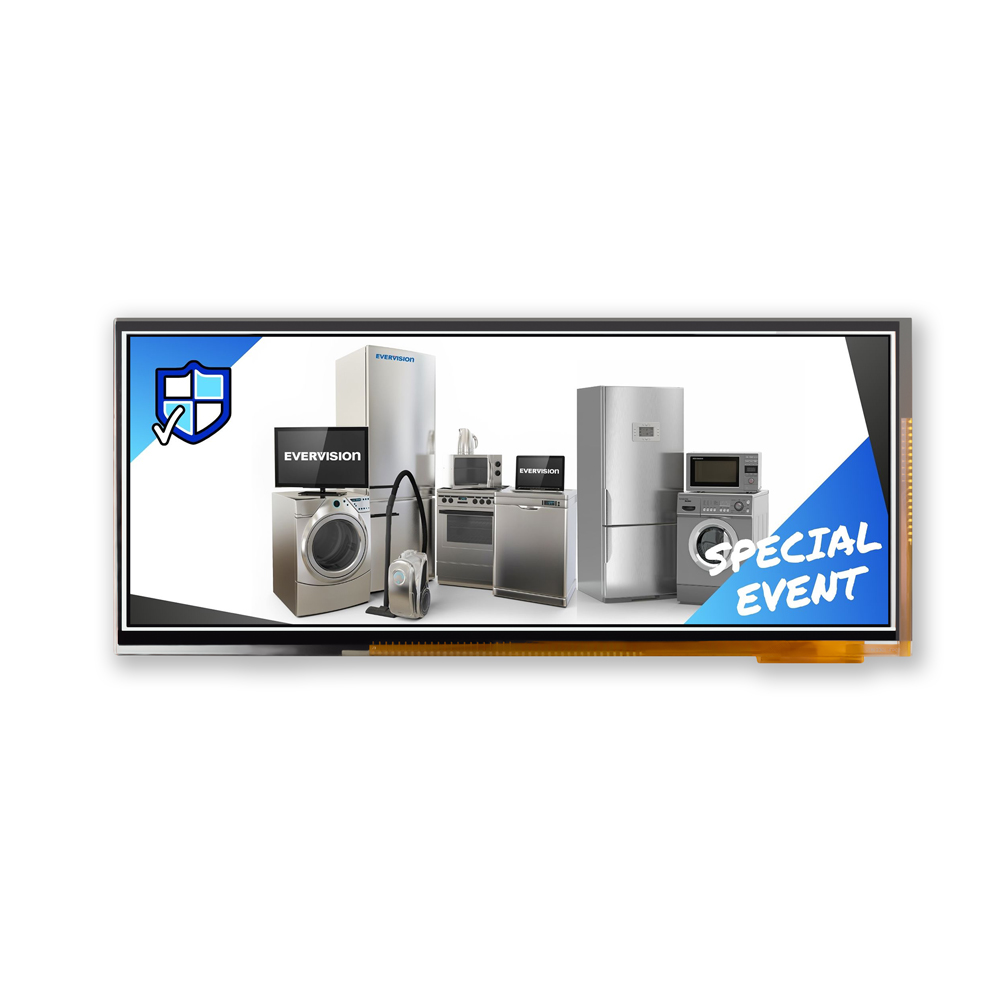

12.3" Bar LCD, Wide View TFT, for HDMI signal

Model No.VGG197202-F(WV)

► 1920×720 pixels resolution
► HDMI Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution

*Support HDMI Interface, suit for your digital device.

VGG197202-F(WV) is a 12.3 inch TFT (IPS) wide viewing angle LCD module that supports TTL HDMI signal. It can be operating at temperatures from -30~80℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

Download

Add to Inquiry

Size (inch):

12.3

Resolution (dots):

1920*720

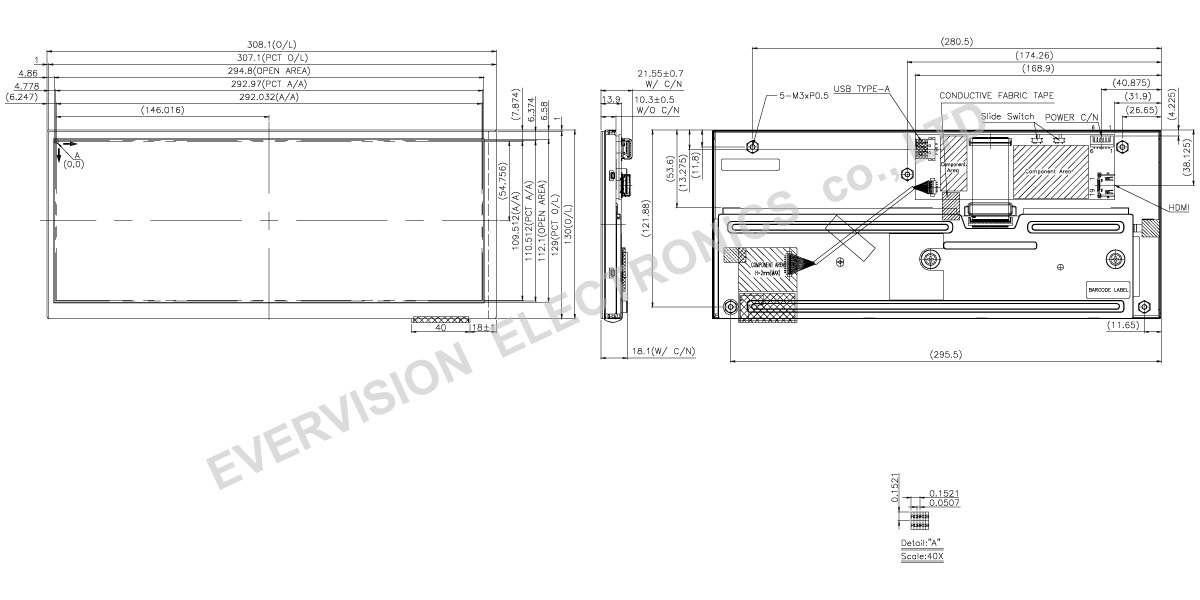

Outline Dimensions (mm):

308.1*130.0*21.55

Technology:

IPS

Viewing Angle(TYP.):

85/85/85/85

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

750 / 30khrs min.

LED Driver:

YES

Touch Panel:

IPCT (USB)

Top (°C):

-30~80

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	1.07	1.49	A
Enable voltage	EN	2	3.3	5.5	V
PWM signal Low voltage	VPWML	0	-	0.4	V
PWM signal High voltage	VPWMH	1.5	-	5	V
PWM frequency	fPWM	100	-	1000	Hz
LED Life Time(25℃)	-	30000	-	-	Hr

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	V_TP	4.8	5.0	5.2	V	-
Power Supply Current	I_TP	-	30.5	42.7	mA	(1)
Power Consumption	P_L	-	152.5	222.0	mW	@5.0V
Report Rate	R_R	-	60	-	Hz	-
Interface		USB				-
Function		Multi Touch				-

Note (1) This test condition is touched with 5 points.

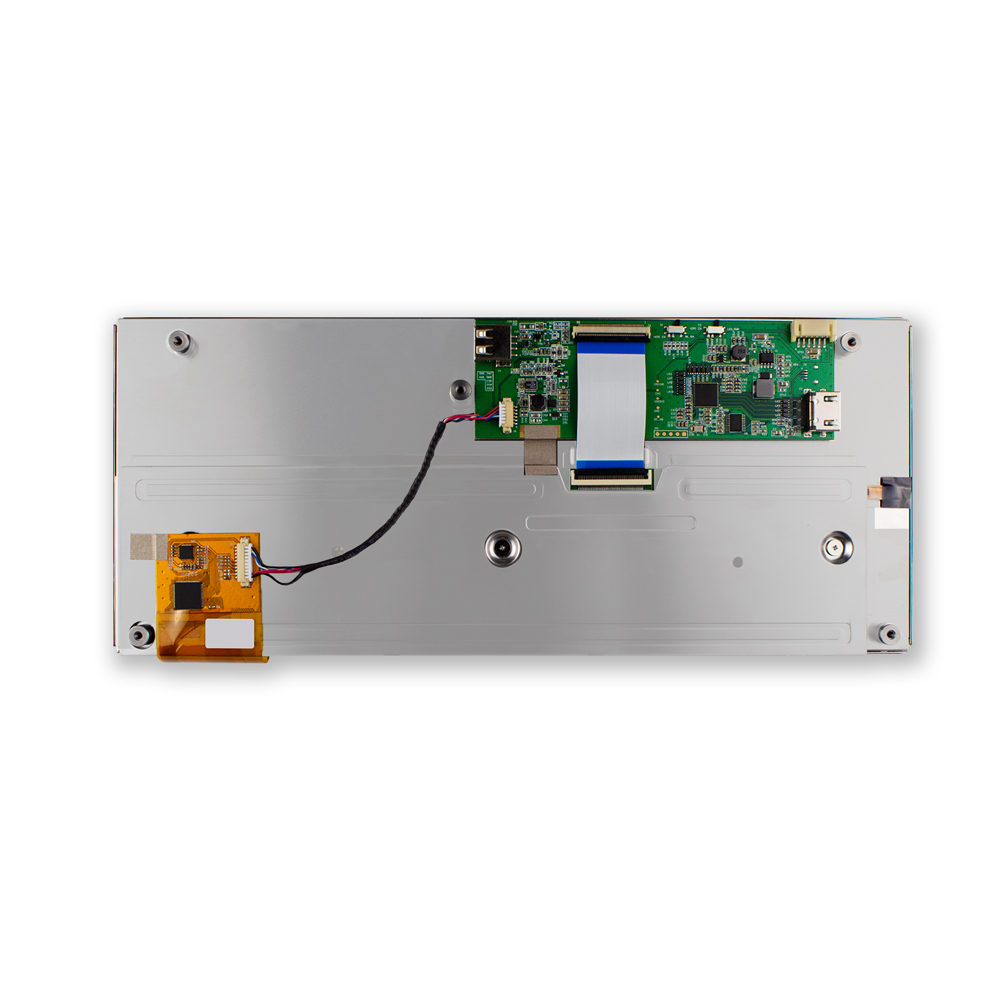

TFT-LCD Module

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair.
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair.
13	N.C.	Not Connection
14	N.C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N.C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector

Connector: CI0106M1HR0-NH

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	EN	Backlight enable pin
4	PWM	Backlight adjust
5	GND	Ground
6	GND	Ground

Improved Projected Capacitive Touch

Connector: USB 2.0 Type A Connector

Pin No.	Symbol
1	VBUS
2	D-
3	D+
4	GND

Slider Switch

Pin No.	Description	Note
1-2	LED-EN	Default
2-3	HDMI Detection	-

Slider Switch

Pin No.	Description	Note
1-2	LED-PWM	Default
2-3	HDMI Detection	-
