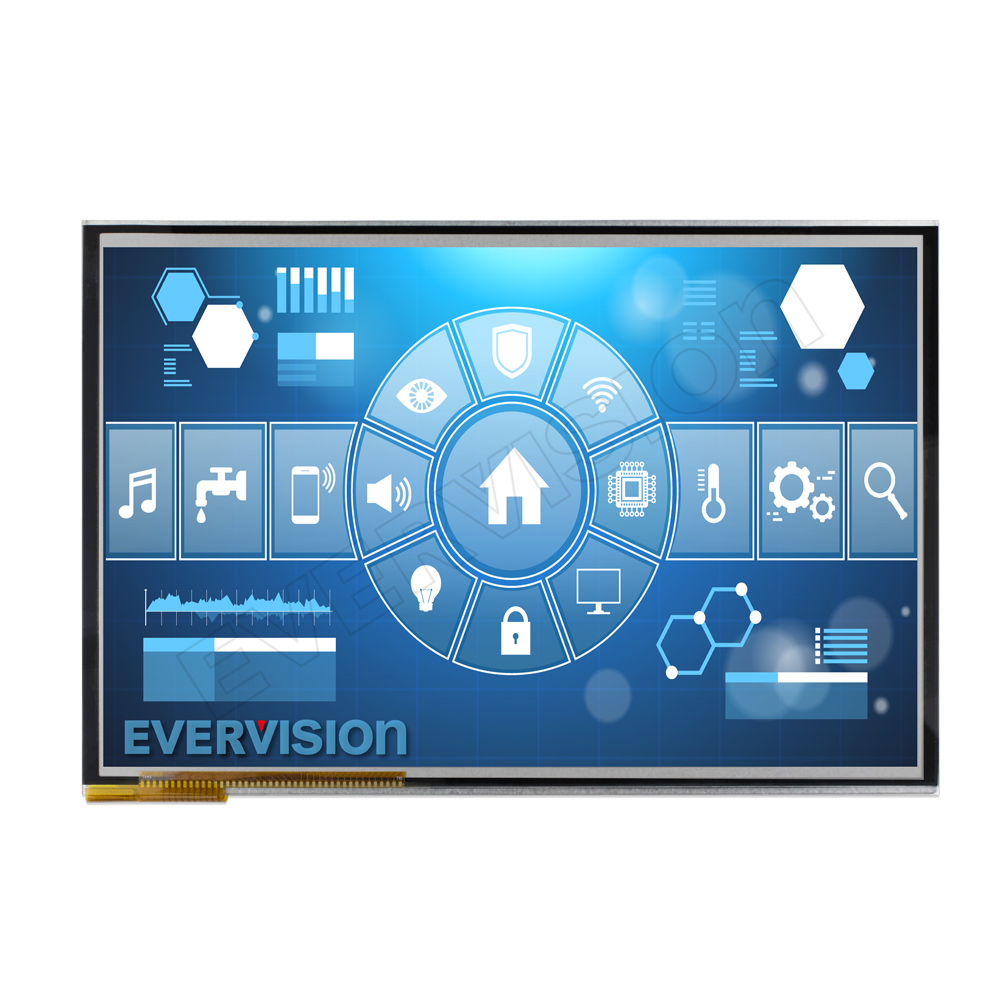

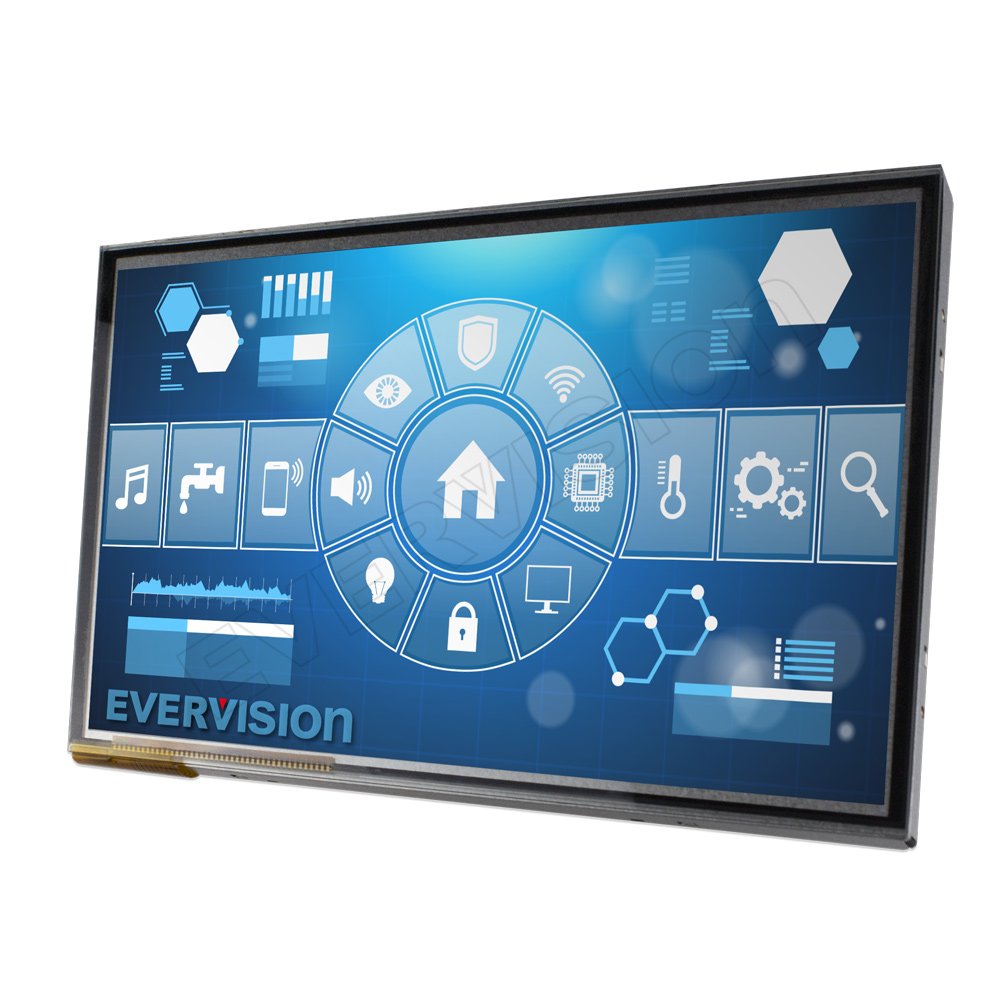

13.3" Wide Viewing Angle TFT, LVDS Touchscreen Display
Model No.VGG191006-D(WV)
► FHD 16:9(1920×1080 pixels) resolution.
► 2 channel LVDS interface
► LED driver circuit is built in this module to provide PWM Dimmer function
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution

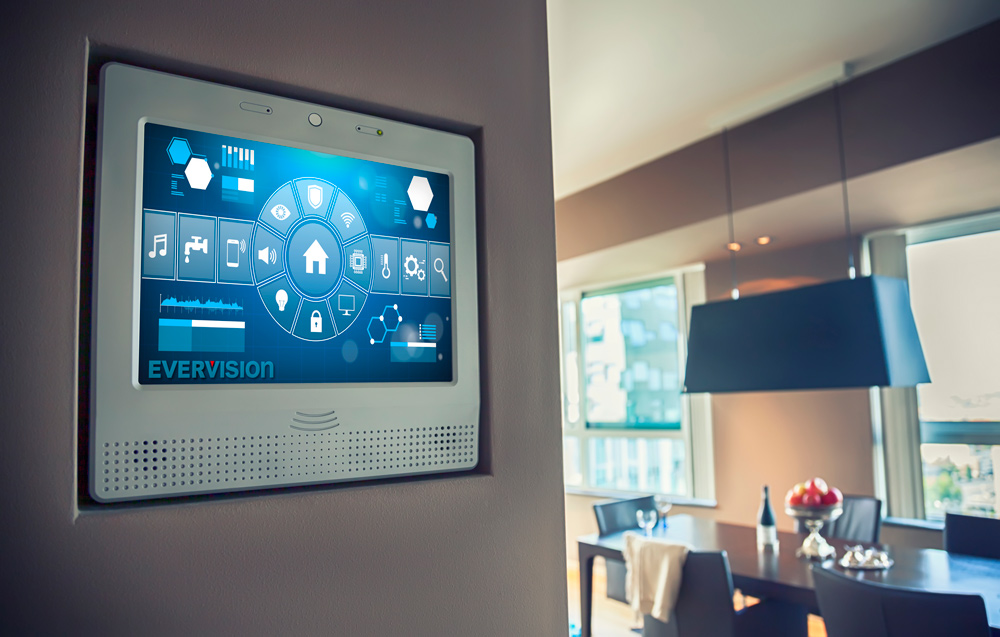

VGG191006-D(WV) is a 13.3 inch TFT (IPS) wide viewing angle LCD module that supports LVDS interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.
EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.
Size (inch):
13.3
Resolution (dots):
1920*1080

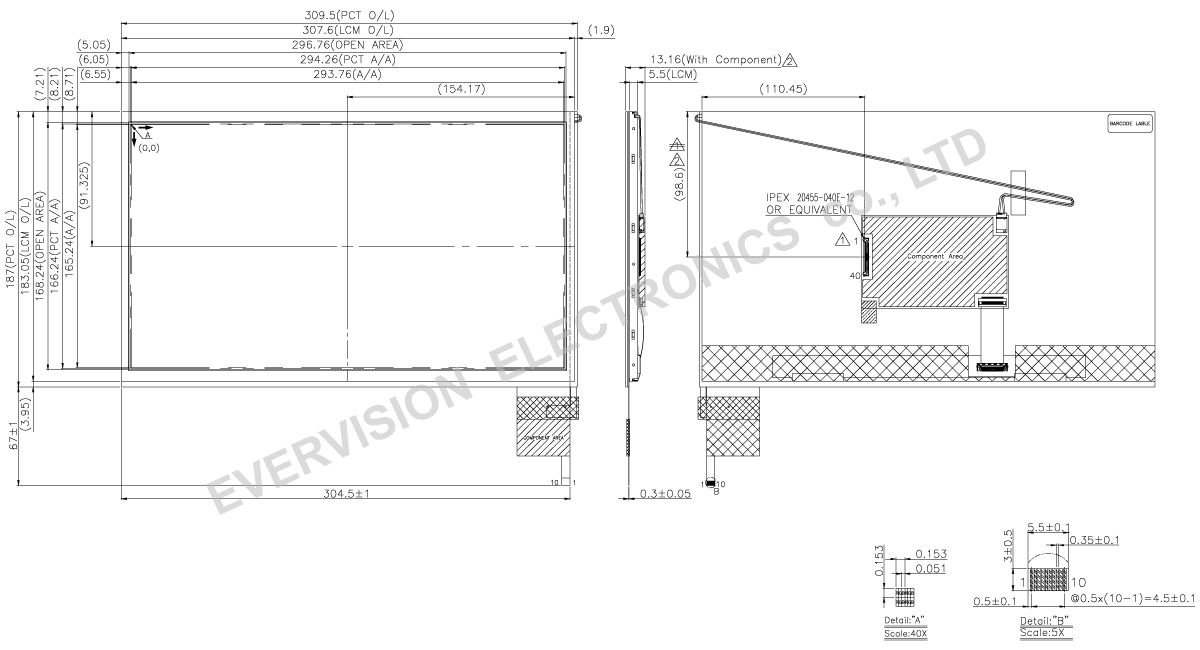

Outline Dimensions (mm):
309.5*187.0*13.16
Technology:
IPS
Viewing Angle(TYP.):
89/89/89/89
I/F Mode:
LVDS
I/F Number:
40
Brightness Level:
500 ~ 799
Brightness (cd/m²,typ.):
700 / 50khrs typ.
LED Driver:
YES
Touch Panel:
PCAP (USB)
Top (°C):
-20~70
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Power Supply Voltage |
VDD |
3.0 |
3.3 |
3.6 |
V |
Power Supply Current |
IDD |
- |
376 |
526.4 |
mA |
Differential Input High Threshold Voltage |
VTH |
- |
- |
50 |
mV |
Differential Input Low Threshold Voltage |
VTL |
-50 |
- |
- |
mV |
LVDS common input voltage |
Vic |
- |
1.2 |
1.8 |
V |
LVDS terminating resistor |
RT |
- |
100 |
- |
ohm |
LED Driver Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Voltage of LED Driver Unit |
VLED |
11.5 |
12.0 |
12.5 |
V |
- |
Current of LED Driver Unit |
ILED |
- |
1240 |
1736 |
mA |
VLED=12V B/L=400mA |
PWM signal Low voltage |
VPWML |
0 |
- |
0.4 |
V |
- |
PWM signal High voltage |
VPWMH |
1.5 |
- |
5 |
V |
- |
PWM frequency |
fPWM |
100 |
- |
1000 |
Hz |
- |
LED Life Time(25℃) |
- |
- |
50000 |
- |
Hr |
(1) |
Note (1):LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness
Projected Capacitive Touch
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Operating Voltage |
VTP |
4.8 |
5.0 |
5.2 |
V |
- |
Power Supply Current |
ITP |
- |
34.5 |
48.3 |
mA |
(1) |
Power Consumption |
PL |
- |
173.5 |
241.5 |
mW |
@5.0V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
USB |
- |
||||
Function |
Multi Touch |
- |
Note(1): This test condition is touched with 5 points.
TFT-LCD Module
Pin No. |
Symbol |
Description |
1 |
VLED |
+12V Vi power supply |
2 |
VLED |
+12V Vi power supply |
3 |
VLED |
+12V Vi power supply |
4 |
VLED |
+12V Vi power supply |
5 |
GND |
Ground |
6 |
GND |
Ground |
7 |
GND |
Ground |
8 |
GND |
Ground |
9 |
LED_EN |
Enable pin |
10 |
ED_PWM |
Backlight Adjust |
11 |
VDD |
LCD logic and driver power 3.3V |
12 |
VDD |
LCD logic and driver power 3.3V |
13 |
VDD |
LCD logic and driver power 3.3V |
14 |
NC |
Not connection, this pin should be open |
15 |
NC |
Not connection, this pin should be open |
16 |
NC |
Not connection, this pin should be open |
17 |
LCD GND |
LCD logic and driver ground |
18 |
RXO0- |
Negative LVDS differential data input. Channel O0 (odd) |
19 |
RXO0+ |
Positive LVDS differential data input. Channel O0 (odd) |
20 |
RXO1- |
Negative LVDS differential data input. Channel O1 (odd) |
21 |
RXO1+ |
Positive LVDS differential data input. Channel O1 (odd) |
22 |
RXO2- |
Negative LVDS differential data input. Channel O2 (odd) |
23 |
RXO2+ |
Positive LVDS differential data input. Channel O2 (odd) |
24 |
LCD GND |
LCD logic and driver ground |
25 |
RXOC- |
Negative LVDS differential clock input. (odd) |
26 |
RXOC+ |
Positive LVDS differential clock input. (odd) |
27 |
LCD GND |
LCD logic and driver ground |
28 |
RXO3- |
Negative LVDS differential data input. Channel O3 (odd) |
29 |
RXO3+ |
Positive LVDS differential data input. Channel O3 (odd) |
30 |
RXE0- |
Negative LVDS differential data input. Channel E0 (even) |
31 |
RXE0+ |
Positive LVDS differential data input. Channel E0 (even) |
32 |
RXE1- |
Negative LVDS differential data input. Channel E1 (even) |
33 |
RXE1+ |
Positive LVDS differential data input. Channel E1 (even) |
34 |
LCD GND |
LCD logic and driver ground |
35 |
RXE2- |
Negative LVDS differential data input. Channel E2 (even) |
36 |
RXE2+ |
Positive LVDS differential data input. Channel E2 (even) |
37 |
RXEC- |
Negative LVDS differential clock input. (even) |
38 |
RXEC+ |
Positive LVDS differential clock input. (even) |
39 |
RXE3- |
Negative LVDS differential data input. Channel E3 (even) |
40 |
RXE3+ |
Positive LVDS differential data input. Channel E3 (even) |
Note (1) Connector Part No.: I-PEX 20455-040E-76 or equivalent.
Note (2) User’s connector Part No.: I-PEX 20453-040T-03 or equivalent.
Projected Capacitive Touch
Connector: CVILUX CF25101D0R0-05
Pin No. |
Symbol |
Description |
1 |
GND |
System ground. |
2 |
VTP |
Power supply. |
3 |
NC |
Not Connection |
4 |
NC |
Not Connection |
5 |
NC |
Not Connection |
6 |
NC |
Not Connection |
7 |
NC |
Not Connection |
8 |
D- |
USB D- |
9 |
D+ |
USB D+ |
10 |
GND |
System ground. |
