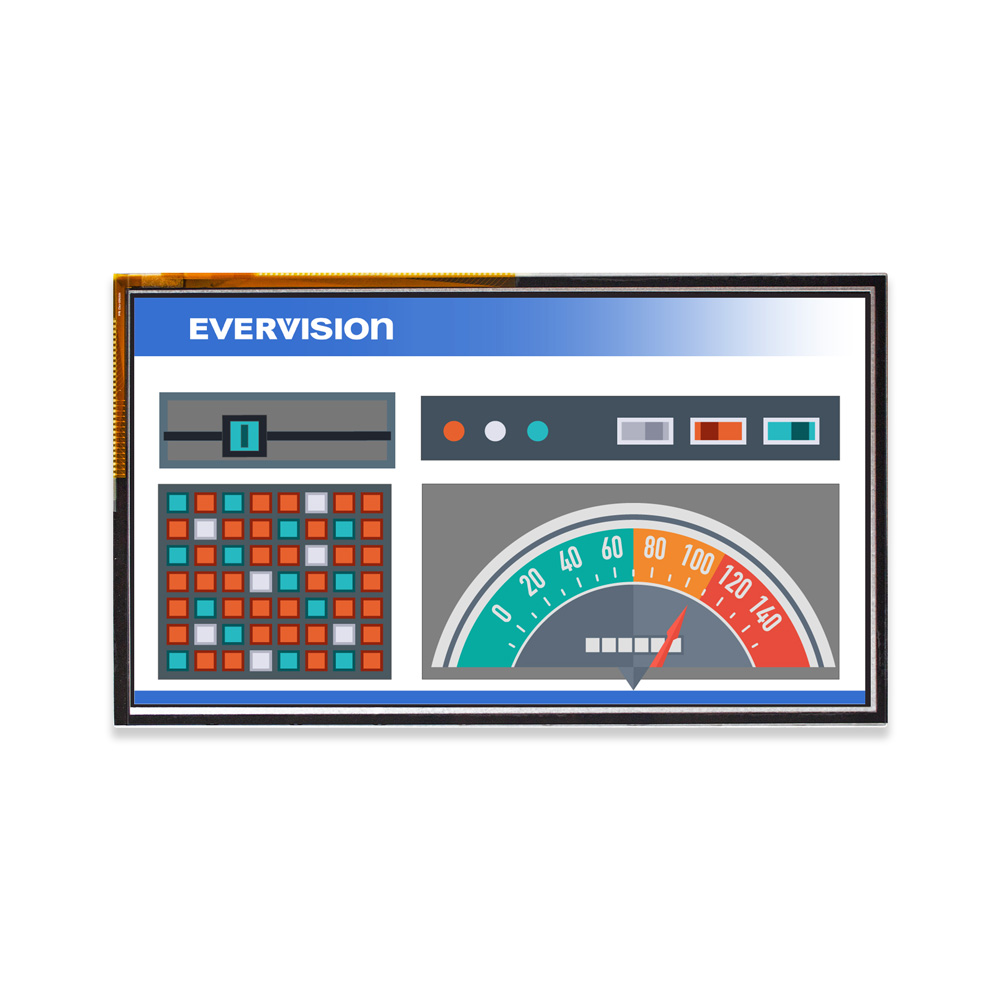

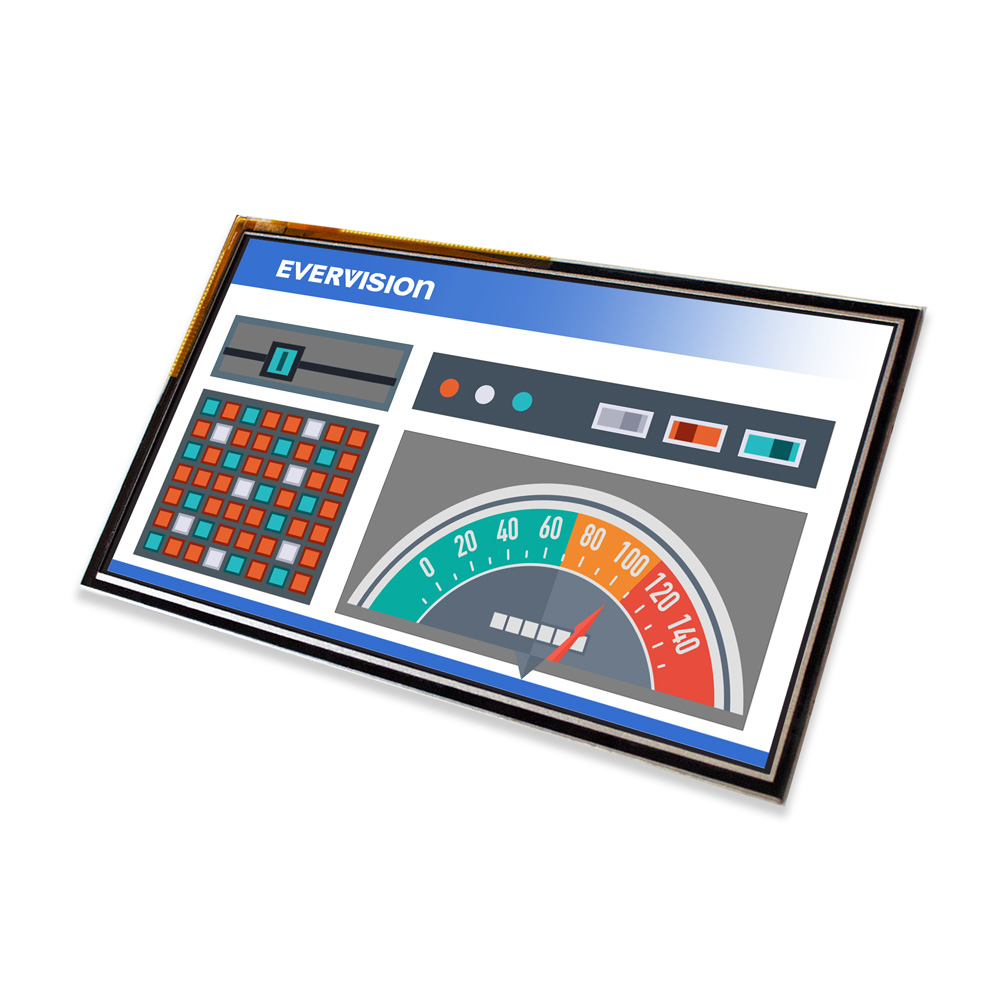

15.6 inch HDMI I/F TFT Display for HDMI Signal IPS Display

Model No.VGG191005-B(WV)

► FHD (1920×1080 pixels) resolution.
► HDMI Interface
► LED driver circuit is built in this module.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution

VGG191005-B(WV) is FHD(1920*1080) resolution 15.6 inch IPS TFT LCD Module display with HDMI signal (for HDMI Signal*) driver board and superior display quality, super wide view angle. VGG191005-B(WV) is a 15.6” AAS TFT display can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It’s available for Touch Screen optional, as well as high brightness option for this model. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, and etc.

*Support HDMI Interface, suit for your digital device.

Download

Add to Inquiry

Size (inch):

15.6

Resolution (dots):

1920*1080

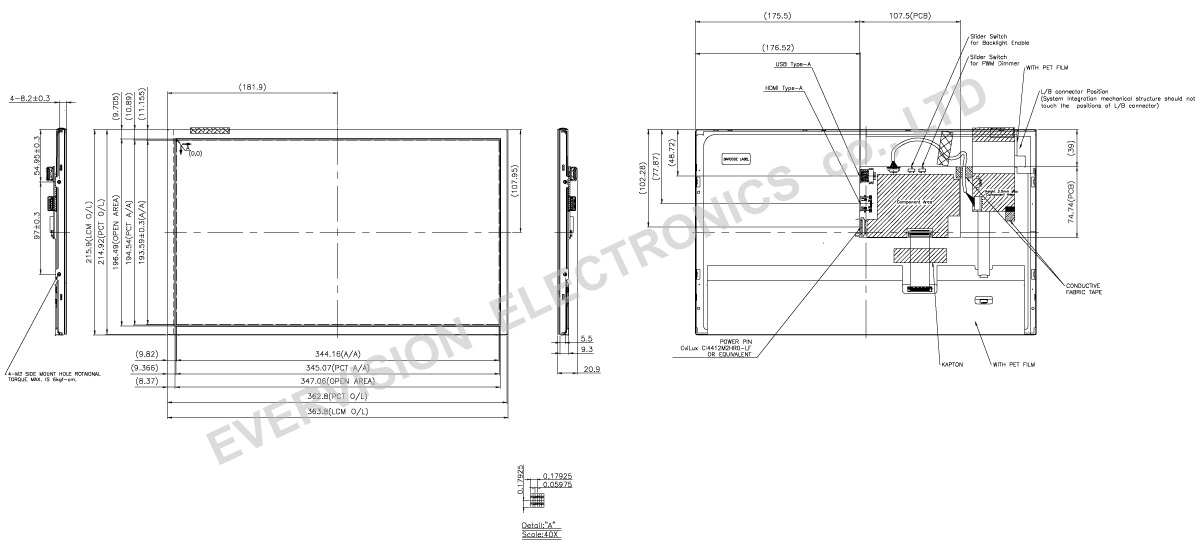

Outline Dimensions (mm):

363.8*215.9*20.9

Technology:

AAS

Viewing Angle(TYP.):

85/85/85/85

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

0 ~ 499

Brightness (cd/m²，typ.):

400 / 50khrs min.

LED Driver:

YES

Touch Panel:

IPCT (USB)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VCC	11.5	12.0	12.5	V
Power Supply Current		ICC	-	1340	1876	mA
VSYNC Frequency		Fv	-	60	-	Hz
EN Control Level	Backlight on	LED_EN	2.0	5.0	5.5	V
EN Control Level	Backlight off	LED_EN	0	0	0.8	V
PWM Control Level	PWM High Level	LED_PWM	2.0	3.3	5.0	V
PWM Control Level	PWM Low Level	LED_PWM	0	0	0.15	V
PWM Control Frequency		-	10	-	100	%
PWM frequency		f_PWM	190	200	20K	Hz
LED Life Time(25℃)		-	50000	-	-	hr

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Operating Voltage	V_TP	4.8	5.0	5.2	V	-
Power Supply Current	I_TP	-	34.5	48.3	mA	(1)
Power Consumption	P_L	-	172.5	241.5	mW	@5.0V
Report Rate	R_R	-	60	-	Hz	-
Interface		USB				-
Function		Multi Touch				-

Note(1): This test condition is touched with 5 points.

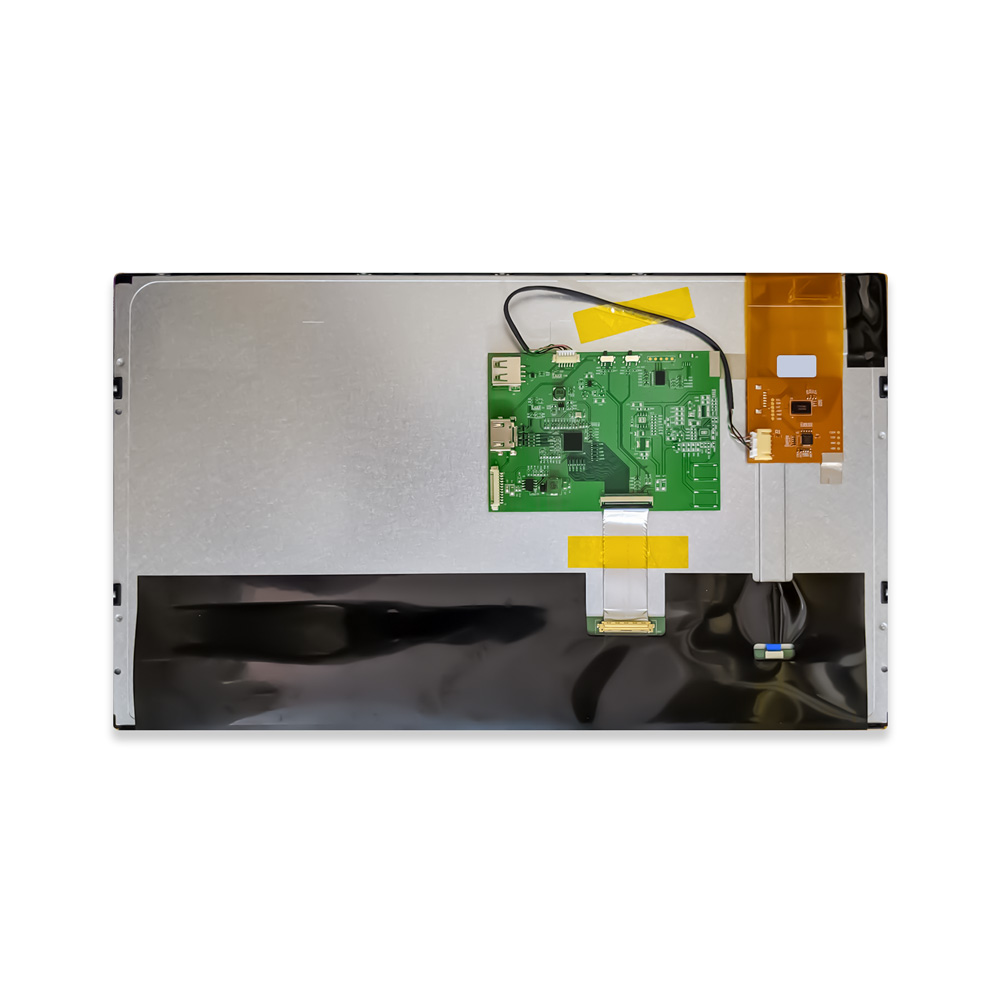

TFT LCD Module

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Channel-2 positive receiver input - Positive side of channel-2 TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Channel-2 positive receiver input - Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Channel-1 positive receiver input - Positive side of channel-1 TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Channel-1 positive receiver input - Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Channel-0 positive receiver input - Positive side of channel-0 TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Channel-0 positive receiver input - Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Clock positive receiver input - Positive side of clock TMDS low-voltage signal differential input pair.
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Clock positive receiver input - Negative side of clock TMDS low-voltage signal differential input pair.
13	N.C.	Not Connection
14	N.C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N.C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector

Connector: CI4412M2HR0-NH

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	VCC	Power supply for LCM
4	VCC	Power supply for LCM
5	VCC	Power supply for LCM
6	LED_EN	Enable pin
7	LED_PWM	Backlight Adjust
8	GND	Ground
9	GND	Ground
10	GND	Ground
11	GND	Ground
12	GND	Ground

Projected Capacitive Touch

Connector: USB 2.0 Type A Connector

Pin No.	Symbol
1	V_TP
2	D-
3	D+
4	GND

Slider Switch

Pin No.	Symbol	Note
1-2	LED_EN	Default
2-3	HDMI_EN	-

Slider Switch

Pin No.	Symbol	Note
1-2	LED_PWM	Default
2-3	HDMI_EN	-

【Solutions】

☛ Link to EMI Compliance Test
