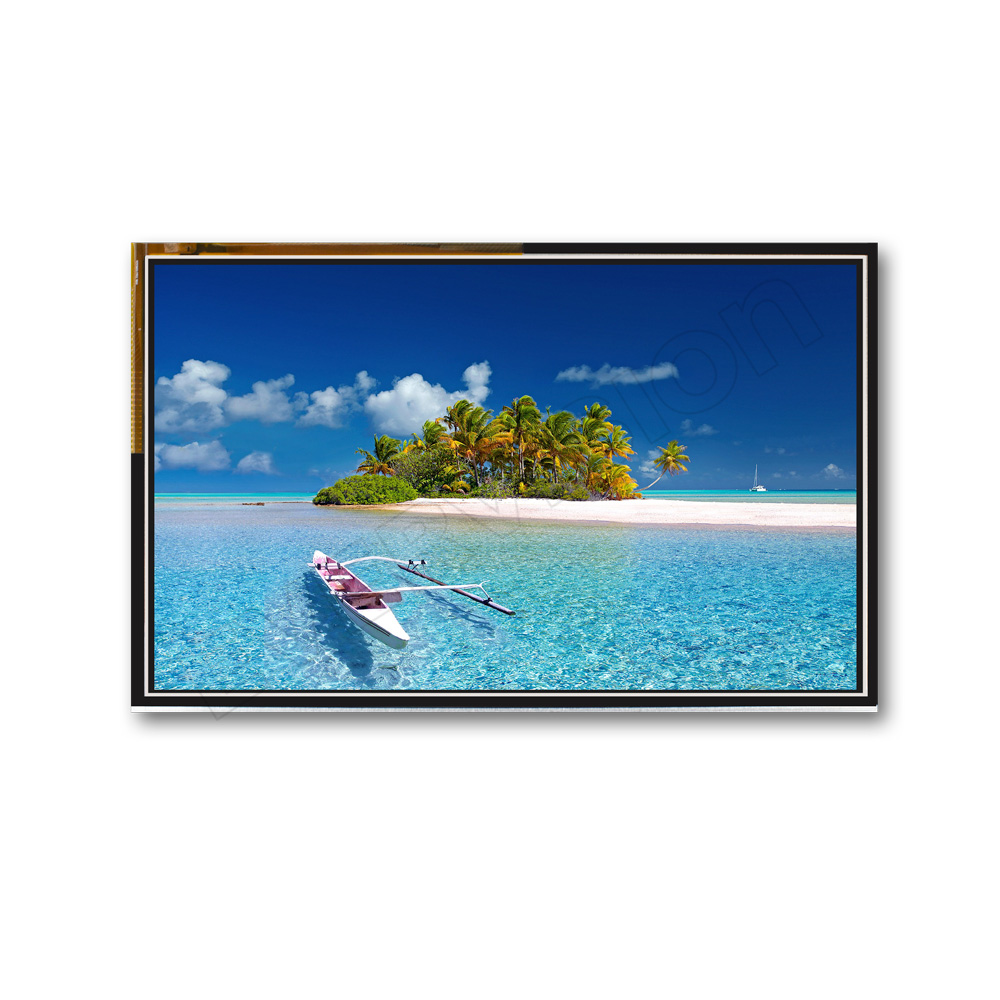

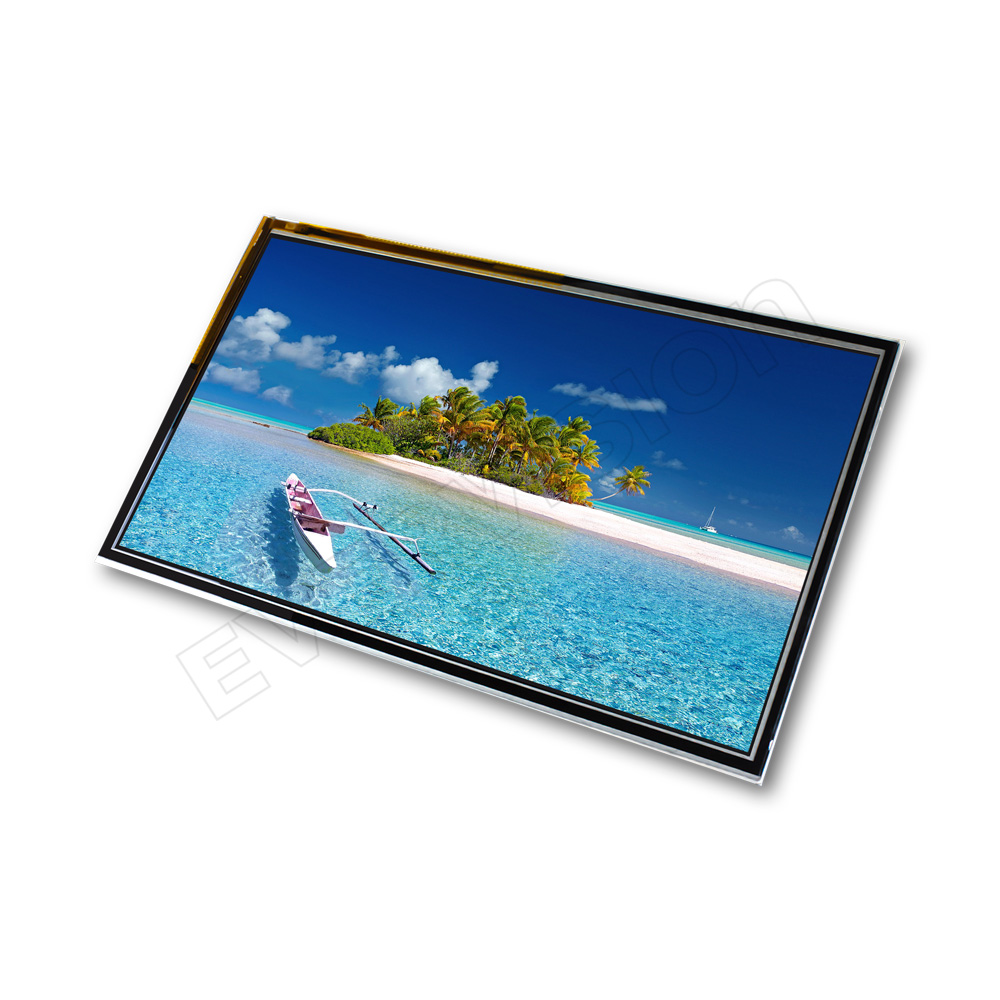

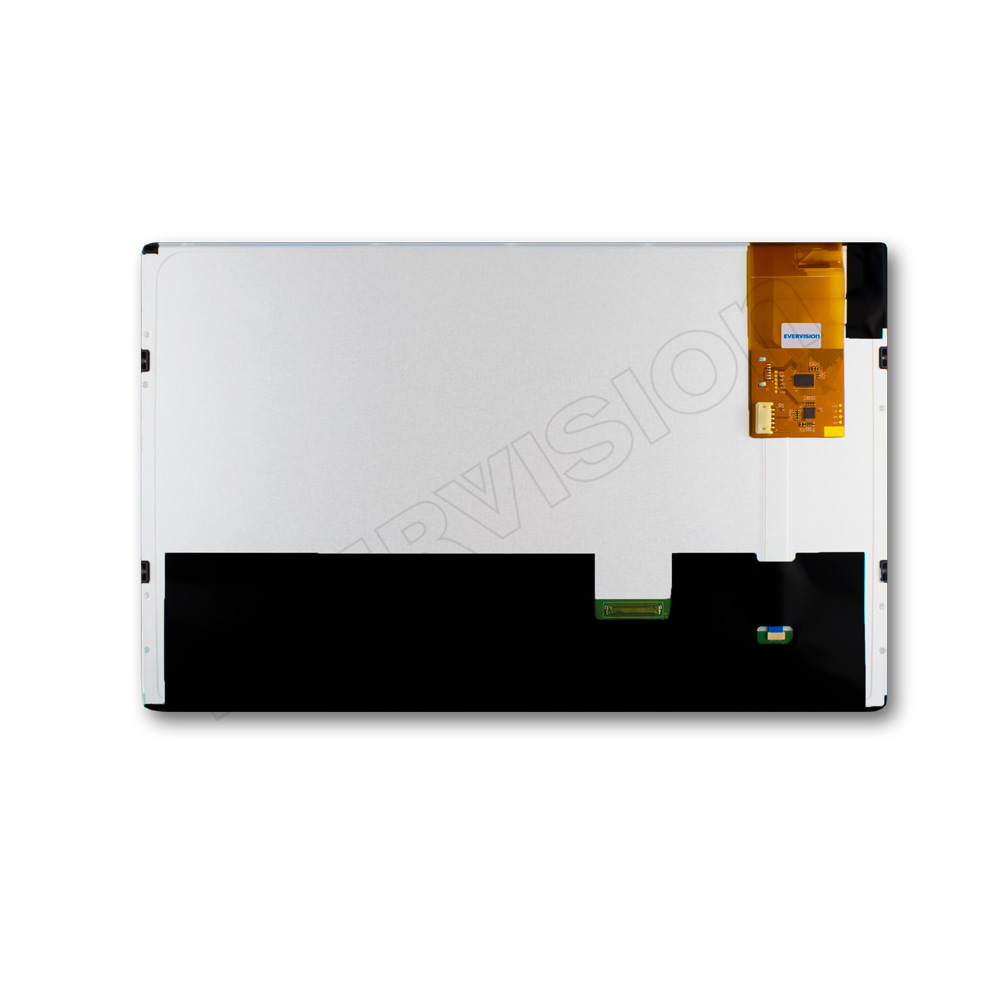

15.6 inch AAS Wide Angle View TFT LCD with Touch
Model No.VGG191005-A(WV)
► FHD (1920×1080 pixels) resolution.
► 2ch LVDS interface
► LED driver circuit is built in this module.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution
VGG191005-A is a 15.6 inch TFT (AAS) wide viewing angle LCD module that supports LVDS interface. It can be operating at temperatures from -30~80℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.
EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.
Size (inch):
15.6
Resolution (dots):
1920*1080

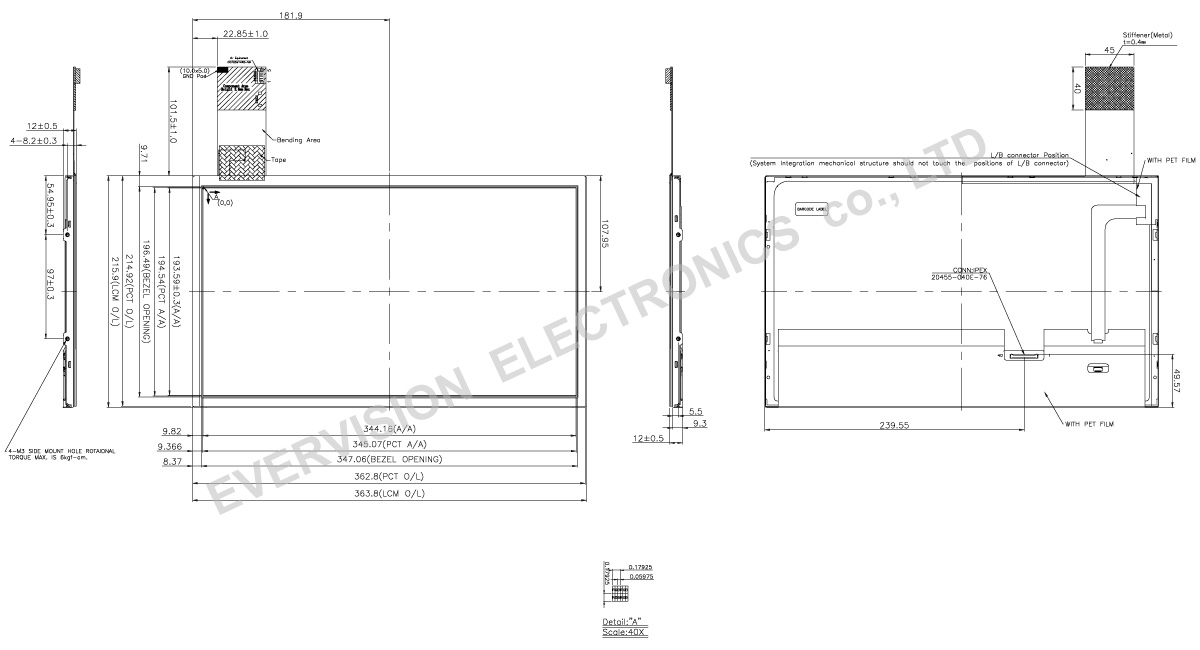

Outline Dimensions (mm):
363.8*215.9*12.0
Technology:
AAS
I/F Mode:
LVDS
Viewing Angle(TYP.):
85/85/85/85
I/F Number:
40
Brightness Level:
0 ~ 499
Brightness (cd/m²,typ.):
400 / 50khrs min.
LED Driver:
YES
Touch Panel:
PCAP(USB)
Top (°C):
-30~80
Tst (°C):
-30~80
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-30 |
+80 |
°C |
Operating Ambient Temperature |
TOP |
-30 |
+80 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Power Supply Voltage |
VDD |
3.0 |
3.3 |
3.6 |
V |
Ripple Voltage |
VRP |
- |
- |
150 |
mV |
Rush Current |
IRUSH |
- |
- |
3 |
A |
White |
- |
1.22 |
1.5 |
A |
|
Black |
|
0.51 |
0.7 |
A |
|
Vertical Stripe |
|
0.82 |
1 |
A |
|
Power Consumption |
PLCD |
- |
4 |
5 |
Watt |
LVDS differential input voltage |
Vid |
200 |
|
600 |
mV |
LVDS common input voltage |
Vic |
1.0 |
1.2 |
1.4 |
V |
LVDS terminating resistor |
RT |
- |
100 |
- |
ohm |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Converter Power Supply Voltage |
LED_Vin |
10.8 |
12.0 |
13.2 |
V |
- |
|
Converter Power Supply Current |
Ii |
0.8 |
1.0 |
1.2 |
A |
@LED_Vin= 12V Duty=100% |
|
Converter Input Rush Current |
Iirsh |
- |
- |
3 |
A |
@LED_Vin rising = 1mS |
|
Power Consumption |
PLED |
- |
12 |
- |
W |
@LED_Vin= 12V Duty=100% |
|
EN Control Level |
Backlight on |
LED_EN |
2.0 |
5 |
5.5 |
V |
|
Backlight off |
0 |
0 |
0.8 |
||||
PWM Control Level |
PWM High Level |
LED_PWM |
2.0 |
3.3 |
5.0 |
V |
|
PWM Low Level |
0 |
0 |
0.15 |
||||
PWM Control Frequency |
fPWM |
190 |
200 |
20k |
Hz |
|
|
LED Life Time |
LL |
50,000 |
- |
- |
Hrs |
|
Projected Capacitive Touch
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Operating Voltage |
VPCT |
4.8 |
5.0 |
5.2 |
V |
- |
Power Supply Current |
IPCT |
- |
34.5 |
48.3 |
mA |
(1) |
Power Consumption |
PL |
- |
172.5 |
241.5 |
mW |
@5.0V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
USB |
- |
||||
Function |
Multi Touch |
- |
Note(1): This test condition is touched with 5 points.
TFT LCD Module:
Pin No. |
Symbol |
Description |
1 |
LED _Vcc |
+12V Vi power supply |
2 |
LED _Vcc |
+12V Vi power supply |
3 |
LED _Vcc |
+12V Vi power supply |
4 |
LED _Vcc |
+12V Vi power supply |
5 |
GND |
Ground |
6 |
GND |
Ground |
7 |
GND |
Ground |
8 |
GND |
Ground |
9 |
LED_EN |
Enable pin |
10 |
LED_PWM |
Backlight Adjust |
11 |
LCD_VDD |
LCD logic and driver power 3.3V |
12 |
LCD_VDD |
LCD logic and driver power 3.3V |
13 |
LCD_VDD |
LCD logic and driver power 3.3V |
14 |
NC |
Not connection, this pin should be open |
15 |
NC |
Not connection, this pin should be open |
16 |
NC |
Not connection, this pin should be open |
17 |
LCD GND |
LCD logic and driver ground |
18 |
RXO0- |
Negative LVDS differential data input. Channel O0 (odd) |
19 |
RXO0+ |
Positive LVDS differential data input. Channel O0 (odd) |
20 |
RXO1- |
Negative LVDS differential data input. Channel O1 (odd) |
21 |
RXO1+ |
Positive LVDS differential data input. Channel O1 (odd) |
22 |
RXO2- |
Negative LVDS differential data input. Channel O2 (odd) |
23 |
RXO2+ |
Positive LVDS differential data input. Channel O2 (odd) |
24 |
LCD GND |
LCD logic and driver ground |
25 |
RXOC- |
Negative LVDS differential clock input. (odd) |
26 |
RXOC+ |
Positive LVDS differential clock input. (odd) |
27 |
LCD GND |
LCD logic and driver ground |
28 |
RXO3- |
Negative LVDS differential data input. Channel O3(odd) |
29 |
RXO3+ |
Positive LVDS differential data input. Channel O3 (odd) |
30 |
RXE0- |
Negative LVDS differential data input. Channel E0 (even) |
31 |
RXE0+ |
Positive LVDS differential data input. Channel E0 (even) |
32 |
RXE1- |
Negative LVDS differential data input. Channel E1 (even) |
33 |
RXE1+ |
Positive LVDS differential data input. Channel E1 (even) |
34 |
LCD GND |
LCD logic and driver ground |
35 |
RXE2- |
Negative LVDS differential data input. Channel E2 (even) |
36 |
RXE2+ |
Positive LVDS differential data input. Channel E2 (even) |
37 |
RXEC- |
Negative LVDS differential clock input. (even) |
38 |
RXEC+ |
Positive LVDS differential clock input. (even) |
39 |
RXE3- |
Negative LVDS differential data input. Channel E3 (even) |
40 |
RXE3+ |
Positive LVDS differential data input. Channel E3 (even) |
Note (1) Connector Part No.: I-PEX 20455-040E-76 or equivalent.
Note (2) User’s connector Part No.: I-PEX 20453-040T-03 or equivalent.
Projected Capacitive Touch:
Connector: CI0105M1HR0-NH
Pin No. |
Symbol |
Description |
1 |
VPCT |
Power supply. |
2 |
D- |
USB D- |
3 |
D+ |
USB D+ |
4 |
GND |
System ground. |
5 |
GND |
System ground. |
