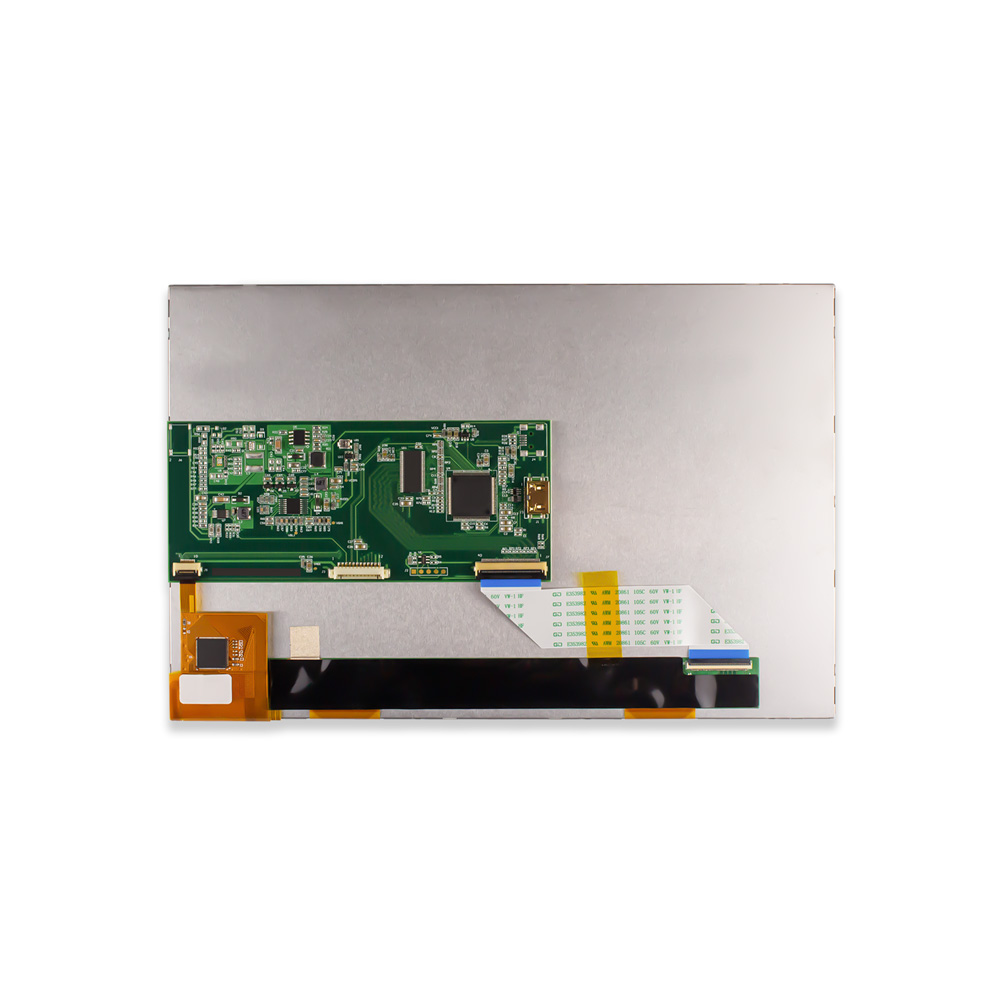

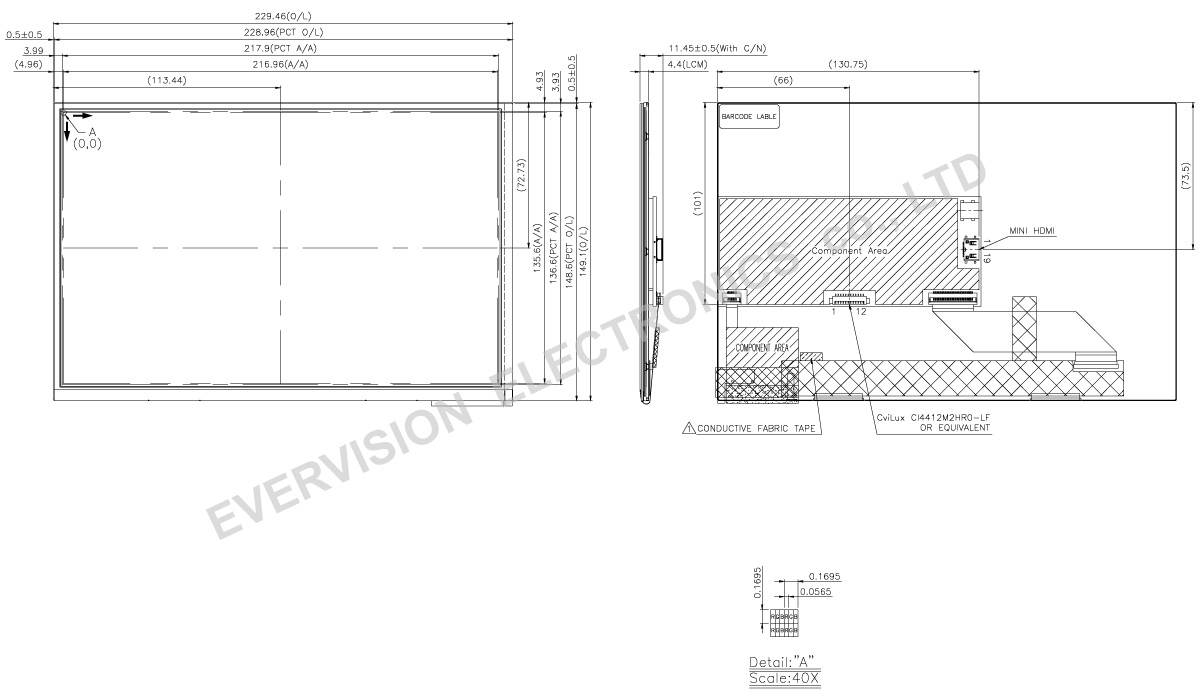

10.1" Touch Display, Wide View TFT with HDMI Interface

Item

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-30

+80

°C

Operating Ambient Temperature

TOP

-20

+70

°C

Item

Symbol

Min.

Typ.

Max.

Unit

Power Supply Voltage

VCC

11.5

12.0

12.5

V

Power Supply Current

ICC

-

430

602

mA

Power Consumption

P_L

-

5160

7224

mW

VSYNC Frequency

F_V

-

60

-

Hz

DCLK Frequency

DCLK

-

71.1

-

MHz

PWM signal Low voltage

VPWML

0

-

0.4

V

PWM signal High voltage

VPWMH

1.4

-

5.5

V

PWM frequency

fPWM

100

-

1000

Hz

LED Life Time(25℃)

-

50000

60000

-

hr

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Operating Voltage

VDD

3.0

3.3

3.6

V

-

Power Supply Current

IDD

-

23.6

33.1

mA

(1)

Power Consumption

P_L

-

77.88

109.23

mW

@3.3V

Report Rate

R_R

-

60

-

Hz

-

Interface

I²C

-

Function

Multi Touch

-

Pin No.

Symbol

Description

1

TMDS Data2 Shield

Ground

2

TMDS Data2+

Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair.

Channel-2 receives red-pixel data in active display and CTL2, CTL3 control signals in blank.

3

TMDS Data2–

Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.

4

TMDS Data1 Shield

Ground

5

TMDS Data1+

Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair.

Channel-1 receives green-pixel data in active display and CTL1 control signals in blank.

6

TMDS Data1–

Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.

7

TMDS Data0 Shield

Ground

8

TMDS Data0+

Channel-0 positive receiver input – Positive side of channel-0. TMDS low-voltage signal differential input pair.

Channel-0 receives blue pixel data in active display and HSYNC, VSYNC control signals in blank.

9

TMDS Data0–

Channel-0 negative receiver input – Negative side of channel-0. TMDS low-voltage signal differential input pair.

10

TMDS Clock Shield

Ground

11

TMDS Clock+

Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair

12

TMDS Clock–

Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair

13

DDC Ground

Ground

14

N.C.

Not Connection

15

DCC_SCL

Serial Clock for EEPROM

16

DCC_SDA

Serial Data for EEPROM

17

Reserved

(N.C. on device)

Not Connection

18

+5V Power

5V for EEPROM

19

HPD

Hot Plug Detect

High: Active link

Low: Inactive link

Pin No.

Symbol

Description

1

VCC

+12V power supply for LCM

2

VCC

+12V power supply for LCM

3

BLEN

PWM dimming (Note 1)

4

NC

Not Connected

5

NC

Not Connected

6

VDD

+3.3V power supply for PCT

7

SCL

I²C clock signal for PCT.

8

SDA

I²C data signal for PCT.

9

/INT

Interrupt signal, active low, asserted to request Host start a new transcation for PCT.

10

/RST

External reset signal, active low for PCT.

11

GND

Ground

12

GND

Ground

Note 1: PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.4V to this pin.
