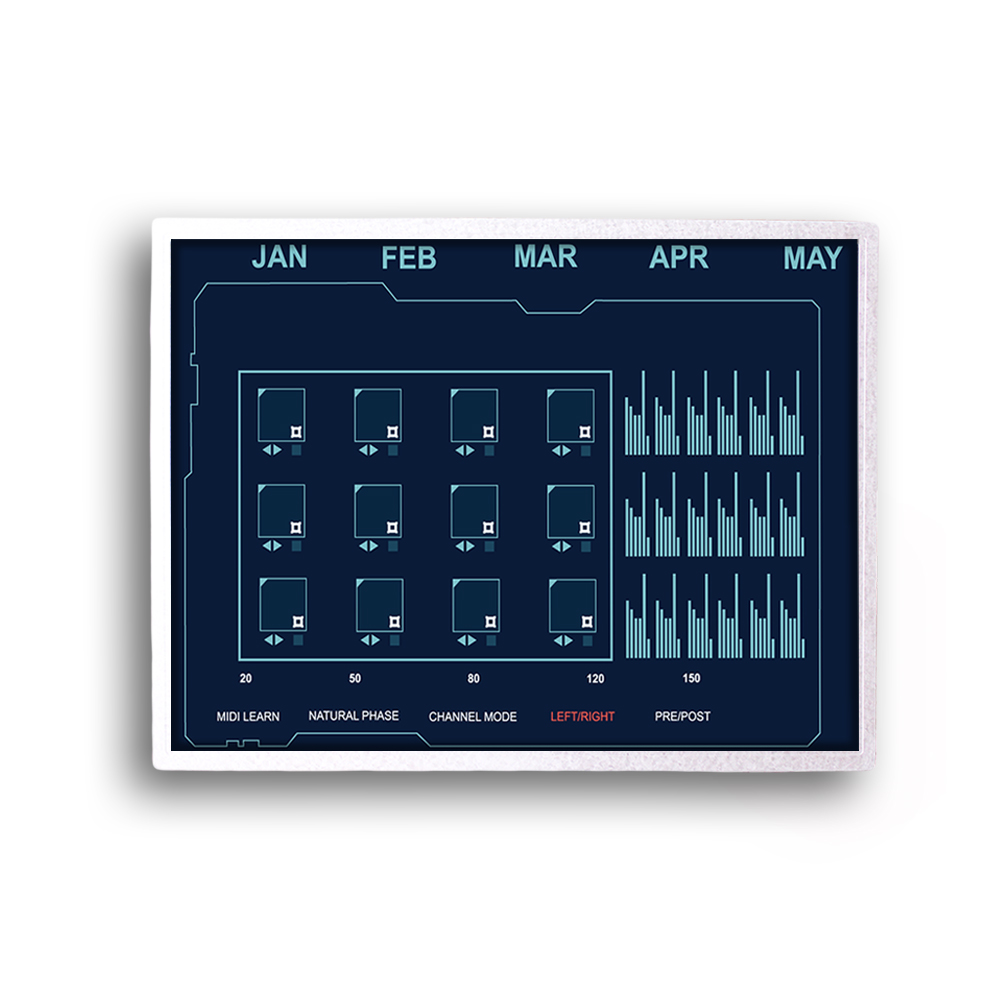

15" Wide View Angle TFT, LVDS Interface, Touch Option

Model No.VGG107607-B(WV)

► XGA (1024×768 pixels) resolution.
► 6/8 bit LVDS Interface
► DE(Data Enable) only mode

VGG107607-B is a 15 inch TFT (MVA) wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -30~80℃ and storage temperatures range from -30~80℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

15.0

Resolution (dots):

1024*768

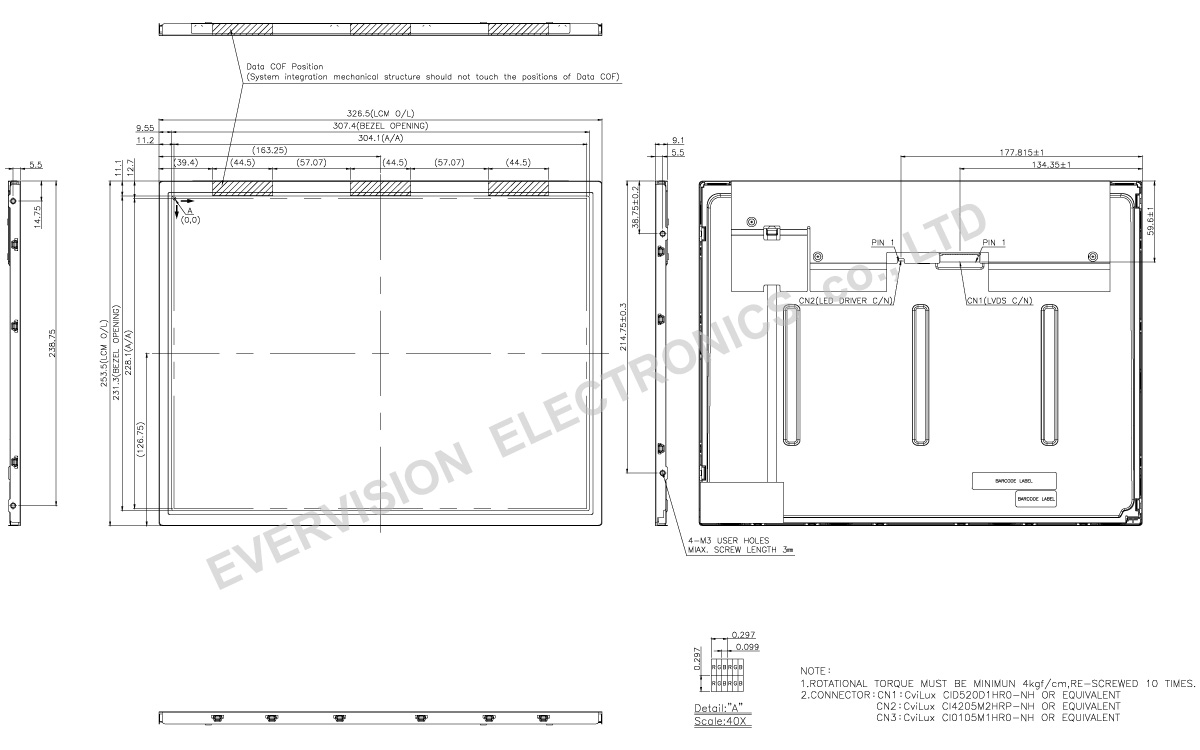

Outline Dimensions (mm):

326.5*253.5*9.1

Technology:

MVA

I/F Mode:

LVDS

Viewing Angle(TYP.):

88/88/88/88

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

500 / 70khrs typ.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-30~80

Tst (°C):

-30~80

bsolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-40	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics(Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage		VCC	3.0	3.3	3.6	V
Power Supply Current	White	ICC	-	800	960	mA
Power Supply Current	Black	ICC	-	670	800	mA

Backlight Unit (Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit	Note
Converter Power Supply Voltage		Vi	10.8	12.0	13.2	V
Converter Power Supply Current		Ii	0.5	0.65	0.8	A	@Vi=12V(Duty 100%)
Converter Power Consumption		P_LED	-	7.8	9.6	W	@Vi=12V(Duty 100%)
EN Control Level	Backlight on	-	2.0	3.0	5.0	V
EN Control Level	Backlight off	-	0	-	0.8	V
PWM Control Level	PWM High Level	-	2.0	3.3	5.0	V
PWM Control Level	PWM Low Level	-	0	-	0.15	V
PWM Control Duty Ratio		-	1	-	100	%
PWM Control Frequency		f_PWM	190	200	20k	Hz
LED Lift Time		L_L	50000	70000	-	Hrs

TFT-LCD Module

Pin No.	Symbol	Description
1	VCC	Power Supply +3.3V(typical)
2	VCC	Power Supply +3.3V(typical)
3	NC	No Connection (Reserve for INX test)
4	LR/UD	Reverse Scan Control
5	RX0-	LVDS Differential Data Input
6	RX0+	LVDS Differential Data Input
7	GND	Ground
8	RX1-	LVDS Differential Data Input
9	RX1+	LVDS Differential Data Input
10	NC	No Connection (Reserve for INX test)
11	RX2-	LVDS Differential Data Input
12	RX2+	LVDS Differential Data Input
13	GND	Ground
14	RXCLK-	LVDS Differential Data Input
15	RXCLK+	LVDS Differential Data Input
16	GND	Ground
17	RX3-	LVDS Differential Data Input
18	RX3+	LVDS Differential Data Input
19	NC	No Connection (Reserve for INX test)
20	SEL68	LVDS 6/8 bit selection function control

Backlight

Pin No.	Symbol	Description
1	Vi	Converter input voltage
2	V_GND	Converter ground
3	RN	Enable pin
4	Dimming	Backlight Adjust
5	NC	No Connection

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
15.0”	1024x768	MVA	326.5253.59.1	LVDS	500 / 70khrs typ.	☛ VGG107607-B(WV)
15.0”	1024x768	MVA	326.5253.59.1	LVDS	1000 / 50khrs min.	☛ VGG107617-A(SR)

✦ Touch screen is available depending on your application.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
15.0"	1024x768	MVA	326.5253.59.1	LVDS	500 / 70khrs typ.	☛ VGG107607-B(WV)
15.0"	1024x768	MVA	326.5253.517.41	HDMI*	440 / 70khrs typ.	☛ VGG107607-C(WV)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.
