10.4" Wide Angle View TFT LCD, LED Driver, LVDS I/F
Model No.VGG107603-D(WV)
► XGA (1024×768 pixels) resolution.
► 6 bit & 8 bit LVDS Interface.
► Dot inversion mode with stripe type.
► MVA Type
VGG107603-D is a 10.4 inch TFT (MVA) wide viewing angle LCD module that supports TTL RGB interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -20~70℃. It is available for Touch Screen optional, as well as high brightness option for this model. It is very suitable play video, for example, POS, GPS, HMI, medical equipment, etc.
EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.
Size (inch):
10.4
Resolution (dots):
1024*768

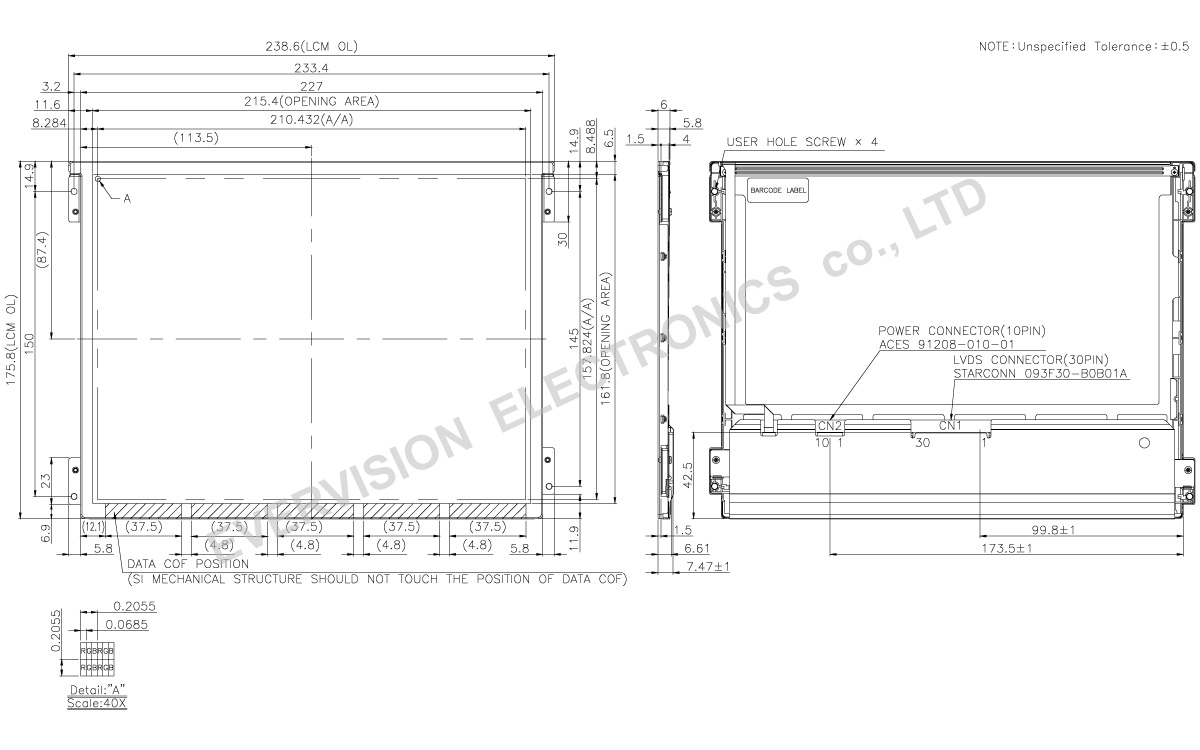

Outline Dimensions (mm):
238.6*175.8*7.5
Technology:
MVA
I/F Mode:
LVDS
Viewing Angle(TYP.):
88/88/88/88
I/F Number:
30
Brightness Level:
0 ~ 499
Brightness (cd/m²,typ.):
350 / 30khrs min.
LED Driver:
YES
Touch Panel:
(Option)
Top (°C):
-20~70
Tst (°C):
-20~70
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-20 |
+70 |
°C |
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Power Supply Voltage |
VCC |
3.0 |
3.3 |
3.6 |
V |
|
Rush Current |
Irush |
- |
- |
4.0 |
A |
|
Power Supply Voltage |
Black |
ICC |
- |
500 |
600 |
mA |
White |
- |
660 |
790 |
mA |
||
Power Consumption |
PL |
- |
2.2 |
2.6 |
W |
|
LVDS Differential Input voltage |
|VID| |
100 |
- |
600 |
mV |
|
LVDS Common Mode Voltage |
VICM |
0.7 |
- |
1.6 |
V |
Backlight Unit (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Converter Power Supply Voltage |
Vi |
10.8 |
12.0 |
13.2 |
V |
(Duty 100%) |
|
Converter Power Supply Current |
Ii |
- |
0.3 |
0.4 |
A |
@ Vi = 12V (Duty 100%) |
|
LED Power Consumption |
PLED |
- |
3.6 |
- |
W |
@ Vi = 12V (Duty 100%) |
|
EN Control Level |
Backlight on |
BLON |
2.5 |
3.3 |
5 |
V |
- |
Backlight off |
0 |
- |
0.3 |
V |
|||
PWM Control Level |
PWM High Level |
E_PWM |
2.5 |
3.3 |
5 |
V |
- |
PWM Low Level |
0 |
- |
0.15 |
V |
|||
PWM Control Duty Ratio |
|
2 |
- |
100 |
% |
@200Hz |
|
PWM Control Frequency |
fPWM |
190 |
200 |
20K |
Hz |
|
|
LED Life Time |
LL |
30,000 |
- |
- |
Hrs |
|
TFT-LCD Module
Pin No. |
Symbol |
Description |
1 |
VCC |
+3.3V power supply |
2 |
VCC |
+3.3V power supply |
3 |
VCC |
+3.3V power supply |
4 |
GND |
Ground |
5 |
GND |
Ground |
6 |
GND |
Ground |
7 |
RPFI |
Reverse Panel Function(Display Rotation) |
8 |
NC |
No Connection |
9 |
NC |
No Connection |
10 |
NC |
No Connection |
11 |
SEL6/8 |
LVDS 6/8bit selection function control. Low or NC è 8 bit Input Mode High è 6bit Input Mode |
12 |
GND |
Ground |
13 |
NC |
No Connection |
14 |
GND |
Ground |
15 |
RX0- |
Negative transmission data of pixel 0 |
16 |
RX0+ |
Positive transmission data of pixel 0 |
17 |
GND |
Ground |
18 |
RX1- |
Negative transmission data of pixel 1 |
19 |
RX1+ |
Positive transmission data of pixel 1 |
20 |
GND |
Ground |
21 |
RX2- |
Negative transmission data of pixel 2 |
22 |
RX2+ |
Positive transmission data of pixel 2 |
23 |
GND |
Ground |
24 |
RXCLK- |
Negative of clock |
25 |
RXCLK+ |
Positive of clock |
26 |
GND |
Ground |
27 |
RX3- |
Negative transmission data of pixel 3 |
28 |
RX3+ |
Positive transmission data of pixel 3 |
29 |
GND |
Ground |
30 |
NC |
No Connection |
Backlight
Pin No. |
Symbol |
Description |
1 |
Vi |
Converter input voltage |
2 |
Vi |
Converter input voltage |
3 |
Vi |
Converter input voltage |
4 |
Vi |
Converter input voltage |
5 |
VGND |
Converter Ground |
6 |
VGND |
Converter Ground |
7 |
VGND |
Converter Ground |
8 |
VGND |
Converter Ground |
9 |
EN |
Enable pin |
10 |
ADJ |
Backlight Adjust |
