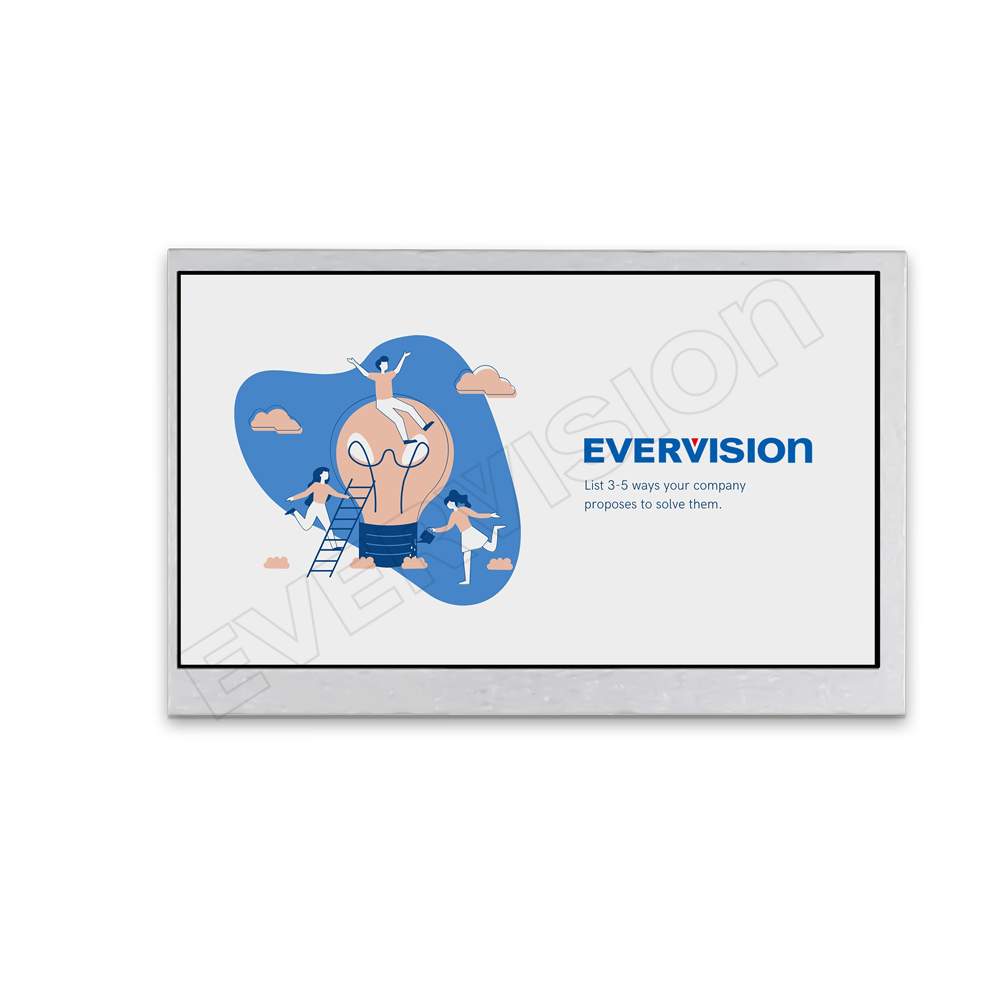

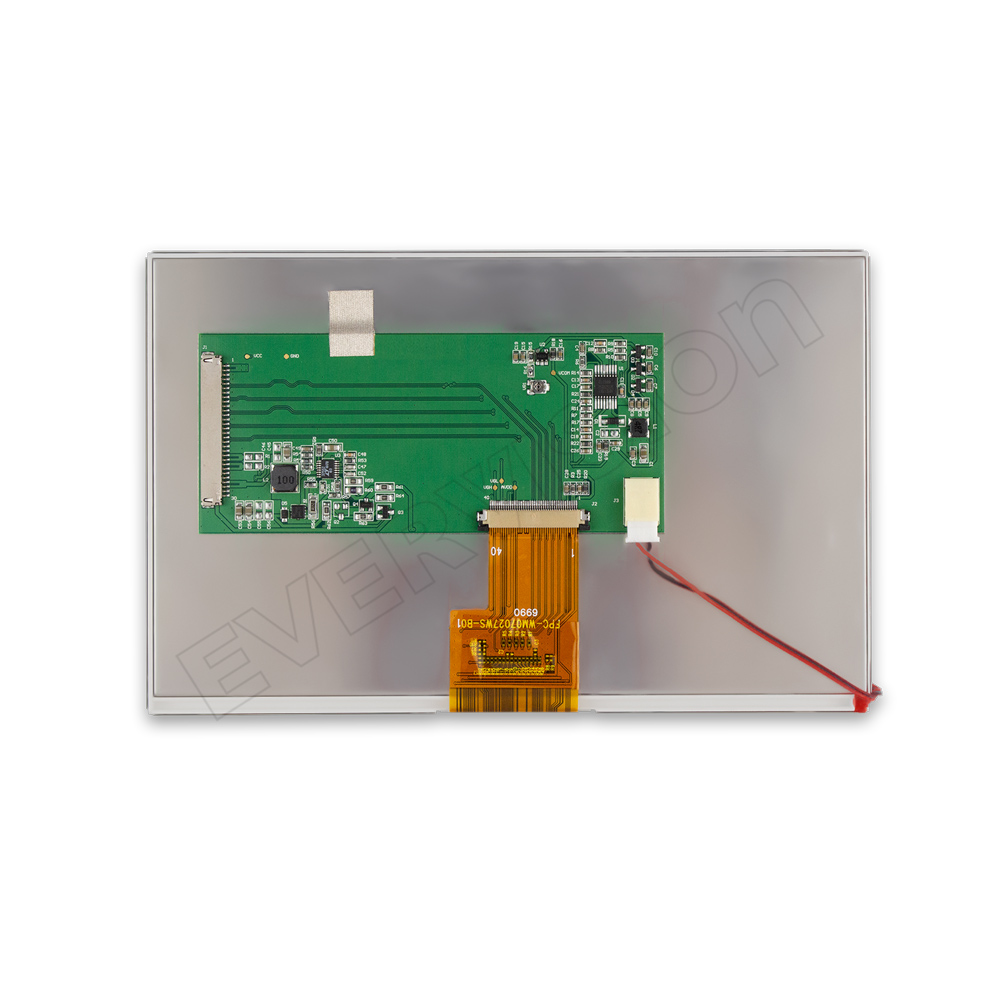

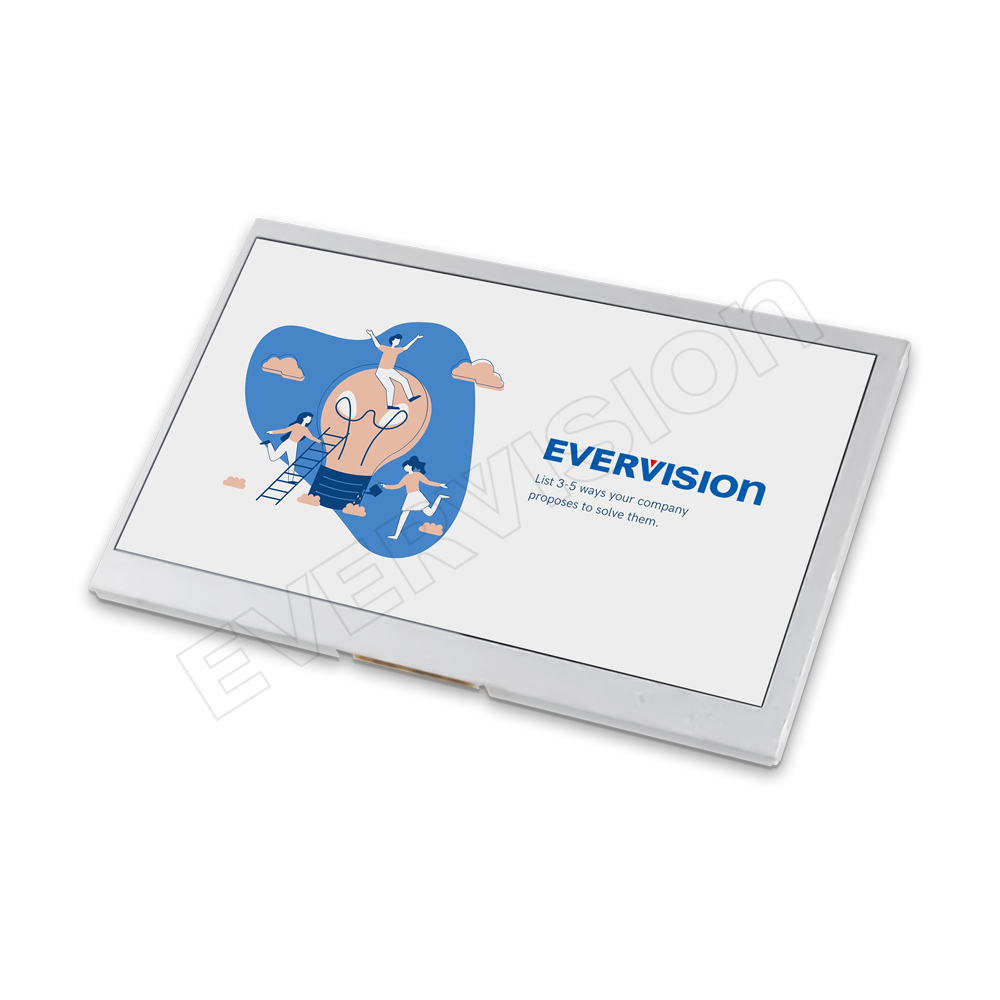

7 inch 1024X600 IPS TFT LCD with LVDS interface

Model No.VGG106009-A(WV)

► WSVGA (1024×600 pixels) resolution.
► 8 bit LVDS Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.

VGG106009-A is a1024x600 7" TFT Display with IPS Panel that supports LVDS interface. It is available for Touch Screen optional, as well as high brightness option for this model. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It is suitable medical equipment such as ventilators and patient monitors.

7” 1024x600 TFT LCD with IPS Panel Screen, LVDS Interface, Optional Touch Screen

Download

Add to Inquiry

Size (inch):

7.0

Resolution (dots):

1024*600

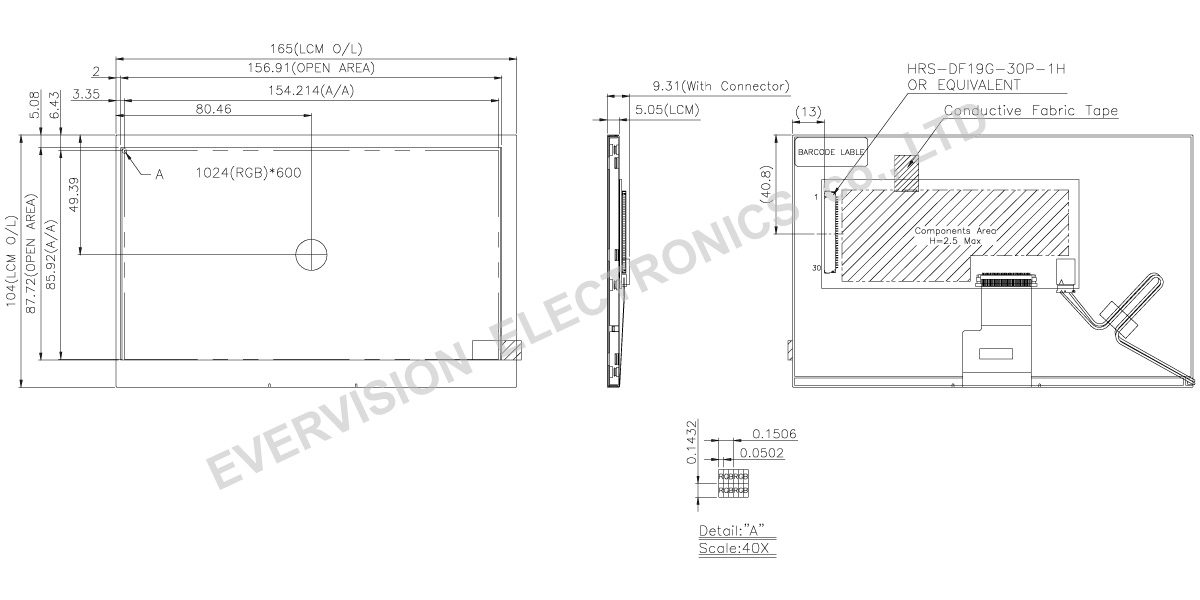

Outline Dimensions (mm):

165.0*104.0*9.31

Technology:

IPS

Viewing Angle(TYP.):

80/80/80/80

I/F Mode:

LVDS

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

500 / 50khrs min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

VGG106009-A(WV) | Wide View TFT | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	V_DD	3.0	3.3	3.6	V
Digital Power Supply Current	IDD	-	151	211	mA

LED Driver Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Voltage of LED Driver Unit	VLED	11.5	12.0	12.5	V	-
Current of LED Driver Unit	ILED	-	300	420	mA	VLED=12V、 B/L=210mA
PWM signal Low volt ge	VPWML	0	-	0.4	V	-
PWM signal High voltage	VPWMH	1.5	-	5	V	-
PWM frequency	fPWM	100	-	1000	Hz	-
PWM Pul e width	tPWMH	10	-	-	us	-
LED Life Time(25℃)	-	50000	-	-	hr	(1)
Voltage of LED Driver Unit	VLED	11.5	12.0	12.5	V	-

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

TFT LCD Module

Connector: HIROSE DF19G-30P-1H

Pin No.	Symbol	Description
1	V_CC	+3.3V power supply
2	V_CC	+3.3V power supply
3	GND	Ground
4	GND	Ground
5	RIN3+	LVDS Signal (+) Channel 3
6	RIN3-	LVDS Signal (-) Channel 3
7	GND	Ground
8	RCLK+	LVDS Clock Signal (+)
9	RCLK-	LVDS Clock Signal (-)
10	GND	Ground
11	RIN2+	LVDS Signal (+) Channel 2
12	RIN2-	LVDS Signal (-) Channel 2
13	GND	Ground
14	RIN1+	LVDS Signal (+) Channel 1
15	RIN1-	LVDS Signal (-) Channel 1
16	GND	Ground
17	RIN0+	LVDS Signal (+) Channel 0
18	RIN0-	LVDS Signal (-) Channel 0
19	GND	Ground
20	GND	Ground
21	NC	Not Connection
22	NC	Not Connection
23	NC	Not Connection
24	NC	Not Connection
25	BLEN	Note 1
26	NC	Not Connection
27	VLED	LED driver power supply
28	VLED	LED driver power supply
29	GND	Ground
30	GND	Ground

Note 1: To use PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.5V to this pin.

VGG106009 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	LED Driver	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	IPS	165.0104.09.31	LVDS(40)	NO	500 / 50khrs min.	☛ VGG106009-A(WV)
7.0”	1024x600	IPS	165.0104.05.05	LVDS(30)	YES	500 / 50khrs min.	☛ VGG106009-F(WV)
7.0”	1024x600	IPS	165.0104.09.31	LVDS(30)	NO	500 / 50khrs min.	☛ VGG106009-H(WV)

✦ Touch screen is available depending on your application.

【LCD Technology】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	TN	165.0104.07.76	LVDS(30)	500 / 50khrs min.	☛ VGG106004-H
7.0”	1024x600	IPS	165.0104.09.31	LVDS(30)	500 / 50khrs min.	☛ VGG106009-A(WV)

✦ Touch screen is available depending on your application.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	IPS	165.0104.09.31	LVDS(30)	500 / 50khrs min.	☛ VGG106009-A(WV)
7.0”	1024x600	IPS	165.0104.09.61	LVDS(30)	1400 / 50khrs min.	☛ VGG106007-B(SR)

✦ Touch screen is available depending on your application.
