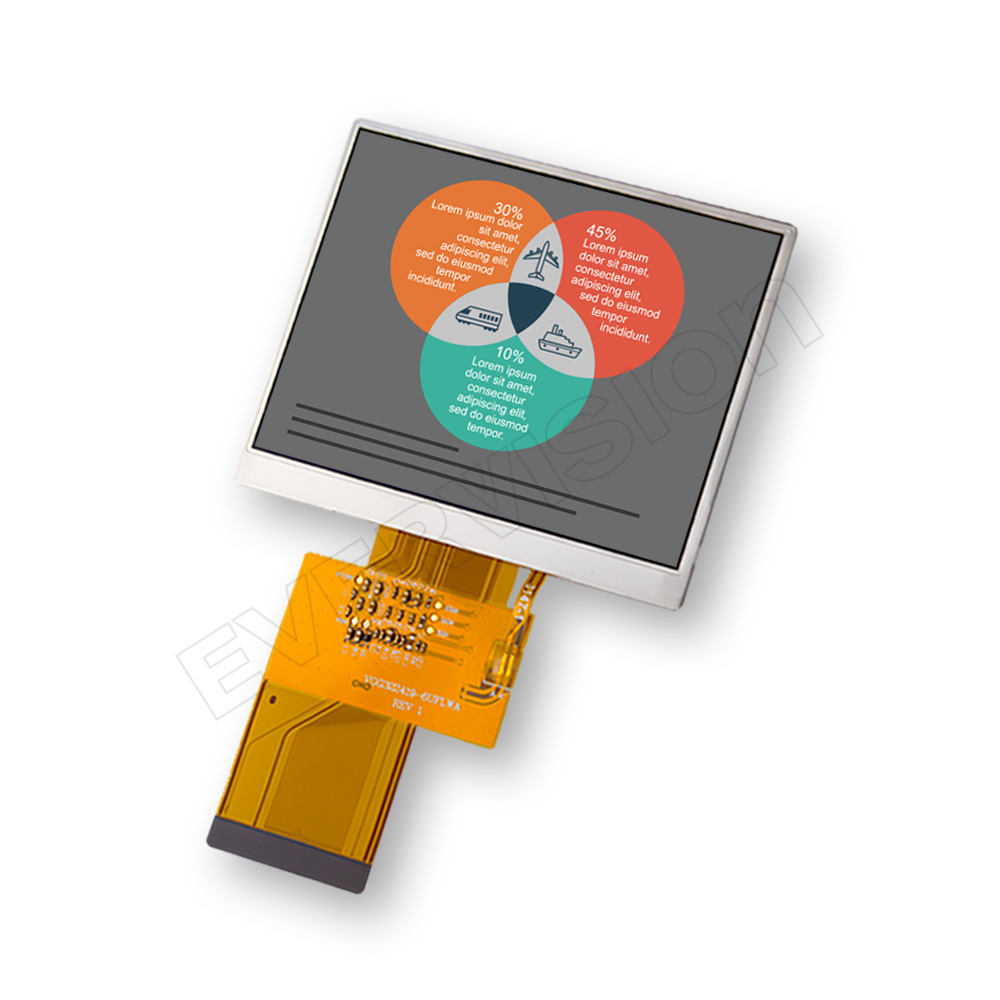

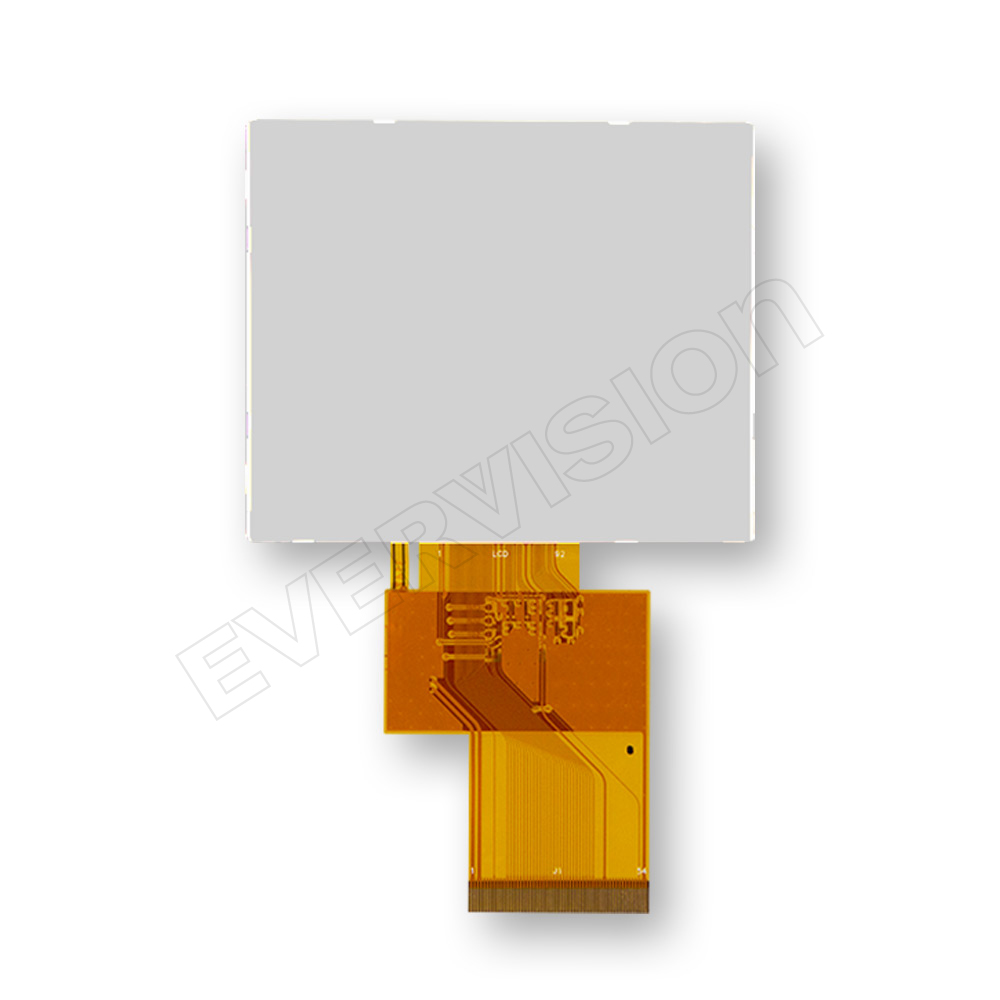

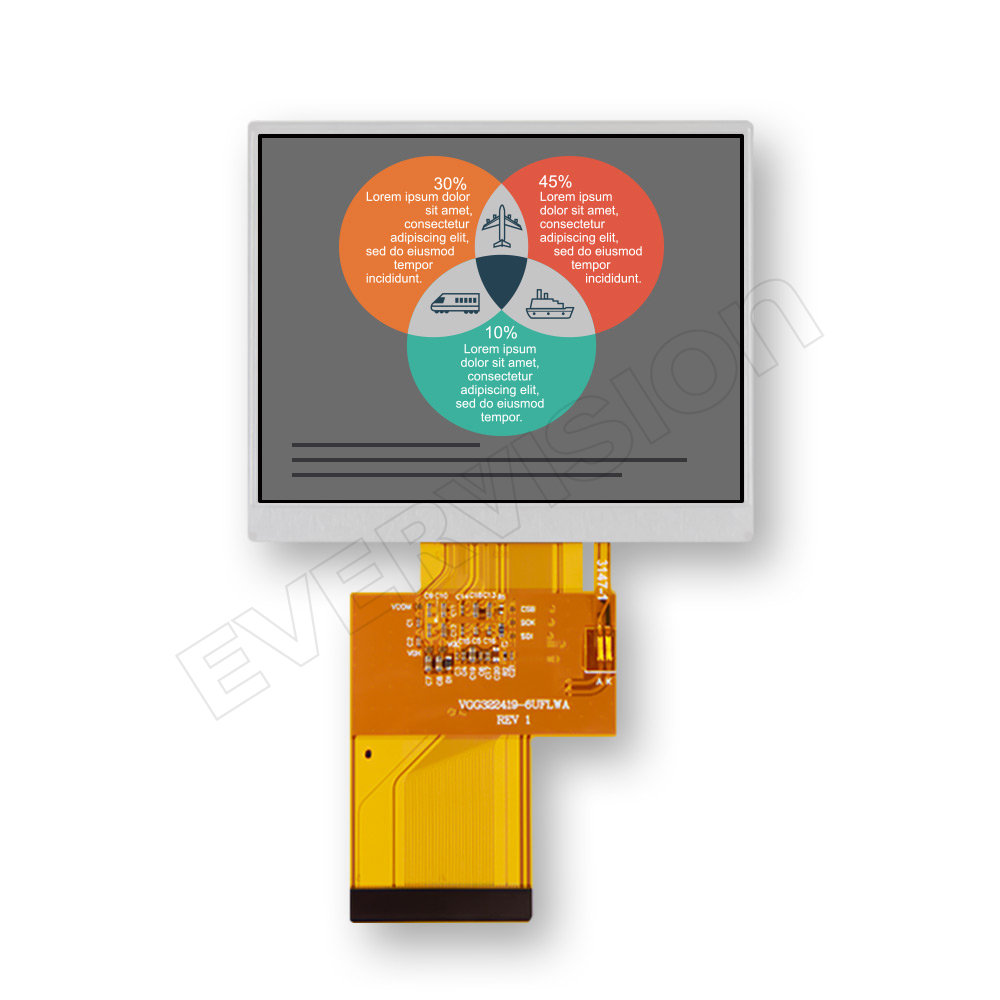

3.5 inch Wide Temperature TFT Display

Model No.VGG322425-B(WT)

► QVGA (320×240 pixels) resolution.
► Display in 262k colors
► Line inversion mode with stripe type.
► On-chip voltage generator
► SYNC mode is supported for digital RGB input data format.
► This display has extended temperature range.

VGG322425-B is a 3.5 inch wide temperature range TFT Display corresponds wider ambient temperature application, supports TTL RGB interface. It can be operating at temperatures from -30~80 ℃ and storage temperatures range from -40~80 ℃.
EVERVISION has developed a series of wide temperature TFT LCD modules with operating temperatures ranging from -30°C to +80°C, and the maximum for some models can reach 85°C.

320x240 dots 3.5" TFT LCD with wide operating temperature range of -30 to +80°C, Optional Touch Screen

Download

Add to Inquiry

Size (inch):

3.5

Resolution (dots):

320*240

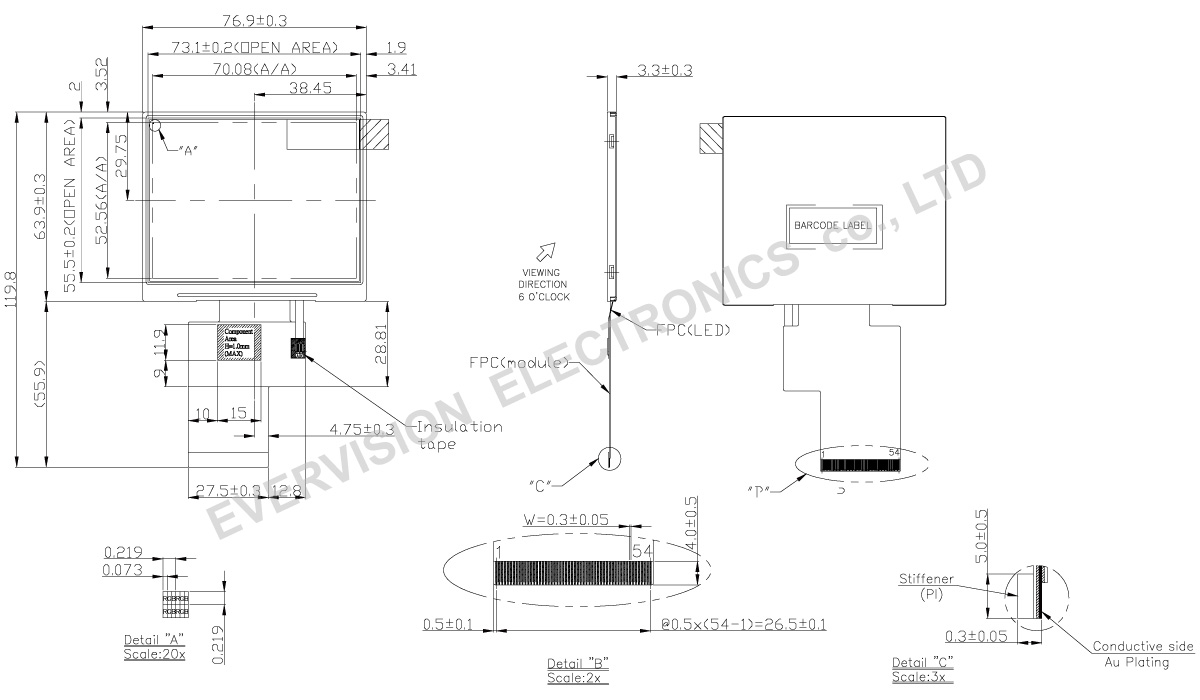

Outline Dimensions (mm):

76.9*63.9*3.3

Technology:

I/F Mode:

TTL RGB

I/F Number:

Brightness Level:

800 ~ 999

Brightness (cd/m²，typ.):

800 / 30khrs typ.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-30~80

Tst (°C):

-40~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-40	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics(Ta=25±2°C，GND=VSS=0V)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	VCC	2.5	3.3	3.6	V
Digital Power Supply Current	ICC	-	15.6	22.0	mA
Power Consumption	PL	-	51.48	72.6	mW

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
LED Voltage	VL	-	(16.5)	-	V
LED Current	IL	-	(40)	-	mA
Power Consumption	PBL	-	(660)	-	mW
LED Life Time	-	10000	30000	-	hr

Pin No.	Symbol	Description
1	LED_K	LED_cathode
2	LED_K	LED_cathode
3	LED_A	LED_anode
4	LED_A	LED_anode
5	NC	No connection
6	NC	No connection
7	NC	No connection
8	RESET	Reset
9	NC	No connection
10	NC	No connection
11	NC	No connection
12	D20	Blue data(LSB)
13	D21	Blue data
14	D22	Blue data
15	D23	Blue data
16	D24	Blue data
17	D25	Blue data
18	D26	Blue data
19	D27	Blue data(MSB)
20	D10	Green data(LSB)
21	D11	Green data
22	D12	Green data
23	D13	Green data
24	D14	Green data
25	D15	Green data
26	D16	Green data
27	D17	Green data(MSB)
28	D00	Red data(LSB)
29	D01	Red data
30	D02	Red data
31	D03	Red data
32	D04	Red data
33	D05	Red data
34	D06	Red data
35	D07	Red data(MSB)
36	HSYNC	Line synchronization signal.
37	VSYNC	Frame synchronization signal.
38	DOTCLK	Dot Clock signal
39	NC	No connection
40	NC	No connection
41	VCC	For system power supply.
42	VCC	For system power supply.
43	NC	No connection
44	NC	No connection
45	NC	No connection
46	NC	No connection
47	NC	No connection
48	NC	No connection
49	NC	No connection
50	NC	No connection
51	NC	No connection
52	NC	No connection
53	GND	Ground
54	GND	Ground
