12.3" Bar Type LCD, Wide Temperature TFT, for HDMI signal

Model No.VGG197202-F(WT)

► 1920×720 pixels resolution
► HDMI Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution

*Support HDMI Interface, suit for your digital device.

VGG197202-F(WT) is a corresponds wider ambient temperature application, supports HDMI interface. It can be operating at temperatures from -30~80 ℃ and storage temperatures range from -30~80 ℃.

EVERVISION has developed a series of wide temperature TFT LCD modules with operating temperatures ranging from -30°C to +80°C, and the maximum for some models can reach 85°C.

Download

Add to Inquiry

Size (inch):

12.3

Resolution (dots):

1920*720

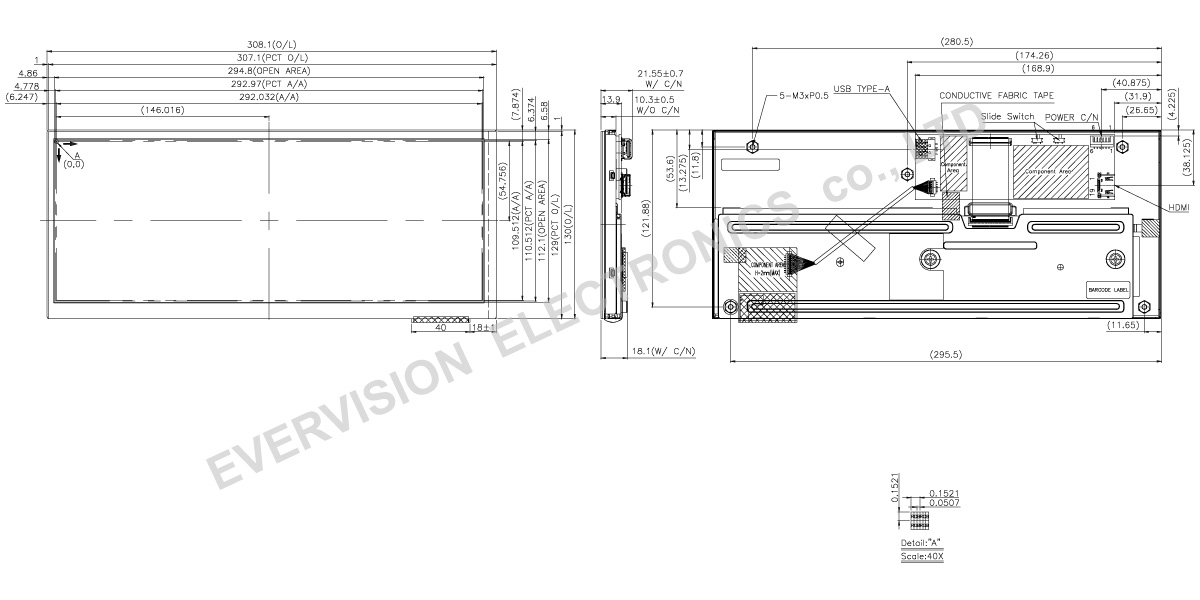

Outline Dimensions (mm):

308.1*130.0*21.55

Technology:

IPS

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

750 / 30khrs min.

LED Driver:

YES

Touch Panel:

IPCT (USB)

Top (°C):

-30~80

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-30	+80	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	1.07	1.49	A
Enable voltage	EN	2	3.3	5.5	V
PWM signal Low voltage	VPWML	0	-	0.4	V
PWM signal High voltage	VPWMH	1.5	-	5	V
PWM frequency	fPWM	100	-	1000	Hz
LED Life Time(25℃)	-	30000	-	-	Hr

Projected Capacitive Touch

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	V_TP	4.8	5.0	5.2	V	-
Power Supply Current	I_TP	-	30.5	42.7	mA	(1)
Power Consumption	P_L	-	152.5	222.0	mW	@5.0V
Report Rate	R_R	-	60	-	Hz	-
Interface		USB				-
Function		Multi Touch				-

Note (1) This test condition is touched with 5 points.

TFT-LCD Module

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2-	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0 TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Channel-0 negative receiver input – Negative side of channel-0 TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair.
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair.
13	N.C.	Not Connection
14	N.C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N.C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector

Connector: CI0106M1HR0-NH

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	EN	Backlight enable pin
4	PWM	Backlight adjust
5	GND	Ground
6	GND	Ground

Improved Projected Capacitive Touch

Connector: USB 2.0 Type A Connector

Pin No.	Symbol
1	VBUS
2	D-
3	D+
4	GND

Slider Switch

Pin No.	Description	Note
1-2	LED-EN	Default
2-3	HDMI Detection	-

Slider Switch

Pin No.	Description	Note
1-2	LED-PWM	Default
2-3	HDMI Detection	-
