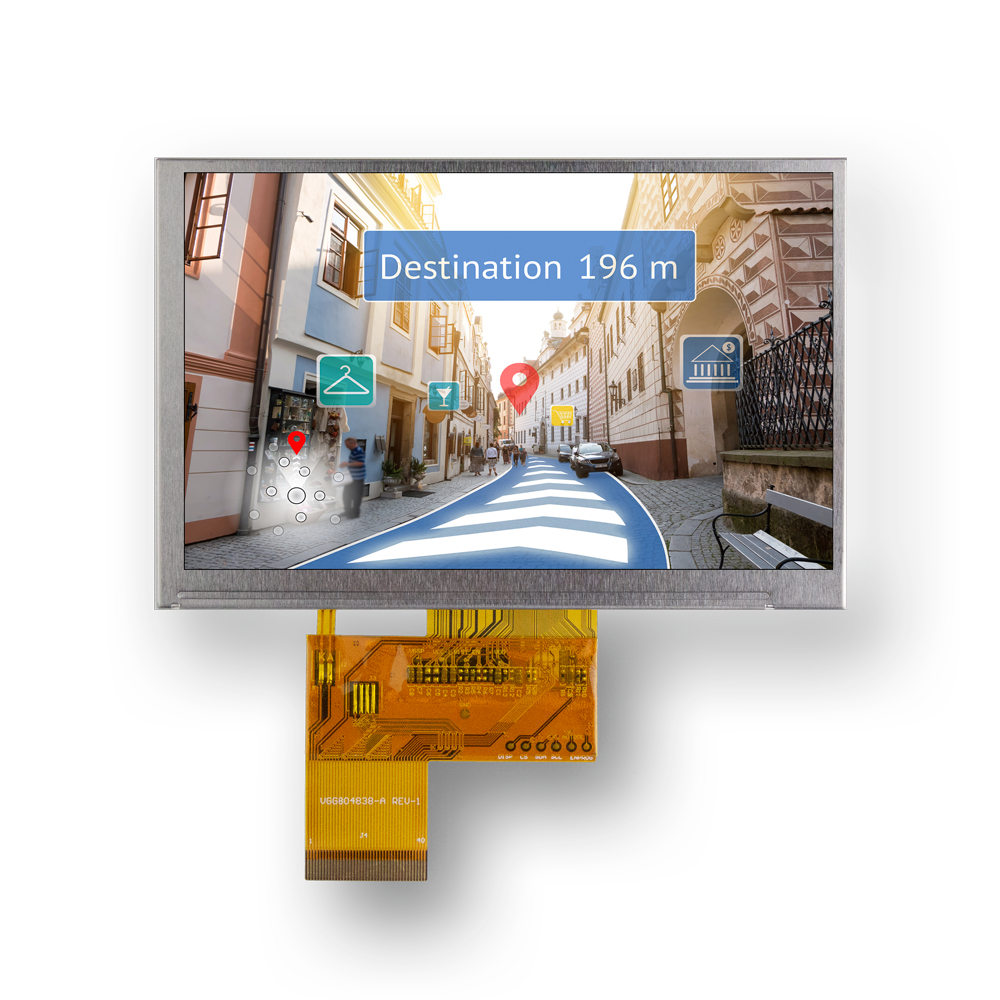

5.0 inch Sunlight Readable TFT LCD

Model No.VGG804838-M(SR)

► WVGA (800×480 pixels) resolution.
► Digital 24 bit parallel RGB.

VGG804838-M is a 5.0 inch Sunlight Readable TFT LCD that supports TTL RGB interface. It can be operating at temperatures from -30~85℃ and storage temperatures range from -30~85℃. 5 inch TFT (VGG804838-M) supports sunlight readable is a high brightness TFT LCD module. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

5.0

Resolution (dots):

800*480

Outline Dimensions (mm):

118.5*77.55*3.4

Technology:

IPS

I/F Mode:

TTL RGB

I/F Number:

Brightness Level:

1200 ~ 1499

Brightness (cd/m²，typ.):

1300 / 60khrs typ.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-30~85

Tst (°C):

-30~85

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+85	°C
Operating Ambient Temperature	TOP	-30	+85	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Digital Power Supply Voltage	V_CC	3.0	3.3	3.6	V
Digital Current	IV_CC	-	75	105	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Voltage of Backlight Unit	V_B	-	(21.7)	-	V
Current of Backlight Unit	I_B	-	60	-	mA
Power Consumption	P_BL	-	(1.302)	-	W
LED life time	-	50000	60000	-	Hr

TFT-LCD Module

Pin No.	Symbol	Description
1	VLED-	LED Cathode
2	VLED+	LED Anode
3	GND	Ground
4	V_CC	Power supply
5	R0	Red data(LSB)
6	R1	Red data
7	R2	Red data
8	R3	Red data
9	R4	Red data
10	R5	Red data
11	R6	Red data
12	R7	Red data(MSB)
13	G0	Green data(LSB)
14	G1	Green data
15	G2	Green data
16	G3	Green data
17	G4	Green data
18	G5	Green data
19	G6	Green data
20	G7	Green data(MSB)
21	B0	Blue data(LSB)
22	B1	Blue data
23	B2	Blue data
24	B3	Blue data
25	B4	Blue data
26	B5	Blue data
27	B6	Blue data
28	B7	Blue data(MSB)
29	GND	Ground
30	CLK	Dot clock
31	DISP	DISP sets the display mode. DISP=” 1”, Normal display mode DISP=” 0”, Standby mode
32	HSYNC	Horizontal sync signal applied to the RGB interface, default is negative polarity.
33	VSYNC	Vertical sync signal applied to the RGB interface, default is negative polarity.
34	DE	Input data enable control.
35	NC	No connection
36	GND	Ground
37	NC	No connection
38	NC	No connection
39	NC	No connection
40	NC	No connection

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
5.0”	800x480	IPS	118.577.553.4	TTL RGB	500 / 60khrs typ.	☛ VGG804838-A(WV)
5.0”	800x480	IPS	118.577.556.46	LVDS	500 / 60khrs typ.	☛ VGG804838-D(WV)
5.0”	800x480	IPS	138.577.558.61	HDMI*	500 / 60khrs typ.	☛ VGG804838-J(WV)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
5.0”	800x480	IPS	118.577.553.4	TTL RGB	500 / 60khrs typ.	☛ VGG804838-A(WV)
5.0”	800x480	IPS	118.577.553.4	TTL RGB	1300 / 60khrs typ.	☛ VGG804838-M(SR)

✦ Touch screen is available depending on your application.
