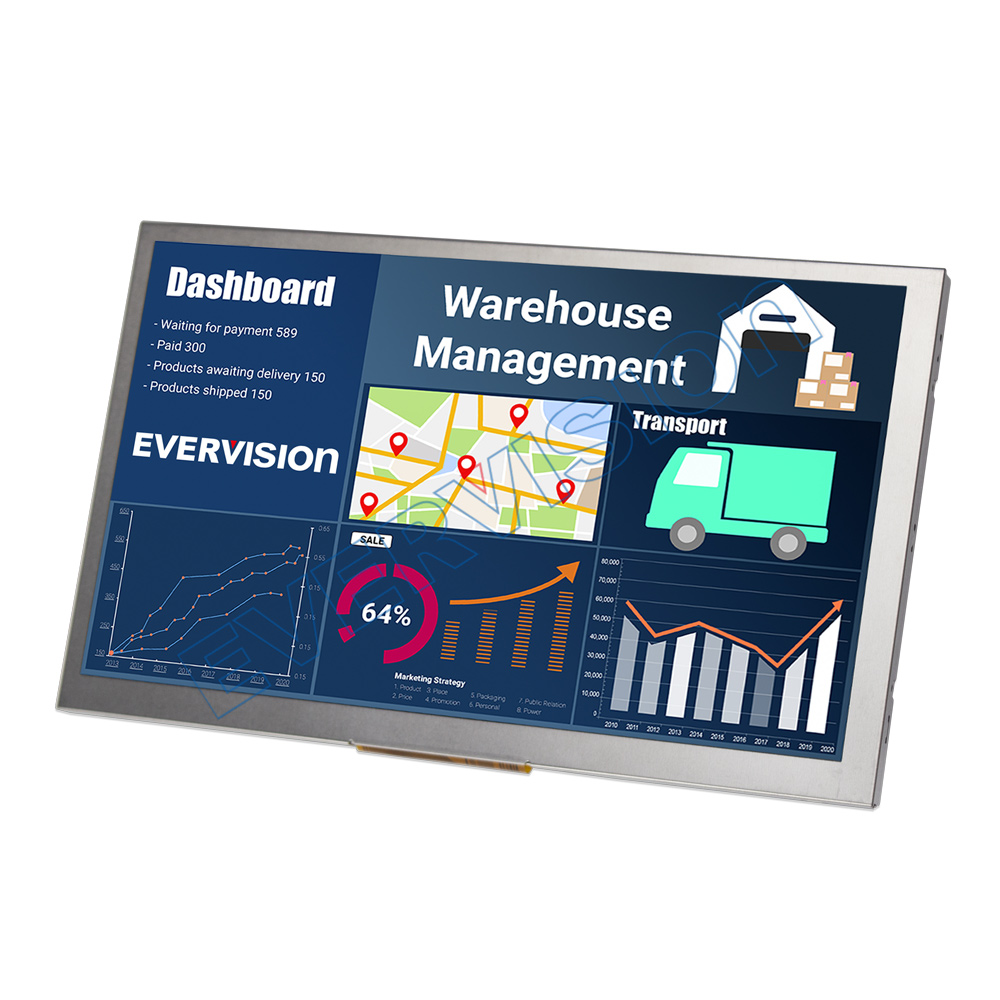

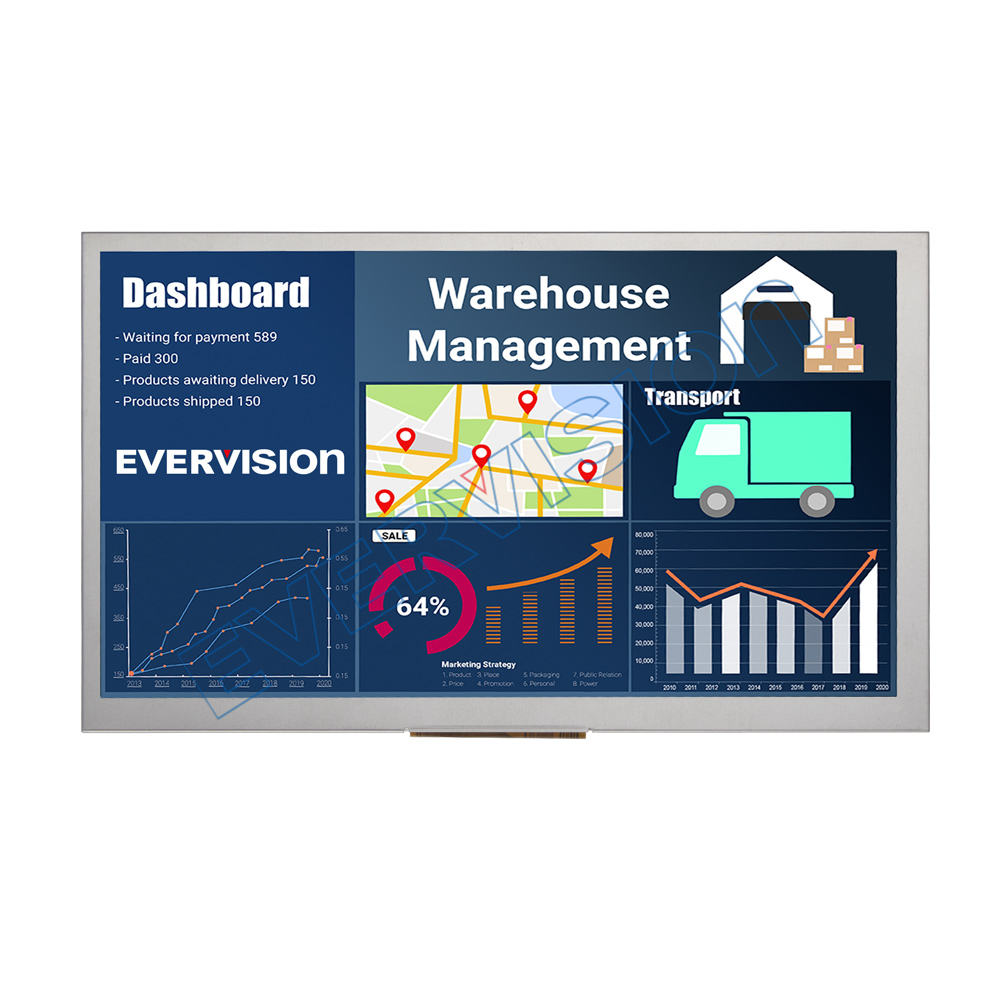

8.0" Sunlight Readable TFT LCD, Touch Screen Optional

Model No.VGG804823-L(SR)

► WVGA (800×480 pixels) resolution.
► Digital 24 bit parallel RGB.
► Dot inversion mode with stripe type.

VGG804823-L is a 8.0 inch Sunlight Readable TFT LCD that supports TTL RGB interface. It can be operating at temperatures from -30~85℃ and storage temperatures range from -30~85℃. 8 inch TFT (VGG804823-L) supports sunlight readable is a high brightness TFT LCD module. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

8.0

Resolution (dots):

800*480

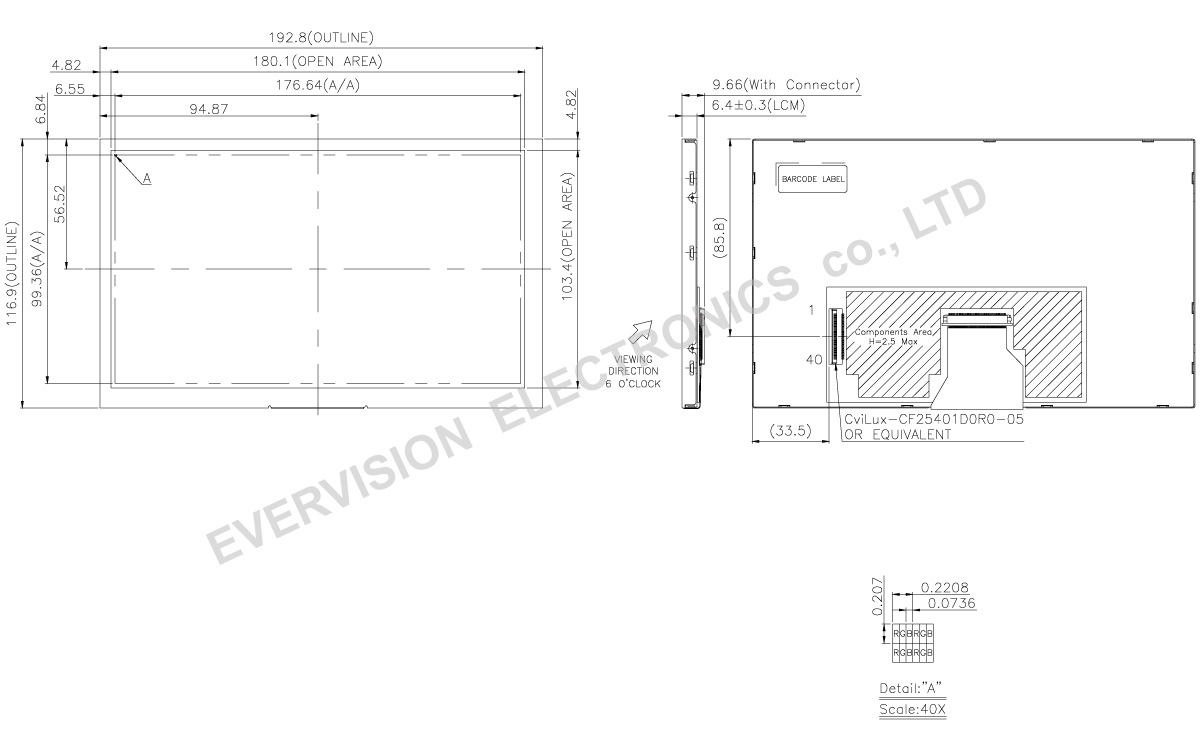

Outline Dimensions (mm):

192.8*116.9*9.66

Technology:

I/F Mode:

TTL RGB

I/F Number:

Brightness Level:

1000 ~ 1199

Brightness (cd/m²，typ.):

1000 / 50khrs min.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-30~85

Tst (°C):

-30~85

VGG804833-L(SR) | High Brightness | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+85	°C
Operating Ambient Temperature	TOP	-30	+85	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	3.0	3.3	3.6	V
Power Supply Current	ICC	-	92	128.8	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Voltage of Backlight Unit	V_B	-	(15)	17	V
Current of Backlight Unit	I_B	-	300	-	mA
LED Life Time(25℃)	-	50000	-	-	hr

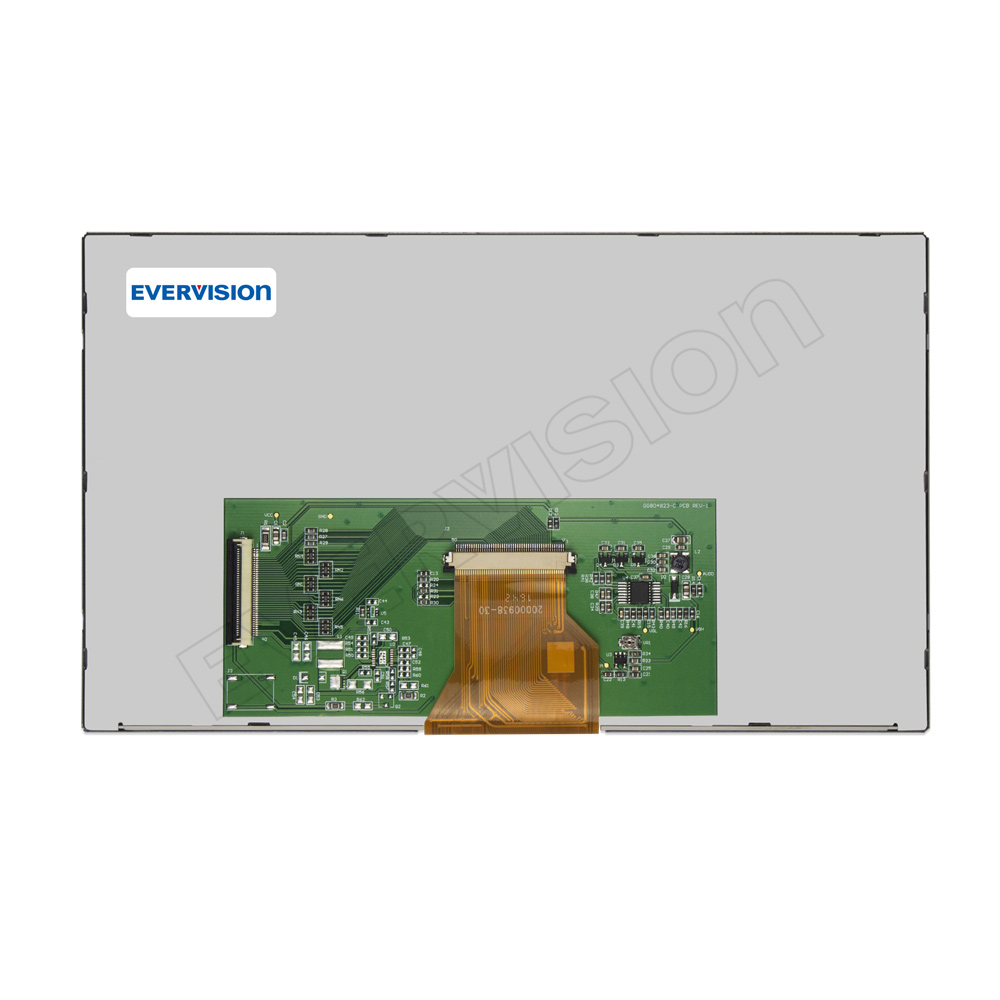

TFT-LCD Module

Connector: CVILUX CF25401D0R0-05 or Equivalent

Pin No.	Symbol	Description
1	V_CC	+3.3V power supply
2	V_CC	+3.3V power supply
3	GND	Ground
4	GND	Ground
5	MODE	DE/SYNC mode select
6	DE	Input data enable control
7	VS	Vertical Sync Input
8	HS	Horizontal Sync Input
9	B7	Blue data(MSB)
10	B6	Blue data
11	B5	Blue data
12	B4	Blue data
13	B3	Blue data
14	B2	Blue data
15	B1	Blue data
16	B0	Blue data(LSB)
17	G7	GREEN data(MSB)
18	G6	GREEN data
19	G5	GREEN data
20	G4	GREEN data
21	G3	GREEN data
22	G2	GREEN data
23	G1	GREEN data
24	G0	GREEN data(LSB)
25	R7	RED data(MSB)
26	R6	RED data
27	R5	RED data
28	R4	RED data
29	R3	RED data
30	R2	RED data
31	R1	RED data
32	R0	RED data (LSB)
33	DCLK	Dot Clock
34	VLED+	VLED+
35	VLED+	VLED+
36	VLED-	VLED-
37	VLED-	VLED-
38	NC	Not Connection
39	NC	Not Connection
40	NC	Not Connection

VGG804823 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	LED Driver	Brightness (cd/m²,typ.)	Model Name
8.0”	800x480	TN	192.8116.96.4	TTL RGB	NO	1000 / 50khrs min.	☛ VGG804823-K(SR)
8.0”	800x480	TN	192.8116.99.66	TTL RGB	NO	1000 / 50khrs min.	☛ VGG804823-L(SR)
8.0”	800x480	TN	192.8116.99.66	TTL RGB	YES	1000 / 50khrs min.	☛ VGG804823-M(SR)
8.0”	800x480	TN	192.8116.99.46	LVDS	NO	1000 / 50khrs min.	☛ VGG804823-N(SR)
8.0”	800x480	TN	192.8116.99.46	LVDS	YES	1000 / 50khrs min.	☛ VGG804823-O(SR)
8.0”	800x480	TN	192.8116.913.5	for HDMI signal	YES	1000 / 50khrs min.	☛ VGG804823-S(SR)

✦ Touch screen is available depending on your application.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
8.0”	800x480	TN	192.8116.99.66	TTL RGB	1000 / 50khrs min.	☛ VGG804823-L(SR)
8.0”	800x480	TN	192.8116.99.46	LVDS	1000 / 50khrs min.	☛ VGG804823-N(SR)

✦ Touch screen is available depending on your application.
