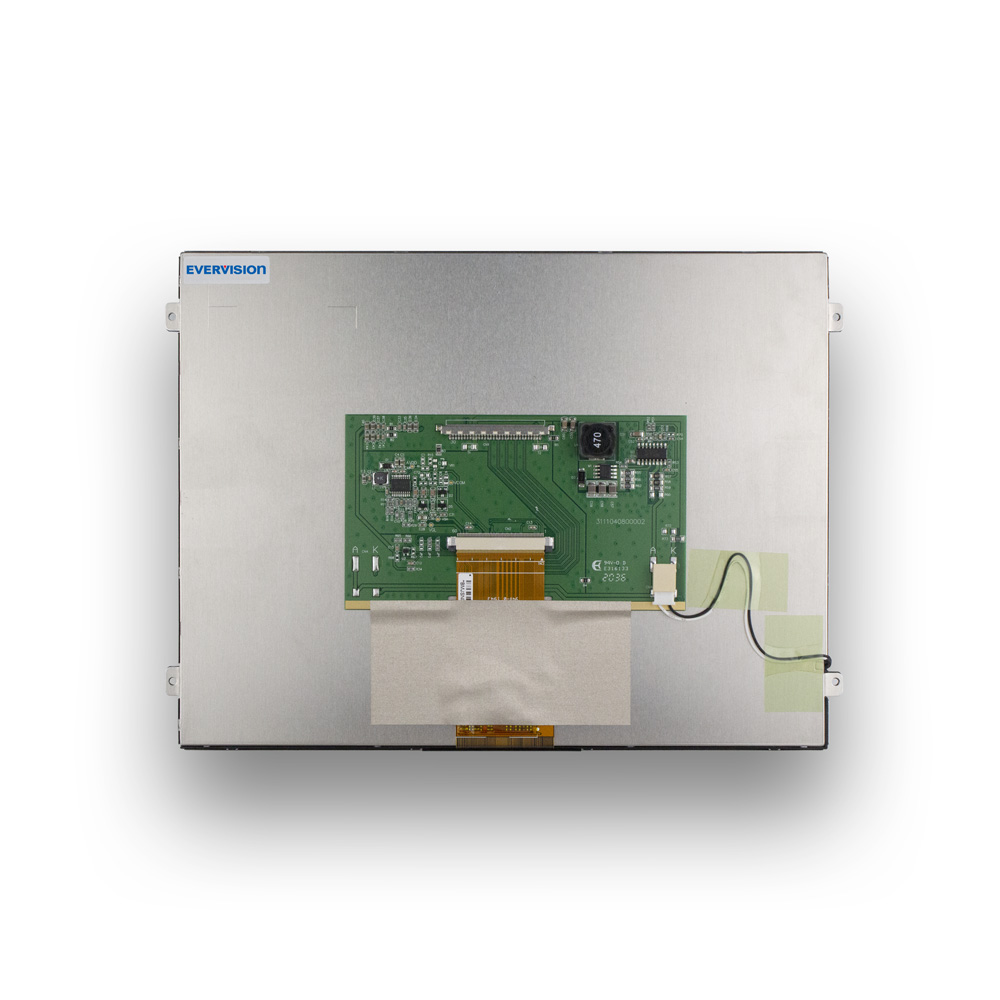

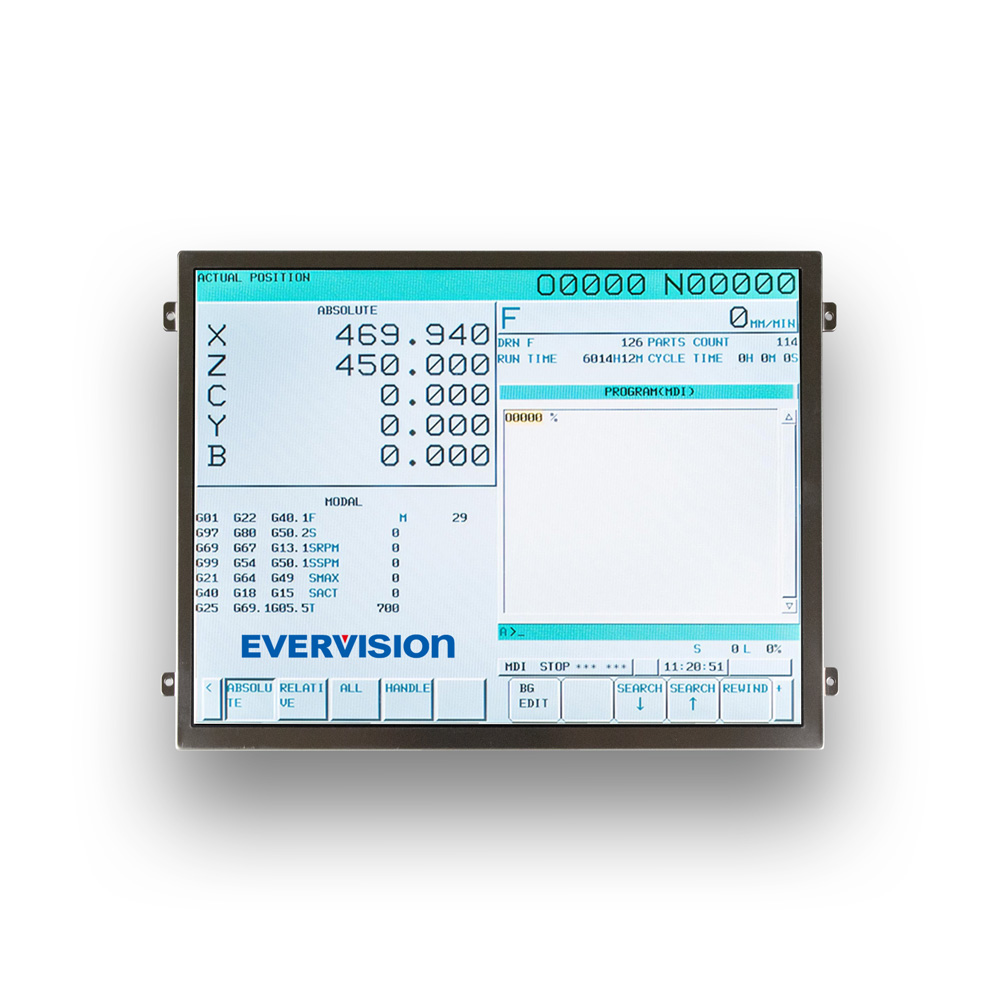

10.4 inch LVDS Sunlight Readable Display, IPS TFT Module

Model No.VGG107620-A(SR)

► XGA (1024×768) pixels resolution
► 8 bit LVDS Interface
► LED driver circuit is built in this module to provide PWM Dimmer function.

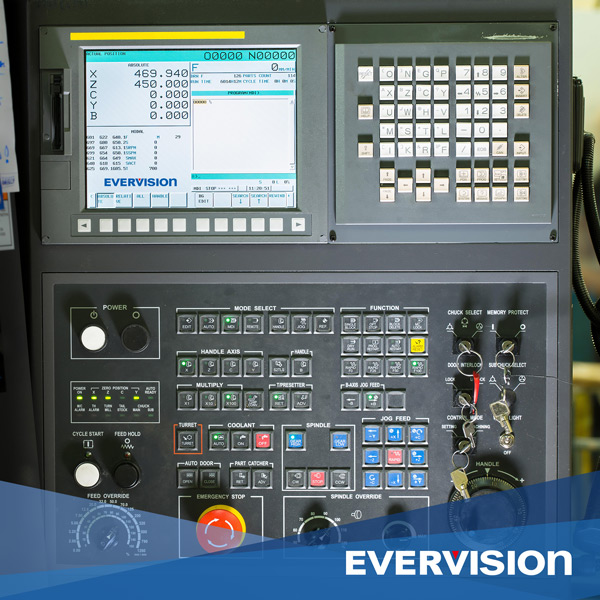

VGG107620-A(SR) is a 10.4 inch LVDS Touchscreen Display, IPS TFT LCD Module that supports LVDS interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. 10.4 inch TFT (VGG107620-A(SR)) supports sunlight readable is a high brightness TFT LCD module. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

10.4

Resolution (dots):

1024*768

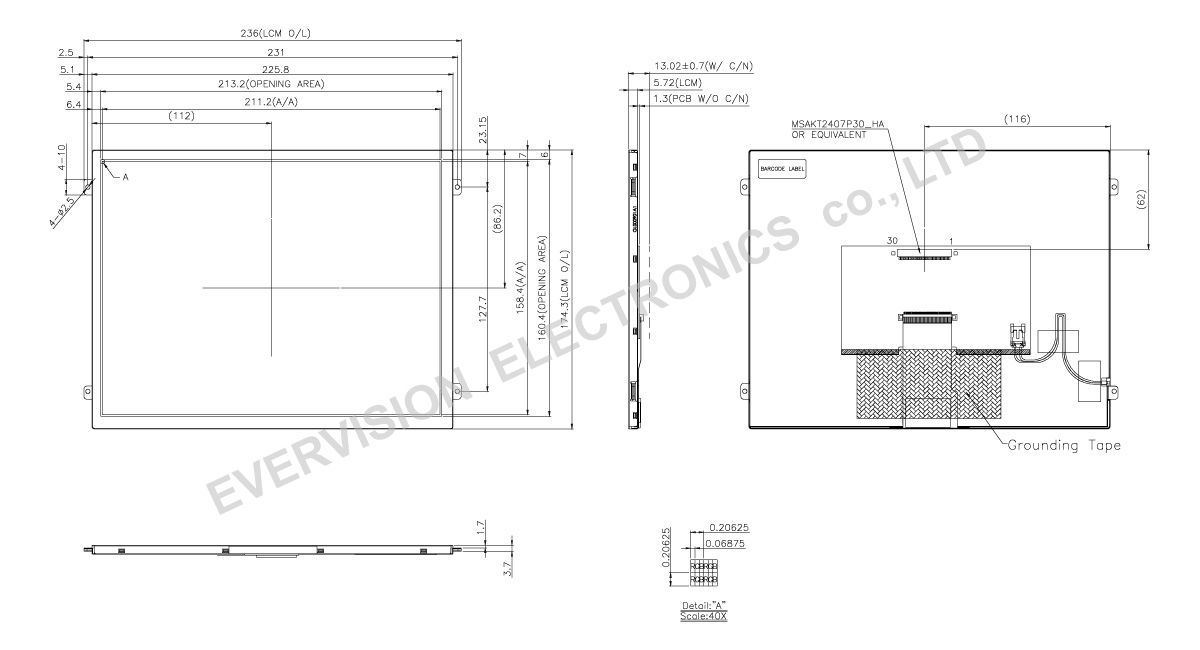

Outline Dimensions (mm):

236*174.3*13.02

Technology:

IPS

I/F Mode:

LVDS

I/F Number:

Brightness Level:

1000 ~ 1199

Brightness (cd/m²，typ.):

1000 / 50khrs typ.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	NOTE
Power Supply Voltage	VCC	3.0	3.3	3.6	V
Power Supply Voltage	VLED_12V	-	12.0	-	V
Differential Input High Threshold	RxVTH	-	-	+100	mV	RxVCM=+1.2V
Differential Input Low Threshold	RxVTL	-100	-	-	mV	RxVCM=+1.2V
Magnitude differential Input Voltage	\|VID\|	200	-	600	mV
Common Mode Voltage	RxVCM	0.7	-	1.6	V
PWM frequency	-	100	-	10K	Hz
PWM Duty ratio	-	25	-	100	%
LED_EN Threshold Voltage	VIH	2	-	-	V
LED_EN Threshold Voltage	VIL	-	-	0.5	V
Supply Current	ICC	-	380	420	mA
Supply Current	ILED	-	700	750	mA
LED life time	-	-	50000	-	Hr

TFT-LCD Module

CN1 Connector Pin Assignment

(Connector Part No: MSAKT2407P30_HA or equivalent)

Pin No.	Symbol	Description
1	VCC	Power Supply Logic voltage +3.3V
2	VCC	Power Supply Logic voltage +3.3V
3	GND	Ground.
4	GND	Ground.
5	RIN0-	Negative LVDS differential data input
6	RIN0+	Positive LVDS differential data input
7	GND	Ground.
8	RIN1-	Negative LVDS differential data input
9	RIN1+	Positive LVDS differential data input
10	GND	Ground.
11	RIN2-	Negative LVDS differential data input
12	RIN2+	Positive LVDS differential data input
13	GND	Ground.
14	RCLK-	Negative LVDS differential data input
15	RCLK+	Positive LVDS differential data input
16	GND	Ground.
17	RIN3-	Negative LVDS differential data input
18	RIN3+	Positive LVDS differential data input
19	GND	Ground.
20	REV	Select horizontal and vertical scanning direction (Normal: Low, Reverse: High)
21	VLED_12V	Power Supply LED voltage +12V
22	VLED_12V	Power Supply LED voltage +12V
23	VLED_12V	Power Supply LED voltage +12V
24	VLED_12V	Power Supply LED voltage +12V
25	LED_EN	Back-light On/Off control.
26	PWM	Back-light Dimming control.
27	GND	Ground.
28	GND	Ground.
29	GND	Ground.
30	GND	Ground.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	1024x768	MVA	238.6175.87.5	LVDS(30)	350 / 30khrs min.	☛ VGG107603-D(SR)
10.4”	1024x768	IPS	236174.313.02	LVDS(30)	1000 / 50khrs typ.	☛ VGG107620-A(SR)

✦ Touch screen is available depending on your application.

【Resolution】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)

✦ Touch screen is available depending on your application.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.4”	640x480	MVA	225.5176.39.34	TTL RGB	500 / 50khrs min.	☛ VGG644808-A(WV)
10.4”	1024x768	IPS	236174.313.02	LVDS	1000 / 50khrs typ.	☛ VGG107620-A(SR)
10.4”	1024x768	IPS	236174.715.72	HDMI*	880 / 50khrs typ.	☛ VGG107620-C(SR)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.
