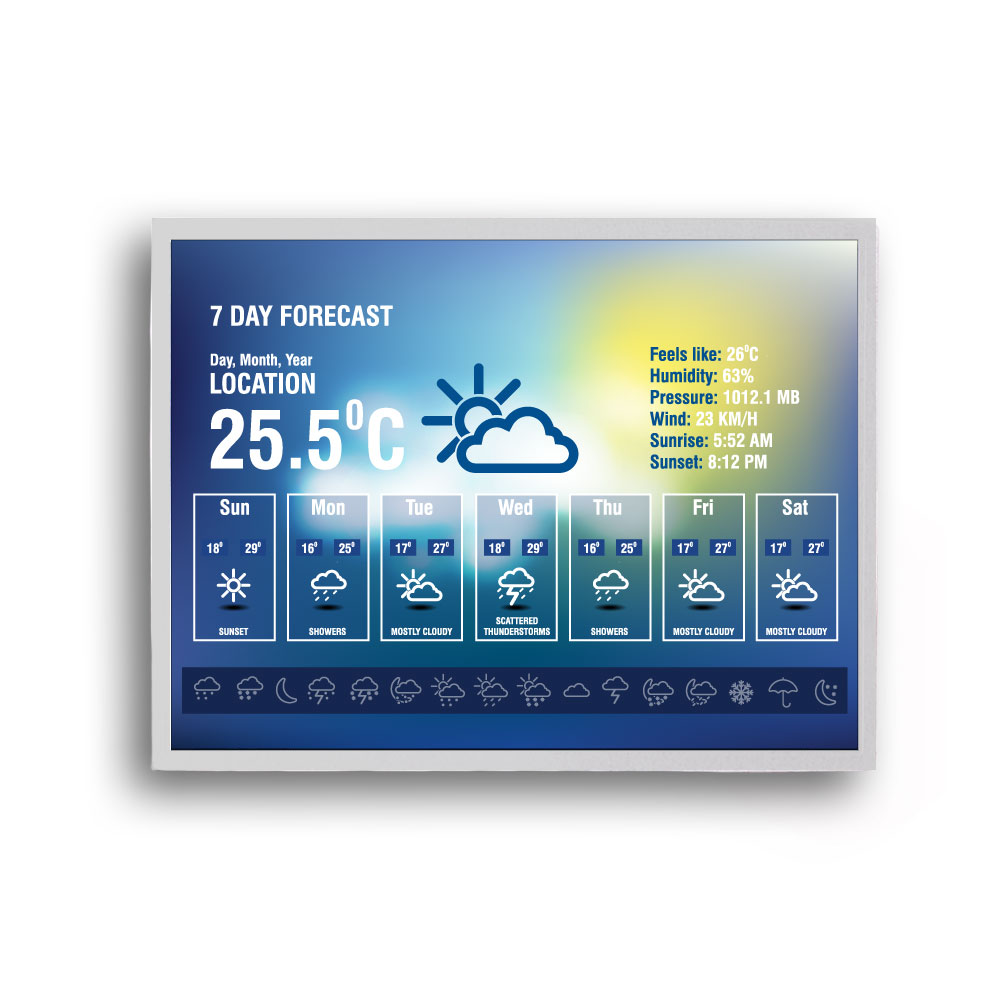

15 " Sunlight Readable TFT Display, 1000 cd/m2, LVDS Interface

Model No.VGG107617-A(SR)

► XGA (1024×768 pixels) resolution.
► 6 bit & 8 bit LVDS Interface
► DE(Data Enable) only mode

VGG107617-A is a 15.0 inch Sunlight Readable LCD Display that supports LVDS interface. It can be operating at temperatures from -30~60℃ and storage temperatures range from -40~60℃. 15.0 inch TFT (VGG107617-A) is a 1000 nits high brightness TFT LCD module with sunlight readable technology. It is suitable for outdoor or semi-outdoor applications like car parking ticket machine, marine, etc.

15 inch 1024x768 Sunlight Readable TFT Display, 1000 cd/m2, LVDS Interface

Download

Add to Inquiry

Size (inch):

15.0

Resolution (dots):

1024*768

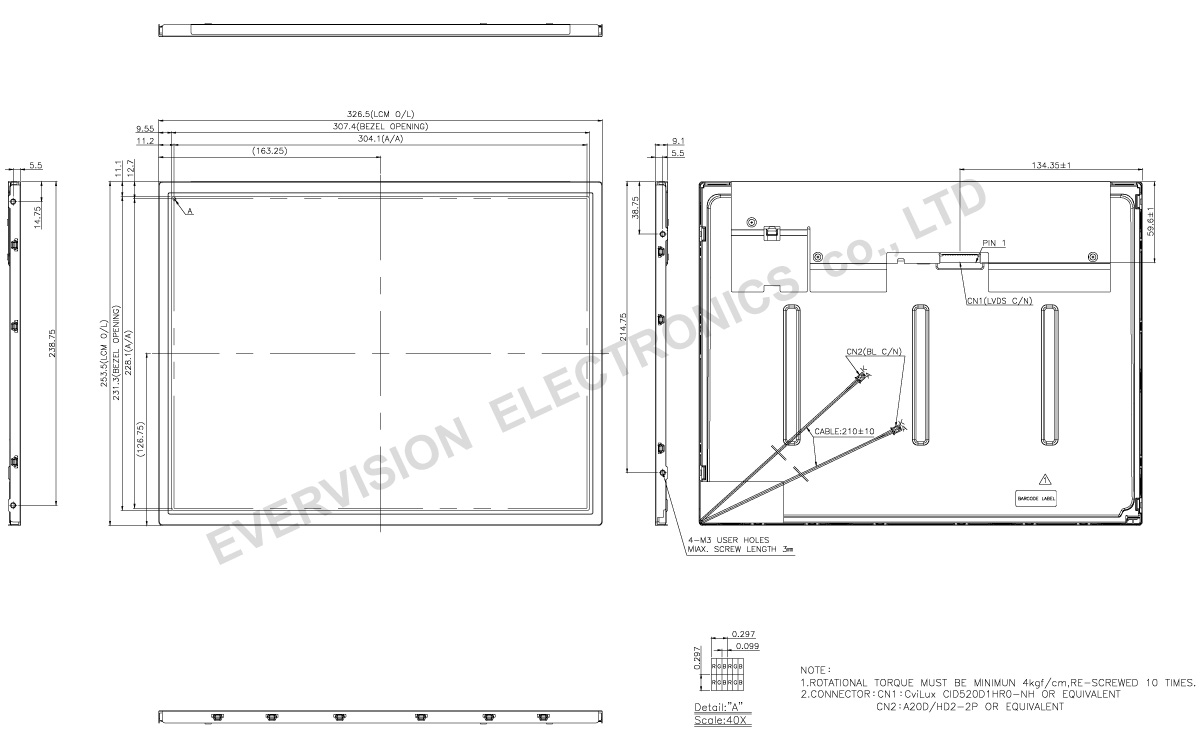

Outline Dimensions (mm):

326.5*253.5*9.1

Technology:

MVA

I/F Mode:

LVDS

I/F Number:

Brightness Level:

1000 ~ 1199

Brightness (cd/m²，typ.):

1000 / 50khrs min.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-30~60

Tst (°C):

-40~70

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-40	+70	°C
Operating Ambient Temperature	TOP	-30	+60	°C

Electrical Characteristics(Ta=25±2°C)

Item		Symbol	Min.	Typ.	Max.	Unit
Power Supply		VCC	3.0	3.3	3.6	V
Rush Current		IRUSH	-	-	2.0	A
LVDS differential input voltage		VID	200	-	600	mV
LVDS common input voltage		VIC	1.0	1.2	1.4	mV
Input Voltage for Logic	Differential Input High Threshold	VTH			+100	mV
Input Voltage for Logic	Differential Input Low Threshold	VTL	-100			mV
Power Supply current		White	-	800	960	mA
Power Supply current		Black	-	670	800	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	Vi	21.2	24.0	26.4	V
Power Supply Current	Ii	-	0.56	-	A
Backlight Power Consumption	PBL	-	13.5	-	W
LED Life Time	-	50000	-	-	Hr

TFT-LCD Module

Pin No.	Symbol	Description
1	VCC	Power Supply +3.3V(typical)
2	VCC	Power Supply +3.3V(typical)
3	GND	Ground
4	LR/UD	Reverse Scan Control H or NC – Normal Mode L= Horizontal / Vertical Reverse Scan.
5	RX0-	-LVDS Differential Data Input
6	RX0+	+LVDS Differential Data Input
7	GND	Ground
8	RX1-	-LVDS Differential Data Input
9	RX1+	+LVDS Differential Data Input
10	GND	Ground
11	RX2-	-LVDS Differential Data Input
12	RX2+	+LVDS Differential Data Input
13	GND	Ground
14	RXCLK-	-LVDS Differential Data Input
15	RXCLK+	+LVDS Differential Data Input
16	GND	Ground
17	RX3-	-LVDS Differential Data Input
18	RX3+	+LVDS Differential Data Input
19	GND	Ground
20	SEL68	LVDS 6/8 bit selection function control Low or NC è 8 bit Input Mode High è 6 bit Input Mode

Backlight Unit

Connector: A20D/HD2-2P OR EQUIVALENT

Pin No.	Symbol	Description
1	A	Backlight LED Anode
2	K	Backlight LED Cathode

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
15.0”	1024x768	MVA	326.5253.59.1	LVDS	500 / 70khrs typ.	☛ VGG107607-B(WV)
15.0”	1024x768	MVA	326.5253.59.1	LVDS	1000 / 50khrs min.	☛ VGG107617-A(SR)

✦ Touch screen is available depending on your application.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
15.0"	1024x768	MVA	326.5253.59.1	LVDS	500 / 70khrs typ.	☛ VGG107607-B(WV)
15.0"	1024x768	MVA	326.5253.517.41	LVDS	440 / 70khrs typ.	☛ VGG107607-C(WV)

✦ Touch screen is available depending on your application.

* Support HDMI Interface, suit for your digital device.
