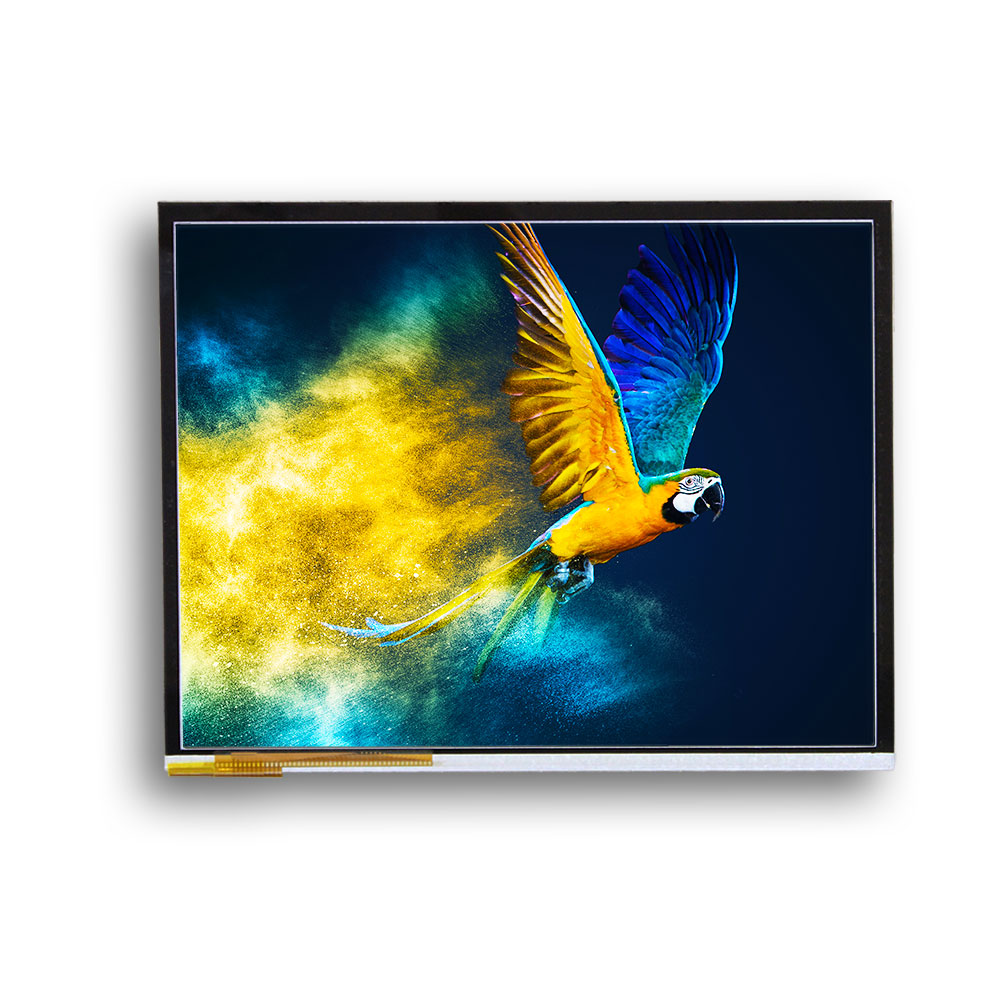

15.0" inch FHD High Brightness TFT Display, LVDS I/F
Model No.VGG107614-B(SR)
Share
► XGA (1024×768 pixels) resolution.
► 6 bit & 8 bit LVDS Interface
► DE(Data Enable) only mode
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution
VGG107614-B is a 15.0 inch Sunlight Readable TFT that supports LVDS interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. 15 inch TFT (VGG107614-B) supports sunlight readable is a high brightness TFT LCD module. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.
EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

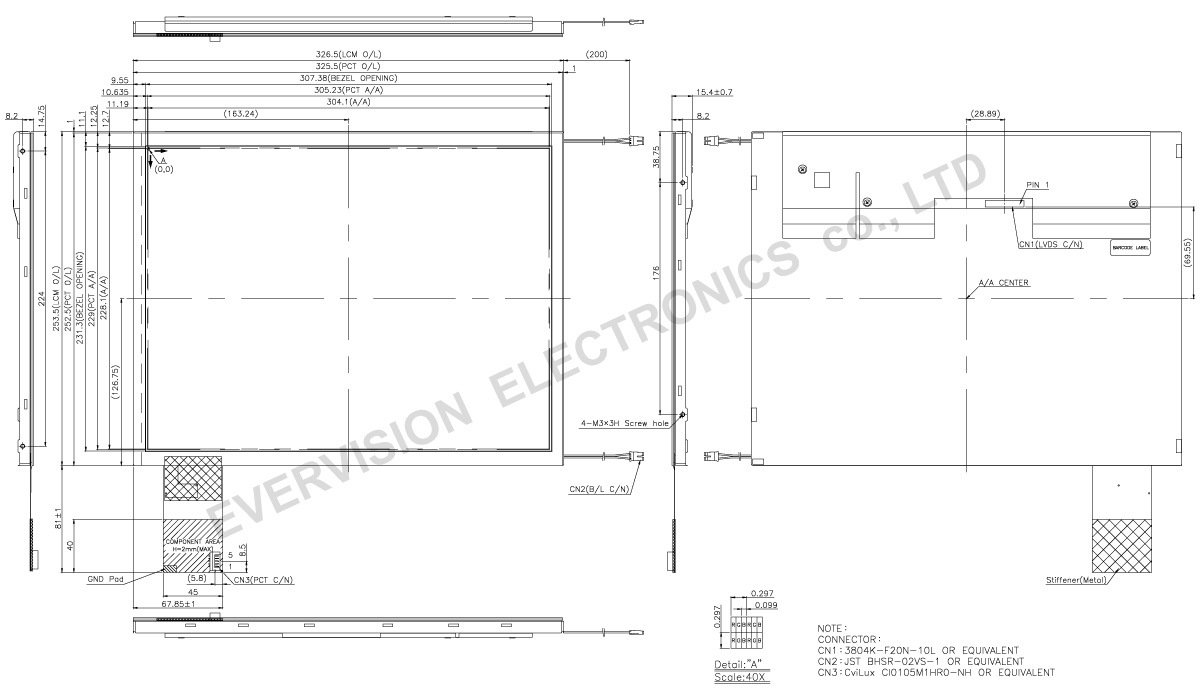

/VGG107614-B_ME.jpg)
Absolute Maximum Ratings
|
Item |
Symbol |
Min. |
Max. |
Unit |
|
Storage Temperature |
TST |
-30 |
+80 |
°C |
|
Operating Ambient Temperature |
TOP |
-20 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
|
Power Supply Voltage |
VCC |
11.5 |
12.0 |
12.5 |
V |
|
|
Power Supply Current |
White |
ICC |
- |
800 |
960 |
mA |
|
Black |
- |
|
|
mA |
||
Backlight Unit(Ta=25±2°C)
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
|
Voltage of Backlight Unit |
VL |
- |
29.7 |
- |
V |
|
Current of Backlight Unit |
IL |
- |
300 |
- |
mA |
|
LED Life Time(25℃) |
- |
- |
50000 |
- |
hr |
Projected Capacitive Touch
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
Operating Voltage |
VDD |
4.8 |
5.0 |
5.2 |
V |
- |
|
Power Supply Current |
IDD |
- |
34.5 |
48.3 |
mA |
(1) |
|
Power Consumption |
PL |
- |
172.5 |
241.5 |
mW |
@5.0V |
|
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
|
Interface |
USB |
- |
||||
|
Function |
Multi Touch |
- |
||||
Note(1): This test condition is touched with 5 points.
