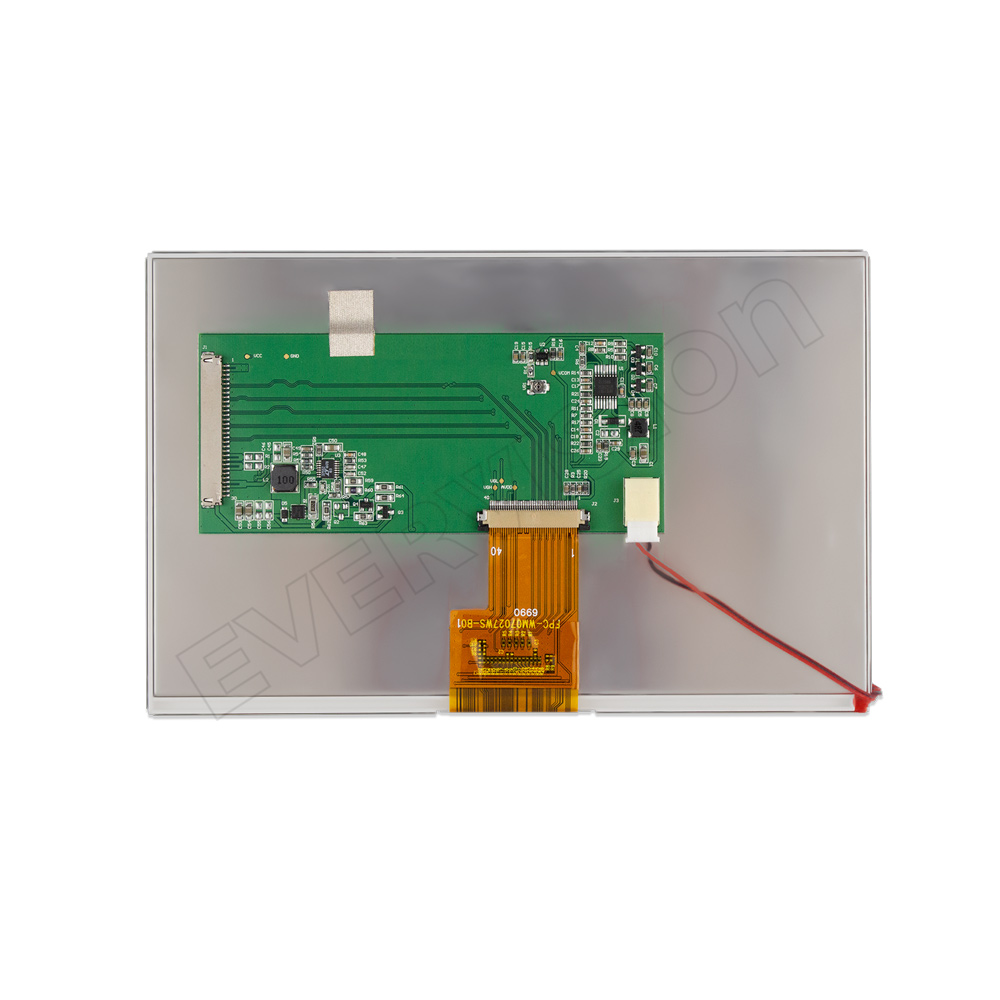

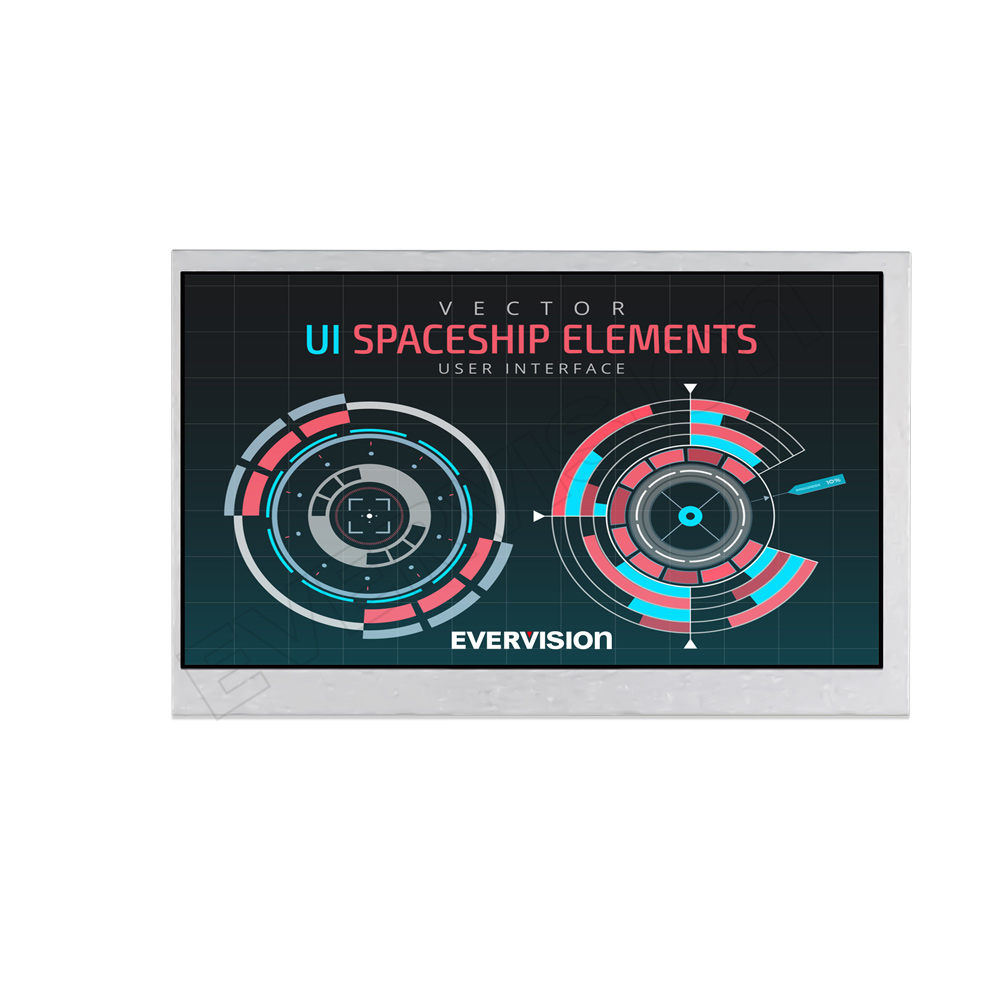

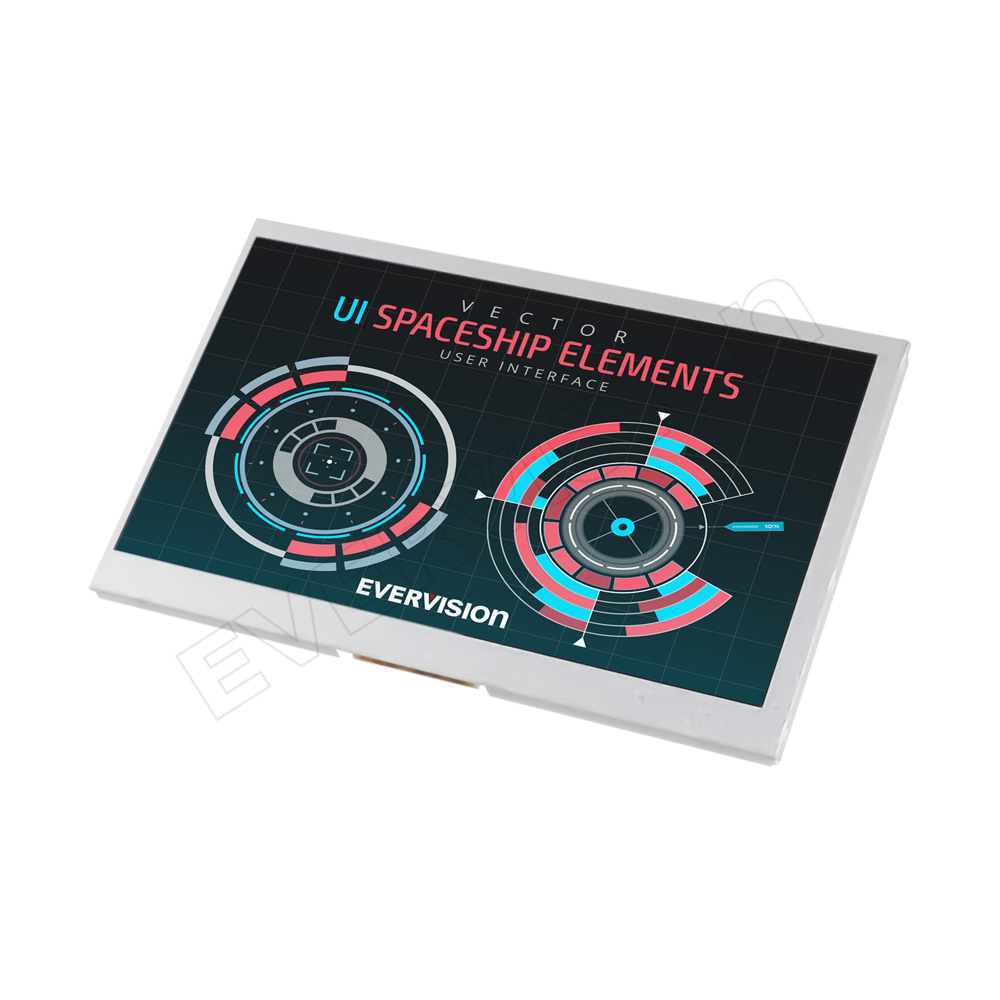

7.0 inch 1024x600 High Brightness TFT Panel, Touch optional

Model No.VGG106007-C(SR)

► WSVGA (1024×600 pixels) resolution.
► 8 bit LVDS Interface

VGG106007-C is a 7.0 inch Sunlight Readable LCD Screen that supports LVDS interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. 7 inch TFT (VGG106007-C) supports sunlight readable is a high brightness TFT LCD module. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

7.0

Resolution (dots):

1024*600

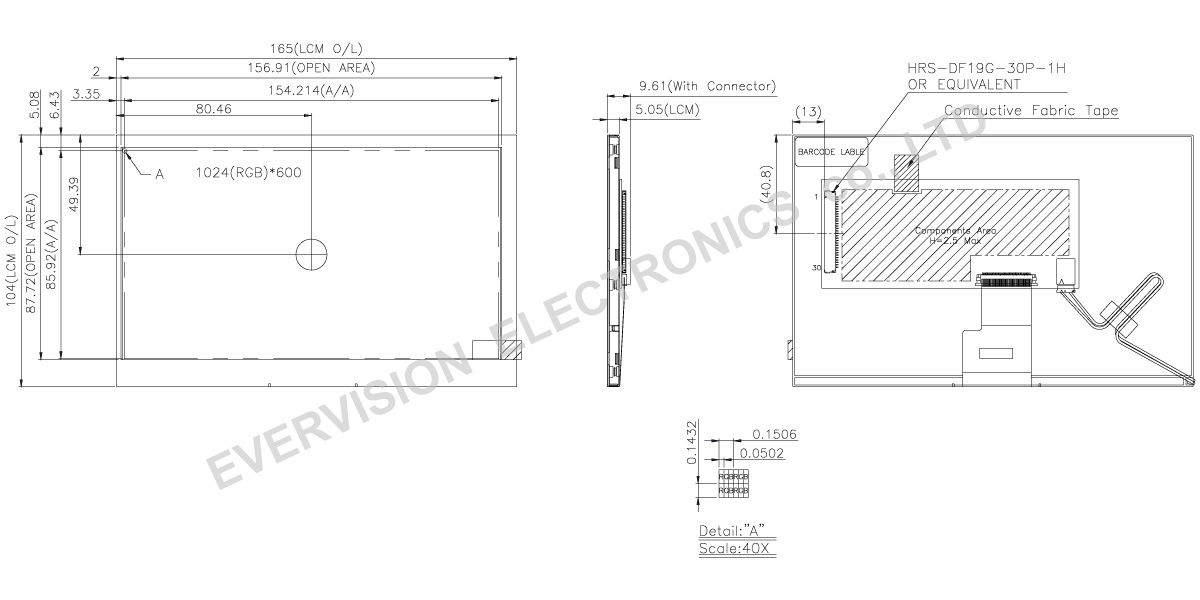

Outline Dimensions (mm):

165.0*104.0*9.61

Technology:

IPS

I/F Mode:

LVDS

I/F Number:

Brightness Level:

1200 ~ 1499

Brightness (cd/m²，typ.):

1400 / 50khrs min.

LED Driver:

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	V_CC	3.0	3.3	3.6	V
Power Supply Current	I_CC	-	151	211	mA

Backlight Unit (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
LED Current	IL	-	420	-	mA
LED Voltage	VL	-	(12.8)	-	V
LED Life Time(25℃)	Hr	50000	-	-	Hour

Pin No.	Symbol	Description
1	V_CC	+3.3V power supply
2	V_CC	+3.3V power supply
3	GND	Ground
4	GND	Ground
5	RIN3+	LVDS Signal (+) Channel 3
6	RIN3-	LVDS Signal (-) Channel 3
7	GND	Ground
8	RCLK+	LVDS Clock Signal (+)
9	RCLK-	LVDS Clock Signal (-)
10	GND	Ground
11	RIN2+	LVDS Signal (+) Channel 2
12	RIN2-	LVDS Signal (-) Channel 2
13	GND	Ground
14	RIN1+	LVDS Signal (+) Channel 1
15	RIN1-	LVDS Signal (-) Channel 1
16	GND	Ground
17	RIN0+	LVDS Signal (+) Channel 0
18	RIN0-	LVDS Signal (-) Channel 0
19	GND	Ground
20	GND	Ground
21	VLED+	LED Anode
22	VLED+	LED Anode
23	VLED-	LED Cathode
24	VLED-	LED Cathode
25	NC	Not Connection
26	NC	Not Connection
27	NC	Not Connection
28	NC	Not Connection
29	GND	Ground
30	GND	Ground

VGG106007 Series

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	LED Driver	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	IPS	165.0104.09.61	LVDS(30)	YES	1400 / 50khrs min.	☛ VGG106007-B(SR)
7.0”	1024x600	IPS	165.0104.09.61	LVDS(30)	NO	1400 / 50khrs min.	☛ VGG106007-C(SR)
7.0”	1024x600	IPS	165.0104.05.05	LVDS(40)	NO	1400 / 50khrs min.	☛ VGG106007-F(SR)
7.0”	1024x600	IPS	165.0104.012.07	HDMI*	YES	1400 / 50khrs min.	☛ VGG106007-I(SR)
7.0”	1024x600	IPS	165.0104.09.91	eDP	YES	1400 / 50khrs min.	☛ VGG106007-J(SR)

✦ Touch screen is available depending on your application.

*Support HDMI Interface, suit for your digital device.

【Interface】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	IPS	165.0104.09.61	LVDS(30)	1400 / 50khrs min.	☛ VGG106007-C(SR)
7.0”	1024x600	IPS	165.0104.05.05	LVDS(40)	1400 / 50khrs min.	☛ VGG106007-F(SR)

✦ Touch screen is available depending on your application.

【Brightness】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
7.0”	1024x600	IPS	165.0104.09.31	LVDS(30)	500 / 50khrs min.	☛ VGG106009-H(WV)
7.0”	1024x600	IPS	165.0104.09.61	LVDS(30)	1400 / 50khrs min.	☛ VGG106007-C(SR)

✦ Touch screen is available depending on your application.
