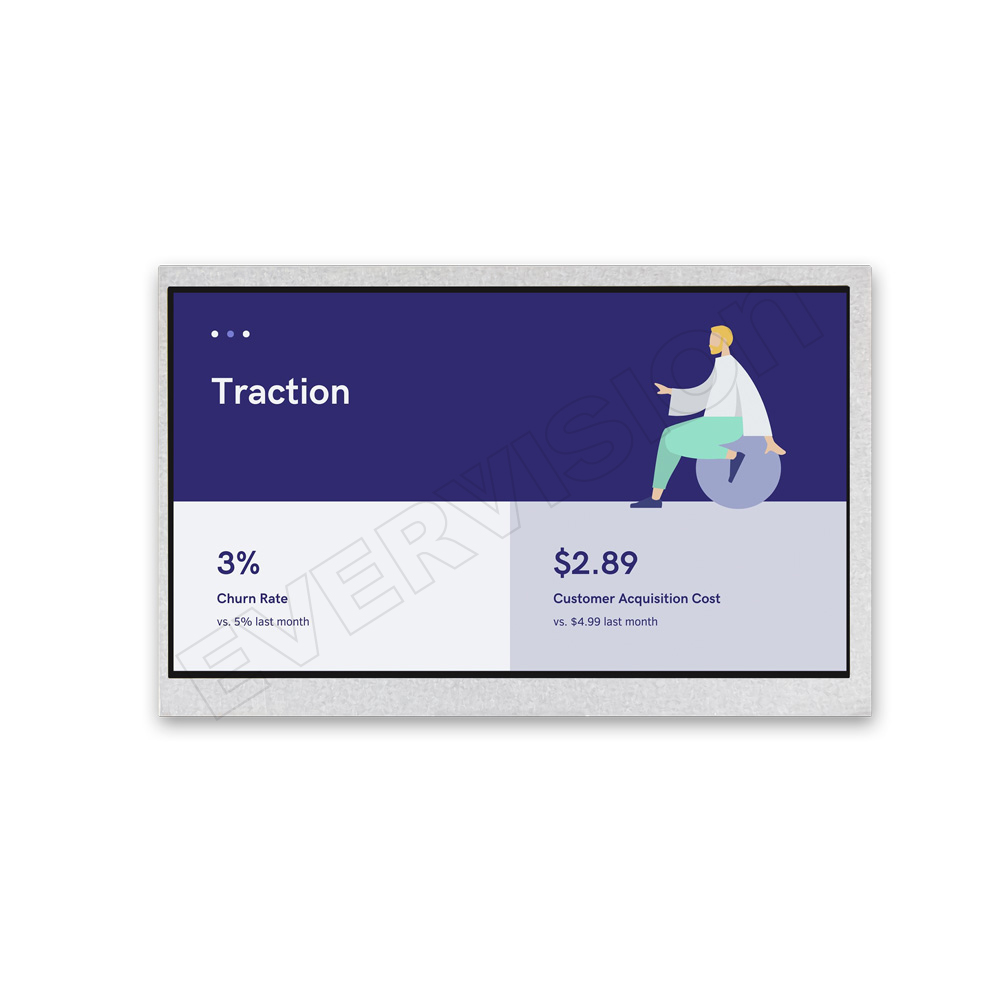

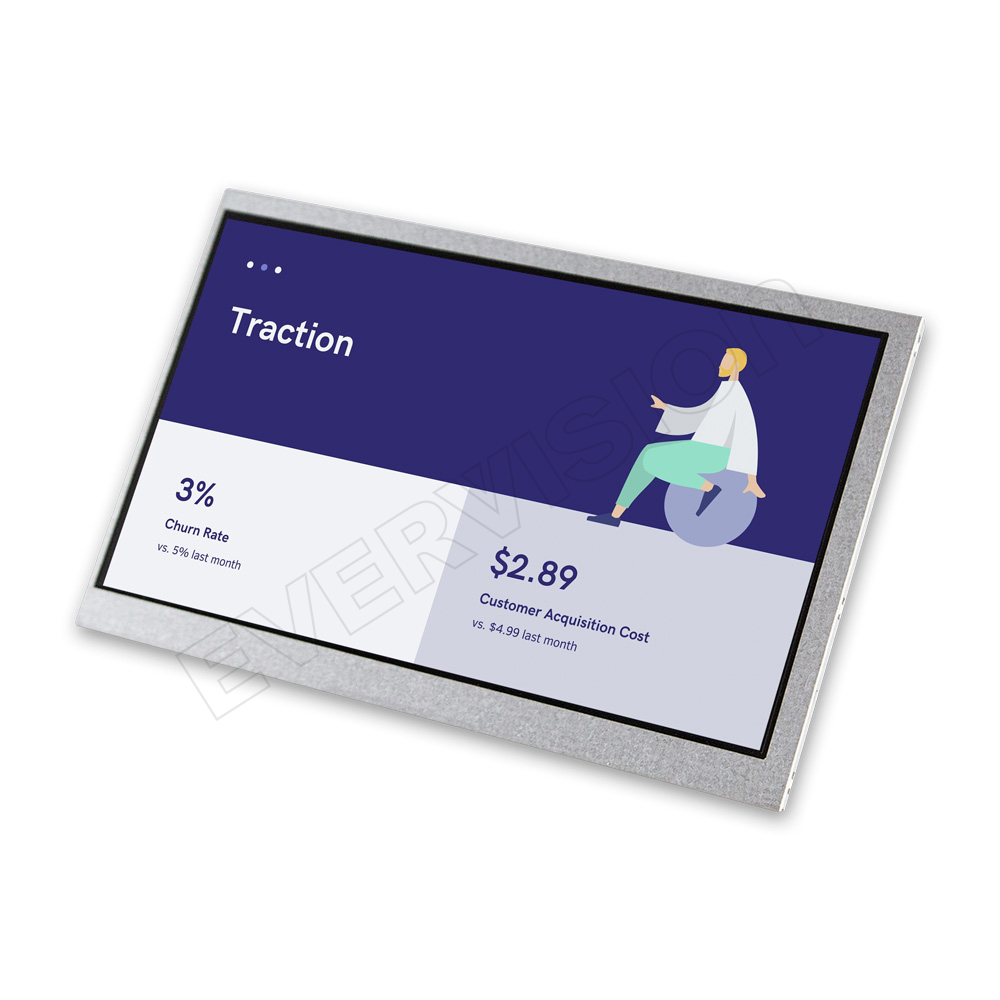

7" For HDMI Signal LCD Module Display, Optional Touch

Model No.VGG106008-C

► WSVGA (1024×600 pixels) resolution.
► Dot inversion mode with stripe type.

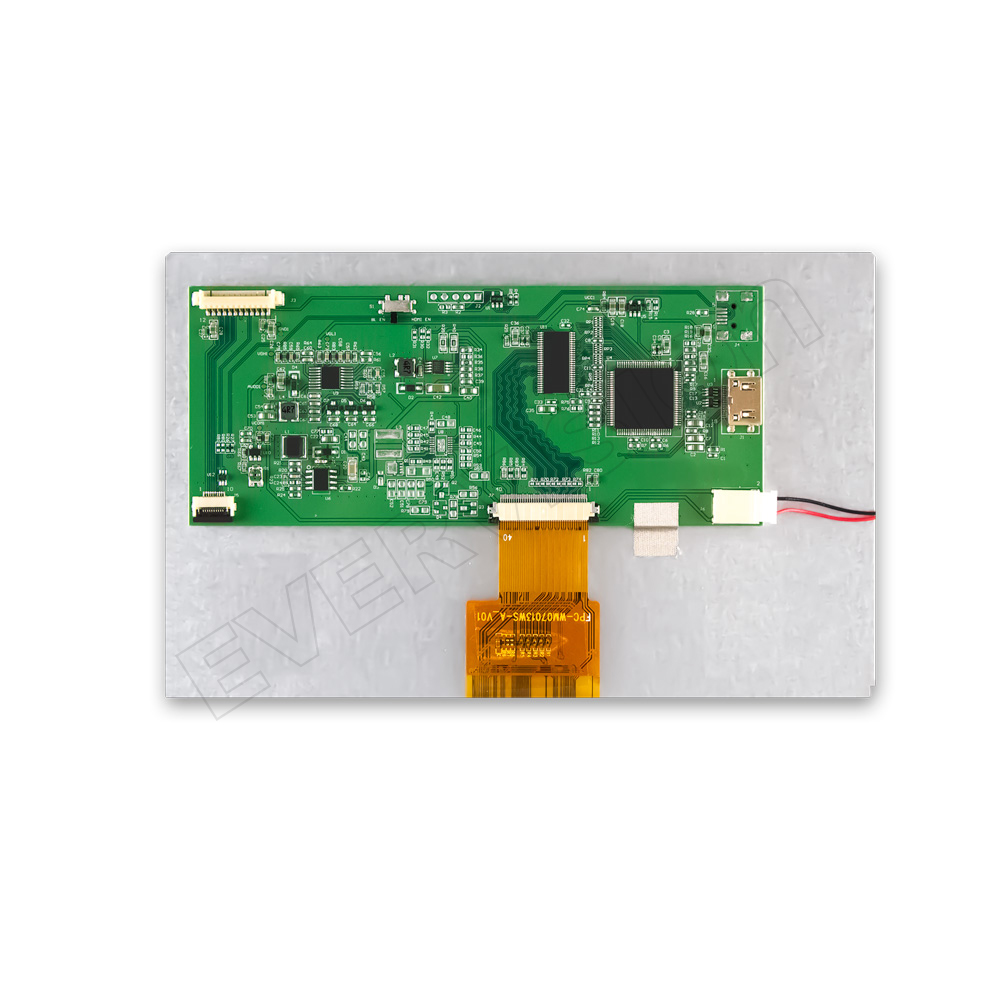

► LED driver circuit is built in this module.
► HDMI* Interface.

*Support HDMI Interface, suit for your digital device.

VGG106008-C is a 7.0 inch Color TFT LCD that supports HDMI* interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. It’s available for Touch Screen optional, as well as high brightness option for this model. It is suitable for industrial equipment, handheld devices, embedded system, medical equipment, etc.

EVERVISION offers the rich diversity of mid-size TFT LCD modules, we are sure to have the perfect fit for your application requirements.

Download

Add to Inquiry

Size (inch):

7.0

Resolution (dots):

1024*600

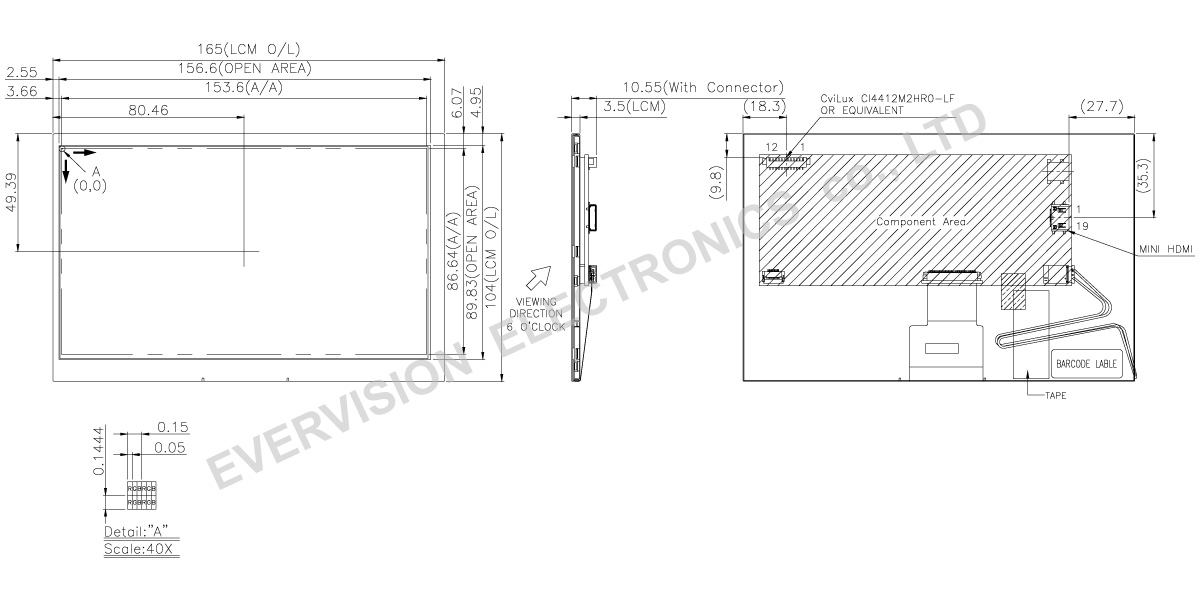

Outline Dimensions (mm):

165.0*104.0*10.55

Technology:

I/F Mode:

HDMI*

I/F Number:

Brightness Level:

500 ~ 799

Brightness (cd/m²，typ.):

500 / 50khrs min.

LED Driver:

YES

Touch Panel:

(Option)

Top (°C):

-20~70

Tst (°C):

-30~80

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-30	+80	°C
Operating Ambient Temperature	TOP	-20	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit
Power Supply Voltage	VCC	4.5	5.0	5.5	V
Power Supply Current	ICC	-	750	1050	mA
Power Supply Voltage	VCC	11.5	12.0	12.5	V
Power Supply Current	ICC	-	310	434	mA
LED Life Time(25℃)	-	50000	-	-	hr

TFT-LCD Module Connector: Mini-HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2 Shield	Ground
2	TMDS Data2+	Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. Channel-2 receives red-pixel data in active display and CTL2, CTL3 control signals in blank.
3	TMDS Data2–	Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair.
4	TMDS Data1 Shield	Ground
5	TMDS Data1+	Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. Channel-1 receives green-pixel data in active display and CTL1 control signals in blank.
6	TMDS Data1–	Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair.
7	TMDS Data0 Shield	Ground
8	TMDS Data0+	Channel-0 positive receiver input – Positive side of channel-0. TMDS low-voltage signal differential input pair. Channel-0 receives blue pixel data in active display and HSYNC, VSYNC control signals in blank.
9	TMDS Data0–	Channel-0 negative receiver input – Negative side of channel-0. TMDS low-voltage signal differential input pair.
10	TMDS Clock Shield	Ground
11	TMDS Clock+	Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair
12	TMDS Clock–	Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair
13	DDC Ground	Ground
14	N.C.	Not Connection
15	DCC_SCL	Serial Clock for EEPROM
16	DCC_SDA	Serial Data for EEPROM
17	Reserved (N.C. on device)	Not Connection
18	+5V Power	5V for EEPROM
19	HPD	Hot Plug Detect High: Active link Low: Inactive link

Power Connector: CI4412M2HR0 or compatible connector

Pin No.	Symbol	Description
1	VCC	Power supply for LCM
2	VCC	Power supply for LCM
3	BLEN	PWM Dimmer (Note 1)
4	D+	USB data+ for PCT(Optional)
5	D-	USB data- for PCT(Optional)
6	VDD	Power supply for PCT(Optional)
7	NC	Not Connected
8	NC	Not Connected
9	NC	Not Connected
10	NC	Not Connected
11	GND	Ground
12	GND	Ground

Note 1: PWM dimming, apply a 100Hz to 1kHz square wave signal with amplitude greater than 1.5V to this pin.

Slider Switch

Pin No.	Description	Note
1-2	PWM Dimmer	Default
2-3	HDMI Detection	-
