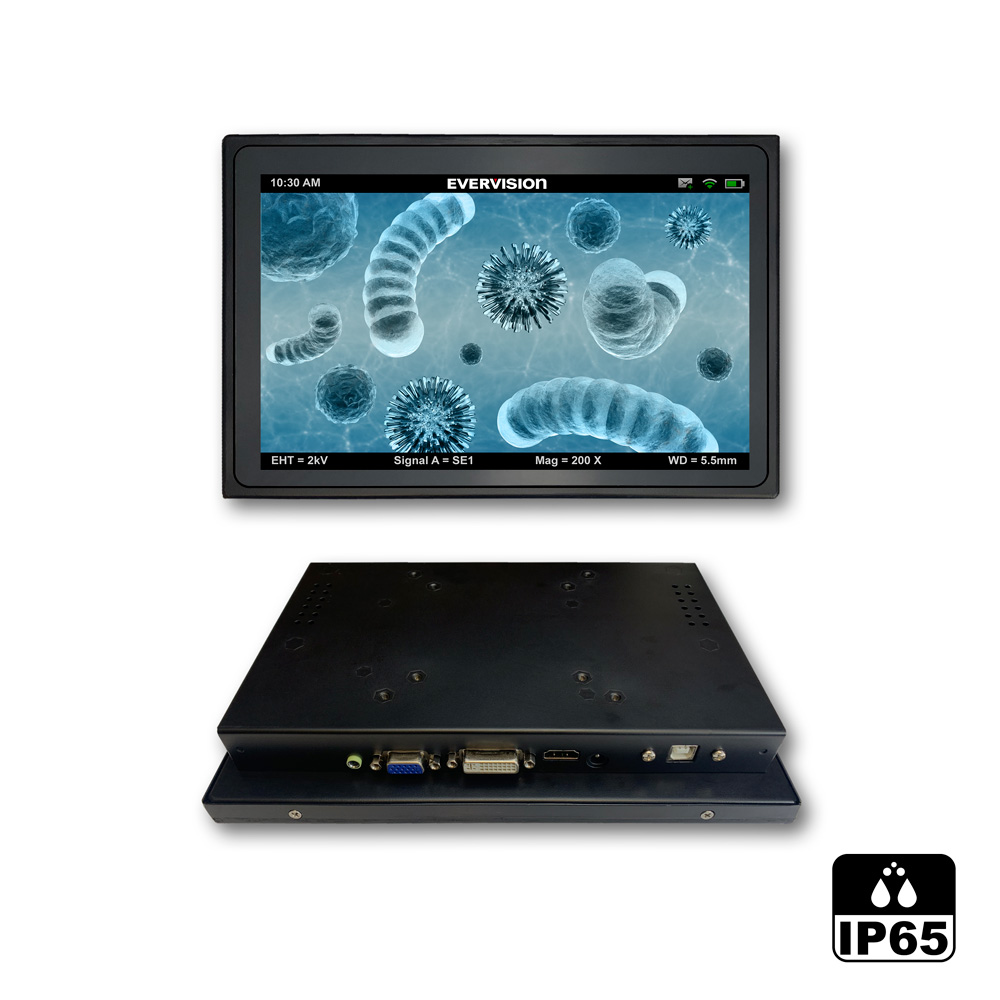

10.1 inch Front IP65 Open Frame Monitor, LCD Monitor
Model No.VGG191203-E
► 10.1" Front IP65 Open Frame Monitor
► Support HDMI & VGA & DVI signal Interface
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Two points)
- 2mm CG Chemical Strengthening
► Integrated bracket for easy installation
► Versatile mounting methods for rear mounting and VESA mounting
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Power connector ψ2.5
VGG191203-E is applied to the 10.1 inch WUXGA supported TFT-LCD module with projected capacitive touch (PCT) and it features an IP65 rating and supports water and dust resistance. The front IP65 open frame monitor is suitable for wet and dusty industrial and commercial applications such as factory automation, outdoor kiosks, swimming pool, and others.
Size (inch):
10.1
Resolution (dots):
1920*1200
Outline Dimensions (mm):
249.4*170.0*39.0
Technology:
IPS
Brightness Level:
500 ~ 799
Brightness (cd/m²,typ.):
790 / 50khrs typ.
LED Driver:
YES
Touch Panel:
IPCT (USB)
Top (°C):
0~50
Tst (°C):
-20~60
Absolute Maximum Ratings
Item |
Symbol |
Min. |
Max. |
Unit |
Storage Temperature |
TST |
-20 |
+60 |
°C |
Operating Ambient Temperature |
TOP |
-0 |
+50 |
°C |
Electrical Characteristics(Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Power Supply Voltage |
VCC |
10.8 |
12.0 |
13.2 |
V |
- |
Power Supply Current |
ICC |
- |
0.84 |
1.17 |
A |
- |
Power Consumption |
PL |
- |
10.08 |
14.112 |
W |
- |
LED Life Time(25℃) |
- |
50000 |
- |
- |
hr |
(1) |
Note (1):LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness
Projected Capacitive Touch (Ta=25±2°C)
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
Power Supply Voltage |
VTP |
4.8 |
5.0 |
5.2 |
V |
- |
Power Supply Current |
ITP |
- |
33.8 |
47.4 |
mA |
(1) |
Output High Threshold Voltage |
VOH |
2.8 |
- |
- |
V |
- |
Output Low Threshold Voltage |
VOL |
- |
- |
0.8 |
V |
- |
Differential Input Sensitivity |(D+)-(D-)| |
VDI |
0.2 |
- |
- |
V |
- |
Differential Input Common Mode Range |
VCM |
0.8 |
- |
2.5 |
V |
- |
Power Consumption |
PL |
- |
169.0 |
237.0 |
mW |
@5.0V |
Report Rate |
RR |
- |
60 |
- |
Hz |
- |
Interface |
USB |
- |
||||
Function |
Multi Touch |
- |
||||
IC Type |
FT7811 |
- |
||||
FW Version |
VIM10112-UND_10P_20210706_V5.0 |
- |
Note (1) This test condition is touched with 10 points.

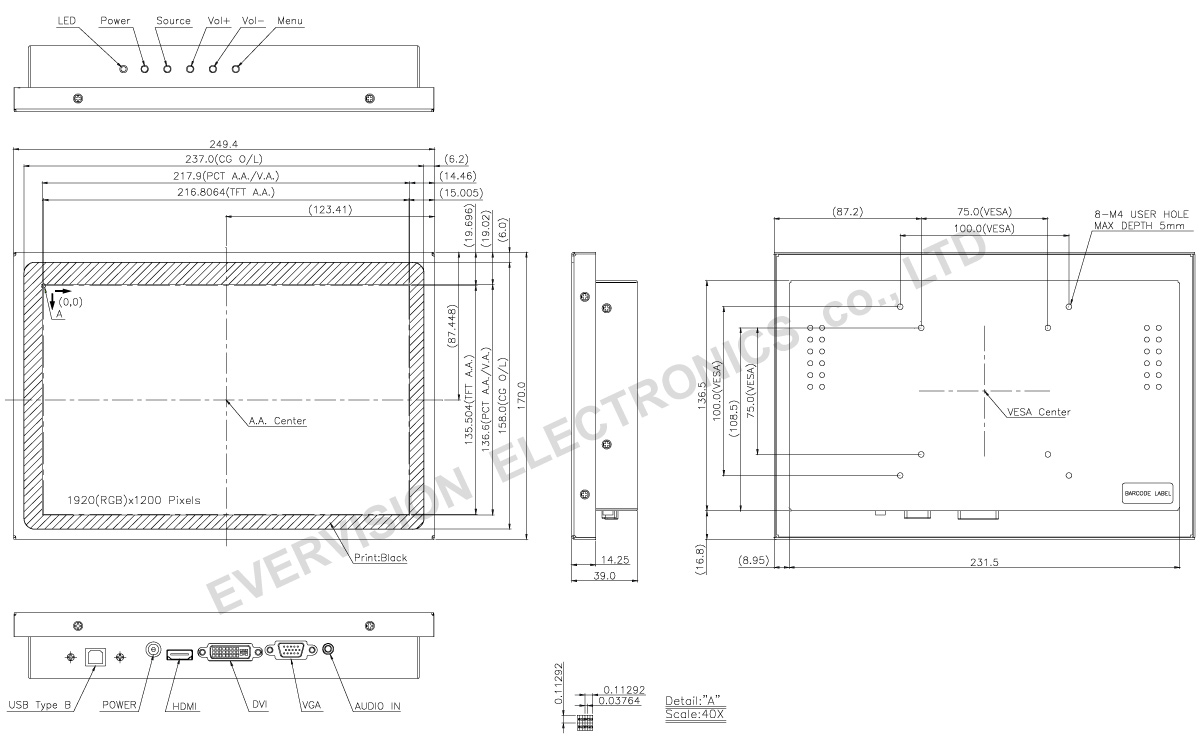

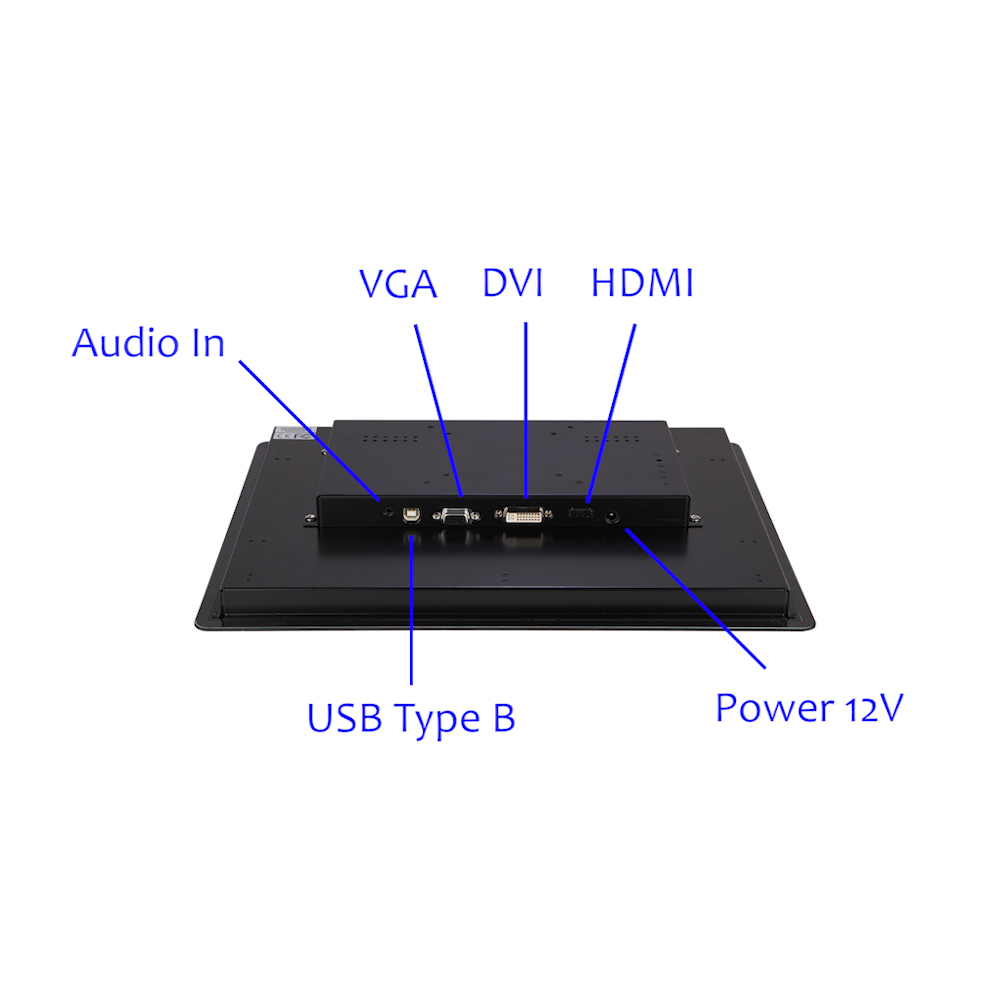

Connector: HDMI Connector
Pin No. |
Symbol |
Description |
1 |
TMDS Data2+ |
Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. |
2 |
TMDS Data2 Shield |
Ground |
3 |
TMDS Data2– |
Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair. |
4 |
TMDS Data1+ |
Channel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. |
5 |
TMDS Data1 Shield |
Ground |
6 |
TMDS Data1- |
Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair. |
7 |
TMDS Data0+ |
Channel-0 positive receiver input – Positive side of channel-0. TMDS low-voltage signal differential input pair. |
8 |
TMDS Data0 Shield |
Ground |
9 |
TMDS Data0- |
Channel-0 negative receiver input – Negative side of channel-0. TMDS low-voltage signal differential input pair. |
10 |
TMDS Clock+ |
Clock positive receiver input – Positive side of reference clock. TMDS low-voltage signal differential input pair. |
11 |
TMDS Clock Shield |
Ground |
12 |
TMDS Clock- |
Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair. |
13 |
N. C. |
Not Connection |
14 |
N. C. |
Not Connection |
15 |
HDMI_DDC_SCL |
Serial Clock |
16 |
HDMI_DDC_SDA |
Serial Data |
17 |
N. C. |
Not Connection |
18 |
HDMI 5V Power |
5V |
19 |
HDMI_HPD |
Hot Plug Detect |
Connector: DVI Connector
Pin No. |
Symbol |
Description |
1 |
TMDS Data2– |
Channel-2 negative receiver input – Negative side of channel-2 TMDS low-voltage signal differential input pair. |
2 |
TMDS Data2+ |
Channel-2 positive receiver input – Positive side of channel-2 TMDS low-voltage signal differential input pair. |
3 |
TMDS Data2 Shield |
Ground |
4 |
NC |
Not Connection |
5 |
NC |
Not Connection |
6 |
DVI_DDC_SCL |
Serial Clock |
7 |
DVI_DDC_SDA |
Serial Data |
8 |
NC |
Not Connection |
9 |
TMDS Data1– |
Channel-1 negative receiver input – Negative side of channel-1 TMDS low-voltage signal differential input pair. |
10 |
TMDS Data1+ |
annel-1 positive receiver input – Positive side of channel-1 TMDS low-voltage signal differential input pair. |
11 |
TMDS Data1 Shield |
Ground |
12 |
NC |
Not Connection |
13 |
NC |
Not Connection |
14 |
DVI 5V Power |
5V |
15 |
GND |
Ground |
16 |
DVI_HPD |
Hot Plug Detect |
17 |
TMDS Data0– |
Channel-0 negative receiver input – Negative side of channel-0. TMDS low-voltage signal differential input pair. |
18 |
TMDS Data0+ |
Channel-0 positive receiver input – Positive side of channel-0. TMDS low-voltage signal differential input pair. |
19 |
TMDS Data0 Shield |
Ground |
20 |
NC |
Not Connection |
21 |
NC |
Not Connection |
22 |
TMDS Clock Shield |
Ground |
23 |
TMDS Clock+ |
Clock positive receiver input –Positive side of reference clock. TMDS low-voltage signal differential input pair. |
24 |
TMDS Clock– |
Clock negative receiver input – Negative side of reference clock. TMDS low-voltage signal differential input pair. |
C1 |
NC |
Not Connection |
C2 |
NC |
Not Connection |
C3 |
NC |
Not Connection |
C4 |
NC |
Not Connection |
C5 |
GND |
Ground |
Connector: VGA Connector
Pin No. |
Symbol |
Description |
1 |
Red |
Red Signal |
2 |
Green |
Green Signal |
3 |
Blue |
Blue Signal |
4 |
NC |
Not Connection |
5 |
GND |
Ground |
6 |
Red_Return |
Ground |
7 |
Green_Return |
Ground |
8 |
Blue_Return |
Ground |
9 |
VGA 5V Power |
5V |
10 |
GND |
Ground |
11 |
NC |
Not Connection |
12 |
DVI_DDC_SDA |
Serial Data |
13 |
VGA_HS |
Horizontal Signal |
14 |
VGA_VS |
Vertical Signal |
15 |
DVI_DDC_SCL |
Serial Clock |
Connector: USB Type B Connector
Pin No. |
Symbol |
Description |
1 |
VTP |
+5.0V USB Power Supply Input |
2 |
D- |
USB D- Signal |
3 |
D+ |
USB D+ Signal |
4 |
GND |
Ground |
