10.1 inch USB Type-C Open Frame Monitor with Capacitive Touch

Model No.VGG128004-T

► 10.1" USB Type C Open Frame Monitor
► Use Double Sided Tape Bonding Between PCT and LCM
► Use Double Sided Tape Bonding Between PCT and CG
► Projected Capacitive Touch
- Multi Touch (Two points)
- 4096 x 4096 resolution
- CG Chemical Strengthening

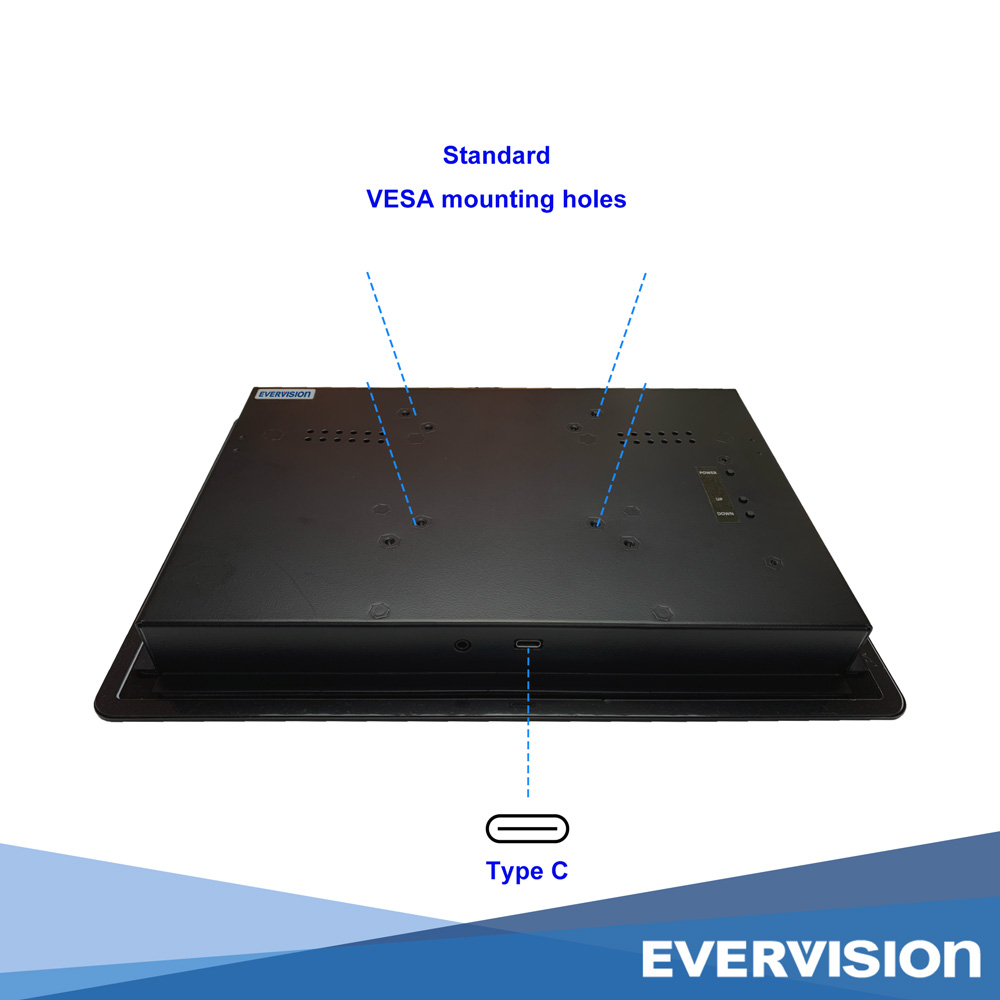

► Support VESA mounting
► Build-in 4Ω 2W*2 Speaker

EVERVISION, USB Type-C Open Frame Monitor, VGG128004-T 10.1" 1280 x 800 resolution AAS TFT LCD display is an Open Frame Monitor with single USB Type-C display interface and optional capacitive touchscreen(PCAP). It can be operating at temperatures from 0 ~ 70℃. This TFT series supports rear and VESA mounting and is ideal for embedded system and industrial applications.

Download

Add to Inquiry

Size (inch):

10.1

Resolution (dots):

1280*800

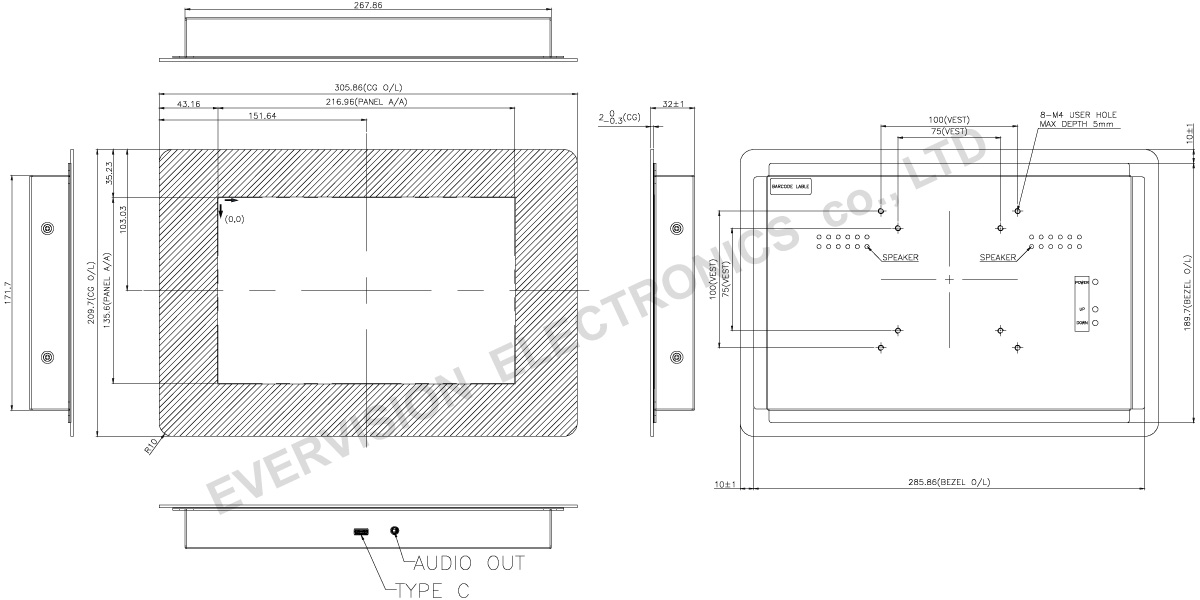

Outline Dimensions (mm):

305.86*209.7*32.0

Technology:

AAS

Brightness Level:

0~ 499

Brightness (cd/m²，typ.):

440 / 60khrs typ.

LED Driver:

YES

Touch Panel:

PCAP (USB)

Top (°C):

0~70

Tst (°C):

-20~80

10.1 inch USB Type-C | VGG128004-T | Open Frame | EVERVISION

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-20	+80	°C
Operating Ambient Temperature	TOP	0	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
USB Power Voltage	V_BUS	4.5	5.0	5.5	V	-
USB Power Current	I_BUS	-	1.0	1.4	A	-
LED Life Time(25℃)	-	50000	60000	-	hr	(1)
IC Type	FT7811					-

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness.

Connector: USB Type-C Connector

Pin No.	Symbol	Pin No.	Symbol
A1	GND	B12	GND
A2	SSTXp1	B11	SSTXp1
A3	SSTXn1	B10	SSTXn1
A4	V_BUS	B9	V_BUS
A5	CC1	B8	SBU2
A6	Dp1	B7	Dn2
A7	Dn1	B6	Dp2
A8	SBU1	B5	CC2
A9	V_BUS	B4	V_BUS
A10	SSRXn2	B3	SSRXn2
A11	SSRXp2	B2	SSRXp2
A12	GND	B1	GND

Connector: Headphone Jack

Pin No.	Symbol
1	GND
2	AUDIO_L
3	AUDIO_R
4	AUDIO_L(SPEAKER)
5	AUDIO_R(SPEAKER)

Note:

When the earphone is inserted into the headphone jack, the sound from the speaker will automatically turn off.

When the earphone is pulled out of the headphone jack, the sound will automatically be played on speaker.

Key Button function

Button	Function
POWER	Turn the system ON or OFF
UP	Increase Backlight Brightness(Note)
DOWN	Decrease Backlight Brightness(Note)

Note: The adjustable brightness range is 10~100%, each press will increase(decrease) 5% of brightness. 100% brightness is preset.

【USB Open Frame Series】

Size	Resolution	LCD Technology	Outline Dimensions (mm)	Interface	Brightness (cd/m²,typ.)	Model Name
10.1”	1280x800	AAS	305.86209.730.0	USB Type-B	490 / 60khrs typ.	☛ VGG128004-P
10.1”	1280x800	AAS	305.85209.732.0	USB Type-C	440 / 60khrs min.	☛ VGG128004-T
12.1”	1280x800	AAS	3177.8227.045.0	USB Type-B	350 / 50khrs min.	☛ VGG128020-F
15.6”	1920x1080	AAS	400.0260.044.1	USB Type-B	360 / 50khrs min.	☛ VGG191005-F
15.6”	1920x1080	AAS	400.0260.041.75	USB Type-C	360 / 50khrs min.	☛ VGG191005-G

✦ Touch screen is available depending on your application.
