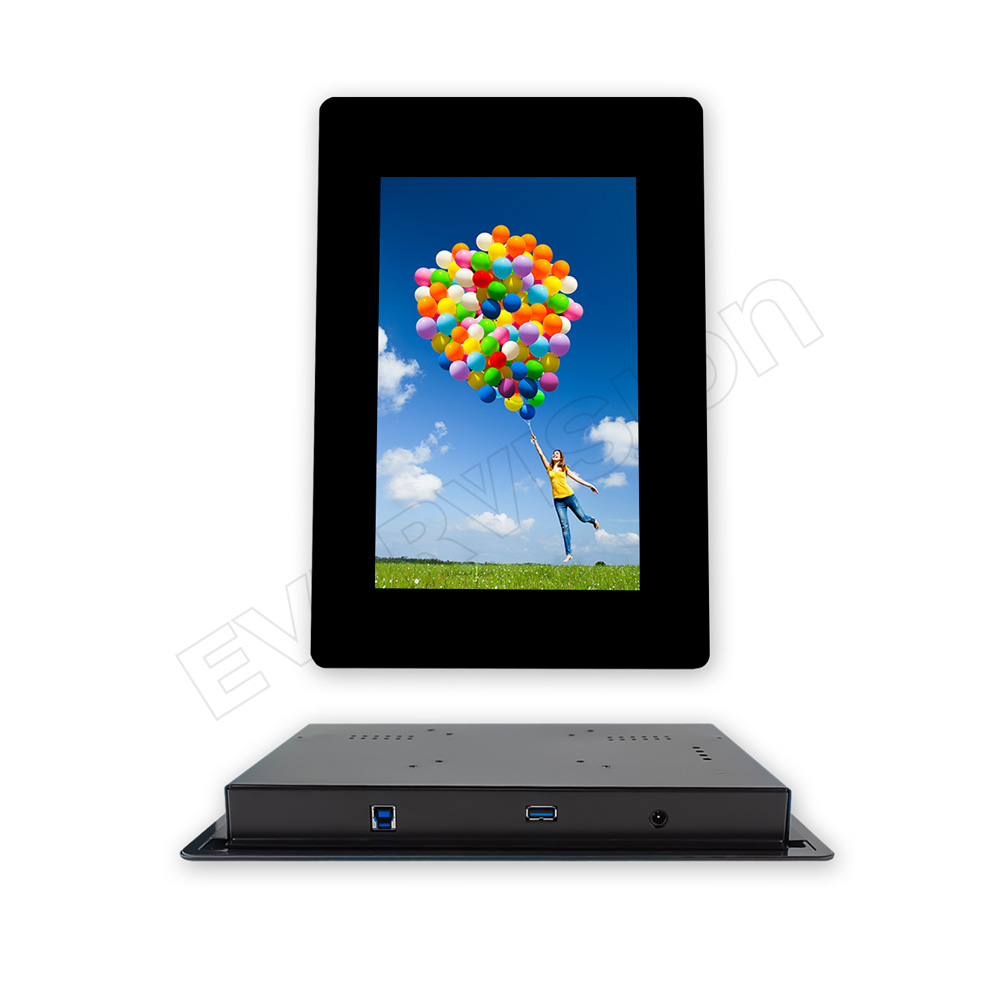

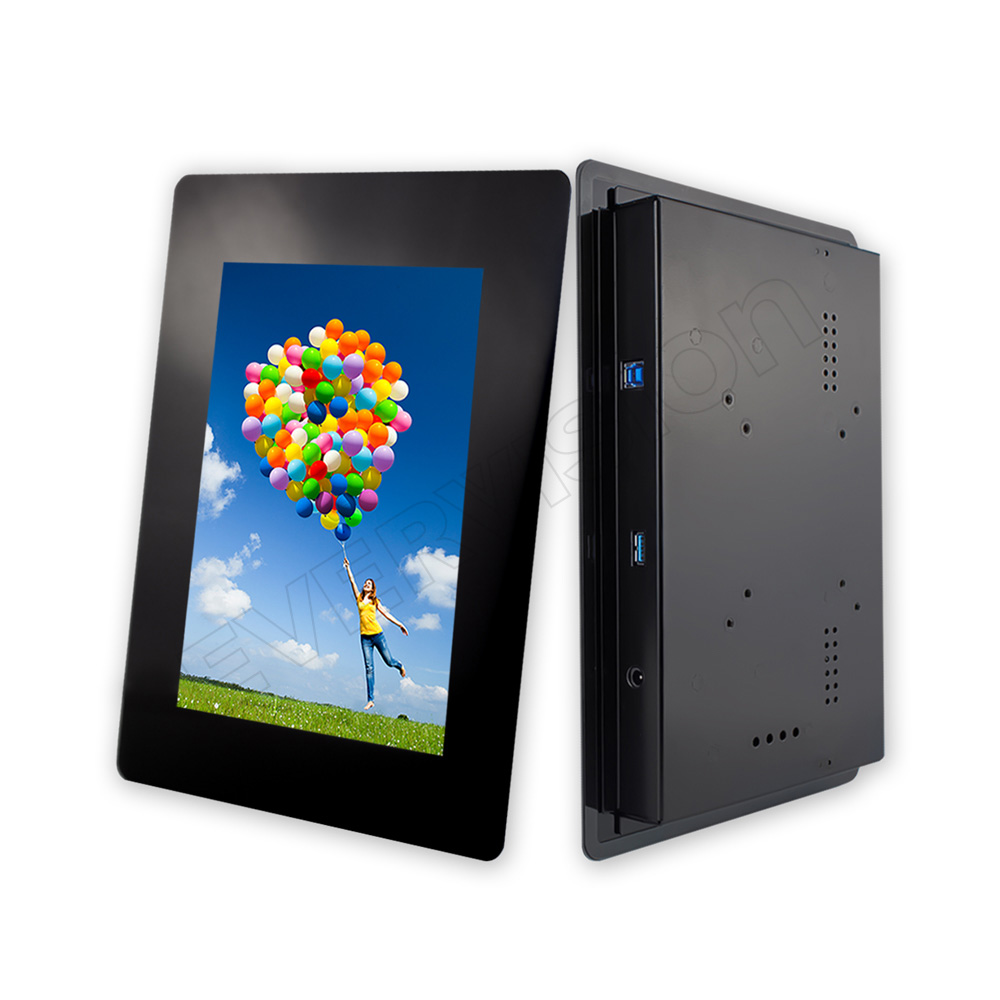

10.1 inch USB Open Frame Monitor, Touch Screen Monitor
Model No.VGG128004-P
Share
► 10.1 inch USB Open Frame Monitor

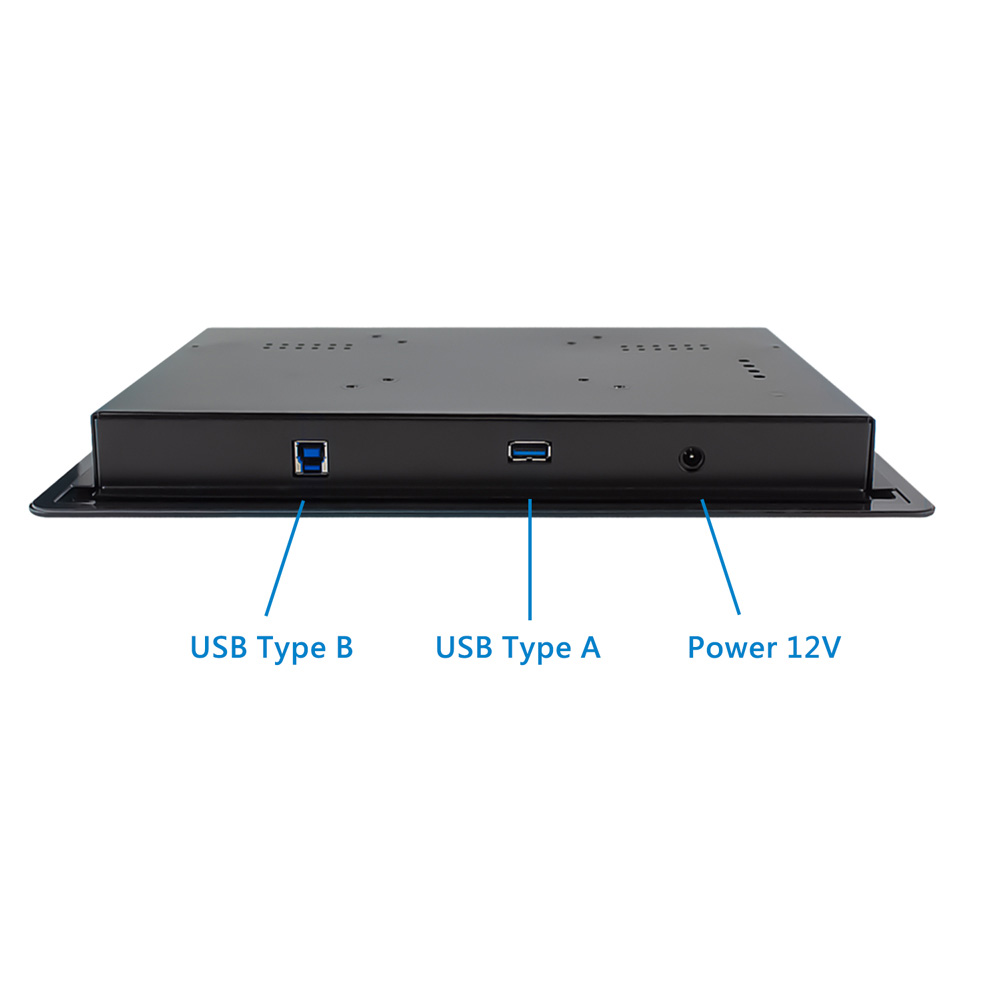

► USB 3.0 Interface (USB 3.0 Type B)
► USB 3.0 Host (USB 3.0 Type A)
► Use Double Sided Tape Bonding Between PCT and LCM
► Use Double Sided Tape Bonding Between PCT and CG
► Projected Capacitive Touch
- Multi Touch (Ten points)
- 2048 x 2048 resolution
- CG Chemical Strengthening
► Support VESA mounting
► Build-in 4Ω 2W*2 Speaker
► Support OS
- Windows XP/Vista/7/8/10
- Ubuntu 16.04 LTS / 18.04 LTS
The EVERVISION VGG128004 USB Open Frame Monitor Series offer a 10.1" 1280 x 800 pixels AAS TFT LCD screen, with wide viewing angle display, 0 ~ 70℃ operating temperature, and optional capacitive touchscreen(PCAP). The series supports rear and VESA mounting and is ideal for different embedded and industrial applications.

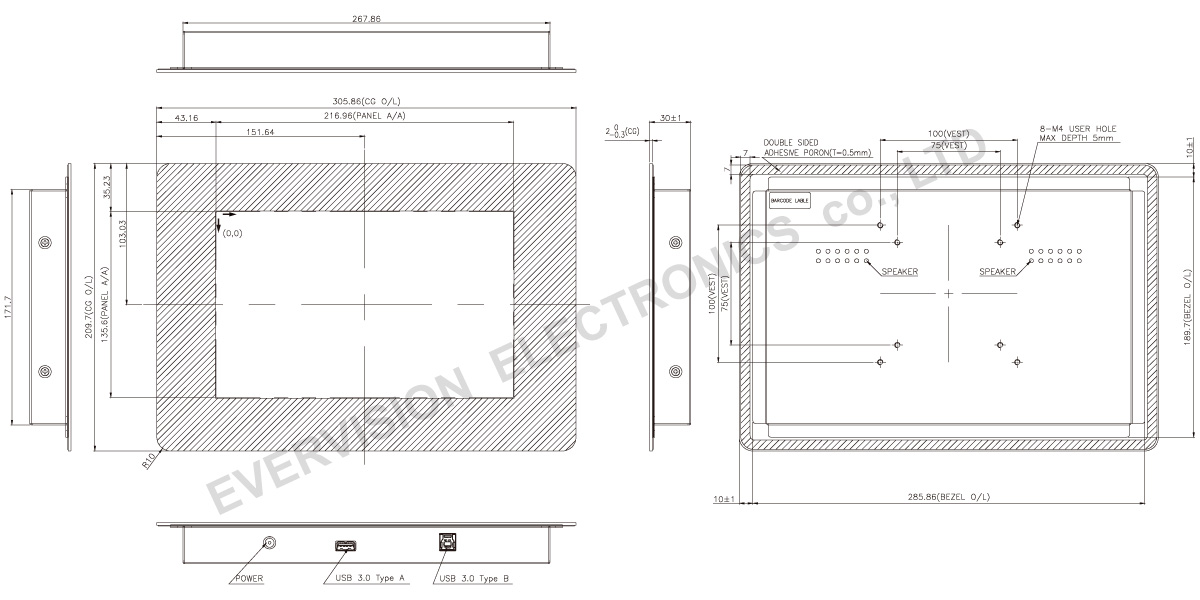

/VGG128004-P(USB-Open-Frame-Monitor)_ME.jpg)
Absolute Maximum Ratings
|
Item |
Symbol |
Min. |
Max. |
Unit |
|
Storage Temperature |
TST |
-20 |
+80 |
°C |
|
Operating Ambient Temperature |
TOP |
0 |
+70 |
°C |
Electrical Characteristics(Ta=25±2°C)
|
Item |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Note |
|
USB Power Voltage |
VBUS |
4.5 |
5.0 |
5.5 |
V |
(1) |
|
USB Power Current |
IBUS |
- |
(1.3) |
(1.82) |
A |
(1)(3) |
|
Power Supply Voltage |
VIN |
11.5 |
12.0 |
12.5 |
V |
(2)(3) |
|
Power Supply Current |
IIN |
- |
(600) |
840 |
mA |
(2)(3) |
|
LED Life Time(25℃) |
- |
50000 |
60000 |
- |
hr |
(4) |
Note (1)：USB 3.0 Type B Connector
Note (2)：The external power supply will be needed when the customer’s USB port cannot drive successfully.
Note (3)：The specified power consumption is under the conditions at VBUS=5V or VIN=12V, whereas a power dissipation check pattern (white / 255 Gray).
Note (4)：LED life time is defined as under 25±2°C, when the average brightness decrease to 50% of original brightness.
