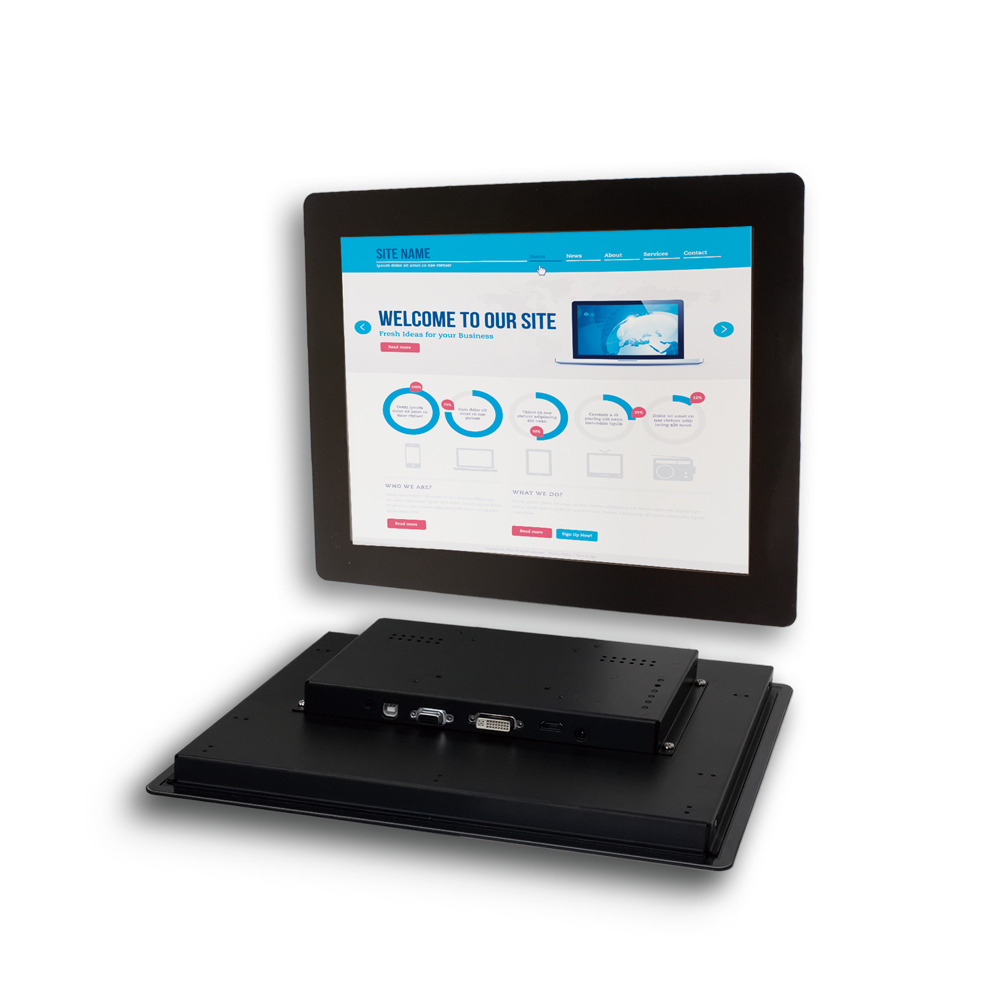

15.0 inch Industrial Open Frame LCD Monitor

Model No.VGG107609-A

► 15 inch Industrial Open Frame Monitor
► Versatile mounting methods for rear mounting and VESA mounting
► Signal interface: VGA & DVI & HDMI*
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Projected Capacitive Touch
- USB Interface
- Multi Touch (Five points)
- 4096 x 4096 resolution

The EVERVISION VGG107609 Open Frame Monitor Series offer a 15.0" 1024 x 768 pixels MVA TFT LCD screen, with wide viewing angle display, 0 ~ 70℃ operating temperature, and optional capacitive touchscreen(PCAP). The series supports rear and VESA mounting and is ideal for different embedded and industrial applications.

* Support HDMI Interface that fullfill the needs of your digital device.

Download

Add to Inquiry

Size (inch):

15.0

Resolution (dots):

1024*768

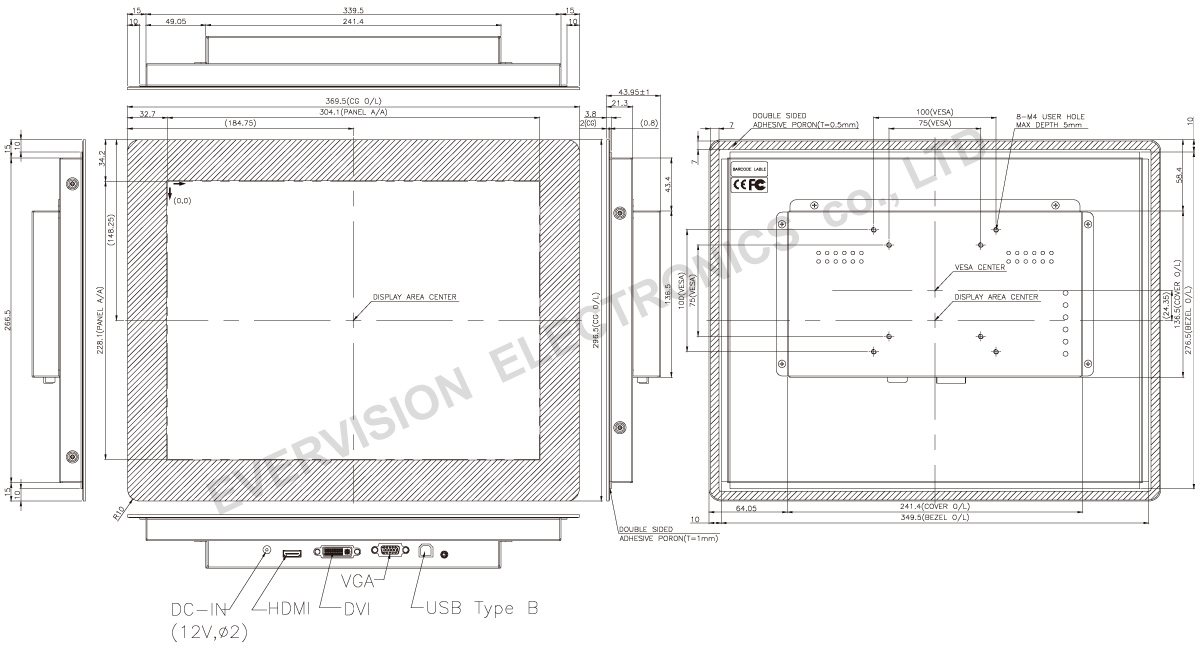

Outline Dimensions (mm):

369.5*296.5*43.95

Technology:

MVA

Brightness Level:

400 ~ 500

Brightness (cd/m²，typ.):

440 / 70khrs typ.

LED Driver:

YES

Touch Panel:

IPCT (USB)

Top (°C):

0~70

Tst (°C):

-20~70

VGG107609-A(Open-Frame-Monitor)

Absolute Maximum Ratings

Item	Symbol	Min.	Max.	Unit
Storage Temperature	TST	-20	+70	°C
Operating Ambient Temperature	TOP	-0	+70	°C

Electrical Characteristics(Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Digital Power Supply Voltage	VIN	11.5	12.0	12.5	V	-
Input High Threshold Voltage	Iin	-	1.0	1.4	A	-
LED Life Time(25℃)	-	50000	70000	-	hr	(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness

Projected Capacitive Touch (Ta=25±2°C)

Item	Symbol	Min.	Typ.	Max.	Unit	Note
Power Supply Voltage	VDD	4.8	5.0	5.2	V	-
Power Supply Current	IDD	-	35.1	49.2	mA	(1)
Output High Threshold Voltage	V_OH	2.8	-	-	V	-
Output Low Threshold Voltage	V_OL	-	-	0.8	V	-
Differential Input Sensitivity \|(D+)-(D-)\|	V_DI	0.2	-	-	V	-
Differential Input Common Mode Range	V_CM	0.8	-	2.5	V	-
Power Consumption	P_L	-	175.5	246.0	mW	@5.0V
Report Rate	R_R	-	60	-	Hz	-

Note (1) This test condition is touched with 5 points.

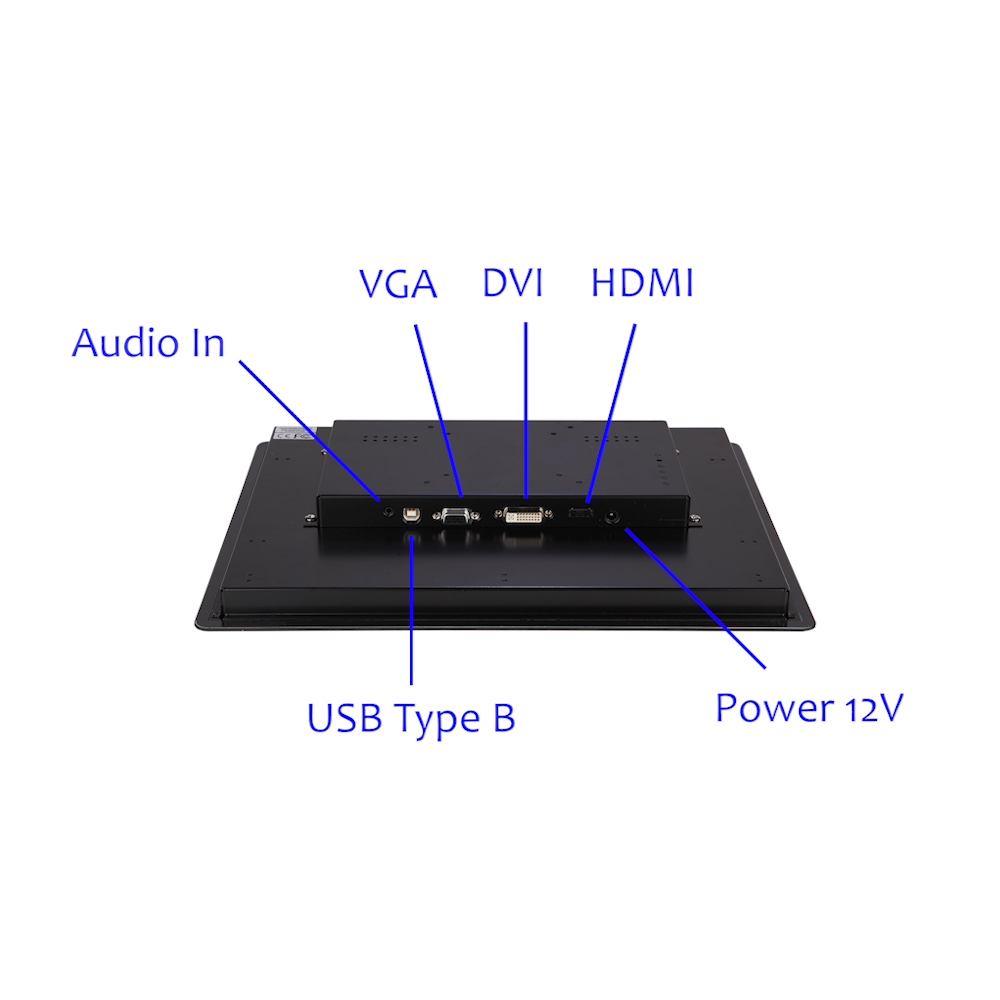

Connector: HDMI Connector

Pin No.	Symbol	Description
1	TMDS Data2+	Positive side of channel-2. TMDS low-voltage signal differential input pair.
2	TMDS Data2 Shield	Ground
3	TMDS Data2–	Negative side of channel-2. TMDS low-voltage signal differential input pair.
4	TMDS Data1+	Positive side of channel-1. TMDS low-voltage signal differential input pair.
5	TMDS Data1 Shield	Ground
6	TMDS Data1-	Negative side of channel-1. TMDS low-voltage signal differential input pair.
7	TMDS Data0+	Positive side of channel-0. TMDS low-voltage signal differential input pair.
8	TMDS Data0 Shield	Ground
9	TMDS Data0-	Negative side of channel-0. TMDS low-voltage signal differential input pair.
10	TMDS Clock+	Positive side of reference clock. TMDS low-voltage signal differential input pair
11	TMDS Clock Shield	Ground
12	TMDS Clock-	Negative side of reference clock. TMDS low-voltage signal differential input pair
13	N. C.	Not Connection
14	N. C.	Not Connection
15	HDMI_DDC_SCL	Serial Clock
16	HDMI_DDC_SDA	Serial Data
17	N. C.	Not Connection
18	HDMI 5V Power	5V
19	HDMI_HPD	Hot Plug Detect

Connector: DVI Connector

Pin No.	Symbol	Description
1	TMDS Data2–	Negative side of channel-2. TMDS low-voltage signal differential input pair.
2	TMDS Data2+	Positive side of channel-2. TMDS low-voltage signal differential input pair.
3	TMDS Data2 Shield	Ground
4	NC	Not Connection
5	NC	Not Connection
6	DVI_DDC_SCL	Serial Clock
7	DVI_DDC_SDA	Serial Data
8	NC	Not Connection
9	TMDS Data1–	Negative side of channel-1. TMDS low-voltage signal differential input pair.
10	TMDS Data1+	Positive side of channel-1. TMDS low-voltage signal differential input pair.
11	TMDS Data1 Shield	Ground
12	NC	Not Connection
13	NC	Not Connection
14	DVI 5V Power	5V
15	GND	Ground
16	DVI_HPD	Hot Plug Detect
17	TMDS Data0–	Negative side of channel-0. TMDS low-voltage signal differential input pair.
18	TMDS Data0+	Positive side of channel-0. TMDS low-voltage signal differential input pair.
19	TMDS Data0 Shield	Ground
20	NC	Not Connection
21	NC	Not Connection
22	TMDS Clock Shield	Ground
23	TMDS Clock+	Positive side of reference clock. TMDS low-voltage signal differential input pair
24	TMDS Clock–	Negative side of reference clock. TMDS low-voltage signal differential input pair
C1	NC	Not Connection
C2	NC	Not Connection
C3	NC	Not Connection
C4	NC	Not Connection
C5	GND	Ground

Connector: VGA Connector

Pin No.	Symbol	Description
1	Red	Red Signal
2	Green	Green Signal
3	Blue	Blue Signal
4	NC	Not Connection
5	GND	Ground
6	Red_Return	Ground
7	Green_Return	Ground
8	Blue_Return	Ground
9	VGA 5V Power	5V
10	GND	Ground
11	NC	Not Connection
12	DVI_DDC_SDA	Serial Data
13	VGA_HS	Horizontal Signal
14	VGA_VS	Vertical Signal
15	DVI_DDC_SCL	Serial Clock

Connector: USB Type B Connector

Pin No.	Symbol	Description
1	VUSB	+5.0V USB Power Supply Input
2	D-	USB D- Signal
3	D+	USB D+ Signal
4	GND	Ground
