E-News Letter2019.09.10

Issue September 2019

September Theme - Water Resistant IPCT

Water Resistant Touch screen (Touch panel) controller cannot handle water appropriately, because water is conductor like finger.

Sensor-based equipment cannot track the position when there is a layer of water between finger and panel. That’s why the touch function is not going to work. EVERVISION’s Improve Projected Capacitive (IPCT) Touch Screen has a significant improve on program by our R&D team.

We find a way to against it. Our capacitive sensor can prevent the interference caused by mist, droplet, and flow.

☛ More about Water Resistant IPCT

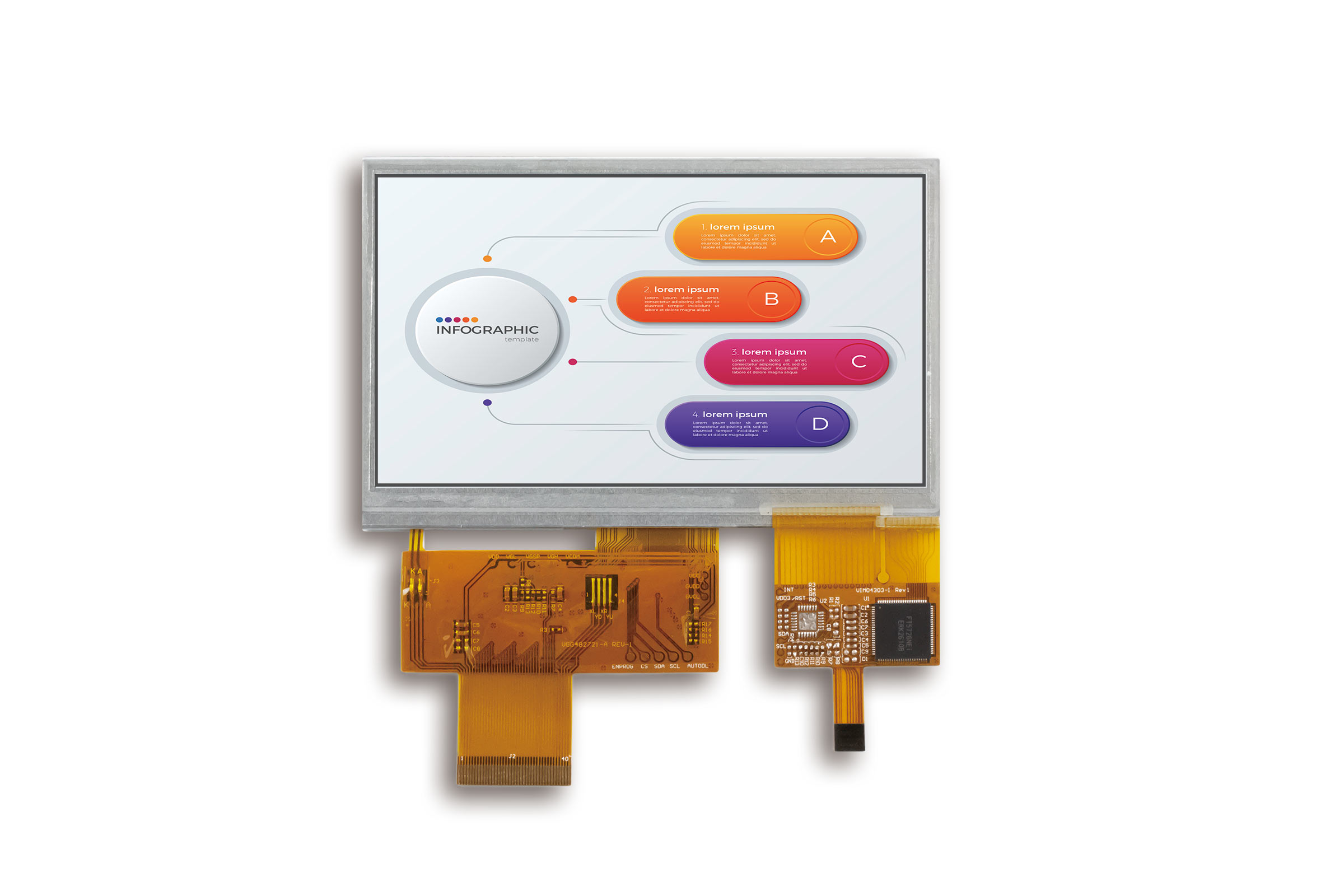

New Product – 4.3-inch IPS TFT-LCD Modules

VGG482721-A is a 4.3 inches IPS wide viewing angle TFT module with 480RGBx272 resolution. It’s suitable for small industrial equipment, Safety control systems, and portable devices and various applications that require wide viewing angle.

The outline size of the module is 105.5*67.2*4.65 (mm), and the weight is about 41.4g. VGG482720-A supports TTL RGB 24bit interface, driven by 3.0~3.6 V (Ideal 3.3V). This module can be attached with PCAP, supporting I2C interface.

VGG482721-A its adopt LED backlighting driver IC to save time of LED board design and optimize cost. Our product uses PWM controls to fine-tune the results, making better lighting performance.

It can be operating at temperatures from -30°C to +80°C; its storage temperatures range from -30°C to +80°C.

☛ Link to VGG482721-A webpage.

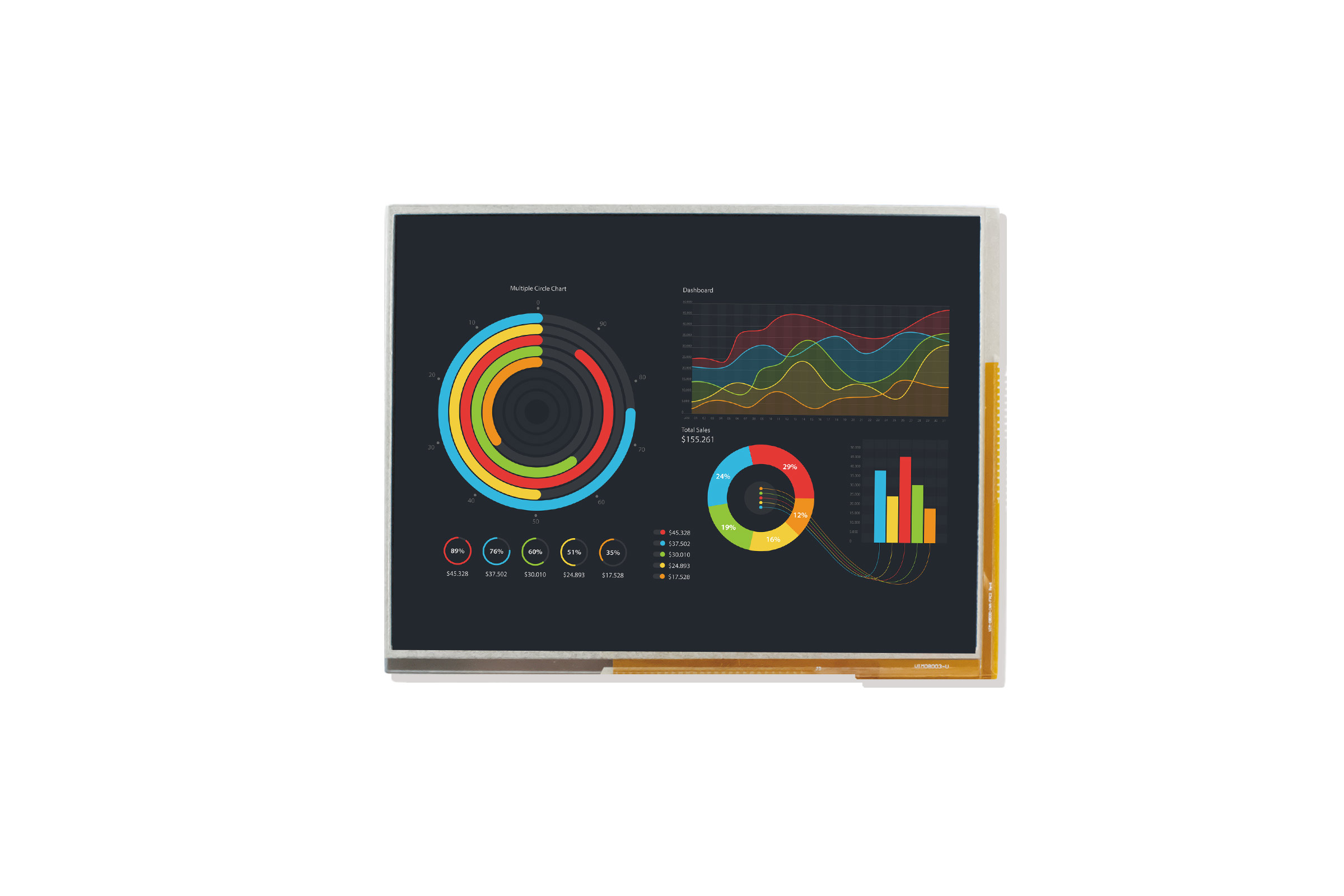

New Product – 8.0-inch IPS TFT-LCD Modules

There is a 8.0 inches HDMI* wide viewing angle IPS TFT module with 1024RGBx768 resolution, supporting any HDMI* system (including embedded system).

The outline size of the VGG107613-B is 174.0*136.0*11.8 (mm), and the weight is about 247g. This module can be attached with PCAP, supporting USB interface, driven by 11.5~12.5 V (Ideal 12.0V).

VGG107613-B its adopt LED backlighting driver IC to save time of LED board design and optimize cost. Our product uses PWM controls to fine-tune the results, making better lighting performance.

It can be operating at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C. (*Support HDMI Interface, suit for your digital device.)

☛ Link to VGG107613-B webpage.

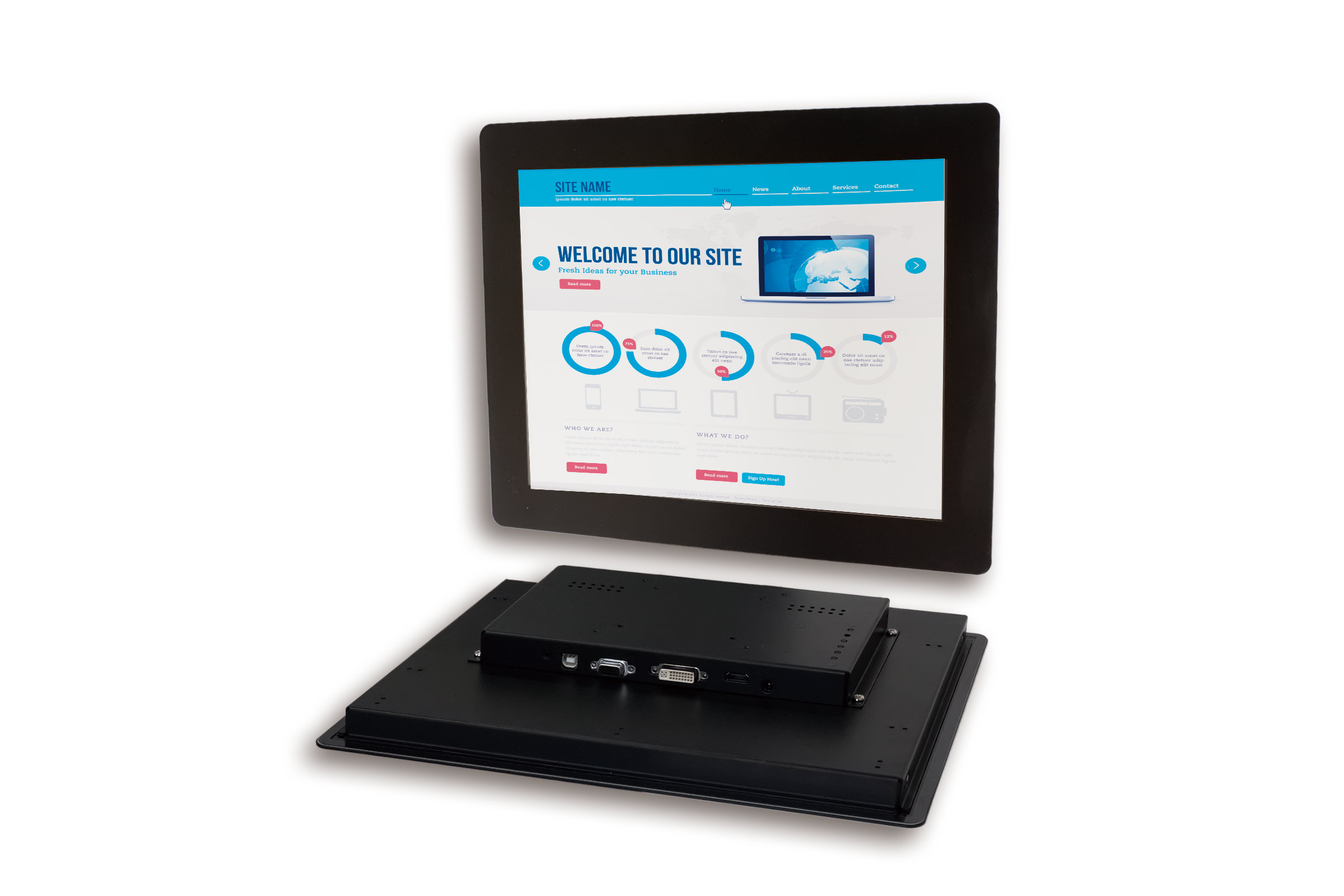

Open Frame with AB Coating (anti-bacterial)

▶ DESCRIPTION

A series of EVERVISION Open Frame Monitor support standard VESA mount with integrated bracket design for easy installation and unite different embedded applications. They can be used in many applications including Kiosks, POS and displays in different industrial field. To tally with public hygiene of using interactive display, EVERVISION provides the open frame solution with Nano Silver coating which including anti-bacterial function. Moreover, it is with CE Certificate and confirmed a long-term great bacteriostasis that can kill over 99.99% common disease-causing bacteria and fungi.

▶ FEATURE

EVERVISION develops Open Frame Monitor that can use our improved projected capacitive touch panel (IPCT), and it will make the total solution with cost efficiency and easy integration under this combination. We offer the customers our best service with a short delivery time, flexible quantity and customized solutions. EVERVISION provides a series of long lifetime open frames that meet the high durability and reliability with industry standard. EVERVISION offers different types of interfaces for the customers.

☛ Link to VGG107609-C webpage.
