July Theme－Improve Projected Capacitive Touch Panel
IEVERVISION’s Projected Capacitive (PCAP) Touch screen is made from design to produce by ourselves; we call it Improve Projected Capacitive (IPCT) Touch Screen. We offer our customers two options, I2C and USB.
The IPCT outlines are compatible to resistive touch panel so that upgrades can be realized without housing changes. This technology allows attaching a customized Cover Glass to the IPCT.
Glass thicknesses up to 8.0 mm are possible and can be cost-effective bonded by tape or for best performance by Optical Bonding

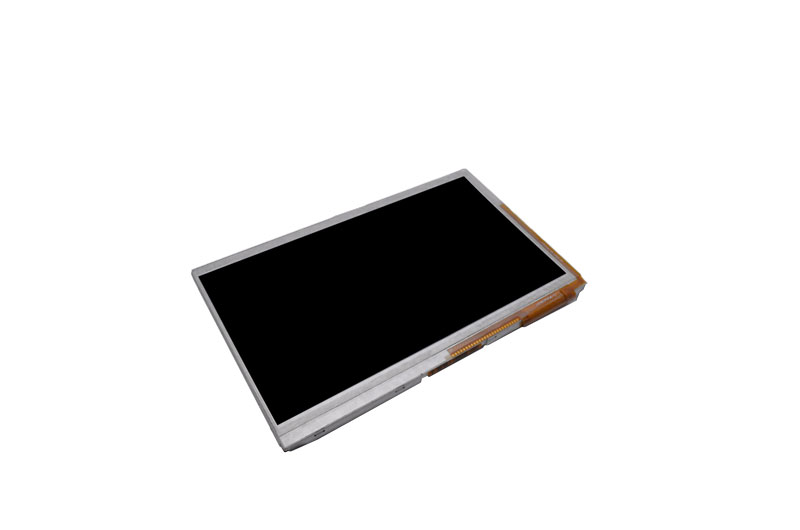

New Product – 7.0 “ (1024x768) HDMI* TFT LCD Module
There is a 7.0 inches HDMI* wide viewing angle IPS TFT module with 1024RGBx768 resolution, supporting any HDMI* system (including embedded system). The outline size of the VGG106007-G is 165.5*104.0*14.25 (mm), and the weight is about 212g.
This module can be attached with PCAP, supporting USB interface, driven by 11.5~12.5 V (Ideal 12.0V). VGG106007-G is a sunlight readable TFT LCD module. Its Viewing Angle (H/V) is 160/160 degrees; brightness is 1230 nits (typ.).
Life span to half brightness is 50,000 hours (typ.). We adopt LED backlighting driver IC to save time of LED board design and optimize cost. Our product uses PWM controls to fine-tune the results, making better lighting performance.
It can be operating at temperatures from -20°C to +70°C; its storage temperatures range from -30°C to +80°C. (*Support HDMI Interface, suit for your digital device.)

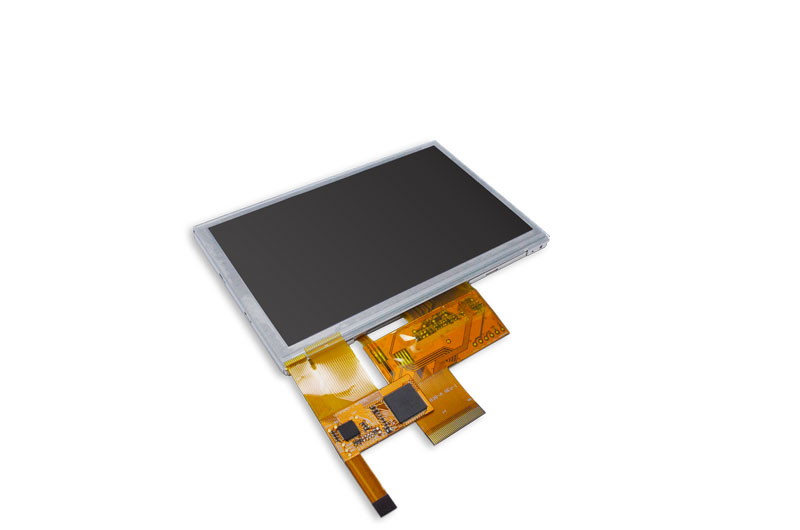

New Product –5.0 “ (800x480) IPS TFT LCD Module
VGG804838 series is a 5.0 inches IPS wide viewing angle TFT module with 800RGBx480 resolution. It delivers unbelievably smooth visuals and suitable for Safety control systems, medical application, and industrial equipment.
The outline size of the module is 118.5*77.55 (mm), and AA is 108.0*64.8 (mm). VGG804838 series supports TTL RGB 24bit interface, driven by 3.0~3.6 V (Ideal 3.3V).
VGG804838 series’ Viewing Angle (H/V) is 160/160 degrees; brightness is from 440 nits (typ.).
Life span to half brightness is 50,000 hours (typ.) It can be operating at temperatures from -30°C to +80°C; its storage temperatures range from -30°C to +80°C.

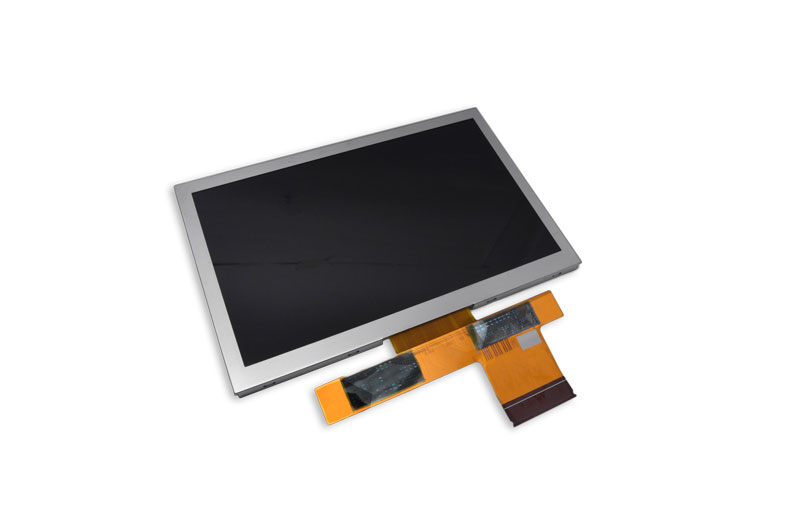

New Product – 7.0 “ (800x480) IPS TFT LCD Module
VGG804833 series is a 7.0 inches IPS wide viewing angle TFT module with 800RGBx480 resolution. 7.0” WVGA IPS TFT LCD module delivers unbelievably smooth visuals and suitable for Safety control systems, medical application, and industrial equipment.
The outline size of the module is 166.0*109.4 (mm), and AA is 152.4.0*91.44 (mm). VGG804838 series supports TTL RGB 24bit / LVDS interface, driven by 3.0~3.6 V (Ideal 3.3V).
VGG804833 series is a wide viewing angle and Wide Temperature Color TFT LCD module. Its Viewing Angle (H/V) is 160/160 degrees; brightness is from 800 nits (typ.).
Life span to half brightness is 65,000 hours (typ.) It can be operating at temperatures from -30°C to +85°C; its storage temperatures range from -30°C to +90°C.
